EM-PB-GATEWAY-IFS - Data interface

2297620

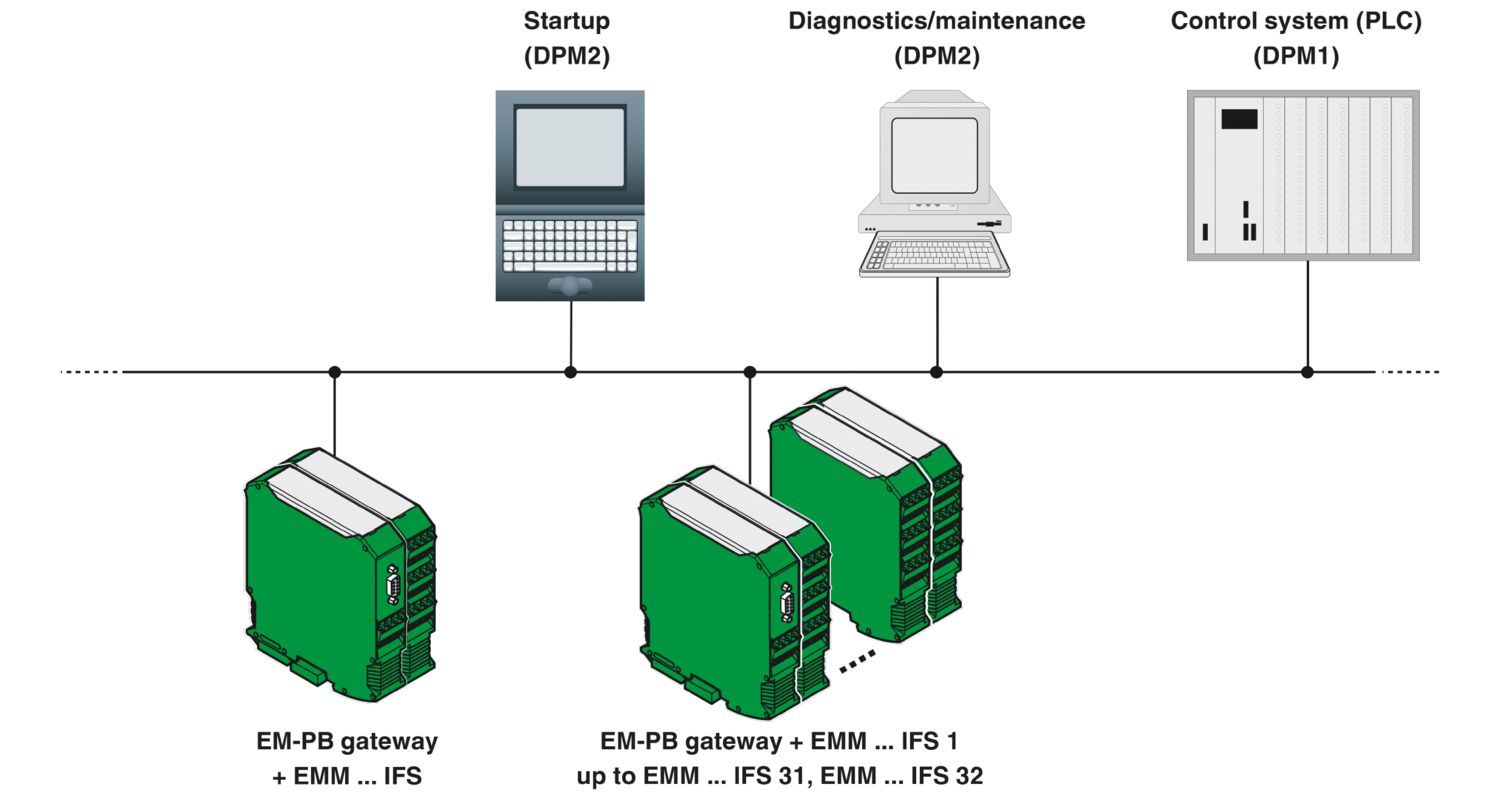

Gateway for the connection of up to 32 Interface system devices to a higher-level controller via PROFIBUS DP. The Interface system devices are connected to the gateway via DIN rail connectors. The DIN rail connectors are provided.

This product needs further products for operation. Mandatory accessories

Free download available. Downloads

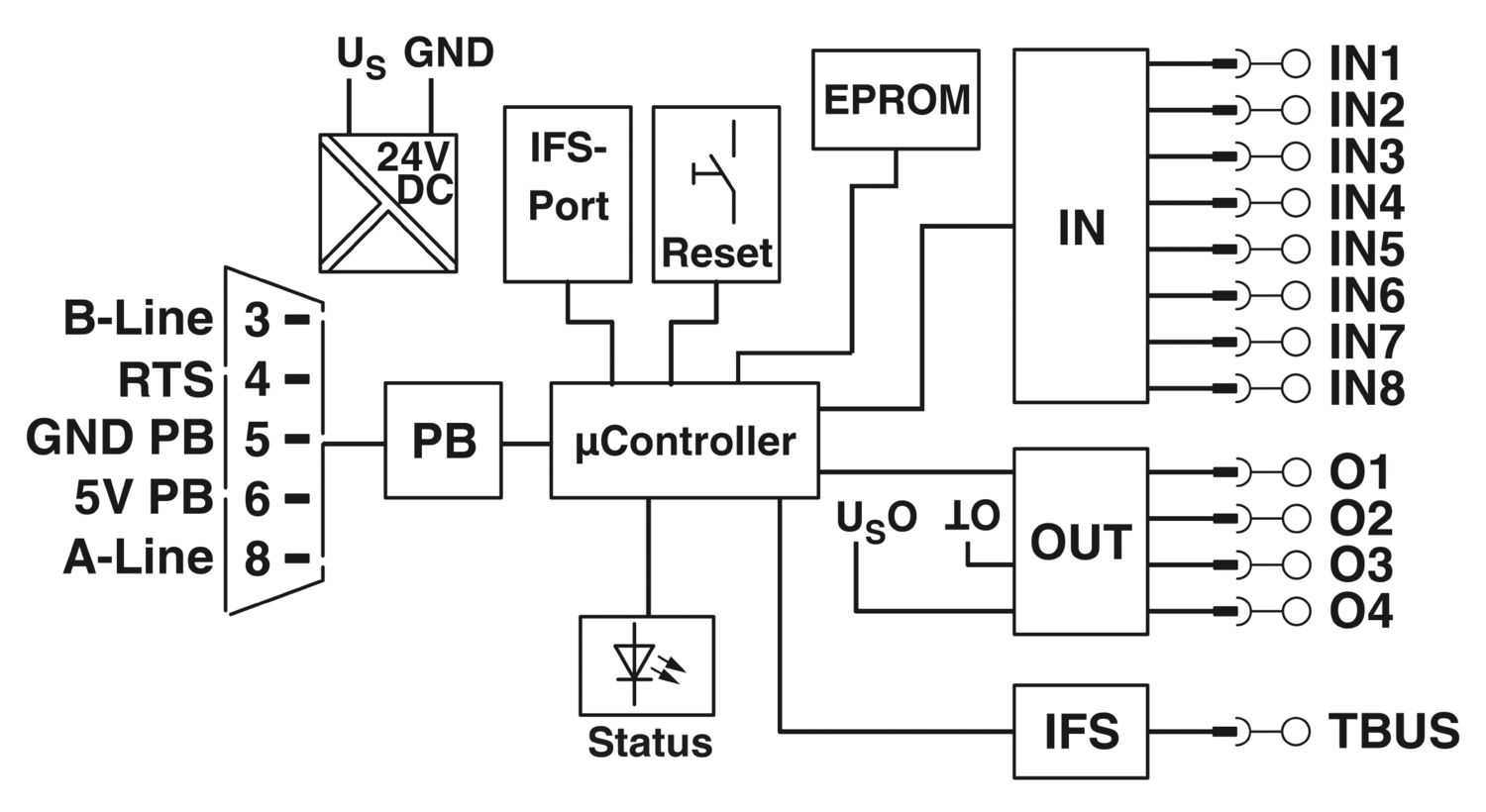

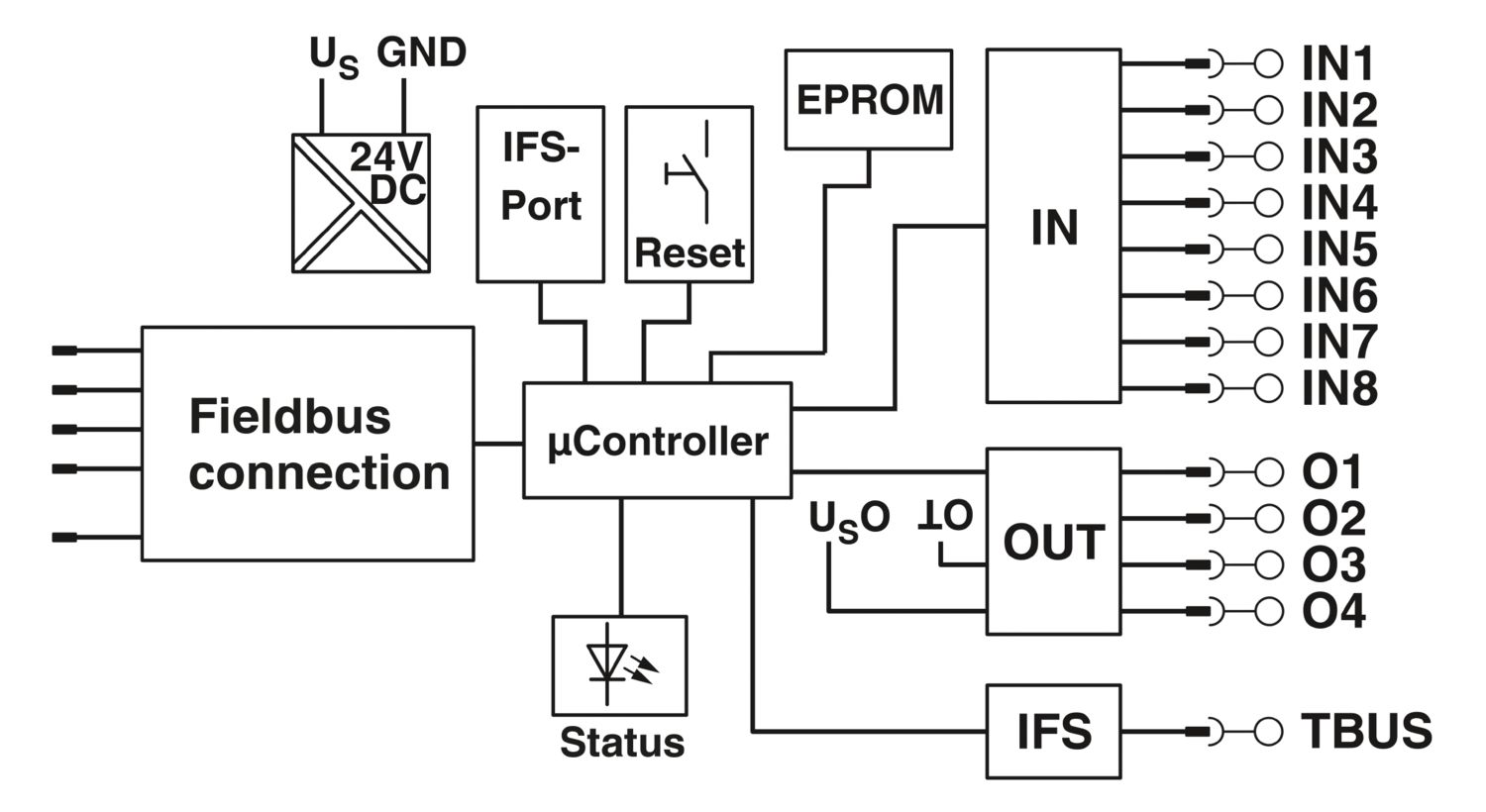

Product details

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product type	Gateways/Proxies
Operating mode	100% operating factor
Insulation characteristics
Overvoltage category	III
Pollution degree	2

Supply
Rated control circuit supply voltage U_S	24 V DC -20 % ... +25 %
Rated control supply current I_S	85 mA (plus load current of the outputs)
Protective circuit	Reverse polarity protection
	Surge protection

Digital
Number	8
Rated actuating voltage U_C	24 V DC ±20 %
Rated actuating current I_C	3 mA
Protective circuit	Reverse polarity protection
	Surge protection

Digital: Switching outputs
Number	4
Residual voltage	1 V
Maximum switching voltage	23 V DC (U_B - U_resid. of the output)
Max. switching current	500 mA
Protective circuit	Parallel protection against polarity reversal, pay attention to the fuse (Fusing with max. 8 A F-fuse)

Supply
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Input
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Output
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Programming connection
Connection method	S-PORT (socket)
Number of connections	1
Number of positions	12
INTERFACE system
Connection method	DIN rail bus connector
Number of connections	1
Number of positions	5
PROFIBUS DP
Connection method	D-SUB
Number of connections	1
Number of positions	9

Data: Network interface
Communication protocol	PROFIBUS DP
Connection method	D-SUB socket strip
Number of connections	1
Number of positions	9
Transmission speed	12 Mbps
Data: Service interface
Communication protocol	Interface-System
Connection method	S-PORT (socket)
Number of connections	1
Number of positions	12
Data: Device bus
Communication protocol	Interface-System
Connection method	DIN rail bus connector
Number of connections	1
Number of positions	5
Transmission speed	76.8 kbps

Width	22.5 mm
Height	107.8 mm
Depth	113.8 mm

Color	gray (RAL 7042)
Housing material	Polyamide PA non-reinforced

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-35 °C ... 50 °C
Ambient temperature (storage/transport)	-35 °C ... 80 °C

UKCA
Certificate	UKCA-compliant

Standards/regulations	EN 50178

Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing
Mounting position	any

Commercial data

Item number	2297620
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK7721
Product key	DK7721
Catalog page	Page 20 (C-5-2019)
GTIN	4046356319652
Weight per piece (including packing)	221 g
Weight per piece (excluding packing)	149,61 g
Customs tariff number	85176200
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

8 digital inputs and 4 outputs can be freely parameterized

Certified according to DPV1 specification (EN 50170)

Failsafe mode supported

Digital switching outputs for direct control of the EMM...IFS (forward/reverse running)

Communication via TBUS with up to 31 EMM...IFS modules

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	16ead3b7-7b89-48f5-9c38-1aa1fb1186f9
