CK6,0-ED-10,00M DCC AG
-
Crimp contact
1556208
Crimp contact, series: HC-M-...-25, HC-DCC4-I-CT-HW, Pin, turned, contact diameter: 6 mm, connection cross section: 10 mm2 ... 10 mm2, AWG 8...8 , contact material: Cu alloy
Product details
| General | HC-DCC4-I-CT-HW-M contact carrier |
| Assembly note | The quality of a crimp connection is determined by DIN EN 60352-2. |
| Assembly note | The contacts are qualified for crimping dies in accordance with DIN 46235. Klauke, for example, offers an appropriate tool: Crimping dies from the D22 series are required for the EKM6022 battery-powered hydraulic crimping pliers. Due to the narrow crimping width of 5 mm, it is very important to make two compressions next to one another. For the EK12042 model, crimping dies from the HD13 series are required. Due to a wider crimping process, only one compression is required. |
| Product type | Crimp contact |
| Series | HC-M-...-25, HC-DCC4-I-CT-HW |
| Contact material type | turned |
| Connection technology | |
| Contact connection type | Pin |
| Connection method | Crimp connection |
| Conductor connection | |
| Stripping length | 15.5 mm |
| Connection cross section | 10 mm² ... 10 mm² |
| Connection cross section AWG | 8 ... 8 |
| Material Contact | Cu alloy (lead-free) |
| Material Contact surface | Ag |

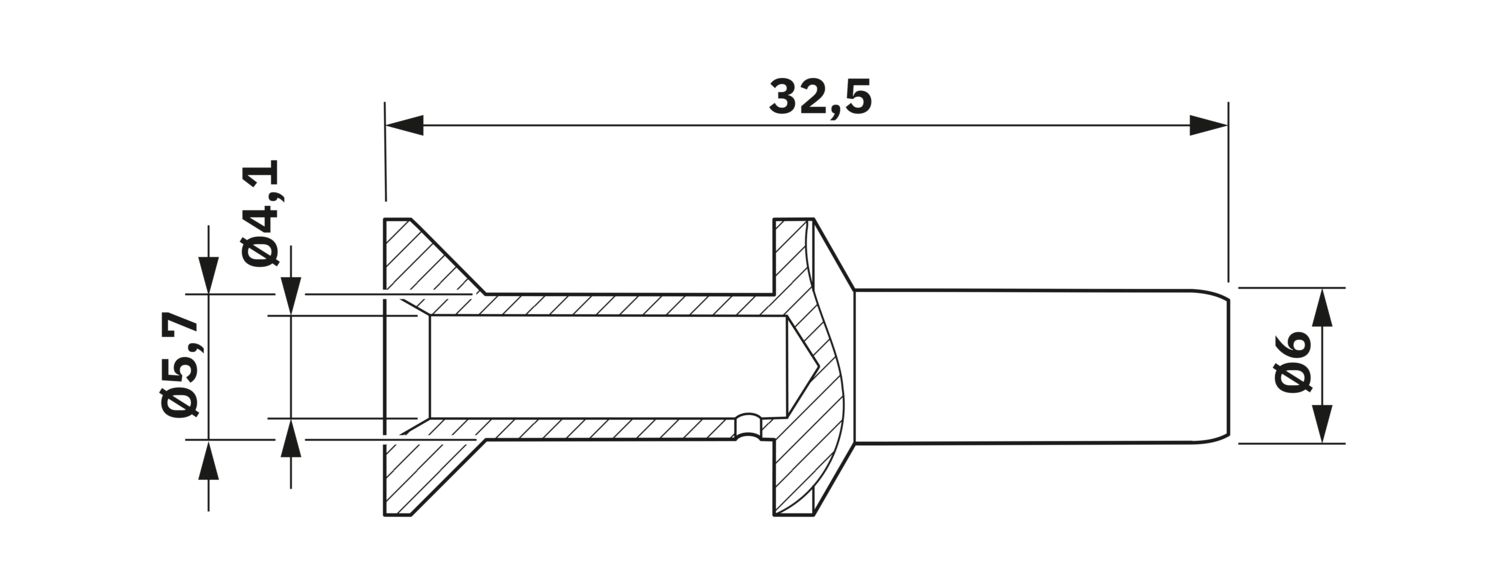

| Dimensional drawing |
|
| Length [l] | 32.5 mm |
| Diameter (Contact diameter) | 6 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
