IL SC BK-PAC
-
Bus coupler
2878719

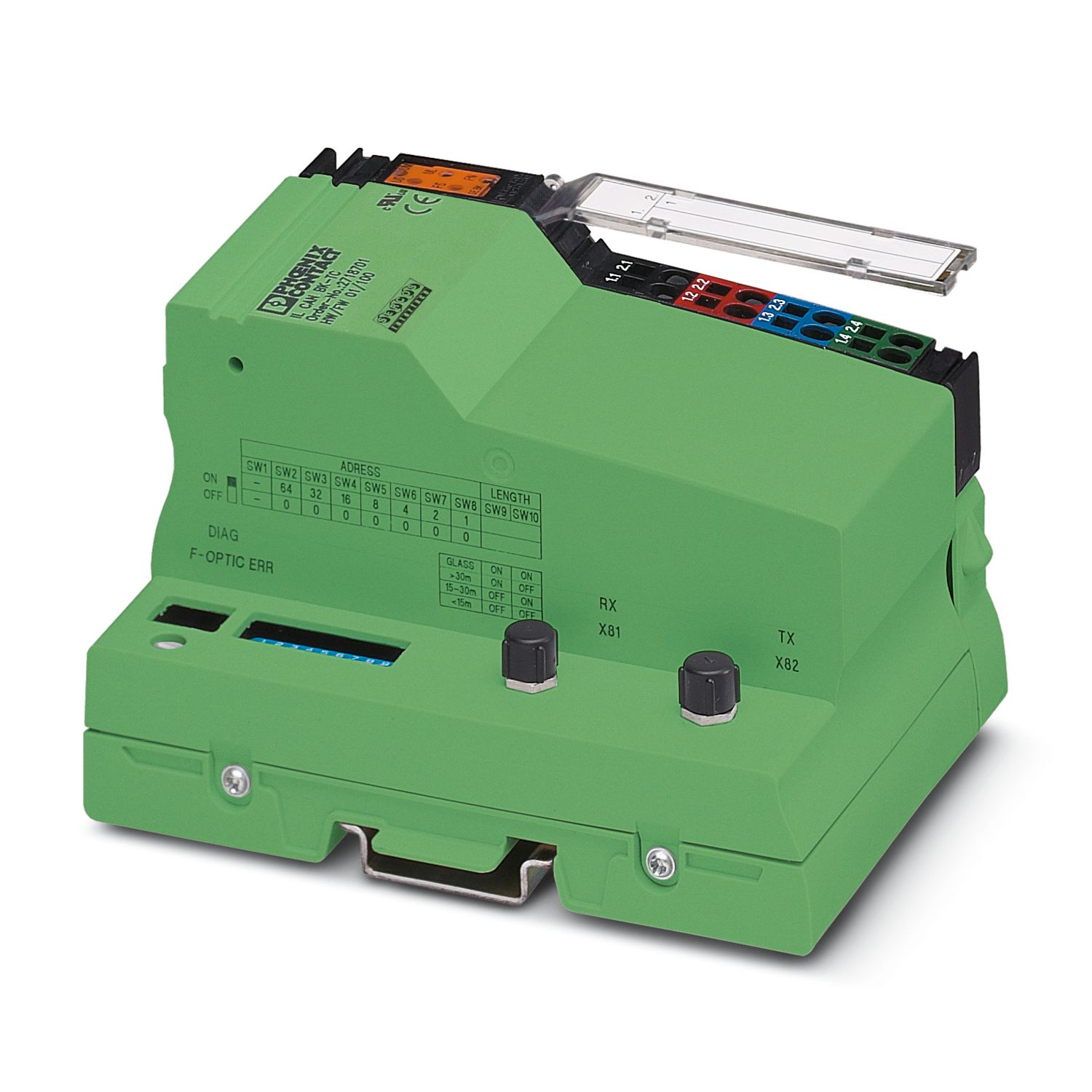

Sercos bus coupler for Inline, 24 V DC, complete with accessories (plug and labeling field)
Product details

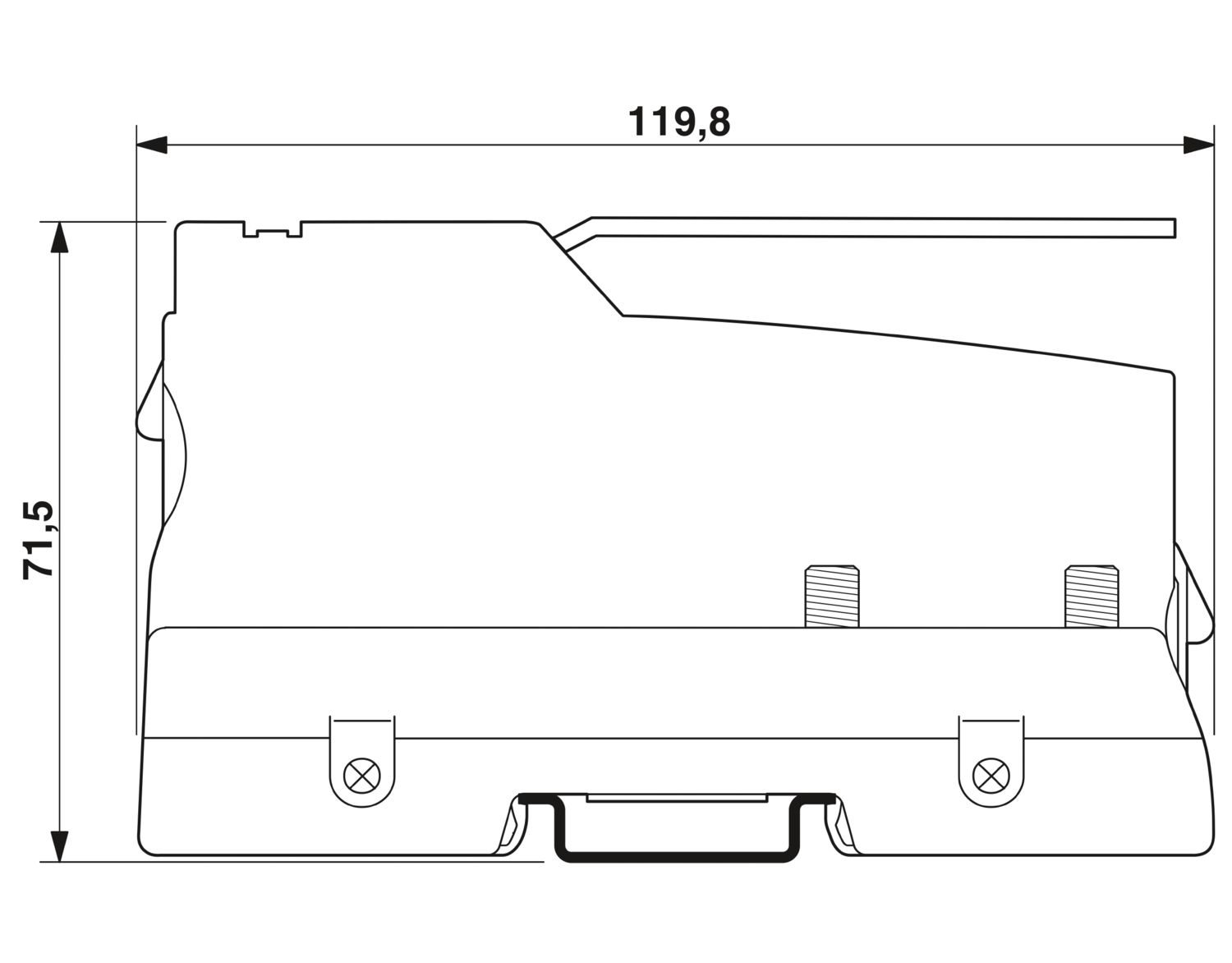

| Dimensional drawing |
|
| Width | 85 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Note on dimensions | Specfications with connectors |
| Color | green |
| Sercos II | |
| No. of channels | 2 |
| Connection method | F-SMA connector |
| Transmission speed | 16 Mbps, 8 Mbps, 4 Mbps, 2 Mbps |
| Inline local bus | |
| No. of channels | 2 |
| Connection method | Inline data jumper |
| Transmission physics | FO |
| Supply | |
| Connection method | 8-pos. Inline power connector |
| Fieldbus: Local bus gateway | |
| Max. number of local bus devices | 40 |
| System limits | |
| Number of local bus devices that can be connected | max. 40 |
| Number of devices with parameter channel | max. 0 |
| Number of supported branch terminals with remote bus branch | 0 |
| Module | |
| ID code (hex) | none |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |

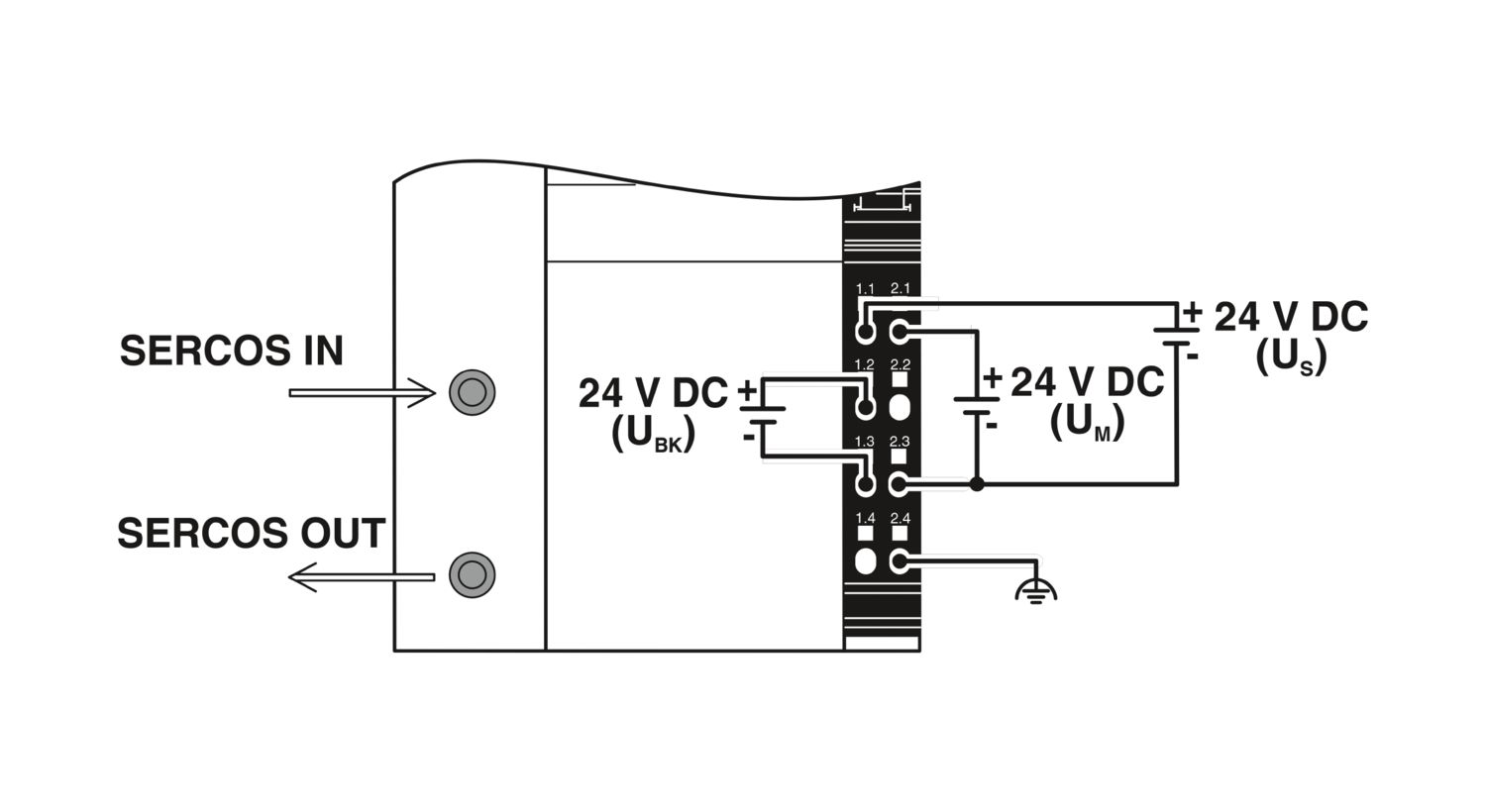

| Potentials: Bus coupler supply UBK; Communications power UL (7.5 V) and the analog supply UANA (24 V) are generated from the bus coupler supply. | |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 1.25 A (with max. number of connected I/O terminal blocks) |
| min. 110 mA (no local bus devices connected) | |
| Potentials: Communications power (UL) | |
| Supply voltage | 7.5 V DC |
| Potentials: Supply of analog modules (UANA) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Potentials: Main circuit supply (UM) | |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Potentials: Segment circuit supply (US) | |
| Supply voltage | 24 V DC (via Inline connector) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.09 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.09 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.09 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.09 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Ambient conditions | |
| Ambient temperature (operation) | 5 °C ... 55 °C |
| Degree of protection | IP20 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | max. 85 % (non-condensing) |
| Permissible humidity (storage/transport) | max. 85 % (non-condensing) |
| Mounting type | DIN rail mounting |
