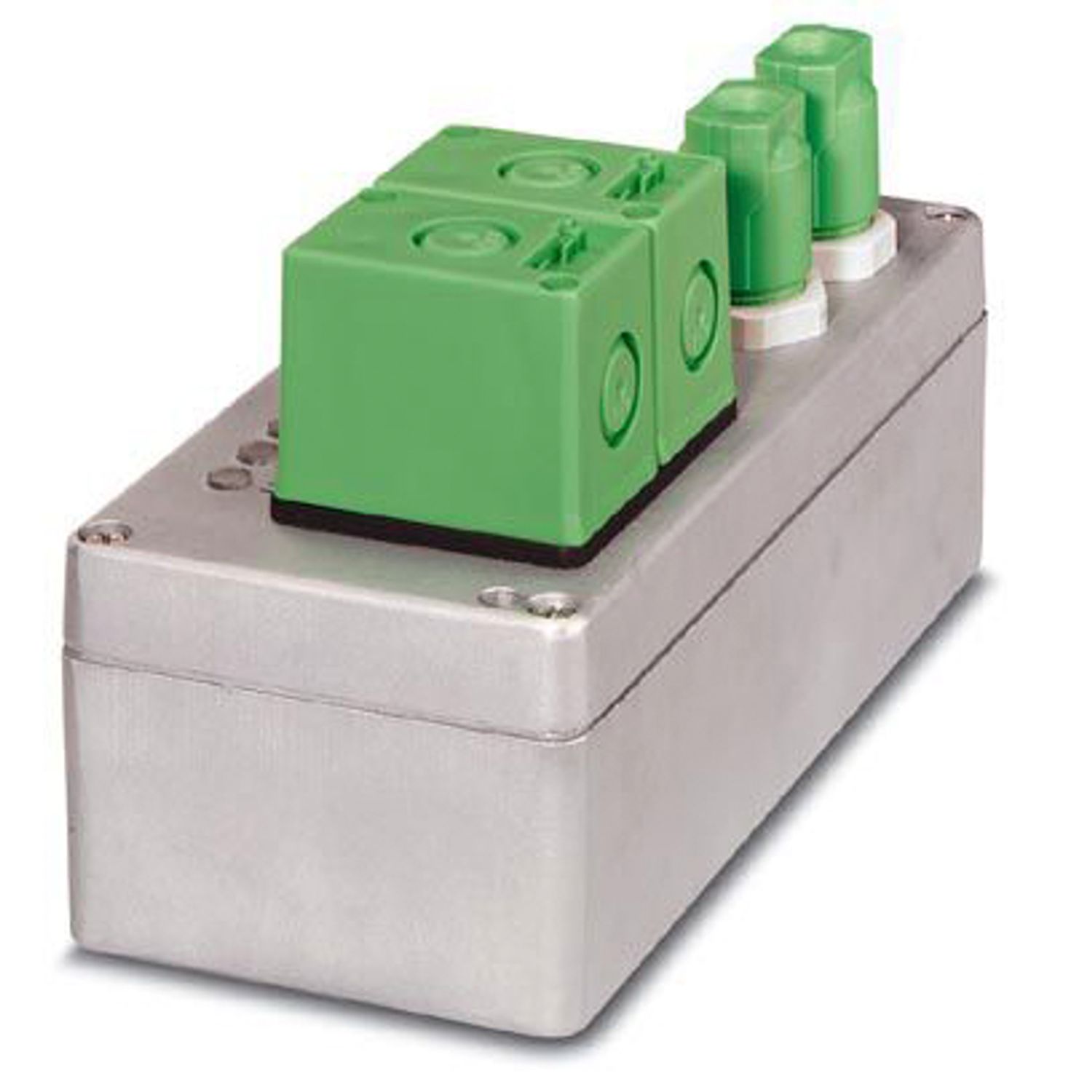

IBS L2 IP 24 BK-T
-
Bus coupler
2732376
INTERBUS bus terminal module with INTERBUS-Loop 2 branch, 24 V DC, IP65/67 protection
Product details
| Protective circuit | Polarity reversal protection, bus logics |
| Polarity reversal protection, Loop 2 electronics | |
| Surge protection (35 V for 0.5 s) | |
| Supply | |
| I/O voltage | 24 V DC 5 % (ripple) |
| I/O voltage range | 20 V DC ... 30 V DC |
| Typical current consumption | 100 mA (module electronics) |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| INTERBUS remote bus | |
| Connection method | MINI COMBICON |
| INTERBUS-Loop 2 | |
| Connection method | QUICKON fast connection |

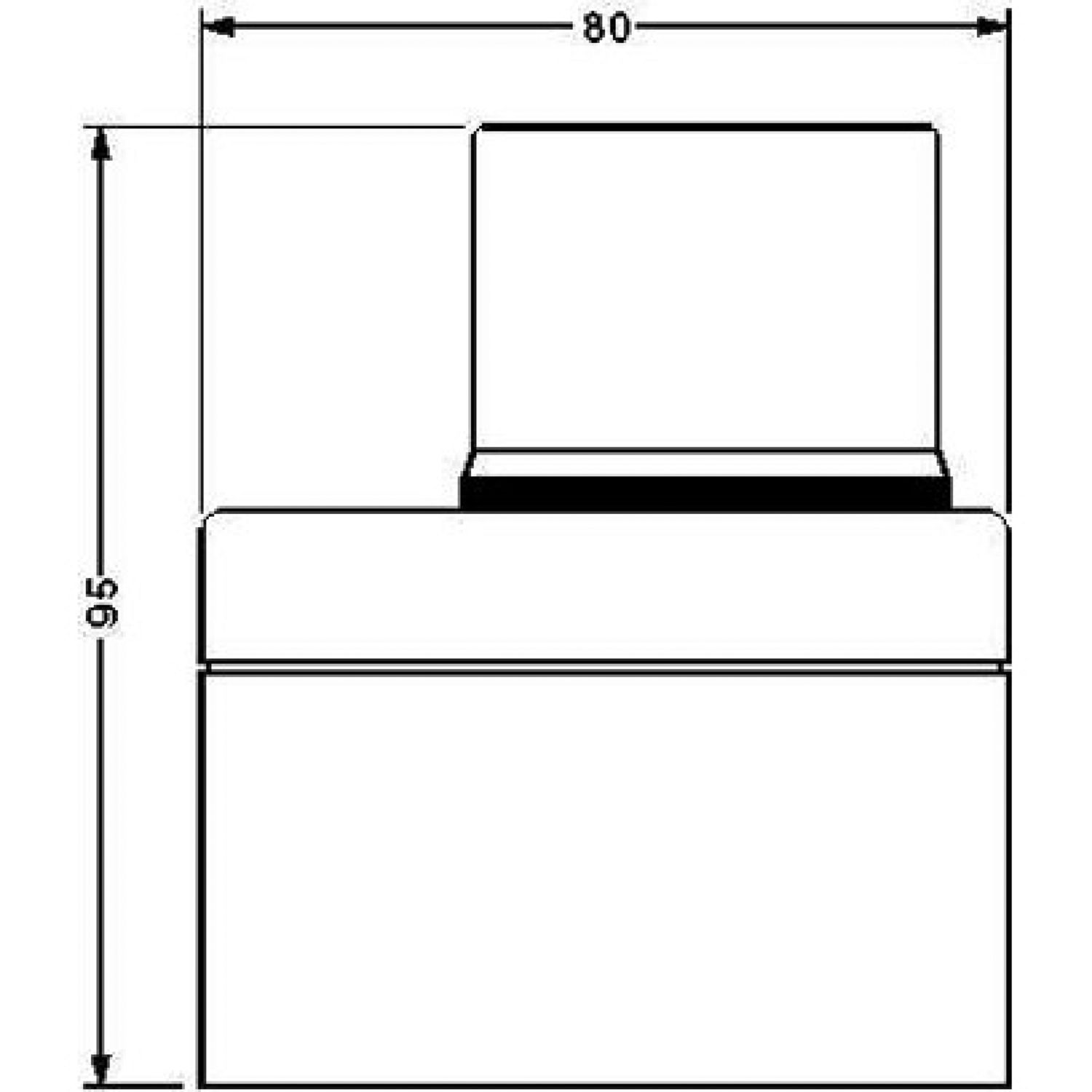

| Dimensional drawing |
|
| Width | 174 mm |
| Height | 95 mm |
| Length | 80 mm |
