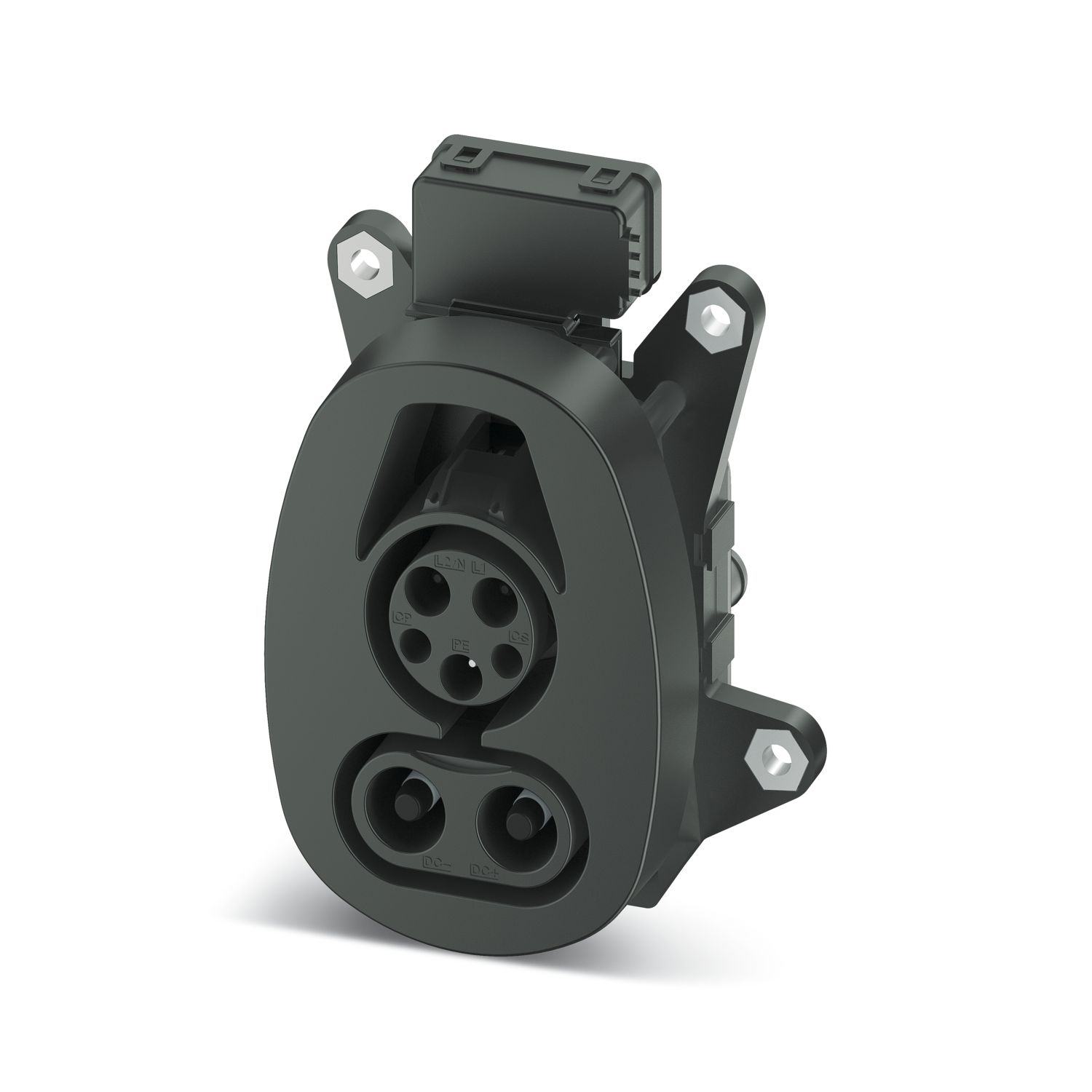

CHARX connect, CCS type 1, Vehicle Connector test adapter, 125 A permanent, 850 V DC, 20 A , 250 V AC, Accessories, length: 2 m, Front and rear mounting, as a test adapter for charging station tests, SAE J1772, IEC 62196-3, NOTE Special vehicle charging inlet for charging station tests, solely for laboratory tests, tests with charging stations (EVSE), and further analyses on the infrastructure side. Not for installation in any type of vehicle. Cannot be used outside of the laboratory area.
Special Vehicle Inlet for charging station tests, solely for laboratory tests, tests with charging stations (EVSE), and further analyses on the infrastructure side - not for installation in any type of vehicle, cannot be used outside of the laboratory area
| General | NOTE Special vehicle charging inlet for charging station tests, solely for laboratory tests, tests with charging stations (EVSE), and further analyses on the infrastructure side. Not for installation in any type of vehicle. Cannot be used outside of the laboratory area. |
| Product type | Vehicle Connector test adapter |
| Product family | CHARX connect |
| Application | as a test adapter for charging station tests |
| Combined Charging System | |
| Type | Accessories |
| Charging standard | CCS type 1 |
| Charging mode | Mode 2, 3, 4 |
| Customer variations | On request |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121 |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Insulation resistance | > 5 MΩ |
| Coding | 2.7 kΩ (between PE and CS) |
| Temperature measurement | DC contacts: Pt 1000 (DIN EN 60751) |
| Temperature monitoring | AC contacts: PTC chain (DIN EN 60738-1) |
| Type of charging current | AC single-phase |
| Charging power | 5 kW |
| Charging current | 20 A |
| Type of charging current | DC |
| Charging power | 106.25 kW |
| Charging current | 125 A |
| Power contact | |

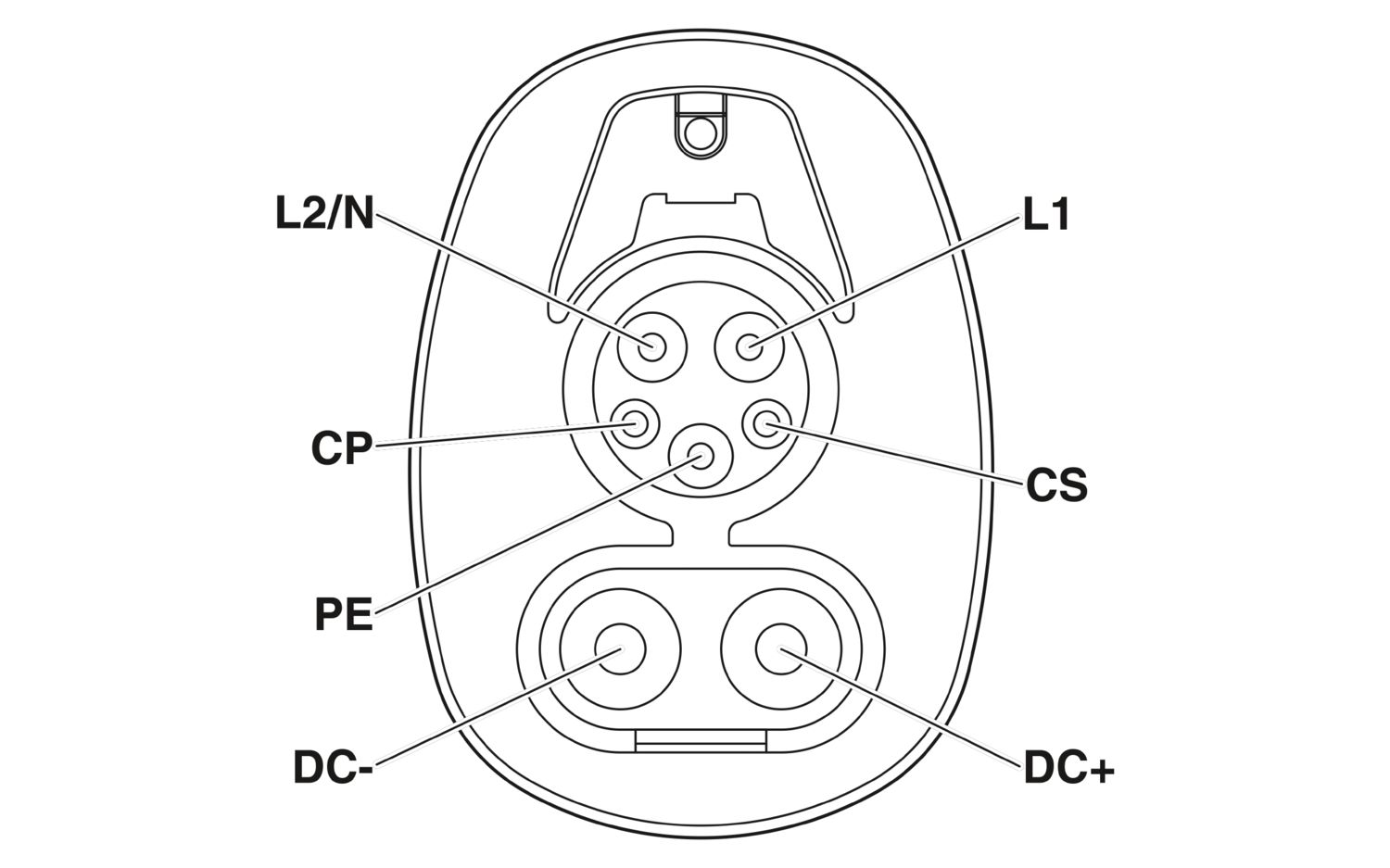

| Number | 5 (L1, N, PE, DC+, DC-) |
| Rated voltage | 250 V AC |
| 850 V DC | |
| Rated current | 125 A DC |
| 20 A AC | |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |

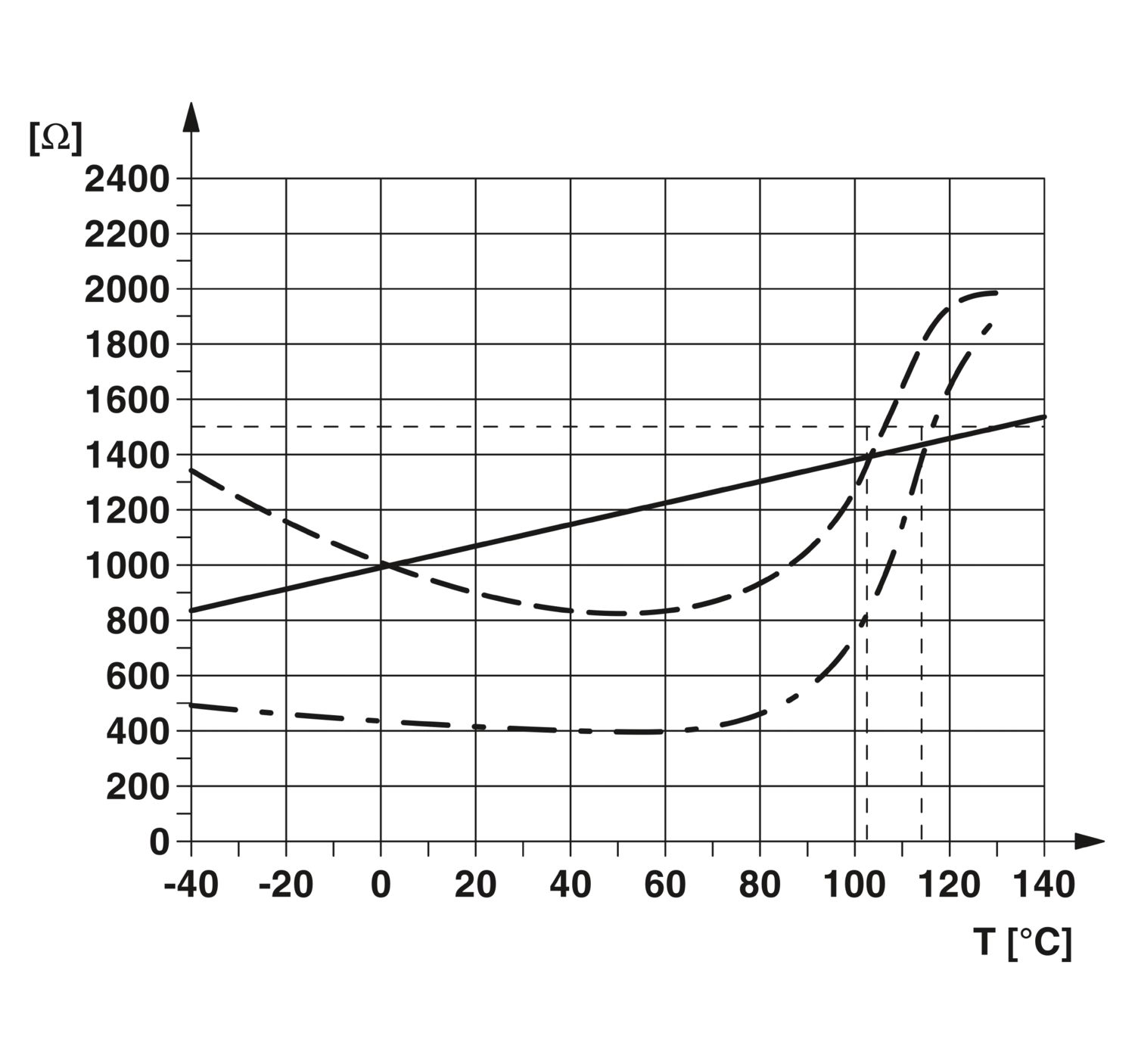

| Temperature sensors (Pt 1000) | |
| Sensor type | Pt 1000 |
| Standards/regulations | DIN EN 60751 |
| Attachment point | Sensor for the DC contacts |
| Switch-off temperature | 90 °C ±1 K (equivalent to a Pt 1000 value of 1346.5 Ω) |
| Long-term stability | 0.06 % (after 1000 hours at 130 °C) |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Coefficient | 3850 ppm/K |
| Ambient temperature | -50 °C ... 130 °C (Operation) |
| Temperature sensors (PTC chain) | |
| Sensor type | PTC chain |
| Standards/regulations | DIN EN 60738-1 |
| Diagnostics | Short circuit, cable break |
| Attachment point | Sensor for the AC contacts |
| Measuring range_resistance | 200.00 Ω ... 2200.00 Ω |
| Resistance | max. 1500 Ω |
| Recommended measured current | < 1 mA |
| Power dissipation | 20 mW |
| Ambient temperature | -40 °C ... 125 °C (Operation) |
| Locking actuator | |
| Possible power supply range at the motor | 9 V ... 16 V |
| Maximum voltage for locking detection | 30 V |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Service life insertion cycles | > 100000 load cycles |
| Lock recognition | available |
| Mechanical emergency release | available |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Cable length | 2 m |
| Cable structure | 4 x 0.5 mm² |

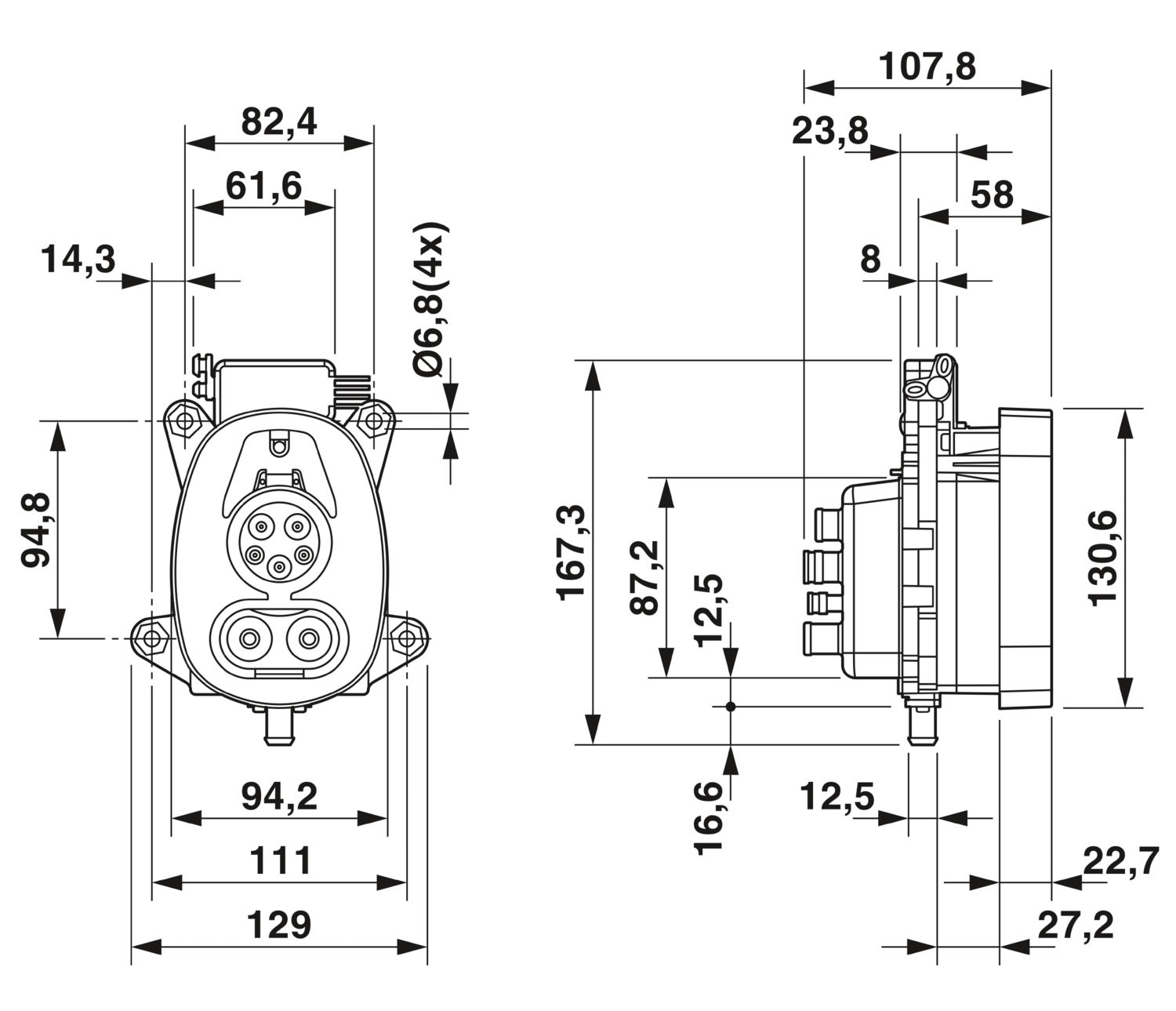

| Dimensional drawing |
|
| Bore dimensions | 94.8 mm x 82.4 mm, 94.8 mm x 111.0 mm |
| Cable length | 2 m (AC cables) |
| 2 m (DC cables) | |
| 2 m (Locking actuator cables) | |
| Cable structure | 2 x 35 mm² + 1 x 25 mm² + 2 x 2.5 mm² + 3 x 2 x 0.5 mm² |
| Cable length | 2 m |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | SAE J1772 |
| IEC 62196-3 | |

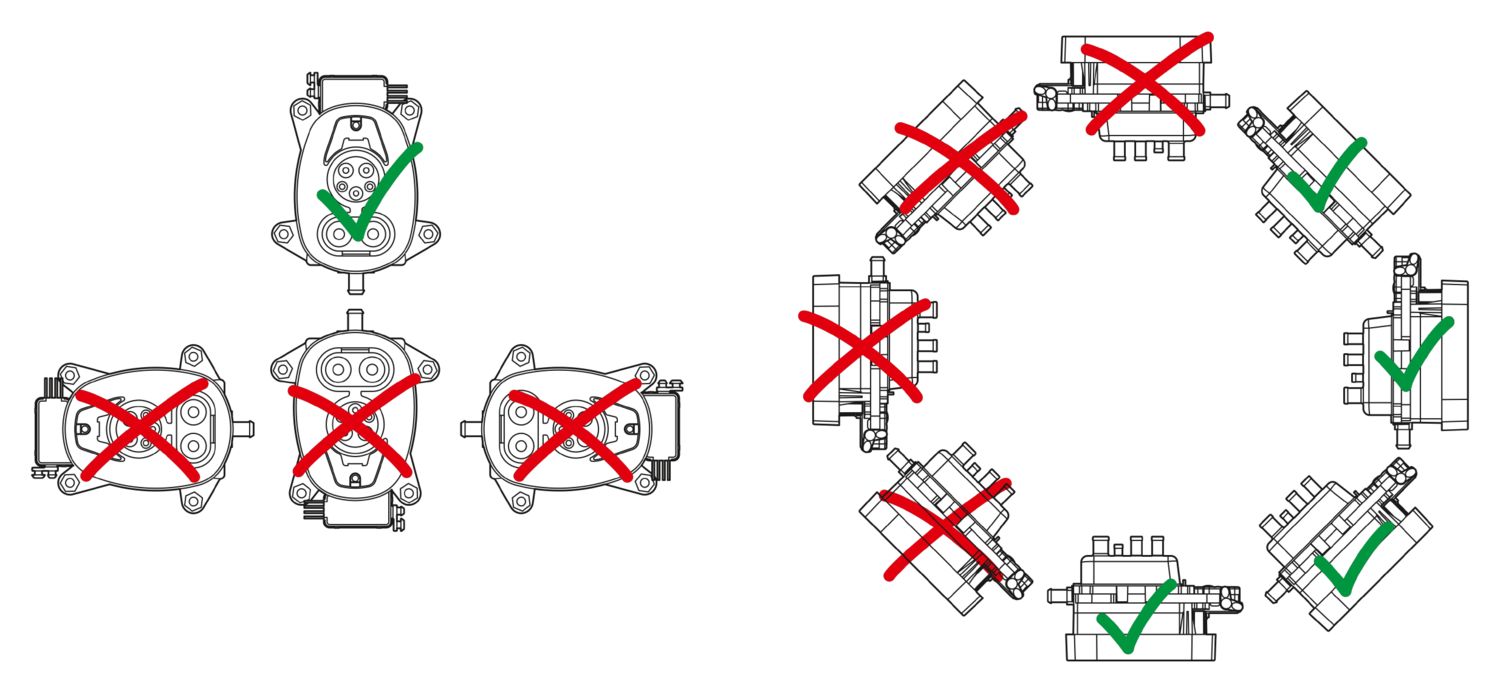

| Mounting type Vehicle charging inlet | Front and rear mounting (0 to 90 degree frontal inclination possible) |
| Mounting hole diameter | 6.80 mm (ø) |
