HC-B06-SG-CBK
-
Flat gasket
1411483
Replacement flat gasket, for HEAVYCON panel mounting base, HC-STA-...AL, type B6, conductive
Product details
| Product type | Seal |
| Application | for panel-mount base |

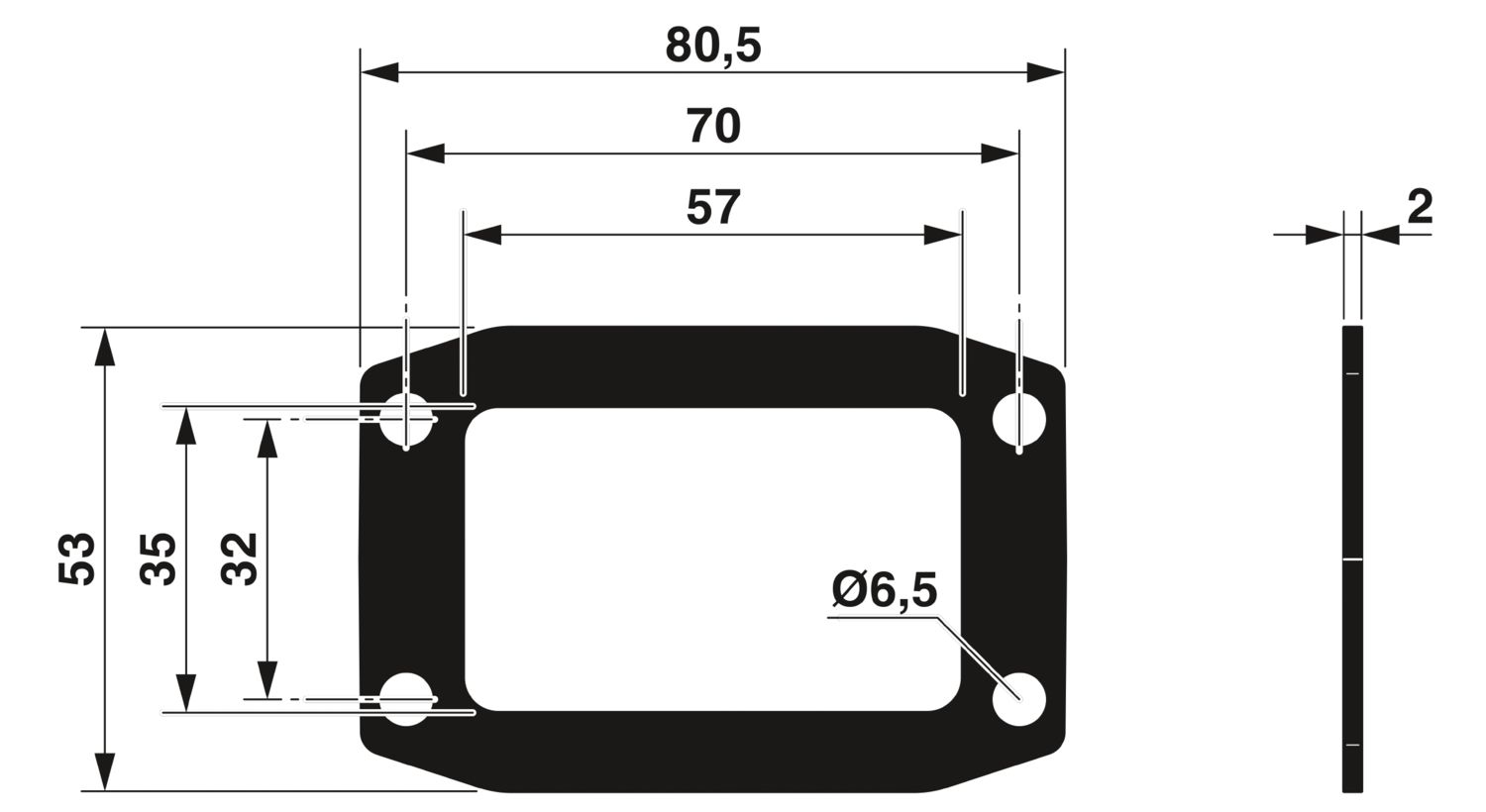

| Dimensional drawing |
|
| Width | 53 mm |
| Height | 2 mm |
| Length | 80.5 mm |
| Drill hole distance, horizontal | 70 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 6.5 mm |
| Material | NBR, conductive |
| Seal material | NBR |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
