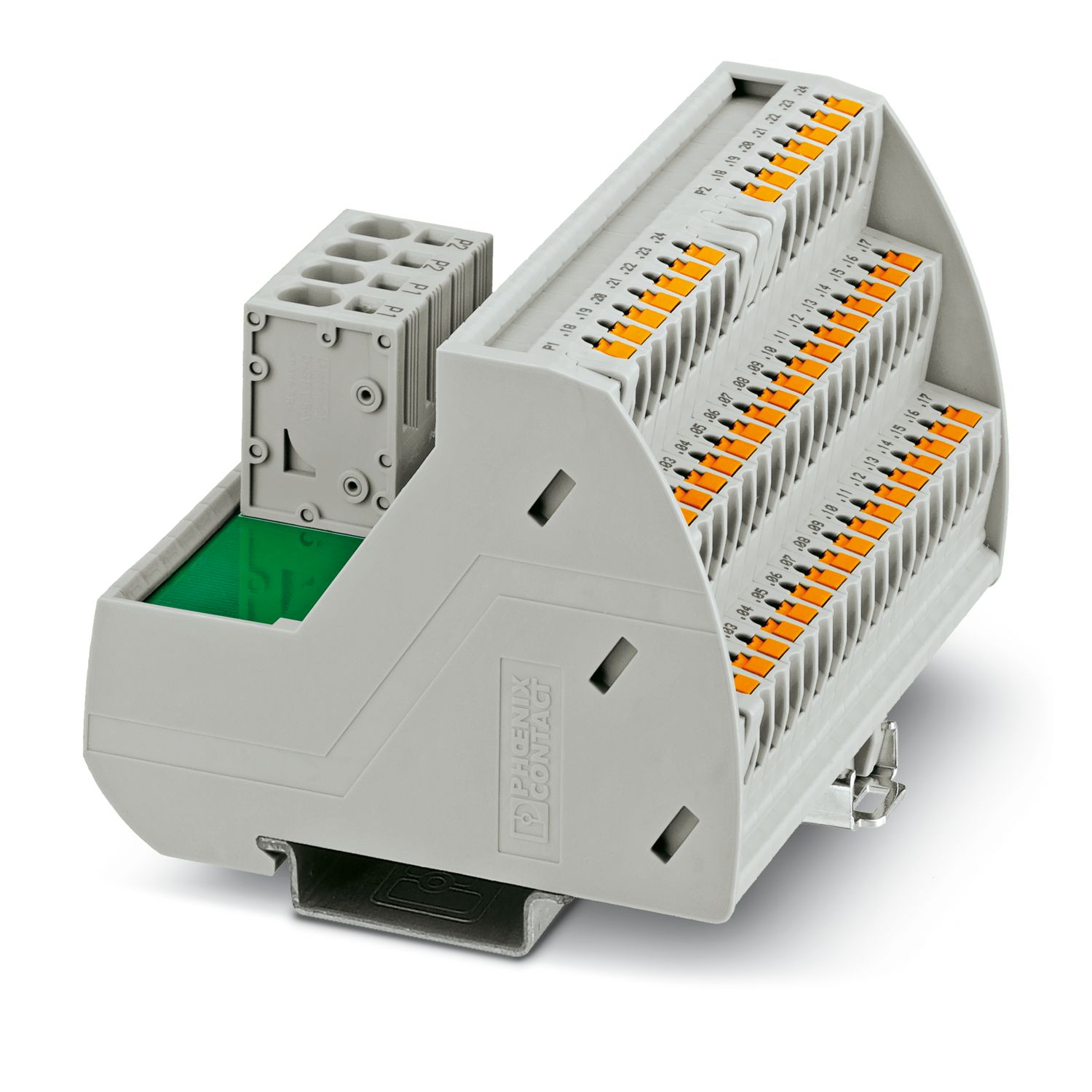

VARIOFACE module, with two equipotential busbars (P1, P2) for potential distribution, for mounting on NS 35 rails. Module width: 97.7 mm
| Type of insulation housing | Polyamide PA non-reinforced |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Product type | Potential distributor |
| Product family | VARIOFACE Professional |
| Potential connections | Per potential(P1, P2) 2 power/24 distributor terminal blocks |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Nominal voltage UN | 250 V AC/DC |
| Max. current carrying capacity per branch | 15 A |
| Max. total current of all branches | 30 A (per potential) |
| Potential connections | Per potential(P1, P2) 2 power/24 distributor terminal blocks |
| Feed-in | |
| Connection method | Push-in connection |
| Stripping length | 15 mm |
| Number of connections | 2 |
| Conductor cross section rigid | 0.25 mm² ... 6 mm² |
| Conductor cross section flexible | 0.25 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 |
| Distribution | |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Number of connections | 24 |
| Number of positions | 2 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |

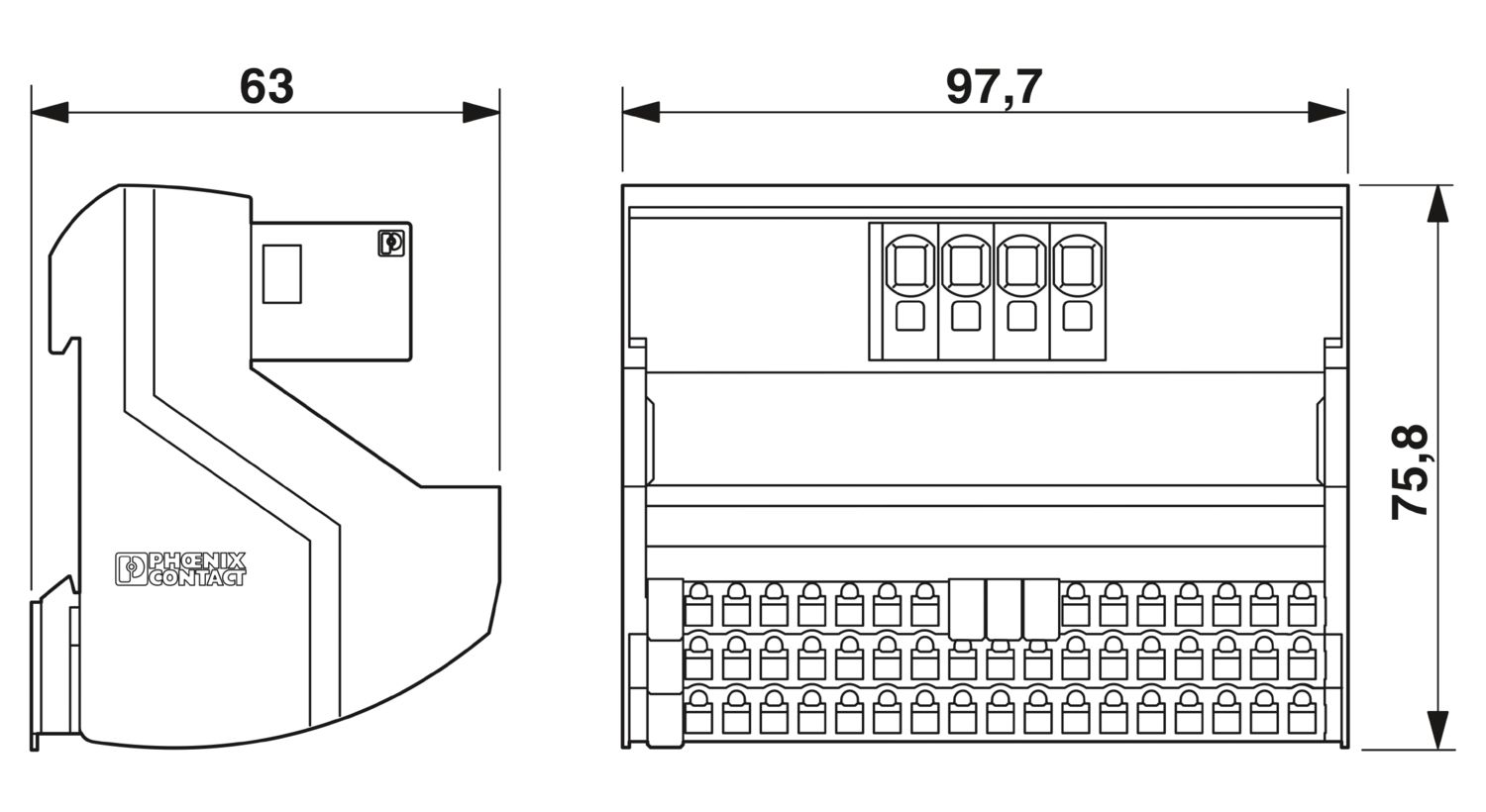

| Dimensional drawing |
|
| Width | 97.7 mm |
| Height | 75.8 mm |
| Depth | 63 mm |
| Color | gray (RAL 7042) |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 50 °C (NOTE: At maximum relative humidity < 90%.) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C (NOTE: At maximum relative humidity < 90%.) |
| Altitude | < 2000 m |
| Permissible humidity (operation) | 90 % |
| Permissible humidity (storage/transport) | 90 % |
| Standards/regulations | EN IEC 61010-2-201 |
| Mounting type | DIN rail mounting |
| Mounting position | any |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Output | 250 V | 15 A | 26 - 14 | |
| Input | 250 V | 15 A | 24 - 8 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Output | 250 V | 15 A | 26 - 14 | |
| Input | 250 V | 15 A | 24 - 8 |
