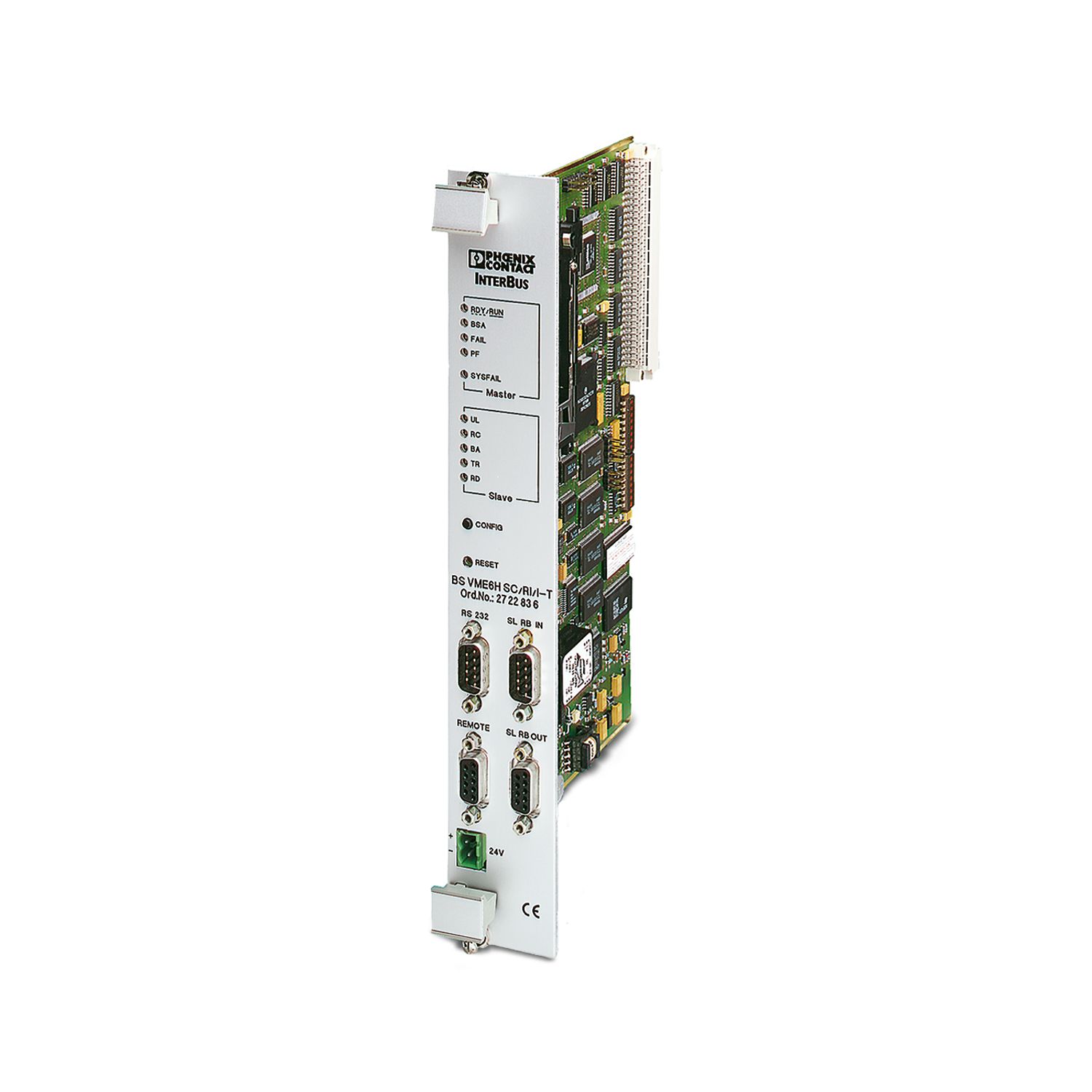

IBS VME6H SC/RI/I-T - Termination board
IBS VME6H SC/RI/I-T
-
Termination board
2722836
Termination board for 6 HE-VME bus systems, with electrical isolation
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
PLC controller board
Format
6 rack units, 2 slots
System properties
IEC 61131 runtime system
Data storage system
MPM, base address adjustable
INTERBUS-Master
Number of devices with parameter channel
max. 62
Local diagnostics
Monitored function
Master operating status
Optical representation
3 LEDs
Electrical properties
Local diagnostics
Master operating status 3 LEDs
Master error status 2 LEDs
Slave operating status 3 LEDs
Slave error status 2 LEDs
Transmission medium
Copper
Maximum power dissipation for nominal condition
max. 3 W
Supply
Supply voltage
5 V DC (master)
24 V DC (slave, connection: COMBICON, MSTB 2,5)
Supply voltage range
4.9 V DC ... 5.3 V DC (master)
18 V DC ... 31 V DC (Slave)
Power supply connection
Via VMEbus connector P1
Residual ripple
0.1 V
PP
(master)
0.5 V
PP
(Slave)
Typical current consumption
610 mA (master)
100 mA (Slave)
Interfaces
Interrupts
Level 1-7, vector 0 - 255
INTERBUS remote bus
Connection method
9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation
Parameterization/operation/diagnostics
Connection method
RS-232-C, D-SUB 9-pos. male connector
Host system
Connection method
VMEbus systems, VMEbus connector P1 (IEC 603-2)
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP00
Mounting
Mounting type
In the host system
Commercial data
Item number
2722836
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
DR
Product key
DRSAAA
GTIN
4017918141189
Weight per piece (including packing)
571.1 g
Weight per piece (excluding packing)
571.1 g
Customs tariff number
85389091
Country of origin
DE
Environmental product compliance
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
IBS PRG CAB
-
Connecting cable
2806862
IBS MC FLASH 2MB
-
Memory
2729389
DIAG+
-
Configuration and diagnostic software
2730307
IBS CMD SWT G4 E
-
Configuration and diagnostic software
2721442
IBS CMD SWT G4
-
Configuration and diagnostic software
2721439
IBS MC FLASH 2MB
-
Memory
2729389
