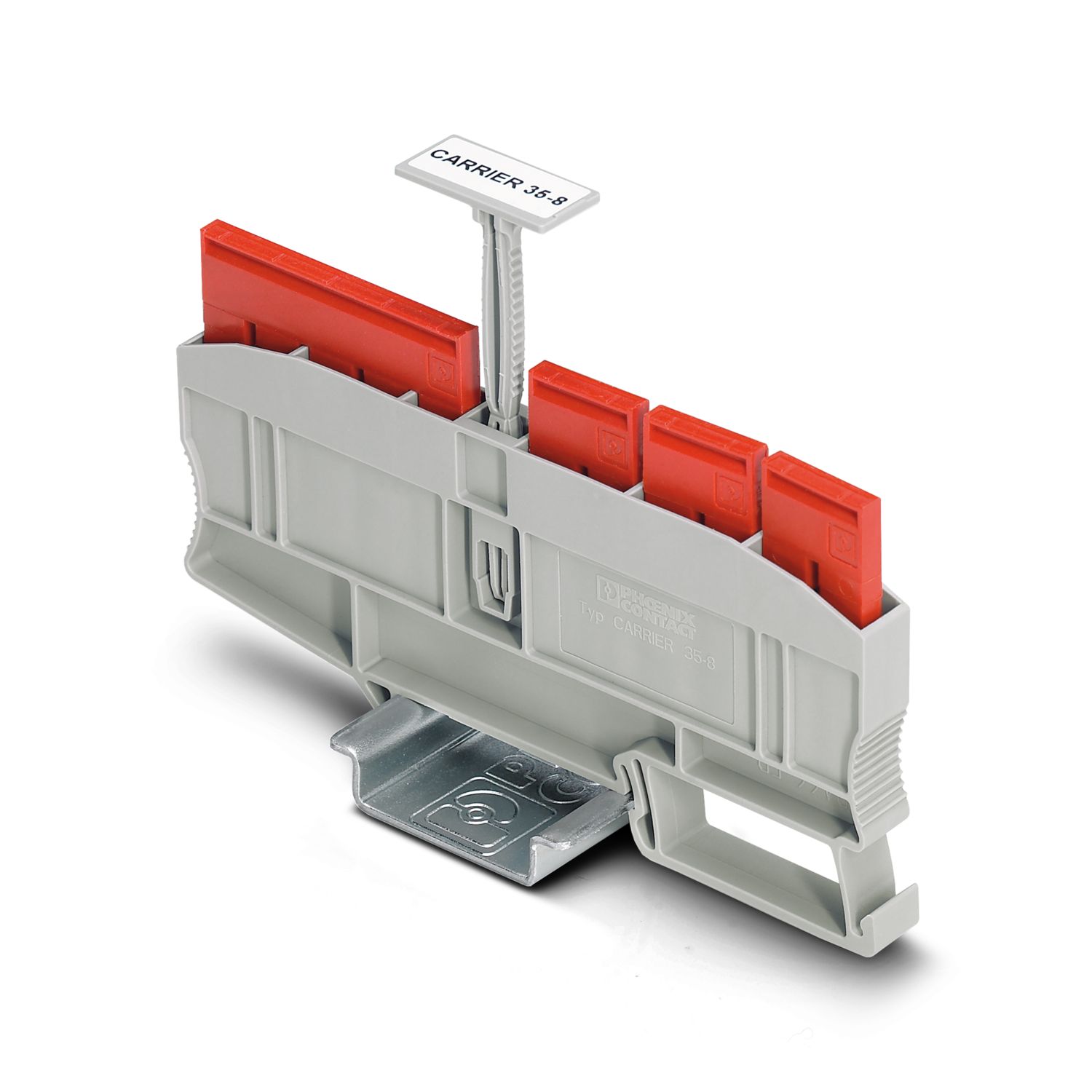

CARRIER 35-8 - Partition plate
CARRIER 35-8
-
Partition plate
3034387
Partition plate, With storage option for FBS...-8 and PAI 4-FIX, material: PA, color: gray
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Partition plate
Dimensions
Width
8.2 mm
Height
99.8 mm
Depth on NS 35/7,5
49.6 mm
Depth on NS 35/15
57.1 mm
Length
99.8 mm
Material specifications
Color
gray (RAL 7042)
Material
PA
Flammability rating according to UL 94
V0
Static insulating material application in cold
-60 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)
-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Mounting
Mounting type
NS 35/7,5
NS 35/15
Commercial data
Item number
3034387
Packing unit
10 pc
Minimum order quantity
10 pc
Sales key
BE
Product key
BE2Z1X
Catalog page
Page 407 (C-1-2019)
GTIN
4046356281041
Weight per piece (including packing)
13.84 g
Weight per piece (excluding packing)
12.4 g
Customs tariff number
39269097
Country of origin
PL
Classifications
ECLASS
ECLASS-13.0
27250302
ETIM
ETIM 9.0
EC001041
UNSPSC
UNSPSC 21.0
39121400
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
KLM 2
-
Terminal strip marker carrier
0807575
KLM 3
-
Terminal strip marker carrier
0811969
KLM 3-L
-
Terminal strip marker carrier
0814788
NS 35/ 7,5 PERF 2000MM
-
DIN rail perforated
0801733
NS 35/ 7,5 UNPERF 2000MM
-
DIN rail, unperforated
0801681
NS 35/ 7,5 WH PERF 2000MM
-
DIN rail perforated
1204119
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10
-
DIN rail, unperforated
1204122
NS 35/ 7,5 AL UNPERF 2000MM
-
DIN rail, unperforated
0801704
NS 35/ 7,5 ZN PERF 2000MM
-
DIN rail perforated
1206421
NS 35/ 7,5 ZN UNPERF 2000MM
-
DIN rail, unperforated
1206434
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10
-
DIN rail, unperforated
0801762
NS 35/ 7,5 CAP
-
End cap
1206560
E/AL-NS 35
-
End bracket
1201662
