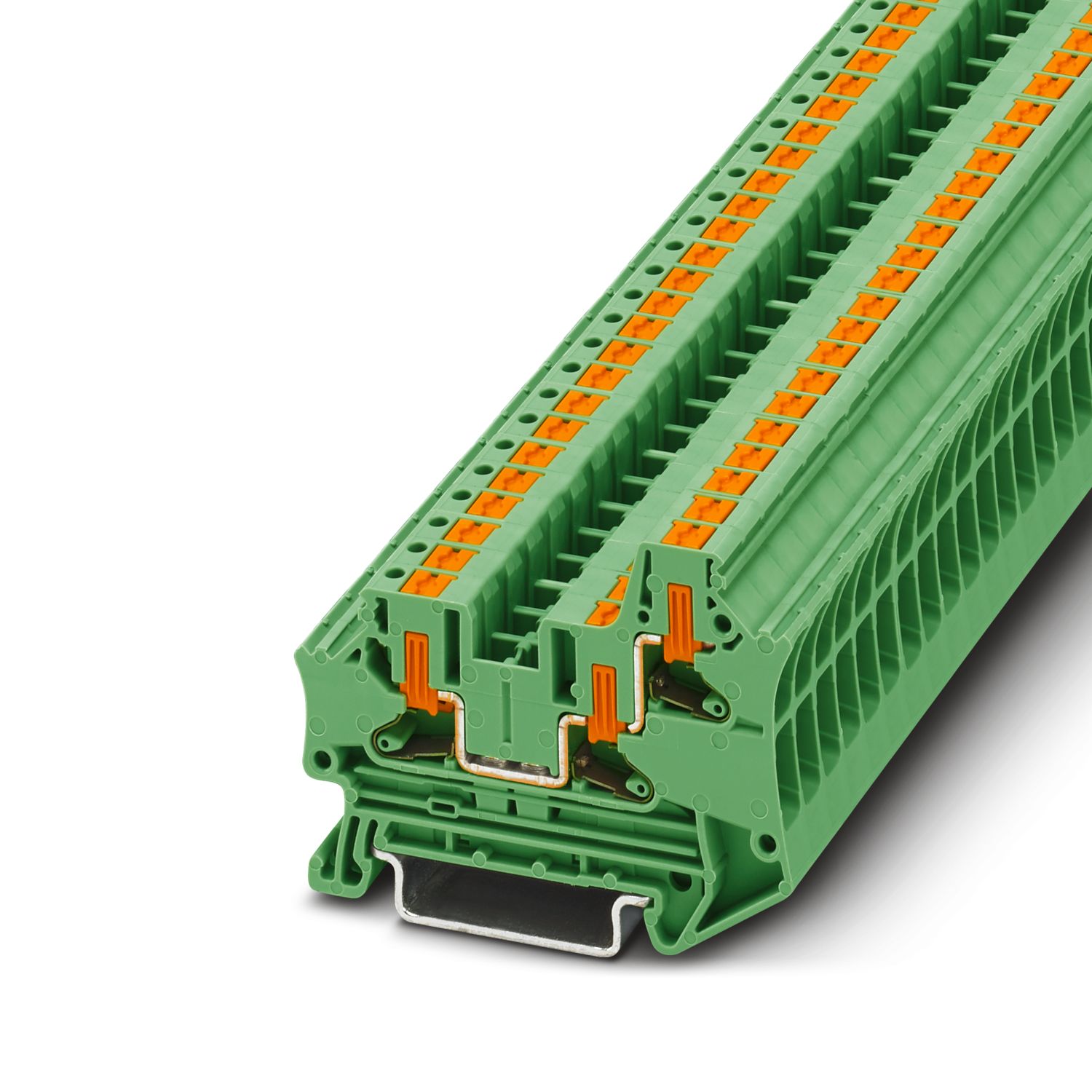

PTV 4-TWIN GN
-
Feed-through terminal block
1291853
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 32 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: green
Product details
General | |
Note | The maximum load current of a single clamping unit must not be exceeded. |
Product type | Multi-conductor terminal block |
Product family | PTV |
Area of application | Railway industry |
Machine building | |
Plant engineering | |
Process industry | |
Number of connections | 3 |
Number of rows | 1 |
Insulation characteristics | |
Overvoltage category | III |
Degree of pollution | 3 |
Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 1.02 W |
Number of connections per level | 3 |
Nominal cross section | 4 mm² |
Stripping length | 9 mm ... 11 mm |
Internal cylindrical gage | A4 |
Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Cross section AWG | 24 ... 10 (converted acc. to IEC) |
Conductor cross section flexible | 0.2 mm² ... 6 mm² |
Conductor cross section, flexible [AWG] | 24 ... 10 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.2 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² ... 4 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Nominal current | 32 A |
Maximum load current | 36 A (with 6 mm² conductor cross section, rigid) |
Nominal voltage | 1000 V |
Nominal cross section | 4 mm² |
Connection cross sections directly pluggable | |
Conductor cross section rigid | 0.75 mm² ... 6 mm² |
Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 4 mm² |
Rated data (ATEX/IECEx) | |
Identification | II 2 G Ex eb IIC Gb |
Operating temperature range | -60 °C ... 110 °C |
Ex-certified accessories | 1088747 D-PTV 2,5/4-TWIN |
1083618 DS-PTV 2,5/4 | |
3024481 ATP-ST 6 | |
1212587 SF-SL 0,6X3,5-100 S-VDE | |
3022276 CLIPFIX 35-5 | |
List of bridges | Plug-in bridge / FBS 2-6 / 3030336 |
Plug-in bridge / FBS 3-6 / 3030242 | |
Plug-in bridge / FBS 4-6 / 3030255 | |
Plug-in bridge / FBS 5-6 / 3030349 | |
Plug-in bridge / FBS 10-6 / 3030271 | |
Plug-in bridge / FBS 20-6 / 3030365 | |
Plug-in bridge / FBS 50-6 / 3032224 | |
Bridge data | 27 A (4 mm²) |
Ex temperature increase | 40 K (27,7 A / 4 mm²) |
for bridging with bridge | 550 V |
- At bridging between non-adjacent terminal blocks | 352 V |
- At cut-to-length bridging | 275 V |
- At cut-to-length bridging with cover | 275 V |
- At cut-to-length bridging with partition plate | 550 V |
Rated insulation voltage | 500 V |
output | (Permanent) |
Ex level General | |
Rated voltage | 550 V |
Rated current | 27 A (4 mm²) |
Maximum load current | 31 A (6 mm²) |
Contact resistance | 0.6 mΩ |
Ex connection data General | |
Nominal cross section | 4 mm² |
Rated cross section AWG | 12 |
Connection capacity rigid | 0.2 mm² ... 6 mm² |
Connection capacity AWG | 24 ... 10 |
Connection capacity flexible | 0.2 mm² ... 6 mm² |
Connection capacity AWG | 24 ... 10 |
Width | 6.2 mm |
End cover width | 2.2 mm |
Height | 60 mm |
Depth | 45.7 mm |
Depth on NS 35/7,5 | 47.2 mm |
Depth on NS 35/15 | 54.7 mm |
Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 |
Insulating material group | I |
Insulating material | PA |
Static insulating material application in cold | -60 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Surge voltage test | |
Result | Test passed |
Short-time withstand current 4 mm² | 0.48 kA |
Result | Test passed |
Power-frequency withstand voltage | |
Test voltage setpoint | 2.2 kV |
Result | Test passed |
Mechanical data | |
Open side panel | Yes |
Mechanical strength | |
Result | Test passed |
Attachment on the carrier | |
DIN rail/fixing support | NS 35 |
Result | Test passed |
Test for conductor damage and slackening | |
Rotation speed | 10 rpm |
Revolutions | 135 |
Conductor cross section/weight | 0.2 mm² / 0.2 kg |
4 mm² / 0.9 kg | |
6 mm² / 1.4 kg | |
Result | Test passed |
Aging | |
Temperature cycles | 192 |
Result | Test passed |
Needle-flame test | |
Time of exposure | 30 s |
Result | Test passed |
Oscillation/broadband noise | |
Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
Spectrum | Long life test category 2, bogie-mounted |
Frequency | f1 = 5 Hz to f2 = 250 Hz |
ASD level | 6.12 (m/s²)²/Hz |
Acceleration | 3.12g |
Test duration per axis | 5 h |
Test directions | X-, Y- and Z-axis |
Result | Test passed |
Shocks | |
Pulse shape | Half-sine |
Acceleration | 30g |
Shock duration | 18 ms |
Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed |
Ambient conditions | |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5 |
NS 35/15 |
Item number | 1291853 |
Packing unit | 50 pc |
Minimum order quantity | 100 pc |
Sales key | ***** |
Product key | BE2312 |
GTIN | 4063151523787 |
Weight per piece (including packing) | 10.02 g |
Weight per piece (excluding packing) | 22.22 g |
Country of origin | CN |
ECLASS
ECLASS-13.0 | 27250101 |
ETIM
ETIM 9.0 | EC000897 |
UNSPSC
UNSPSC 21.0 | 39121400 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes (No exemptions) |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
