SI-M1B-GT
-
Mounting frame
1407595

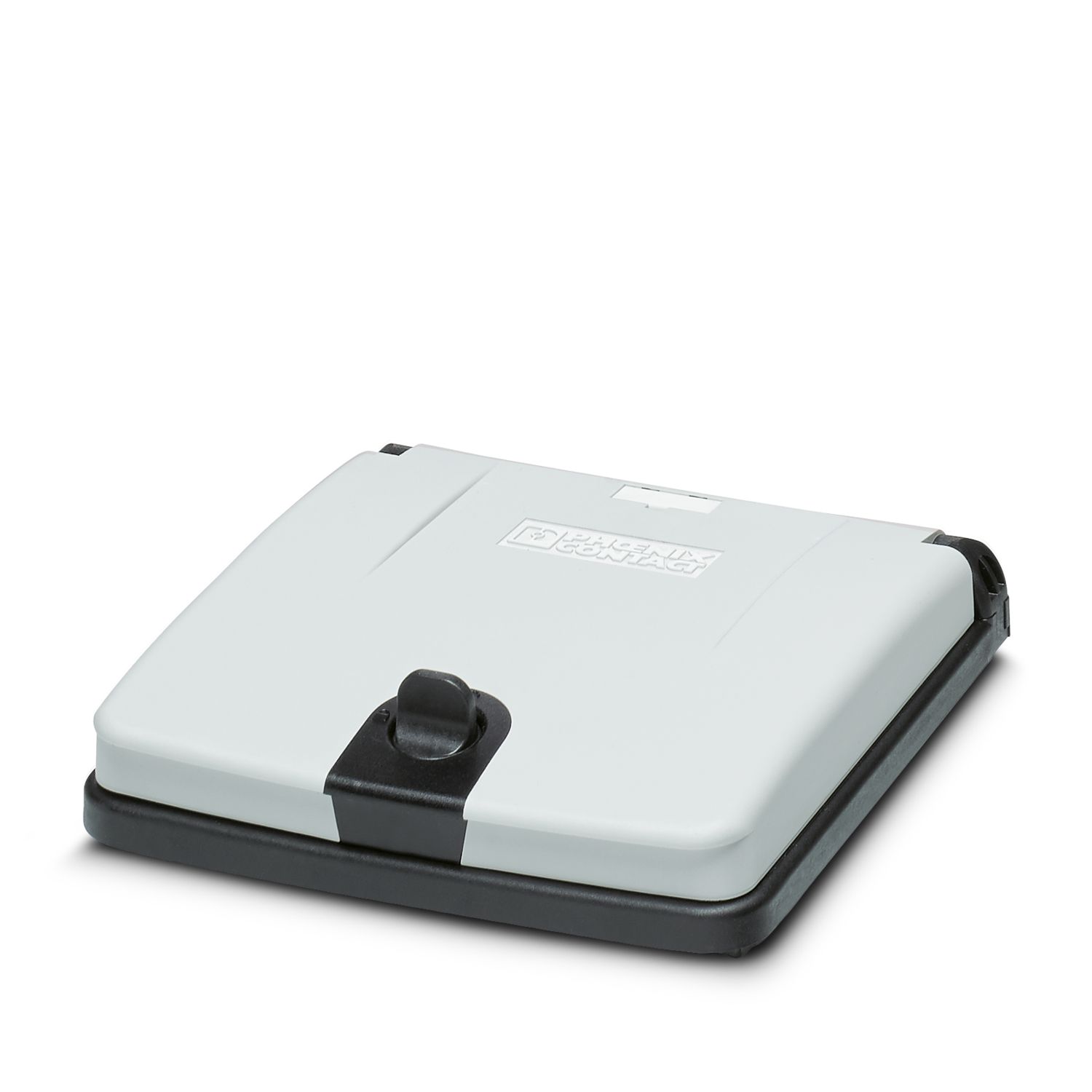

Mounting frame for two front plates/sockets, plastic frame: black, plastic cover: gray, closed with rotary knob.
Product details
| Product type | Mounting frame |
| Type | for 2 front plates |
| Protective cover | yes |

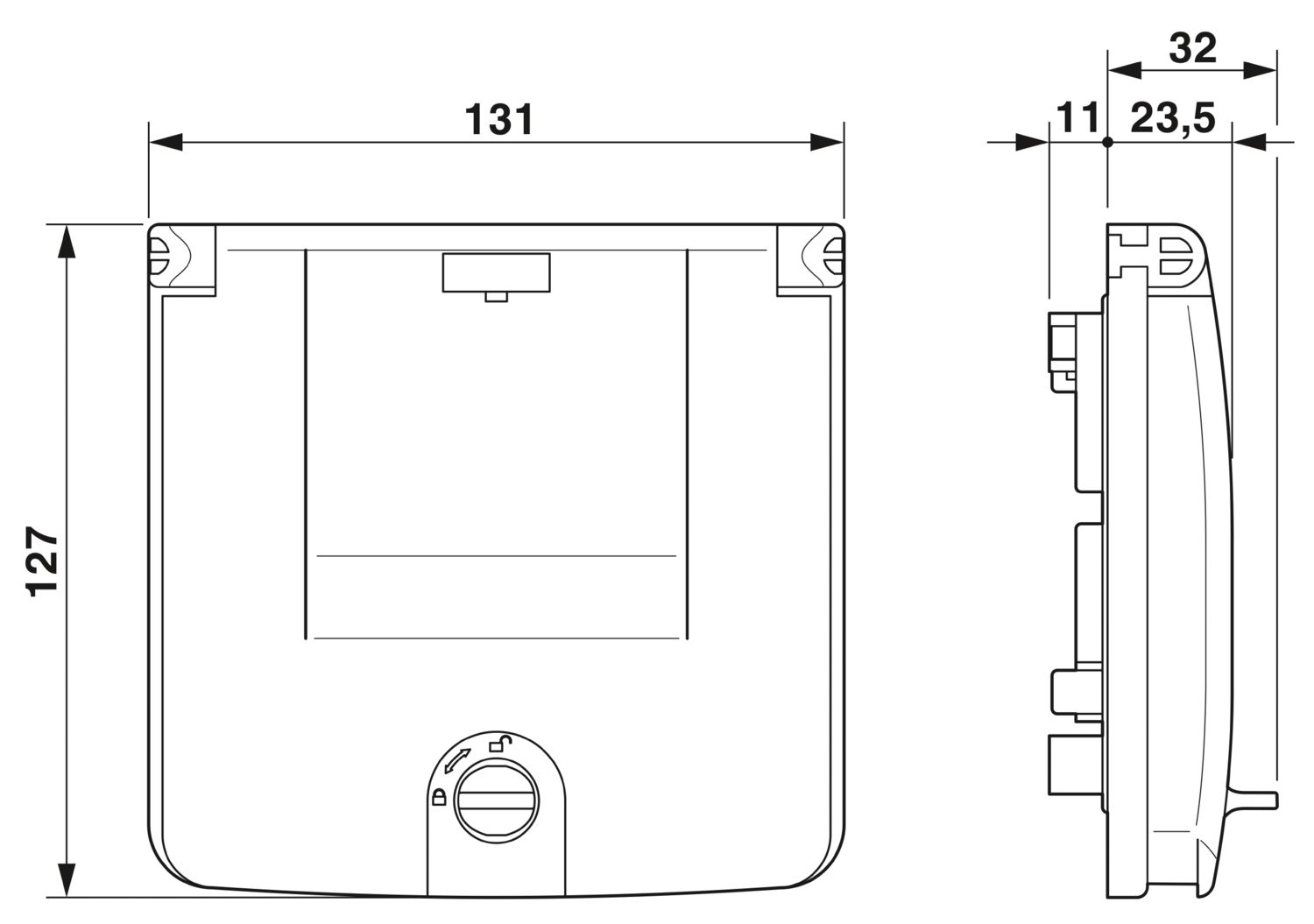

| Dimensional drawing |
|
| Width | 131 mm |
| Depth | 34.5 mm |
| Length | 127 mm |
| Installation dimensions | |
| Width of the assembly cutout | 117 mm |
| Length of the assembly cutout | 91 mm |
| Material Housing | PBT |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -30 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
| Assembly note | Suitable for panel thicknesses 1 mm ... 5 mm |
