AXL AI 8-ME - I/O module - 2688187

Material specifications

Color	gray

Interfaces

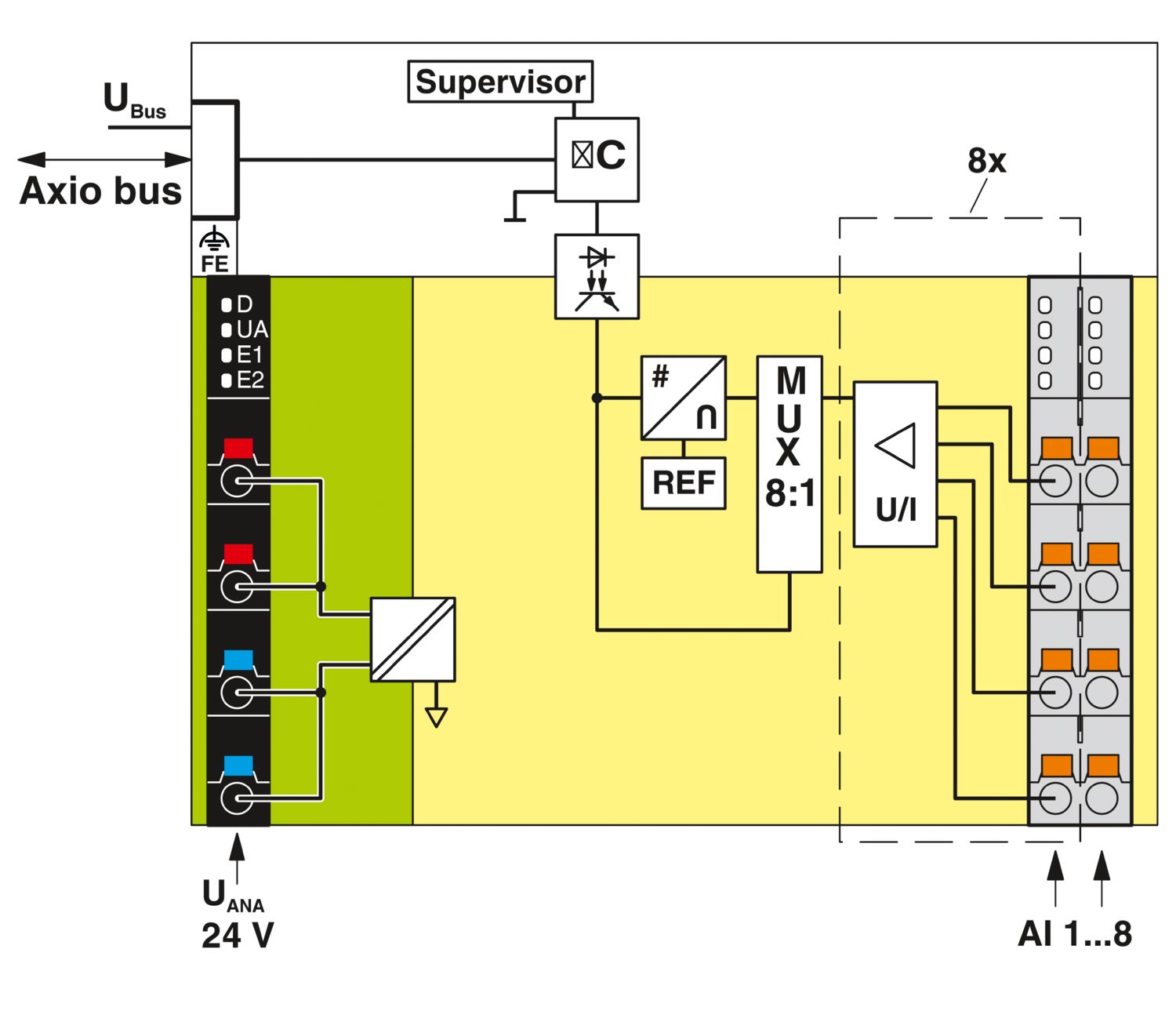

Input data

Analog: General
Input name	Analog inputs
Number of inputs	max. 8 (Differential inputs, voltage or current can be chosen separately)
A/D conversion time	2 µs
A/D converter resolution	16 bit
Connection method	Spring-cage connection with direct connector-in method
Connection technology	2-conductor (shielded, twisted pair)
Current input signal	0 mA ... 20 mA
		4 mA ... 20 mA
		-20 mA ... 20 mA
Voltage input signal	0 V ... 5 V
		-5 V ... 5 V
		0 V ... 10 V
		-10 V ... 10 V
Data formats	IB IL, S7-compatible
Input filter	30 Hz, 12 kHz and mean value generation (can be parameterized)
Filtering	RFI filtering / passive TP 1st order
Limit frequency (3 dB)	30 Hz
Limit frequency (3 dB)		12 kHz (in fast mode)
Measured value representation	16 bits (15 bits + sign bit)
Protective circuit	Transient protection of inputs; Suppressor diode
Analog: Voltage inputs
Number of inputs	8 (differential inputs, voltage)
Voltage input signal	0 V ... 5 V
		-5 V ... 5 V
		0 V ... 10 V
		-10 V ... 10 V
Input resistance of voltage input	268 kΩ (typical)
Common mode voltage range signal - ground	-50 V DC ... 50 V DC
Protective circuit	Overload protection; ±30 V DC, maximum
Analog:
Number of inputs	8 (Differential inputs, current)
Current input signal	0 mA ... 20 mA
		4 mA ... 20 mA
		-20 mA ... 20 mA
Input resistance current input	104 Ω (typical)
Protective circuit	Overload protection; No; ±5.2 V DC, maximum, I_max = 50 mA

Product properties

Electrical properties

Potentials
Power consumption	typ. 1.365 W (at U_Bus and U_A)
Power consumption		max. 1.605 W (at U_Bus and U_A)
Protective circuit	Surge protection of the supply voltage; electronic (35 V, 0.5 s)
		Polarity reversal protection of the supply voltage; Polarity protection diode
		Transient protection; Suppressor diode
Potentials
Supply voltage	5 V DC (via bus base module)
Current draw	max. 130 mA
Current draw		typ. 105 mA
Power consumption	typ. 0.525 W
Potentials: Supply for analog modules (U_A)
Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw	max. 45 mA
Current draw		typ. 35 mA
Power consumption	max. 1.08 W
Electrical isolation/isolation of the voltage ranges
Test voltage: 5 V supply of the local bus (U_Bus) / 24 V supply (I/Os)	500 V AC, 50 Hz, 1 min
Test voltage: 5 V supply of the local bus (U_Bus) / functional ground	500 V AC, 50 Hz, 1 min
Test voltage: 24 V supply (I/O) / functional ground	500 V AC, 50 Hz, 1 min

Connection data

Connection technology
Connection name	Axioline F connector
Conductor connection
Connection method	Push-in connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16
Stripping length	8 mm
Axioline F connector
Connection method	Push-in connection
Conductor cross-section, rigid	0.2 mm² ... 1.5 mm²
Conductor cross-section, flexible	0.2 mm² ... 1.5 mm²
Conductor cross-section AWG	24 ... 16
Stripping length	8 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-25 °C ... 60 °C
Degree of protection	IP20
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)	5 % ... 95 % (according to DIN EN 61131-2)

Standards and regulations

Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Item number	2688187
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	CN
Product key	DRI241
GTIN	4046356572446
Weight per piece (including packing)	179.3 g
Weight per piece (excluding packing)	174.7 g
Country of origin	DE

AXL AI 8-ME - I/O module

2688187

Mounting type	DIN rail mounting
Mounting position	any (no temperature derating)

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
