NF PD IOL B
-

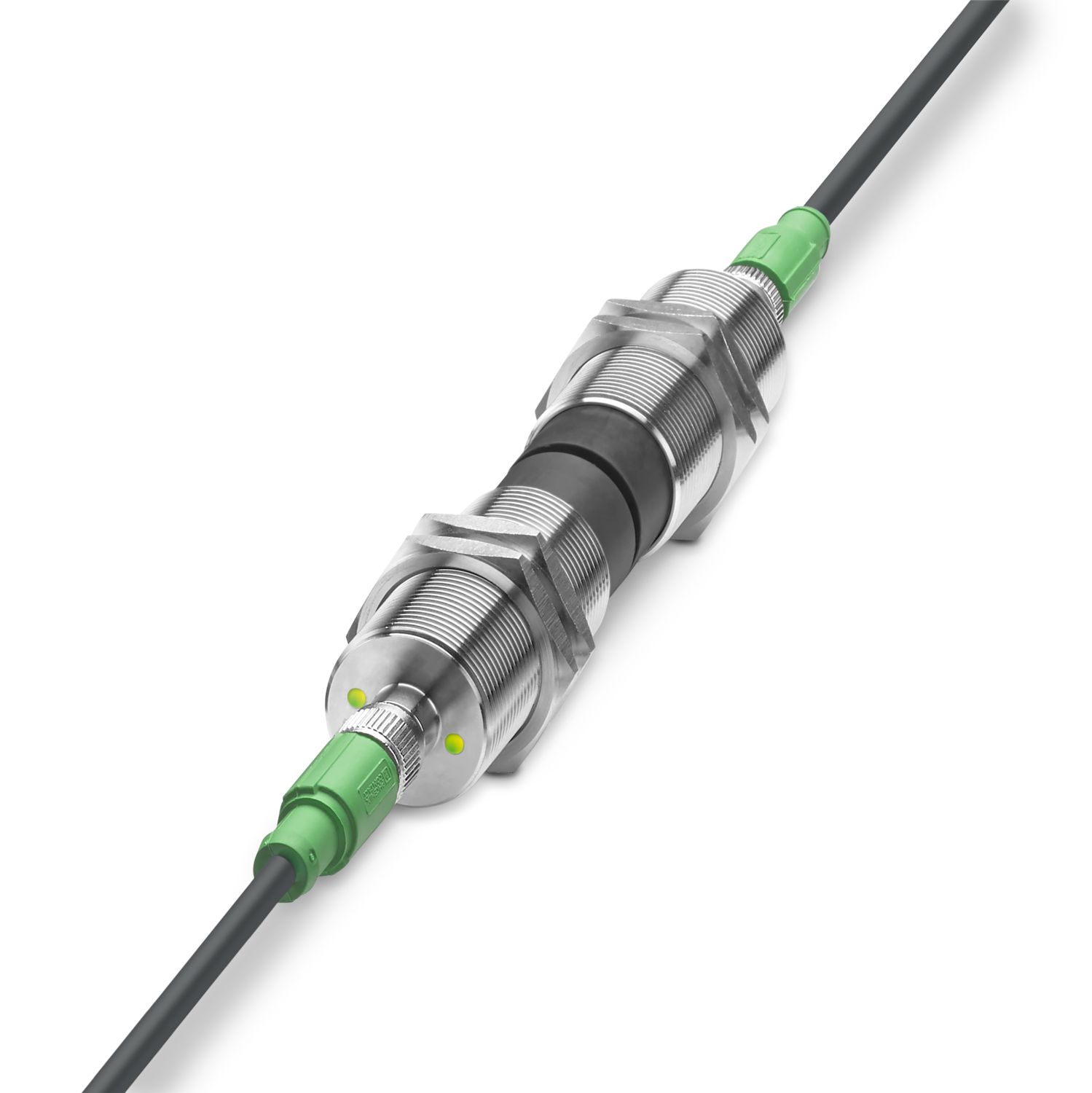

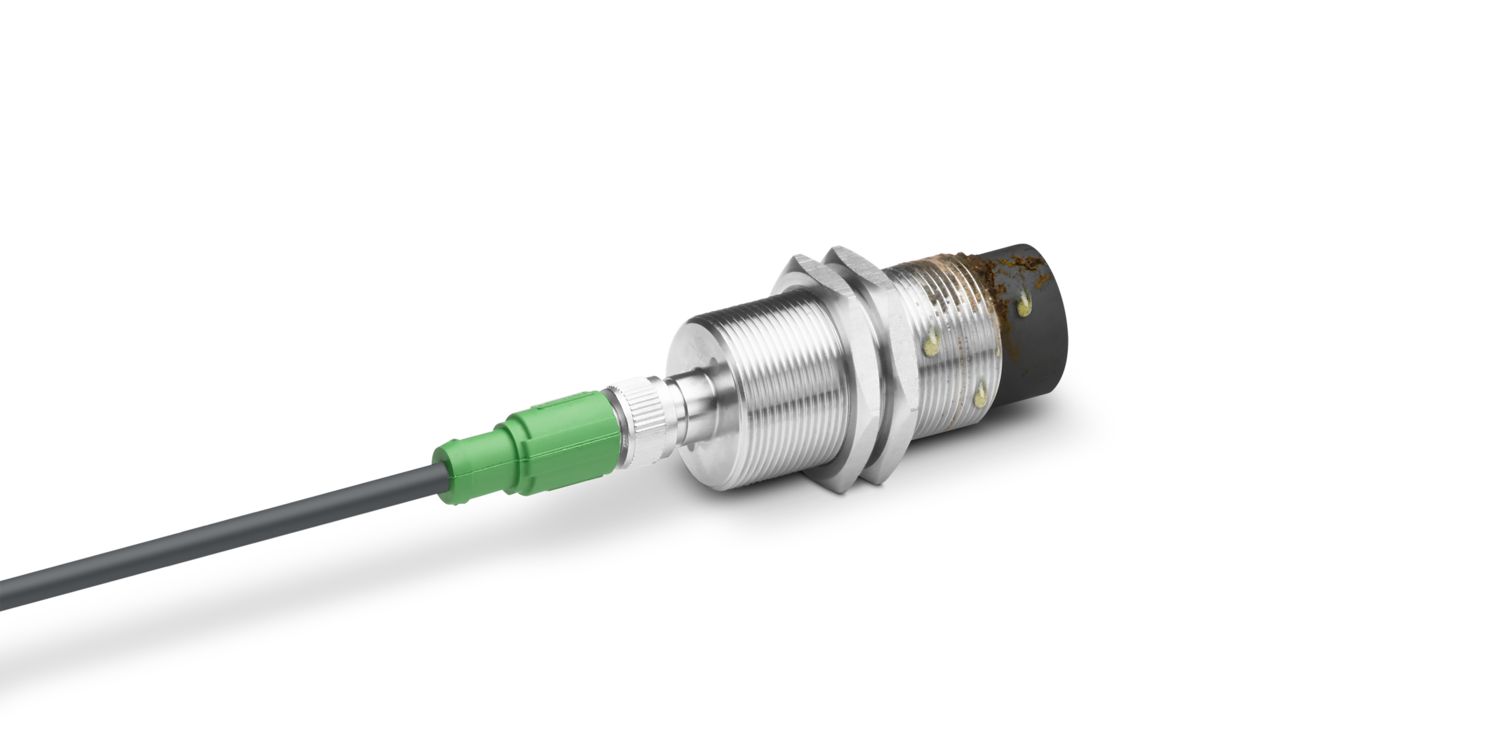

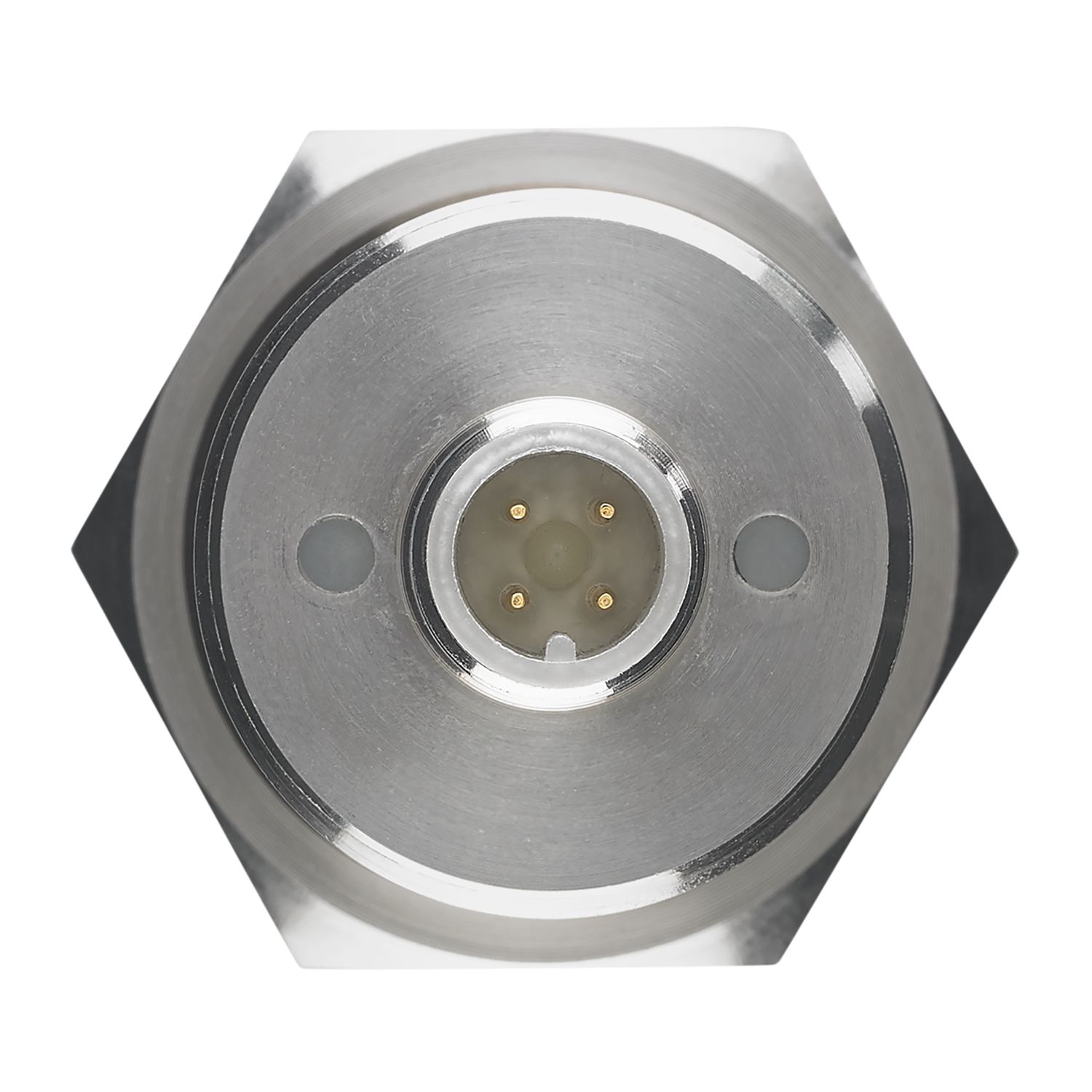

Inductive coupler
1736167

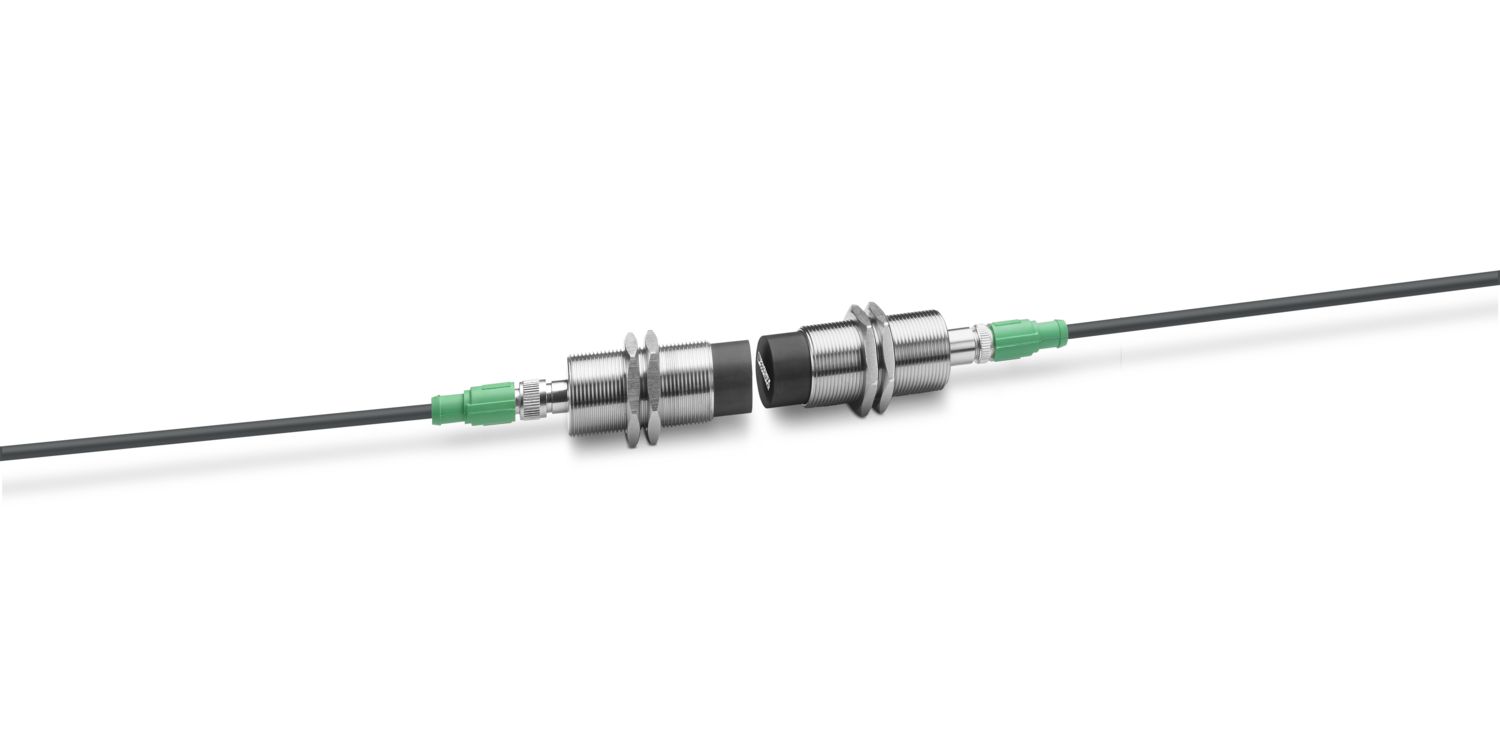

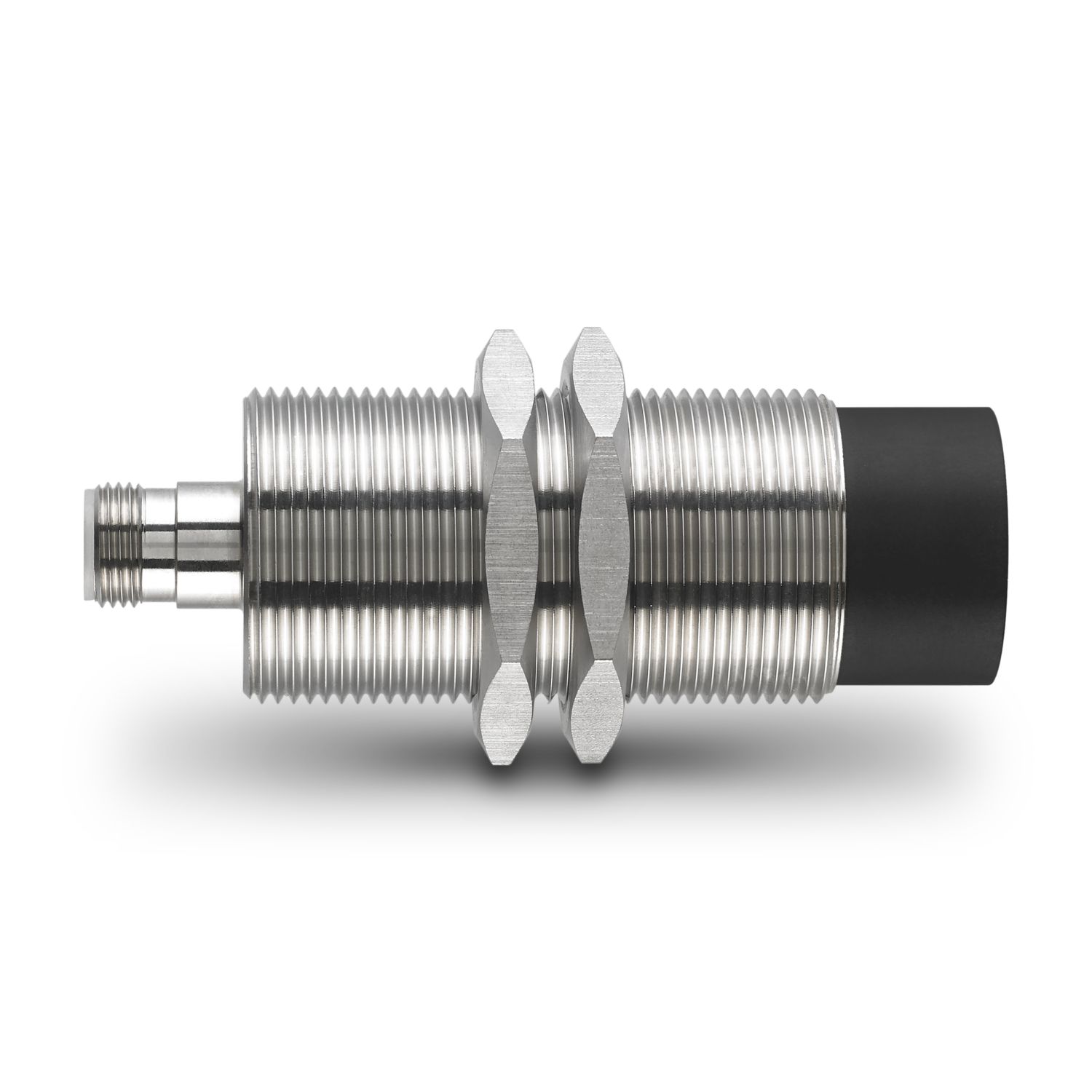

Base, wireless power and IO-Link coupler, 18 W, M12 connection technology, IO-Link port Class A, IP68, design M30 x 1.5, can be combined with NF PD IOL R
This product needs further products for operation.

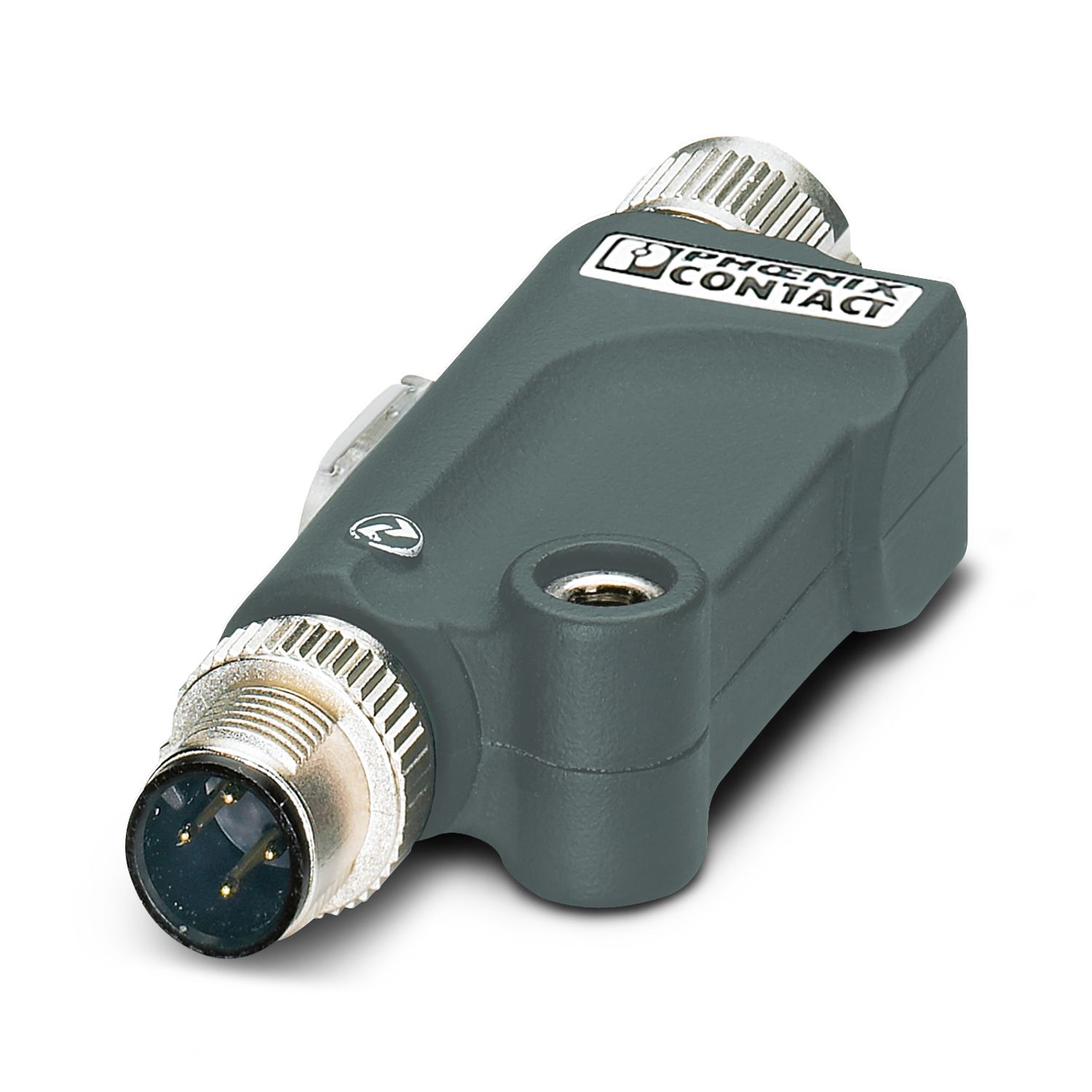

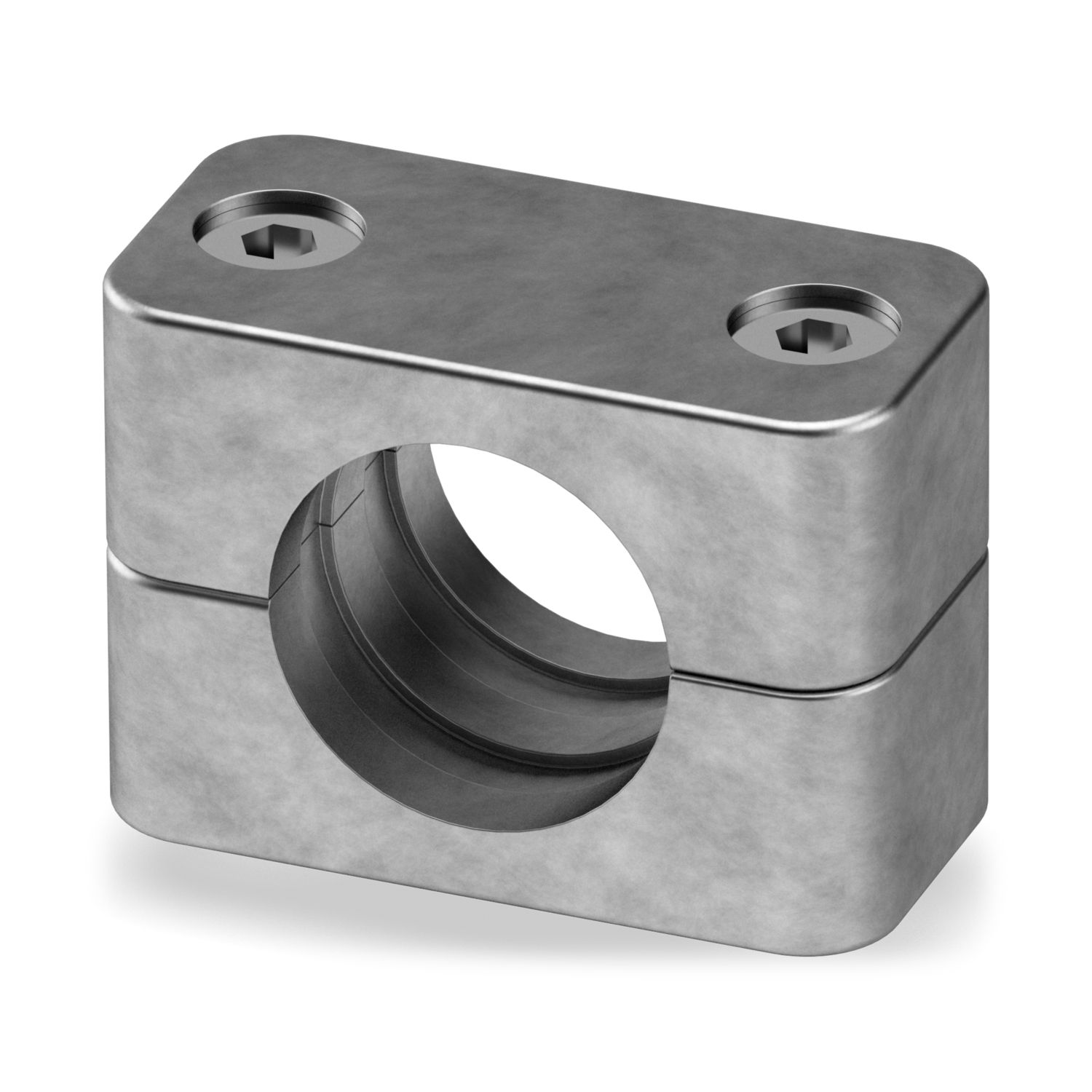

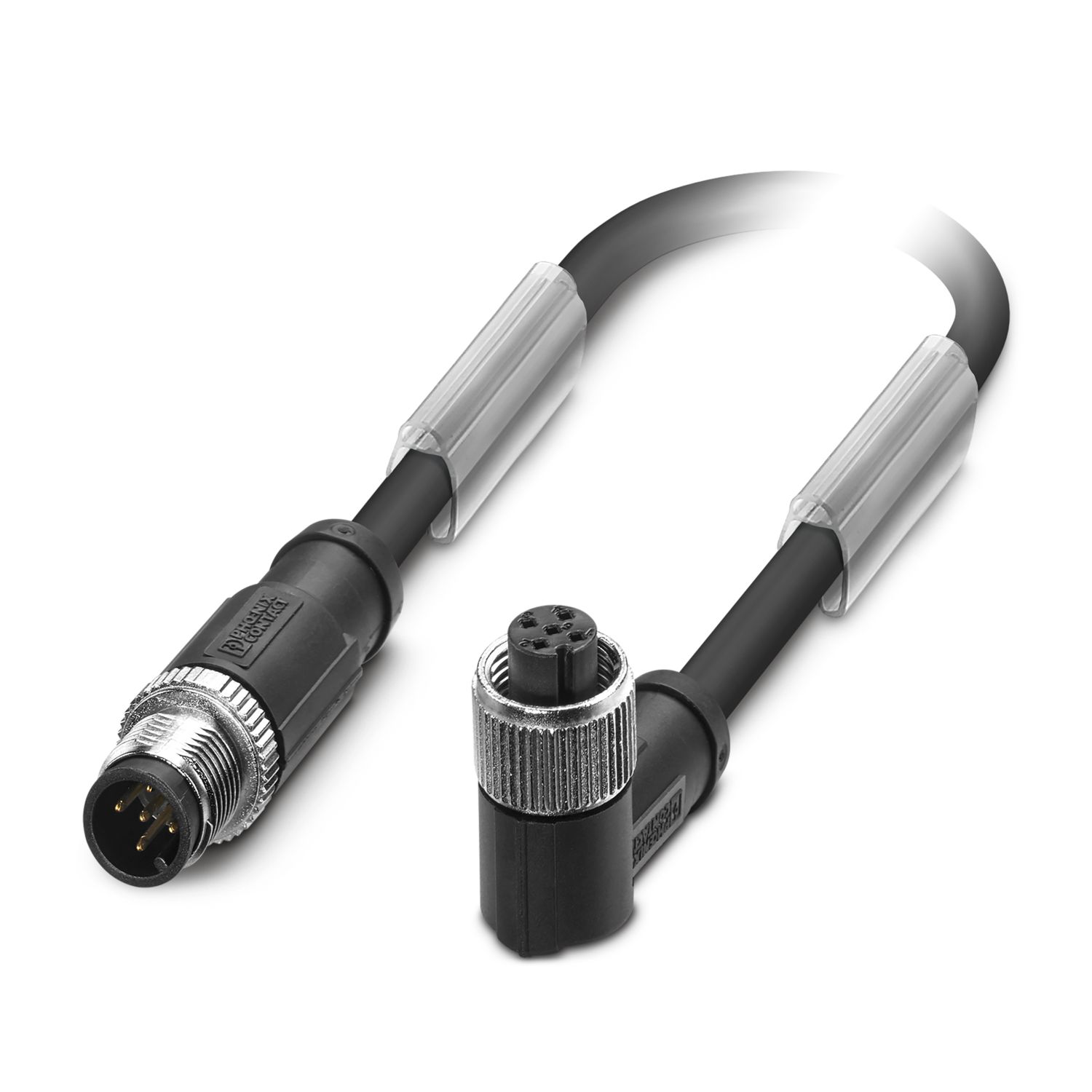

Mandatory accessories
Product details
| Product type | Inductive coupler |
| Application | IO-Link |
| Power | |
| MTTF | 1109 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| 464 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| 159 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | |
| Insulation characteristics | |
| Pollution degree | 3 (IEC 60947-1:2007) |
| Supply | |
| Supply voltage range | 20.4 V DC ... 28.8 V DC |
| Max. current consumption | ≤ 1.7 A |
| Protective circuit | Short-circuit protection, polarity reversal protection |
| Signal | |
| Output name | Digital output, PNP |
| Number of outputs | 2 |
| Data: IO-Link port, Class A in accordance with V 1.1.1 | |
| Data rate | 38.4 kbps (COM2) |
| 230.4 kbps (COM3) | |
| Transmission length | 20 m (Maximum cable length) |
| Inductive: Power transmission | |
| Switch-on time | 1400 ms (Coupling system) |
| Range | min. 0 mm |
| ≤ 7 mm | |

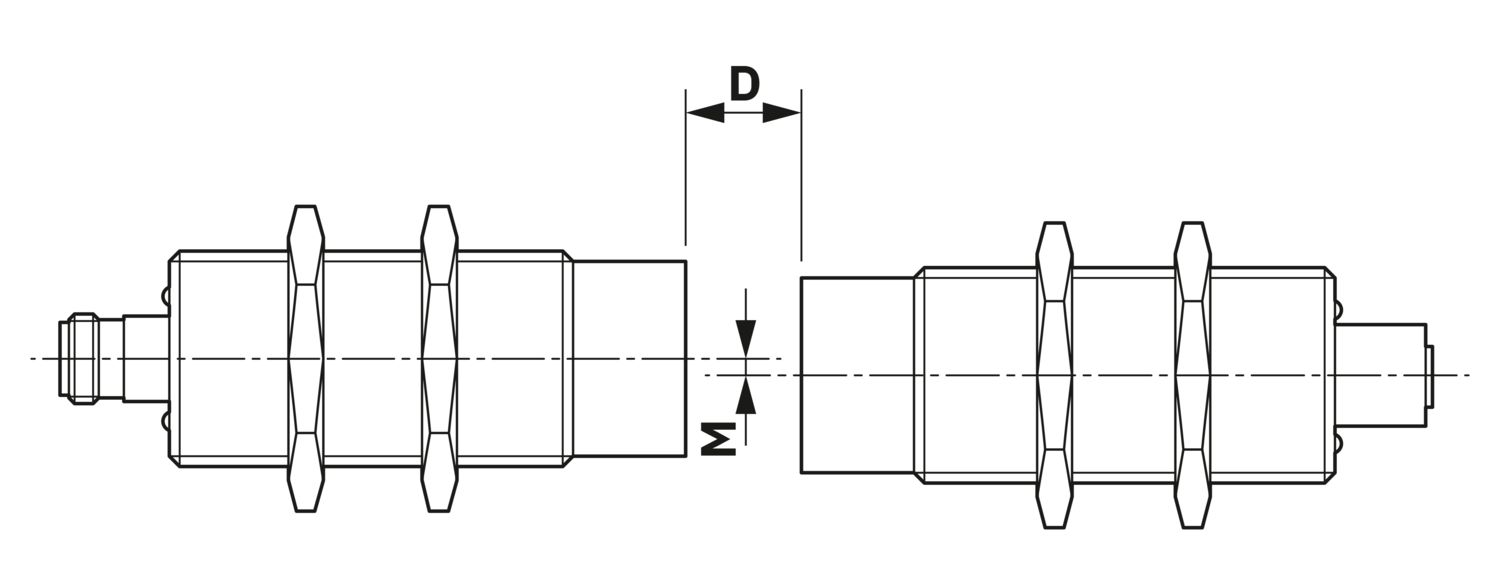

| Center offset | ± 5 mm |

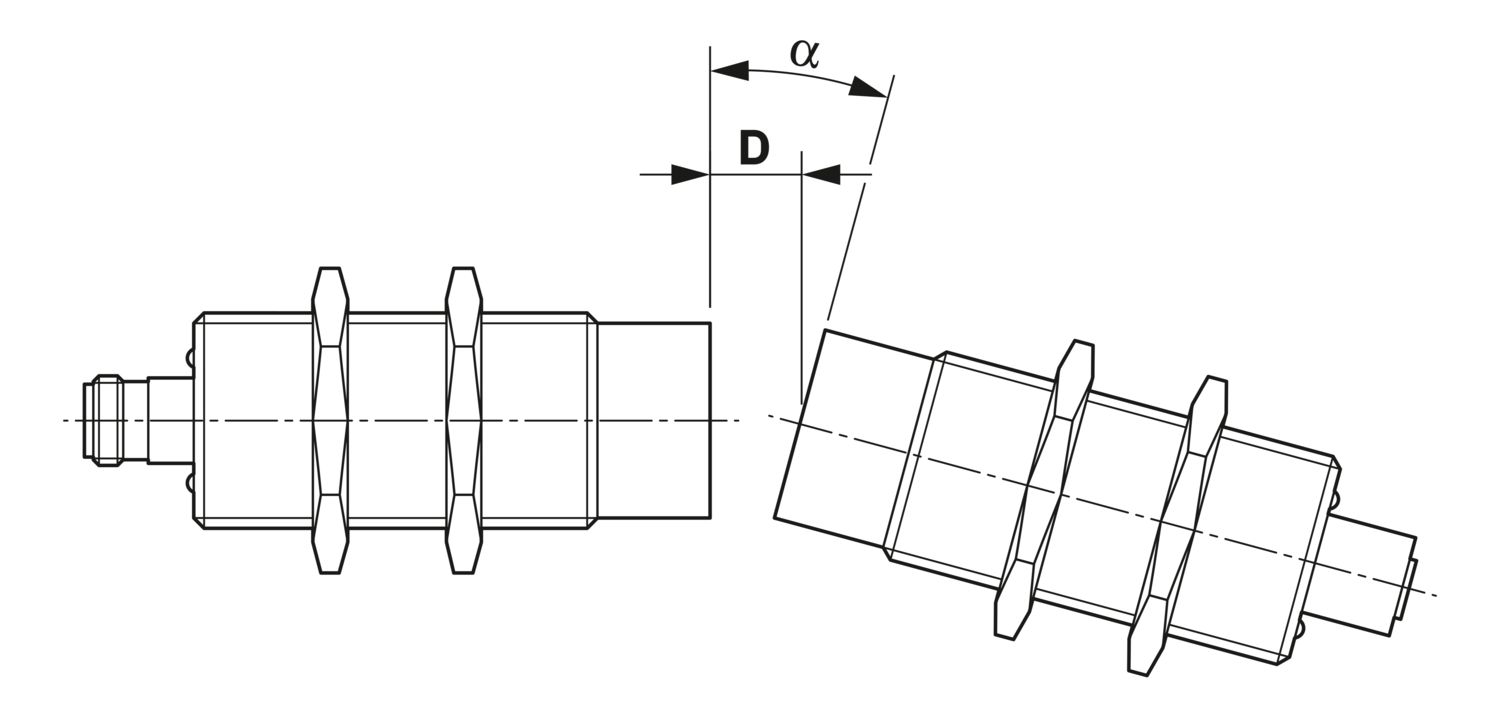

| Angular offset | 15 ° |
| Wireless modules that can be connected | 1 (Remote coupler) |
| Frequency range | 100 kHz ... 148.5 kHz (Power transmission) |
| Output power | 18 W (Nominal transmission capacity) |
| Wireless | |
| Wireless modules that can be connected | 1 (Remote coupler) |
| Frequency range | 2.4 GHz ... 2.47 GHz (Data transmission) |
| No. of channels | 12 |
| Data rate | 2 Mbps |

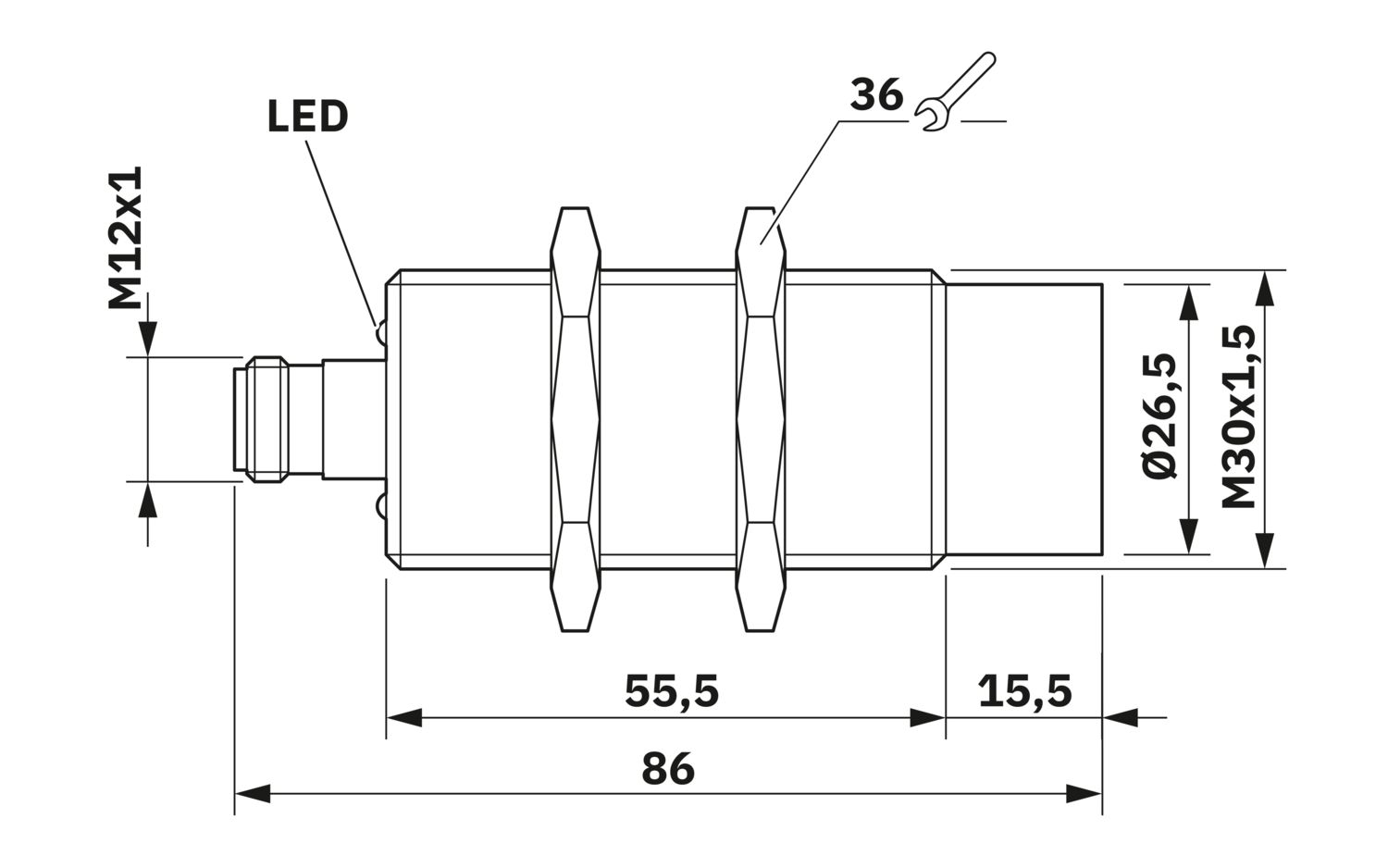

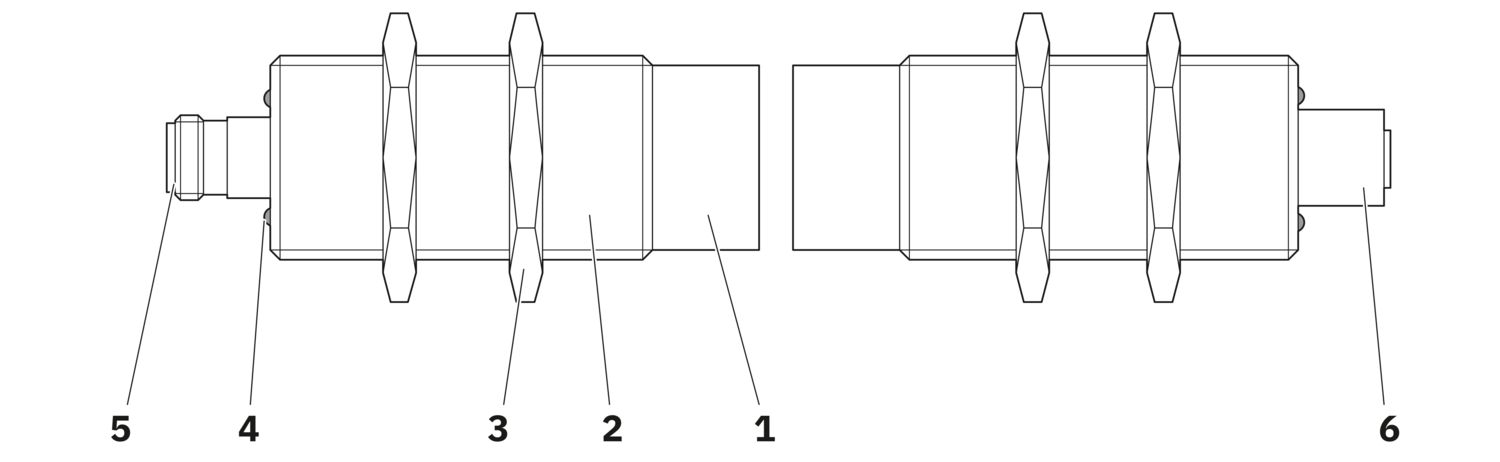

| Dimensional drawing |
|
| Width | 30 mm |
| Height | 30 mm |
| Depth | 86 mm |
| Material (Housing) | Stainless steel 1.4404 (AISI 316L) |
| Material (Active surface) | LCP |
| Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6 | : 5 g per spatial direction, 10 Hz ... 150 Hz, amplitude ±0.34 mm |
| Shock in accordance with EN 60068-2-27/IEC 60068-2-27 | : 15g, 11 ms period, half-sine shock pulse |
| Continuous shock in accordance with EN 60068-2-27/IEC 60068-2-27 | : 10 g, 16 ms duration, half-sine shock pulse, 1,000 shocks per spatial direction |
| Ambient conditions | |
| Degree of protection | IP68 |

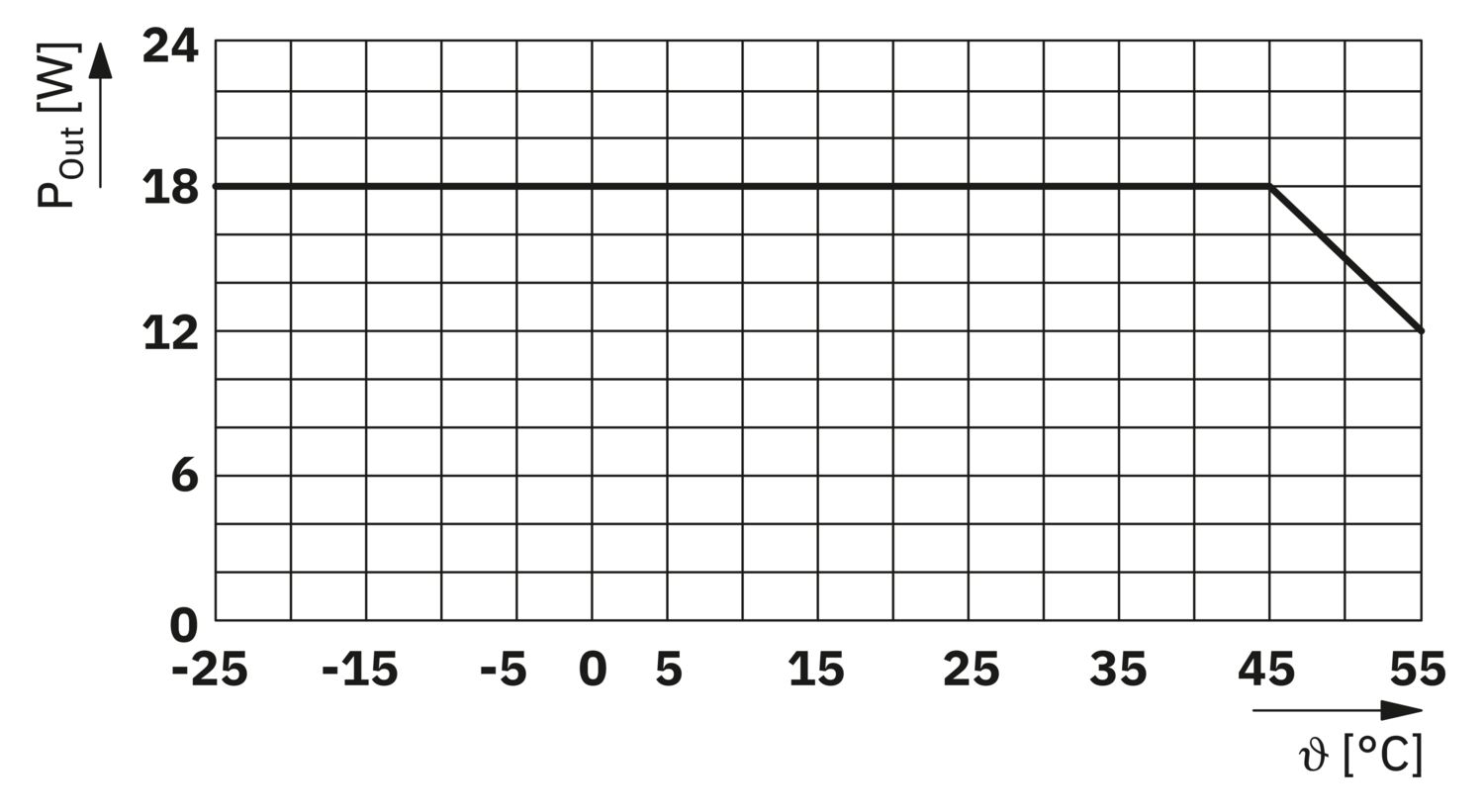

| Ambient temperature (operation) | -20 °C ... 55 °C (observe derating) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Altitude | < 2000 m |
| Permissible humidity (operation) | 10 % ... 85 % (Condensation on the active surface and changes in humidity can affect the switching distances) |
| CE | |
| Certificate | CE-compliant |
| Wireless approval, Europe | |
| Note | RED 2014/53/EU |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise immunity | Immunity in accordance with EN 61000-6-2 |
| Electrostatic discharge | |
| Standards/regulations | EN 61000-4-2 |
| Electrostatic discharge | |
| Contact discharge | ± 4 kV (Test Level 2) |
| Discharge in air | ± 8 kV (Test Level 3) |
| Comments | Criterion B |
| Electromagnetic HF field | |
| Standards/regulations | EN 61000-4-3 |
| Electromagnetic HF field | |
| Frequency range | 80 MHz ... 1 GHz (Test Level 3) |
| Field intensity | 10 V/m |
| Comments | Criterion A |
| Fast transients (burst) | |
| Standards/regulations | EN 61000-4-4 |
| Fast transients (burst) | |
| Input | ± 1 kV |
| Output | ± 1 kV |
| Signal | ± 1 kV |
| Comments | Criterion B |
| Conducted interference | |
| Frequency range | 0.15 MHz ... 80 MHz (Test Level 3 - asymmetrical) |
| Comments | Criterion A |
| Voltage | 10 V (80% amplitude modulation with 1 kHz) |
| Emitted interference | |
| Standards/regulations | EN 55016-2-3 |
| Comments | Class A, industrial applications |
| Criteria | |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Free from substances that could impair the application of coating | VDMA 24364:2018-05 |
| Mounting type | Threaded pipe (M30 x 1.5) |

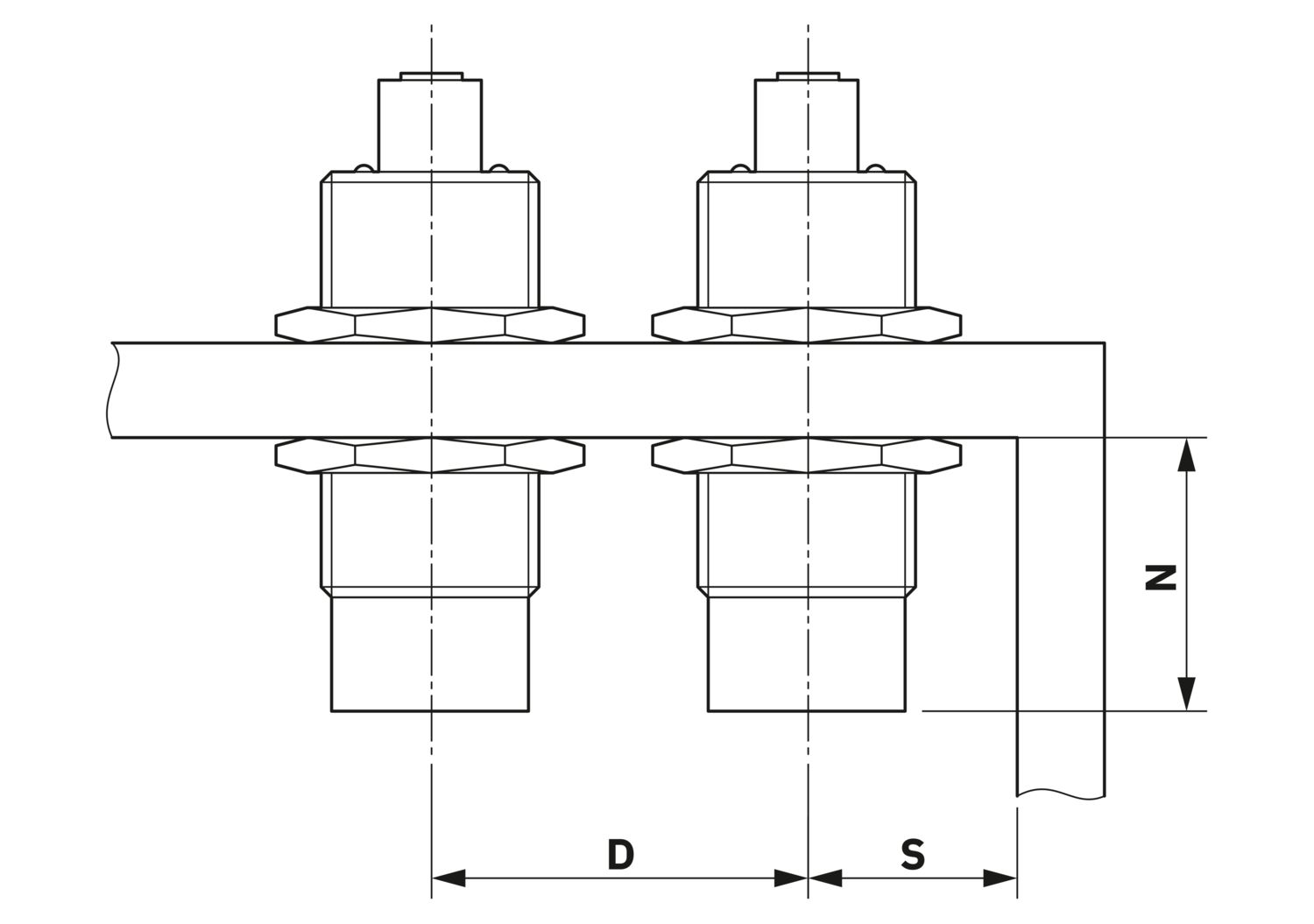

| Assembly note | Not flush, maximum tightening torque for housing nut: 40 Nm |
| Mounting position | any |
Your advantages
Wireless: No mechanical wear, no contamination, no tilting during coupling

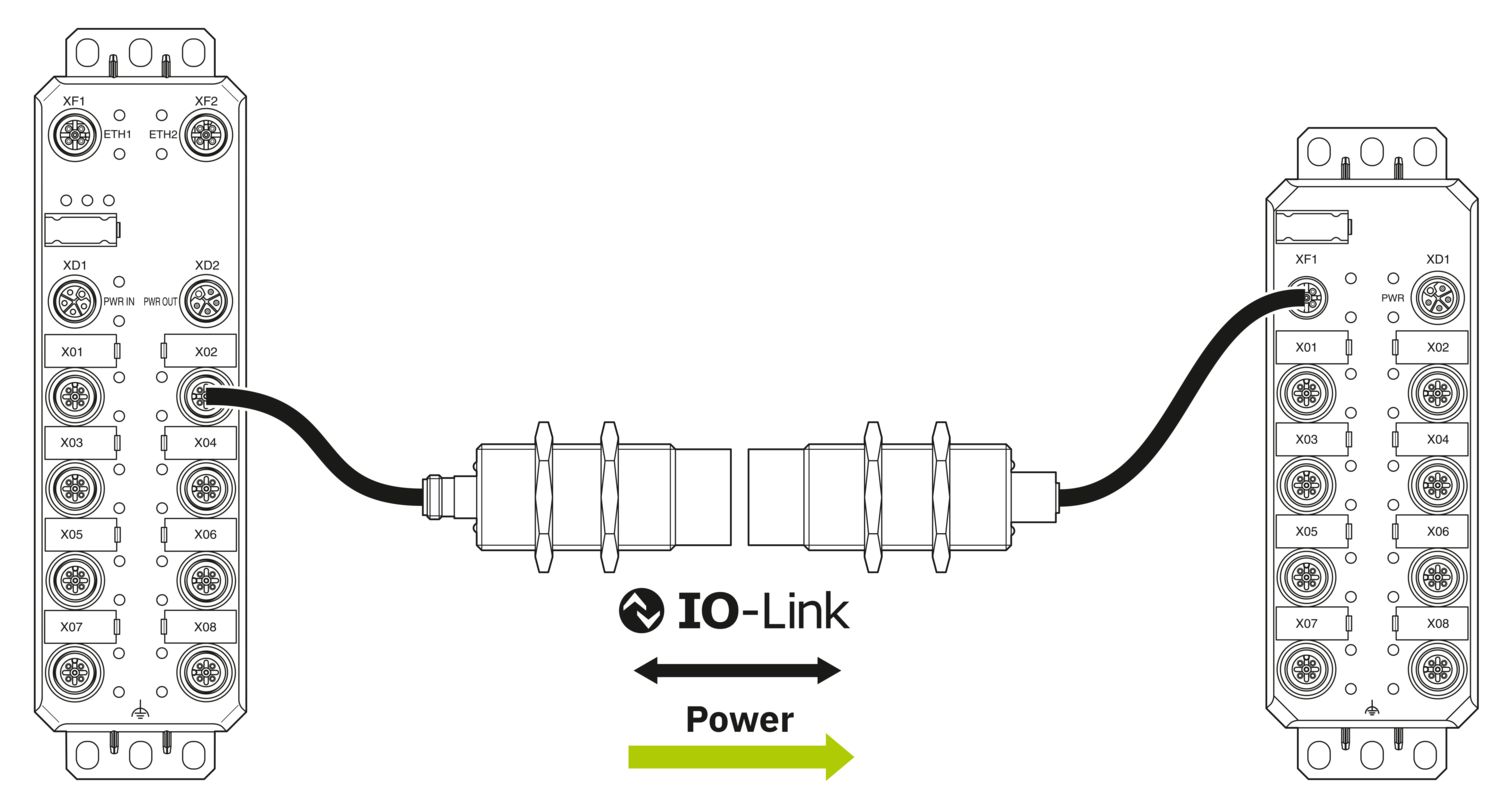

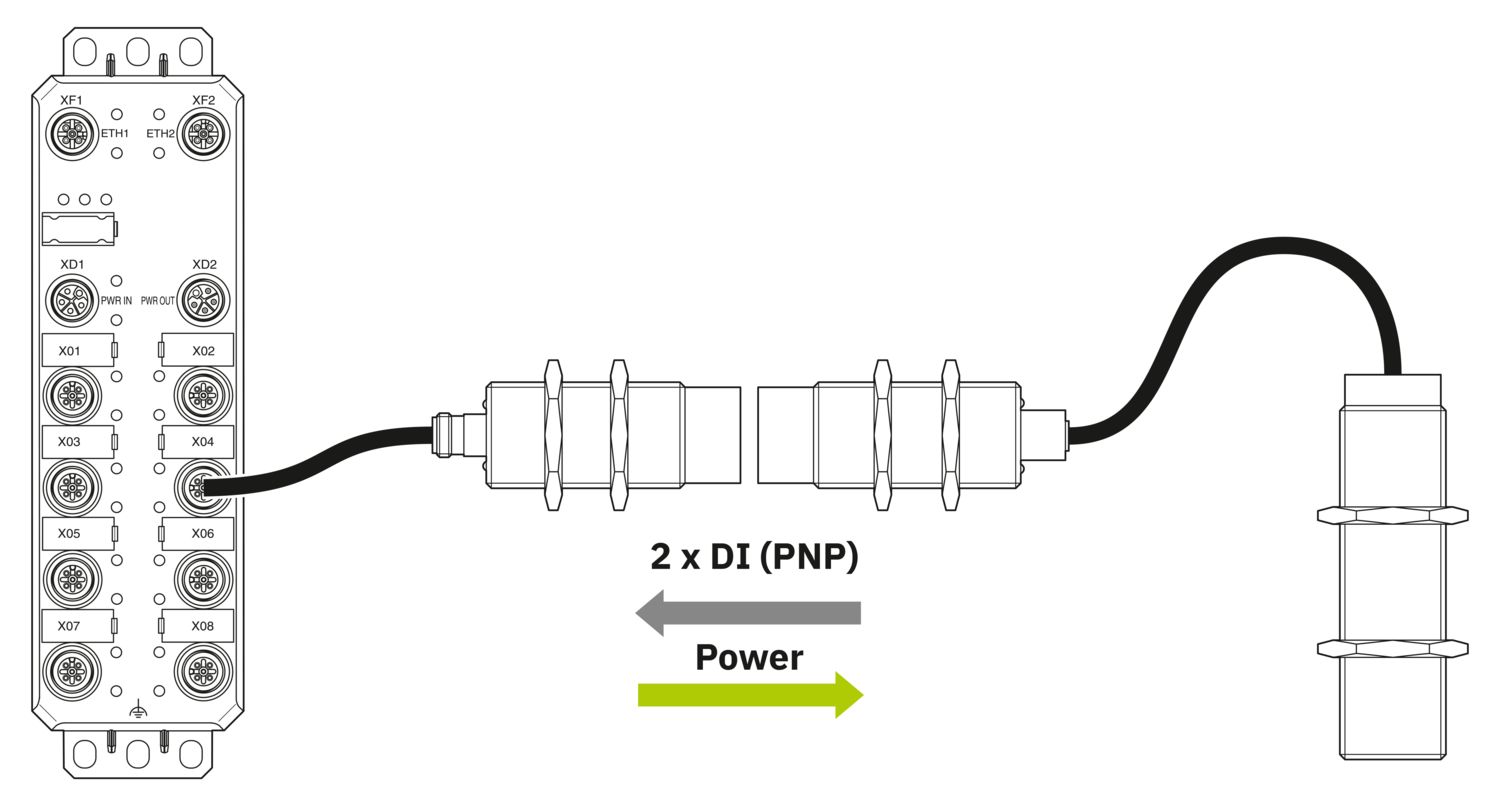

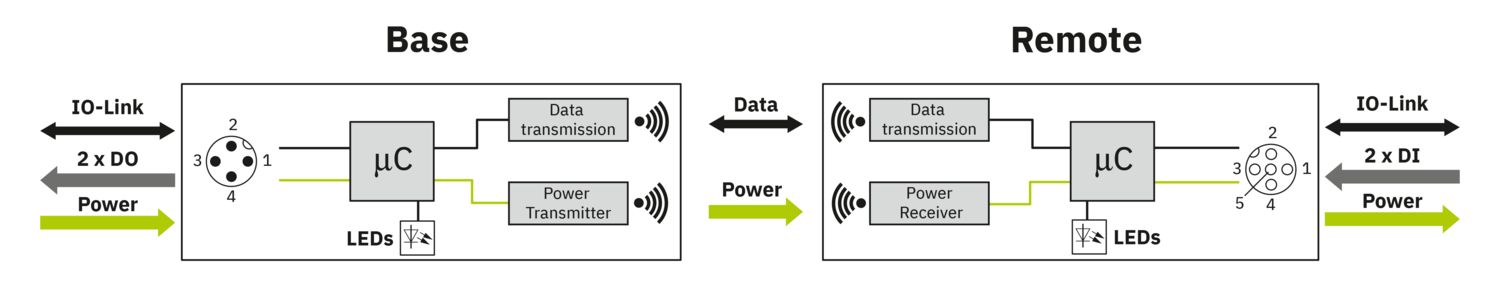

Flexible: In addition to the power, IO-Link data or two digital PNP signals can also be transmitted.
Robust: IP68 stainless steel housing with M12 connections for use in demanding environments
Compact: M30 design for space-saving mounting
Plug-and-play: Base and remote couplers connect automatically in any number (1:n), no configuration required
