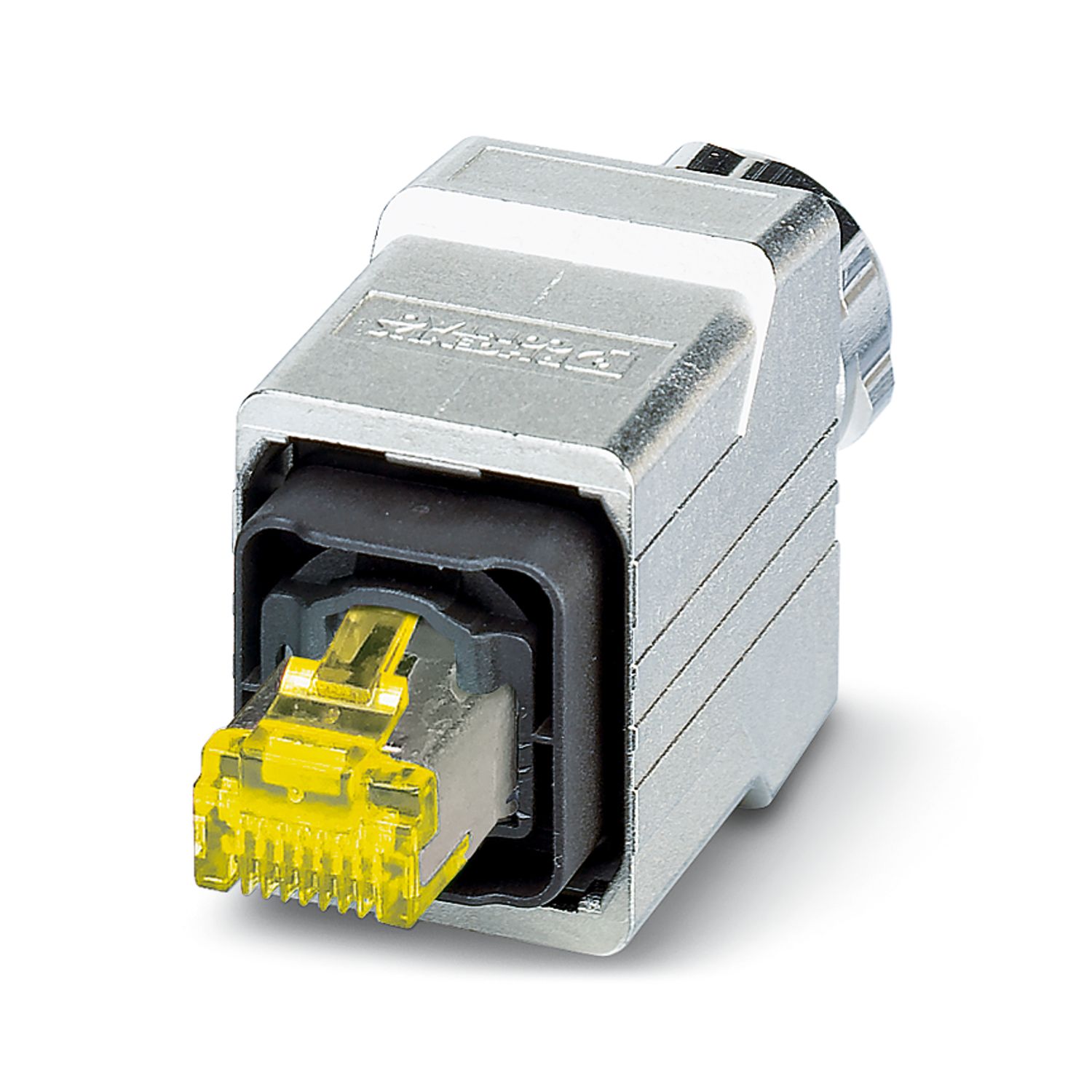

VS-PPC-C1-RJ45-MNNA-8I10G - RJ45 connector

VS-PPC-C1-RJ45-MNNA-8I10G - RJ45 connector

1422108

RJ45 connector, degree of protection: IP65/IP67, number of positions: 8, CAT6_A, material: Metal, connection method: Crimp connection, connection cross section: AWG 27- 24, cable outlet: straight, color: silver, Ethernet

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Data connector (cable side)
Type	RJ45
Sensor type	Ethernet
Number of positions	8
Connection profile	RJ45
No. of cable outlets	1
Shielded	yes
Cable outlet	straight
Insulation characteristics
Overvoltage category	I
Degree of pollution	2

Electrical properties

Rated voltage (III/3)	72 V (DC)
Rated current	1 A
Nominal voltage U_N	48 V
Nominal current I_N	1 A
Transmission medium	Copper
Transmission characteristics (category)	CAT6_A
Transmission speed	10 Gbps

Connection data

Connection technology
Connection method	Crimp connection
Connection cross section AWG	27 ... 24 (flexible)
Conductor cross section	flexible

Dimensions

Width	22 mm
Height	30 mm
Length	57.7 mm

Material specifications

Color	silver
Flammability rating according to UL 94	V0
Housing material	Metal
Contact material	Phosphor bronze

Cable/line

External cable diameter	5 mm ... 8 mm
Cable cross section	0.14 mm²

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	≥ 250

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65/IP67
Ambient temperature (operation)	-25 °C ... 60 °C

Standards and regulations

Standards/specifications	IEC PAS 61076-3-117

Commercial data

Item number	1422108
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	AB
Product key	ABNOAB
GTIN	4046356571982
Weight per piece (including packing)	69.1 g
Weight per piece (excluding packing)	65.9 g
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27440290

ETIM

ETIM 9.0

EC002943

UNSPSC

UNSPSC 21.0

39121400

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS: 119-47-1)
SCIP	02948e2a-4cce-4ec2-87a4-b30c1ea51c9a

Compatible products

Expand all Collapse all

Accessories

VS-CABLE-STRIP-VARIO - Stripping tool 1657407
VS-CT-RJ45-H - Crimping pliers 1653265
