AXC F 3152
-
Controller
1069208

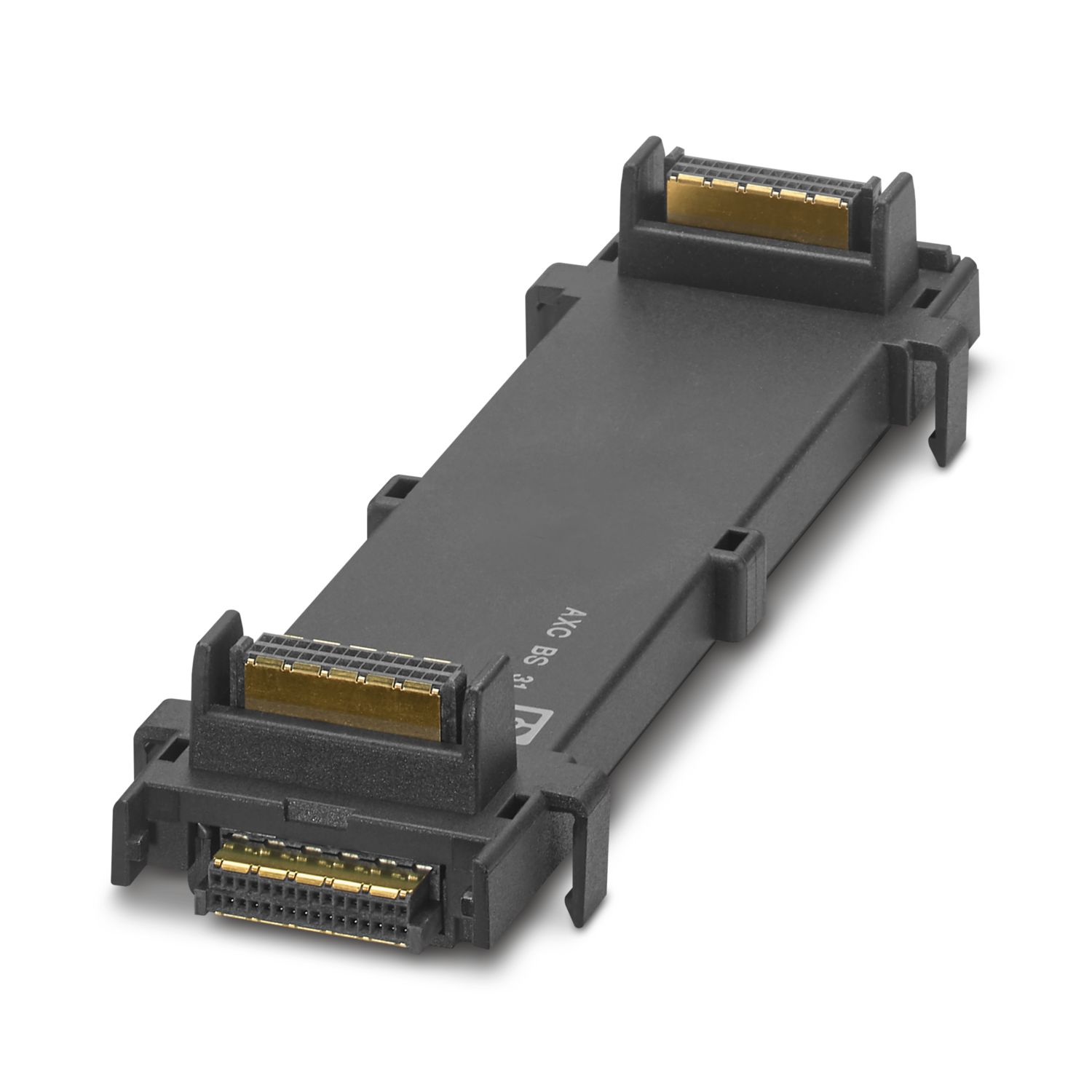

PLCnext Control for the direct control of Axioline F I/Os. With three independent Ethernet interfaces. Complete with connector and bus base module.
Free download available.
Downloads
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Product type | Controller |
| Product family | PLCnext Control |
| Type | modular |
| Insulation characteristics | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Overvoltage category | II |
| Pollution degree | 2 |
| Display | |
| Diagnostics display | no |
| Trusted Platform Module | TPM 1.2 (To hardware version 03) |
| TPM 2.0 (From hardware version 04) | |
| Processor | Intel®Atom® x5-E3930, 2x 1.3 GHz |
| Flash memory | 1 GByte (internal flash memory) |
| SD card from Phoenix Contact (for external flash memory, see accessories) | |
| Retentive data storage | 1 Mbyte |
| RAM | 2048 Mbyte |
| IoT capability: PROFICLOUD | |
| IoT platform | PROFICLOUD |
| Supports cloud computing | yes |
| IEC 61131 runtime system | |
| Program memory | 12 Mbyte |
| Data storage system | 32 Mbyte |
| Axioline | |
| Amount of process data | max. 1482 Byte (per station (total input and output data)) |
| max. 1024 Byte (Axioline F local bus (input)) | |
| max. 1024 Byte (Axioline F local bus (output)) | |
| Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| PROFINET | |
| Device function | PROFINET controller, PROFINET device |
| Update rate | min. 1 ms (32 participants) |
| min. 2 ms (64 devices) | |
| min. 4 ms (128 participants) | |
| Conformance Class | B |
| Number of supported devices | max. 128 (at PROFINET controller) |
| Supported functions | FSU PROFINET controller |
| Device ID | 0158hex |
| Vendor ID | 00B0hex |
| Function | |
| Diagnostics display | no |
| Redundancy function | yes |
| Note on redundancy function | Applicative system redundancy |
| Safety function | no |
| Note on the safety function | Functional safety is provided with the left-alignable AXC F XT SPLC 1000 or AXC F XT SPLC 3000 extension modules. |
| Industrial cybersecurity | yes |
| Functionality | |
| Programming languages supported | Symbolic flowchart (SFC) |
| Ladder diagram (LD) | |
| Function block diagram (FBD) | |
| Structured text (ST) | |
| C++ | |
| C# | |
| Java | |
| Python® | |
| Simulink® | |
| System requirements | |
| Engineering tool | PLCnext Engineer |
| Eclipse® | |
| Visual Studio® | |
| MATLAB®/ Simulink® | |
| Application interface | OPC UA® |
| Maximum power dissipation for nominal condition | 8.3 W (8.3 W = 13.3 W - 5.0 W) |
| Real-time clock | |
| Realtime clock | yes |
| Description realtime clock | 0.7 s/day = 8 ppm at 25 °C |
| Potentials: Communications power UL feed-in (the supply of the Axioline F local bus UBus is generated from UL) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple (± 5 %)) |
| Current draw | max. 650 mA (with 1 A at UBus for the I/Os) |
| Power consumption | max. 13.3 W (with 1 A at UBus for the I/Os) |
| Protective circuit | Surge protection; electronic |
| Reverse polarity protection; electronic | |
| Potentials: Axioline F local bus supply (UBus) | |
| Supply voltage | 5 V DC (via bus base module) |
| Power supply unit | 1 A |
| Connection method | Push-in connection |
| Axioline F connector | |
| Connection method | Push-in connection |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Supported protocols | HTTP |
| HTTPS | |
| PROFINET | |
| INTERBUS | |
| Modbus/TCP (via corresponding library) | |
| Modbus/RTU (via corresponding library) | |
| EtherNet/IP (Adapter) | |
| CANopen® (via corresponding library) | |
| DALI (via corresponding library) | |
| DALI-2 (via corresponding app) | |
| HART (via corresponding app) | |
| IO-Link® (via corresponding app) | |
| PROFIBUS | |
| MQTT (via corresponding app) | |
| OPC UA® Server | |
| OPC UA® Client (via corresponding app) | |
| DHCP (via corresponding app) | |
| SFTP | |
| SMTP (via corresponding app) | |
| SNTP (via corresponding app) | |
| SNMP (via corresponding app) | |
| DNS (via corresponding app) | |
| DNP3 (via corresponding app) | |
| IEC 60870-5-1 (via corresponding library) | |
| IEC 60870-5-104 (via corresponding library) | |
| IPsec | |
| syslog | |
| Web server | yes |
| Axioline F local bus | |
| Number of interfaces | 1 |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
| Ethernet | |
| Bus system | RJ45 |
| Number of interfaces | 3 |
| Connection method | RJ45 jack |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100/1000 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | max. 100 m |
| Service | |
| Bus system | USB |
| Number of interfaces | 1 |
| Connection method | USB type C |
| Note on the connection method | Only device interface |
| Dimensional drawing |
|
| Width | 100 mm |
| Height | 126.93 mm |
| Depth | 75 mm |
| Note on dimensions | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Color (Housing) | gray (RAL 7042) |
| Ambient conditions | |
| Degree of protection | IP20 (Manufacturers declaration, not evaluated by UL) |
| Ambient temperature (operation) | -25 °C ... 60 °C up to 2000 m above mean sea level (observe derating) |
| -25 °C ... 55 °C up to 3000 m above mean sea level (observe derating) | |
| 55 °C (with max. 1 A on UBus) | |
| 55 °C ... 60 °C (only in conjunction with an Axioline F power module AXL F PWR 1H (Item no. 2688297)) | |
| -40 °C ... 70 °C (Extended, see Section “Tested successfully: use under extreme ambient conditions” in the user manual) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Shock (operation) | 30g (in accordance with EN 60068-2-27/IEC 60068-2-27) |
| Vibration (operation) | 5g (in accordance with EN 60068-2-6/IEC 60068-2-6) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
| ATEX | |
| Identification | II 3 G Ex ec IIC T4 Gc |
| Certificate | UL 25 ATEX 3349 X |
| References to standards | EN IEC 60079-0, EN IEC 60079-7 |
| IECEx | |
| Identification | Ex ec IIC T4 Gc |
| References to standards | IEC 60079-0 Ed. 7, IEC 60079-7 Ed. 5.1 |
| UL Ex, USA / Canada | |
| Identification | Class I, Zone 2, AEx ec IIC T4 Gc |
| Class I, Div. 2, Groups A, B, C, D | |
| Ex ec IIC T4 Gc X | |
| Certificate | E366272 |
| References to standards | UL 60079-0, Ed. 7 / CSA C22.2 NO. 60079-0, Ed. 4 |
| UL 60079-7, Ed. 5 / CSA C22.2 NO. 60079-7, Ed. 2 | |
| UL, USA/Canada | |
| Identification | cULus |
| Certificate | E238705 |
| Corrosive gas test | |
| Identification | ISA S71.04.2013 G3 Harsh Group A, DIN EN 60068-2-60:2016-06 Method 4 |
| Industrial Cyber Security | |
| Identification | Industrial IT Security, IACS Component |
| Certificate | IITS2 029429 0027 |
| Note | Configuration: Security Profile active |
| References to standards | IEC 62443-4-1:2018 |
| IEC 62443-4-2:2019 | |
| PPP 15003B:2021 (IEC 62443-4-1: Full ML3 Process Profile) | |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Conformance with EMC directives | Immunity test in accordance with EN IEC 61000-6-2 Electrostatic discharge (ESD)IEC 61000-4-2 Criterion B, ±6 kV contact discharge, ±8 kV air discharge |
| Immunity test in accordance with EN IEC 61000-6-2 Electromagnetic fieldsIEC 61000-4-3 Criterion A, Field intensity: 10 V/m | |
| Immunity test in accordance with EN IEC 61000-6-2 Fast transients (burst)IEC 61000-4-4 Criterion B, ±2 kV | |
| Immunity test in accordance with EN IEC 61000-6-2 Transient overvoltage (surge)IEC 61000-4-5 Criterion B; DC supply lines: ±0.5 kV/±1.0 kV (symmetrical/asymmetrical), fieldbus cable shielding: ±1.0 kV | |
| Immunity test in accordance with EN IEC 61000-6-2 Conducted interferenceIEC 61000-4-6 Criterion A, Test voltage 10 V | |
| Noise emission test in accordance with EN IEC 61000-6-4 Class A |
| Mounting type | DIN rail mounting |
DNV GL
Approval ID: TAA00000DFBSH
Approval ID: 840ABS
Approval ID: 20-2059154-PDAPROFINET
Approval ID: Z13491PROFINET
Approval ID: Z13492TÜV SÜD Type tested
Approval ID: IITS2 029429 0027cULus Listed
Approval ID: E238705RINA
Approval ID: ELE008423XG
Your advantages
Linux operating system
Supports high-level languages
Up to 63 AXIO I/O modules can be mounted side by side
3 independent Ethernet interfaces
Increased resistance to EMI
Extended temperature range of -40°C ... +70°C (see section “Tested successfully: use under extreme ambient conditions” in the user manual)
PROFINET controller and PROFINET device
Use of up to two left-alignable extension modules
Connection to PROFICLOUD
Numerous protocols supported such as: http, https, FTP, SNTP, SNMP, SMTP, SQL, MySQL, DCP, etc.
Cybersecurity in accordance with IEC 62443
