CSA
Approval ID: 212533| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 300 V | 10 A | 22 - 16 |
HC-D 8-ESTC
-
Contact insert
1775758

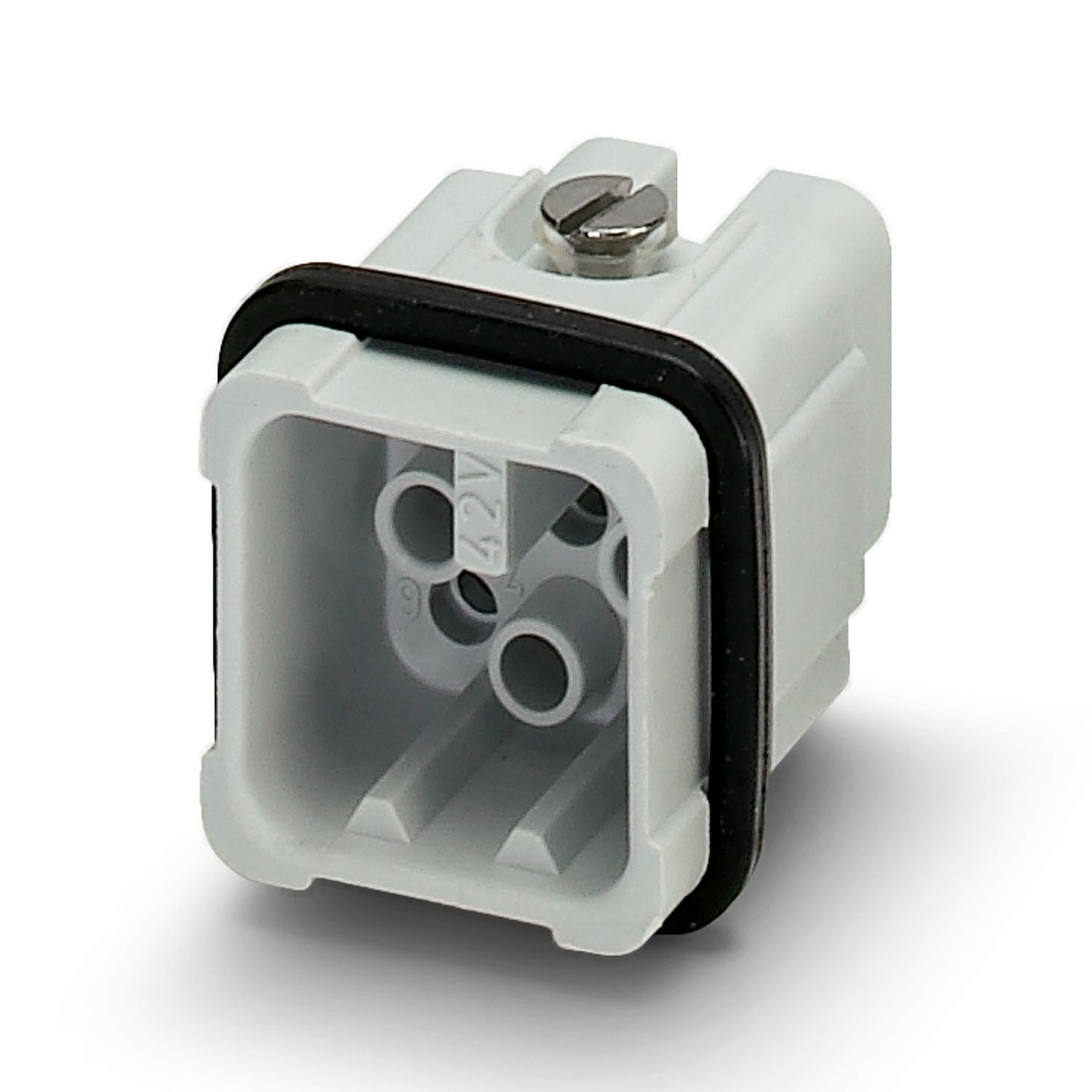

HEAVYCON male insert, D8 series, 8-pos., crimp connection, with IP65 sealing screw
Product details
| General | For HC-D8 housing, crimp contacts CK1,6-ED (crimp contacts not included in scope of supply) |
| Assembly note | Connectors may be operated only when there is no load/voltage. |
| The inserts may only be used in plastic housings at voltages >42 V, since it is not possible to connect the protective conductor and the housing with each other. |
| Product type | Contact insert with a fixed no. of positions |
| Type | D8 |
| Number of positions | 8 |
| Connection profile | 8 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

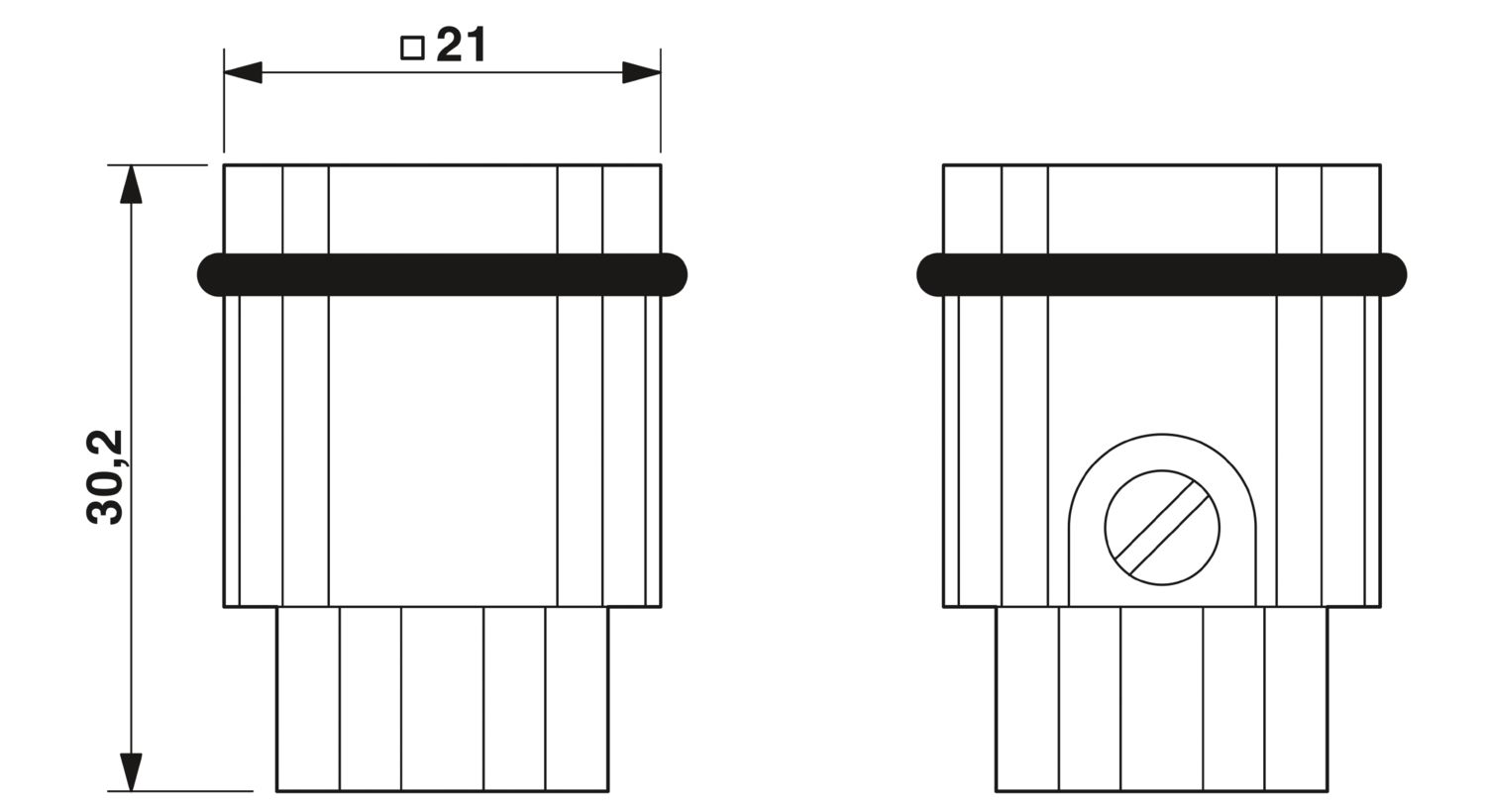

| Dimensional drawing |
|

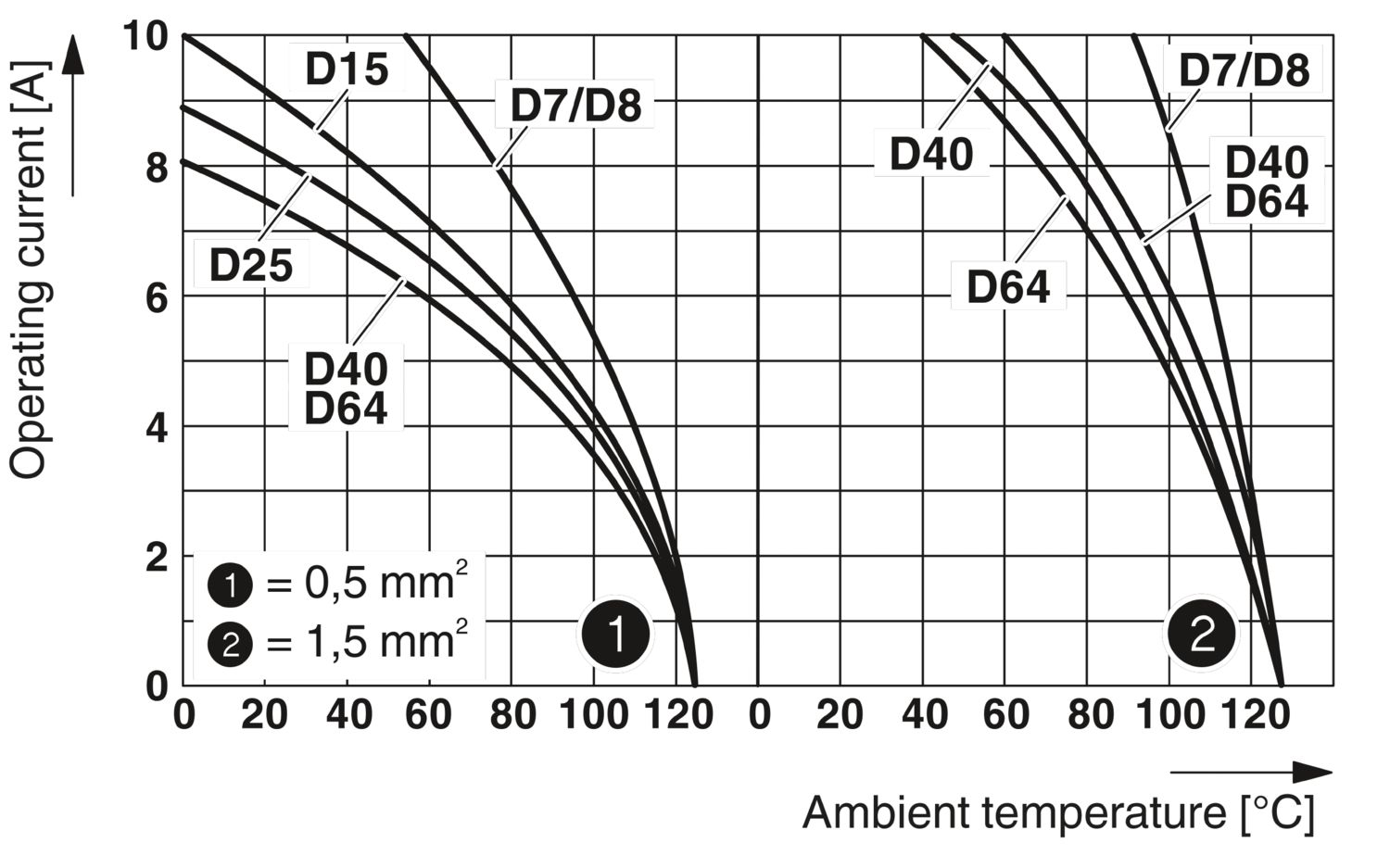

| Width | 21 mm |
| Height | 30.2 mm |
| Length | 21 mm |
| Connection technology | |
| Connection technology | Crimp connection |
| Connection in acc. with standard | IEC / EN |
| Conductor connection | |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Connection cross section AWG | 26 ... 14 |
| Stripping length of the individual wire | 8 mm |
| 6 mm (for cross section 2.5 mm²) | |
| Rated voltage (III/3) | 50 V |
| Rated surge voltage | 0.8 kV |
| Rated current | 10 A |
| Test voltage | 4 kV AC |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Contact material | Copper alloy |
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PA |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Constructional and testing regulations | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Tests | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 |
