AB-PTI 16-NLS - Support bracket

AB-PTI 16-NLS - Support bracket

1030137

Support bracket, depth: 46.8 mm, width: 12.2 mm, height: 81.9 mm, color: gray, mounting type: DIN rail mounting

Product details

Expand all Collapse all

Technical data

Notes

Note on application	with end bracket function

Product properties

Product type	Support bracket

Dimensions

Width	12.2 mm
Height	81.9 mm
Depth	46.8 mm
Depth on NS 35/7,5	48.5 mm
Depth on NS 35/15	56 mm

Material specifications

Color	gray (RAL 7042)
Material	PA
Flammability rating according to UL 94	V0
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %

Mounting

Mounting type	DIN rail mounting

Commercial data

Item number	1030137
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	A1 - Terminal Strips
Product key	BE2Z1X
Catalog page	Page 127 (C-1-2019)
GTIN	4055626533131
Weight per piece (including packing)	17,8 g
Weight per piece (excluding packing)	11,828 g
Customs tariff number	39269097
Country of origin	PL

Classifications

ECLASS

ECLASS-13.0

27400607

ETIM

ETIM 9.0

EC001166

UNSPSC

UNSPSC 21.0

39121700

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

EK 116 - Power terminal block 0401010
EK 135 - Power terminal block 0401023
AK 4 - Connection terminal block 0404017
AK 16 - Connection terminal block 0404033
AK 35 - Connection terminal block 0404046
AKG 4 BK - Connection terminal block 0421032
AKG 16 BK - Connection terminal block 0423030
AKG 16 GY - Connection terminal block 0423043
SK 8 - Shield connection terminal block 3025163
SK 14 - Shield connection terminal block 3025176
SK 20 - Shield connection terminal block 3025189
SK 5 - Shield connection terminal block 3025338
NS 35/ 7,5 PERF 2000MM - DIN rail perforated 0801733
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated 0801681
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated 1204119
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1204122
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated 0801704
NS 35/ 7,5 ZN PERF 2000MM - DIN rail perforated 1206421
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated 1206434
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated 0801762
NS 35/ 7,5 CAP - End cap 1206560
NS 35/15 PERF 2000MM - DIN rail perforated 1201730
NS 35/15 UNPERF 2000MM - DIN rail, unperforated 1201714
NS 35/15 WH PERF 2000MM - DIN rail perforated 0806602
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1204135
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated 1201756
NS 35/15 ZN PERF 2000MM - DIN rail perforated 1206599
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated 1206586
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1201895
NS 35/15 CAP - End cap 1206573
ZBF10:UNBEDRUCKT - Zack Marker strip, flat 0809997
ZBF10 CUS - Zack Marker strip, flat 0825031
ZBF10,LGS:FORTL.ZAHLEN - Zack Marker strip, flat 0810009
ZBF10,QR:FORTL.ZAHLEN - Zack Marker strip, flat 0810025
UC-TMF 10 - Marker for terminal blocks 0818124
UC-TMF 10 CUS - Marker for terminal blocks 0824662
UCT-TMF 10 - Marker for terminal blocks 0829204
UCT-TMF 10 CUS - Marker for terminal blocks 0829679
TMT 10 R - Marker for terminal blocks 0816210
TMT 10 R CUS - Marker for terminal blocks 0824500
TMT (EX9,5)R - Marker for terminal blocks 0828295
US-TM 100 - Marker for terminal blocks 0829255
ZB 10:UNBEDRUCKT - Zack marker strip 1053001
ZB 10 CUS - Zack marker strip 0824941
ZB10,LGS:FORTL.ZAHLEN - Zack marker strip 1053014
ZB10,QR:FORTL.ZAHLEN - Zack marker strip 1053027
ZB10,LGS:L1-N,PE - Marker for terminal blocks 1053412
ZB10,LGS:U-N - Marker for terminal blocks 1053438
UC-TM 10 - Marker for terminal blocks 0818069
UC-TM 10 CUS - Marker for terminal blocks 0824605
UCT-TM 10 - Marker for terminal blocks 0829142
UCT-TM 10 CUS - Marker for terminal blocks 0829623

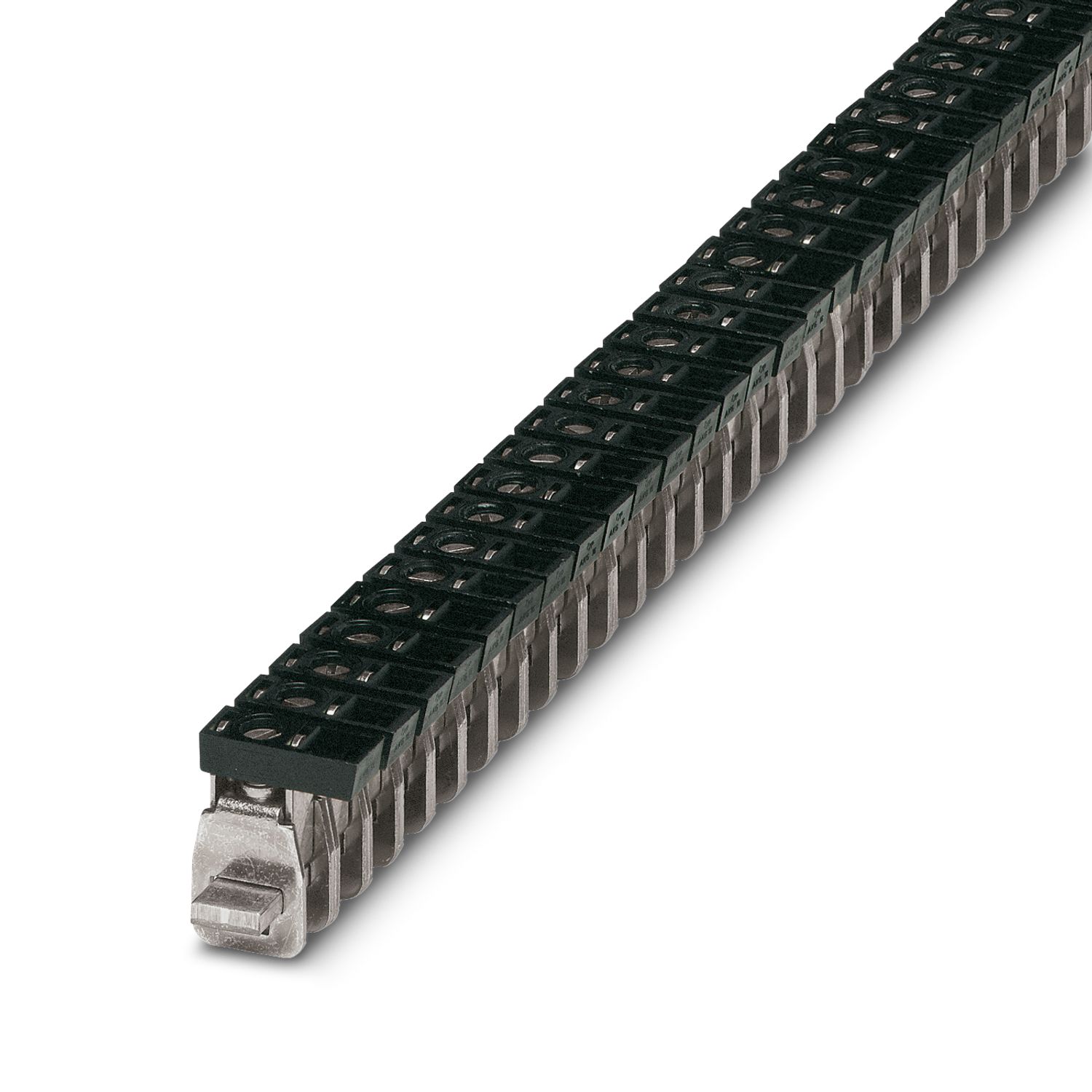

NLS-CU 3/10 148MM 2X5,5 - Neutral conductor rail 5406390
NLS 3/10 AV 134/134 - Neutral busbar 3062870
NLS-CU 3/10 220MM 4X4,5 1XM4 - Neutral busbar 1013677
NLS-CU 3/10 SN 1000MM - Neutral busbar 0402174
NLS-CU 3/10 SN 2000MM - Neutral busbar 0402006
