CHARX connect – charging sockets for charging stations and home chargers

AC charging sockets for charging stations and home chargers

The type 2 CHARX connect modular charging sockets are mounted in AC charging stations and home charging stations and enable the AC charging of electric vehicles via mobile AC charging cables with charging powers of up to 22 kW. With our modular system, the design and scope of functions can be individually adapted to your requirements.

More information

71 Results

Page:

Sort by:

Relevance
A-Z
Z-A

Items per page

Go to Product Detail Page for item 1737305

CHARX T2M3SOWT-3AC32-0,7M - Cable set for infrastructure charging socket

CHARX T2M3SOWT-3AC32-0,7M - Cable set for infrastructure charging socket

1737305

CHARX connect modular, Type 2, Cable set for infrastructure charging socket, 32 A , 480 V AC, Accessories, Single wires, length: 0.7 m, Plug-in mounting, with pin contacts on one side, with temperature sensors, compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE), IEC 62196-2

Go to Product Detail Page for item 1737459

CHARX T2M3SO12-4P-WC - Infrastructure charging socket

CHARX T2M3SO12-4P-WC - Infrastructure charging socket

1737459

CHARX connect modular, Type 2, Infrastructure charging socket, 32 A , 480 V AC, without strain relief cap, without single-core wires, locking actuator: 12 V, 4-pos., square, Rear panel mounting, M5 thread, housing: black, for charging electric vehicles (EV) with alternating current (AC), IEC 62196-2

Go to Product Detail Page for item 1737449

CHARX T2M3SO12-4P - Infrastructure charging socket

CHARX T2M3SO12-4P - Infrastructure charging socket

1737449

CHARX connect modular, Type 2, Infrastructure charging socket, 32 A , 480 V AC, without single-core wires, locking actuator: 12 V, 4-pos., square, Rear panel mounting, M5 thread, housing: black, for charging electric vehicles (EV) with alternating current (AC), IEC 62196-2

Go to Product Detail Page for item 1737467

CHARX T2M3SO-CAP-REMOVER - Removal tool

CHARX T2M3SO-CAP-REMOVER - Removal tool

1737467

CHARX connect modular, Type 2, Removal tool, Accessories, for removing the protective cap for strain relief and touch protection, which is mounted on the back of the infrastructure charging sockets, IEC 62196-2

Go to Product Detail Page for item 1164365

EV-T2M3SOW-3AC32A-0,7M6,0E - Cable set for infrastructure charging socket

EV-T2M3SOW-3AC32A-0,7M6,0E - Cable set for infrastructure charging socket

1164365

CHARX connect modular, Type 2, Cable set for infrastructure charging socket, 32 A , 480 V AC, Accessories, Single wires, length: 0.7 m, Plug-in mounting, with slip-on sleeve at one end, only for connection to second-generation infrastructure charging sockets from Phoenix Contact, IEC 62196-2

Go to Product Detail Page for item 1164417

EV-T2M3SO12-4P-B-SET - Infrastructure charging socket

EV-T2M3SO12-4P-B-SET - Infrastructure charging socket

1164417

CHARX connect modular, Type 2, Infrastructure charging socket, 32 A , 480 V AC, Basic, Set, without single-core wires, locking actuator: 12 V, 4-pos., square, Rear panel mounting, M5 thread, housing: black, with square protective cover, for charging electric vehicles (EV) with alternating current (AC), PHOENIX CONTACT logo, IEC 62196-2

Go to Product Detail Page for item 1286399

EV-T2M3SO-00-B - Infrastructure charging socket

EV-T2M3SO-00-B - Infrastructure charging socket

1286399

CHARX connect modular, Type 2, Infrastructure charging socket, 32 A , 480 V AC, Basic, without single-core wires, square, Rear panel mounting, M5 thread, housing: black, without locking actuator, for charging electric vehicles (EV) with alternating current (AC), PHOENIX CONTACT logo, IEC 62196-2, NOTE This product version does not include a locking actuator.

Go to Product Detail Page for item 1296166

EV-T2M3SM-E-LOCK12V - Locking

EV-T2M3SM-E-LOCK12V - Locking

1296166

CHARX connect modular, Type 2, GB/T, Locking, Accessories, Single wires, length: 0.5 m, locking actuator: 12 V, 4-pos., with single-core wires, without holder, for locking infrastructure charging sockets when plug is inserted, IEC 61851-1

Go to Product Detail Page for item 1164300

EV-T2M3SO12-4P-B - Infrastructure charging socket

EV-T2M3SO12-4P-B - Infrastructure charging socket

1164300

CHARX connect modular, Type 2, Infrastructure charging socket, 32 A , 480 V AC, Basic, without single-core wires, locking actuator: 12 V, 4-pos., square, Rear panel mounting, M5 thread, housing: black, for charging electric vehicles (EV) with alternating current (AC), PHOENIX CONTACT logo, IEC 62196-2

Go to Product Detail Page for item 1268355

EV-T2M3SO12-4P-BL-SET - Infrastructure charging socket

EV-T2M3SO12-4P-BL-SET - Infrastructure charging socket

1268355

CHARX connect modular, Type 2, Infrastructure charging socket, 32 A , 480 V AC, Basic, Set, without single-core wires, locking actuator: 12 V, 4-pos., square, Rear panel mounting, M5 thread, housing: black, with square protective cover, with LED (common cathode connection), for charging electric vehicles (EV) with alternating current (AC), PHOENIX CONTACT logo, IEC 62196-2

Page:

Items per page

Your advantages

Modular system offers particularly high flexibility
Easy mounting and maintenance with plug-in connecting cables
Fast status detection via optional LED display
Safe touch protection with optional shutter
Waterproof and dirtproof with fully molded contacts
Developed and produced in accordance with the IATF 16949 automotive standard

CHARX connect modular AC charging sockets

The charging socket that adapts Choose the design, power, and scope of functions

With our CHARX connect modular type 2 charging sockets, we provide you with a clever modular system that allows you to freely combine all components. You can choose the design, mounting type, charging power, and scope of functions of the charging socket to perfectly suit your charging station or home charger – both technically and visually. The robust, fiberglass-reinforced housings of all system components extend their service life, protect against weather, and make vandalism more difficult.

The modular system offers the following options:

Actuator position at 12 o’clock, 8 o’clock, or 4 o’clock
PCB mounting or wired connection
Charging current of 20 A or 32 A, 1-phase or 3-phase
Optional features:
- PTC temperature sensors
- Protective cover in round or square design
- Status display with freely controllable RGB LEDs
- Customer logo or “C” marking in accordance with DIN EN 17186 instead of the Phoenix Contact logo
- Shutter for touch protection in accordance with IPXXD

The modular system of the AC charging sockets CHARX connect modular can be custom configured

LED status indicator in the protective cover of the infrastructure charging socket

Infrastructure charging socket, temperature sensor technology, and locking actuator

Plug-in connecting cables for the infrastructure charging socket

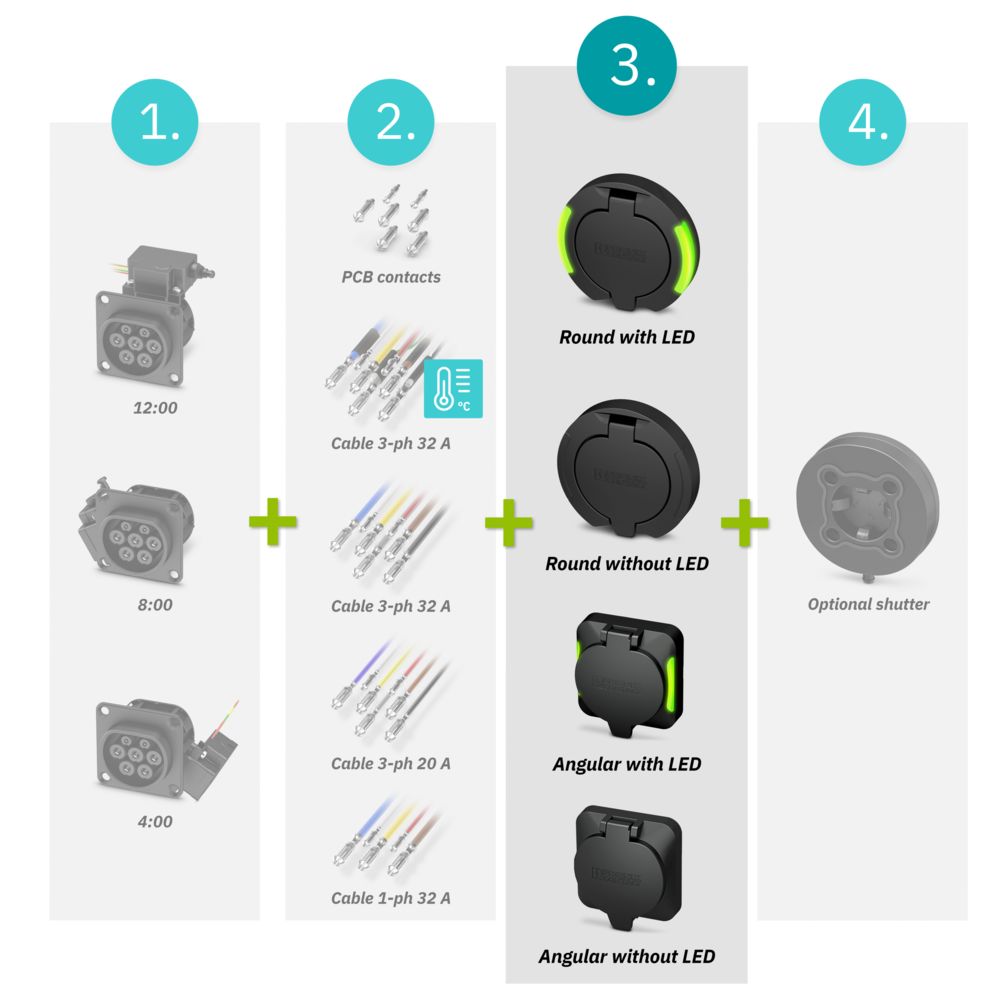

Step 1: Select protective cover

Round or square design
Choose whether a round or square protective cover better fits the design of your home charger station or charging station. With one-handed operation, it can be opened effortlessly with the charging connector, without needing to use your other hand. Its fiberglass-reinforced housing protects the charging station against weather and vandalism.

With or without LED indicator
An LED status indicator integrated in the protective cover can be selected as an option. This allows users to see the status of the charging point at a glance. The RGB LEDs can be controlled freely, with glowing, flashing, and pulsing in all RGB colors possible. The precise light guide technology ensures a homogeneous light pattern with optimum diffusion. The power is supplied to the LEDs via mounting screws, thus simplifying installation.

Your individual logo
The protective cover is available optionally:

With imprinted Phoenix Contact logo
With imprinted customer logo (on request)
With sticker field for customer logo
With “C” identification
in accordance with DIN EN 17186
Without logo, sticker field, or identification

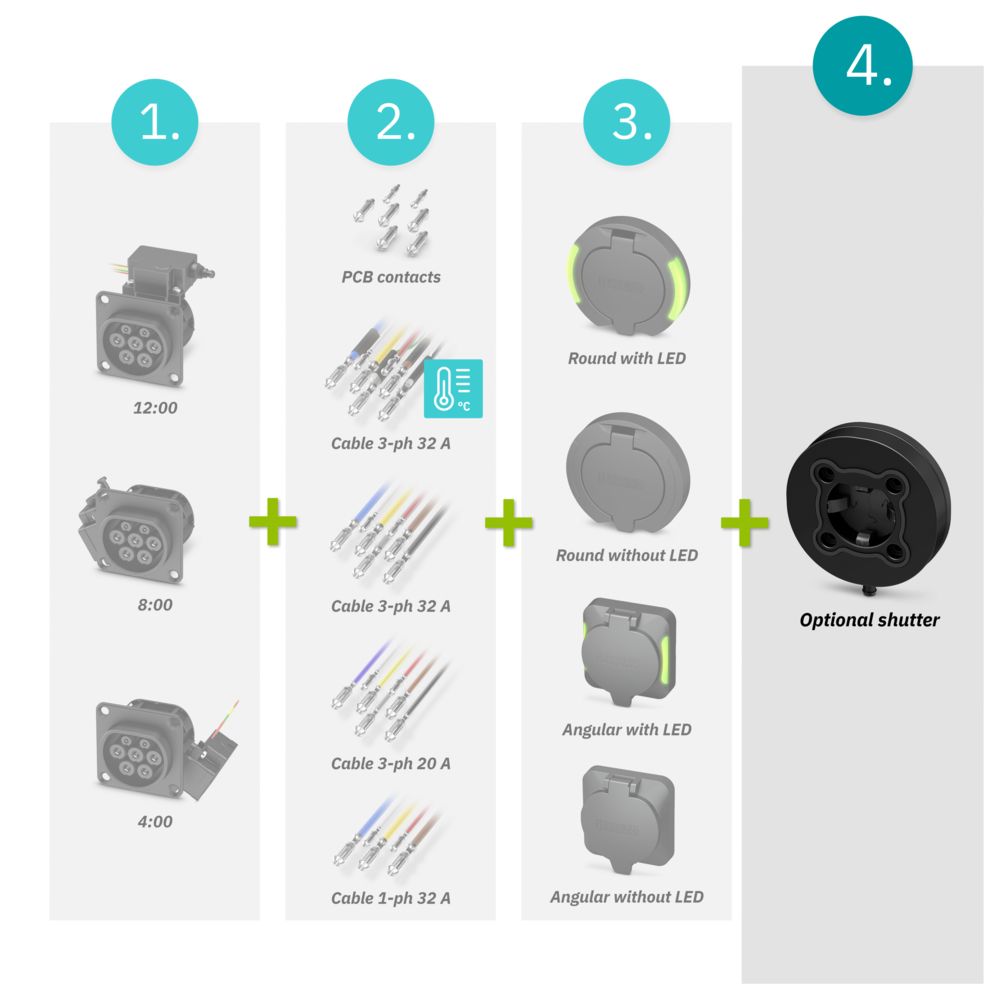

Step 2: Select optional shutter

Safe touch protection
The shutter ensures reliable touch protection for all power and signal contacts in accordance with IEC 61851-1, IEC 62196-1, and IEC 62196-2. It therefore increases electrical safety and also protects the charging station against vandalism and humidity. Standards in some countries, such as Spain, Portugal, Great Britain, France, Sweden, Italy, and Switzerland require touch protection.

Intuitive operation
Operation is intuitive – simply inserting the charging plug opens the shutter. The charging connector is not rotated or slid.

Compatibility
Our shutter is compatible with all type 2 charging sockets and protective covers from Phoenix Contact.

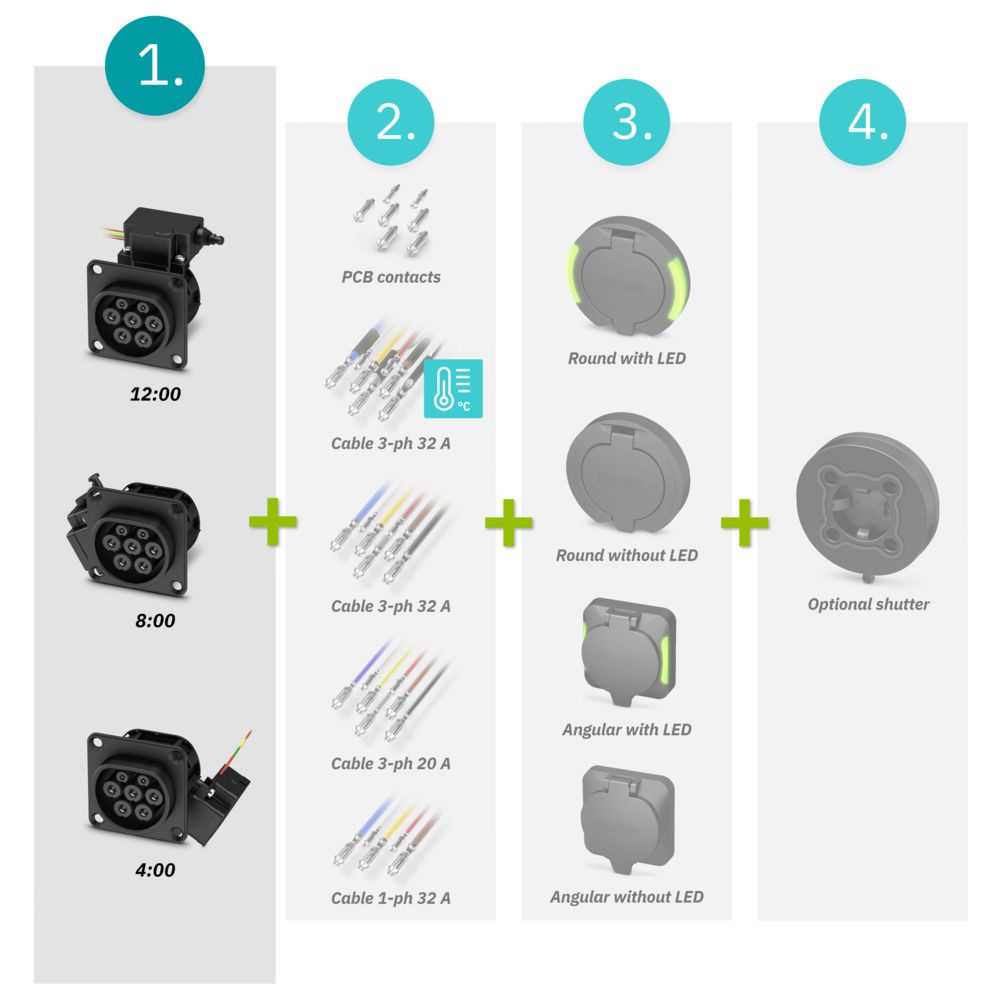

Step 3: Select the charging socket

With or without PTC
temperature sensors
In order to protect people and the charging station, the optional temperature monitoring can be used to interrupt the charging process in the event of overheating at the power contacts.

With three or four-pos. locking actuator
The charging socket is available with either a three-pos. or four-pos. locking actuator and corresponding connecting cable.

Silver-plated, fully molded contacts
The silver-plated surfaces of the power and signal contacts ensure efficient power transmission, optimum corrosion protection, and a long service life. They are fully molded and therefore waterproof and dirtproof.

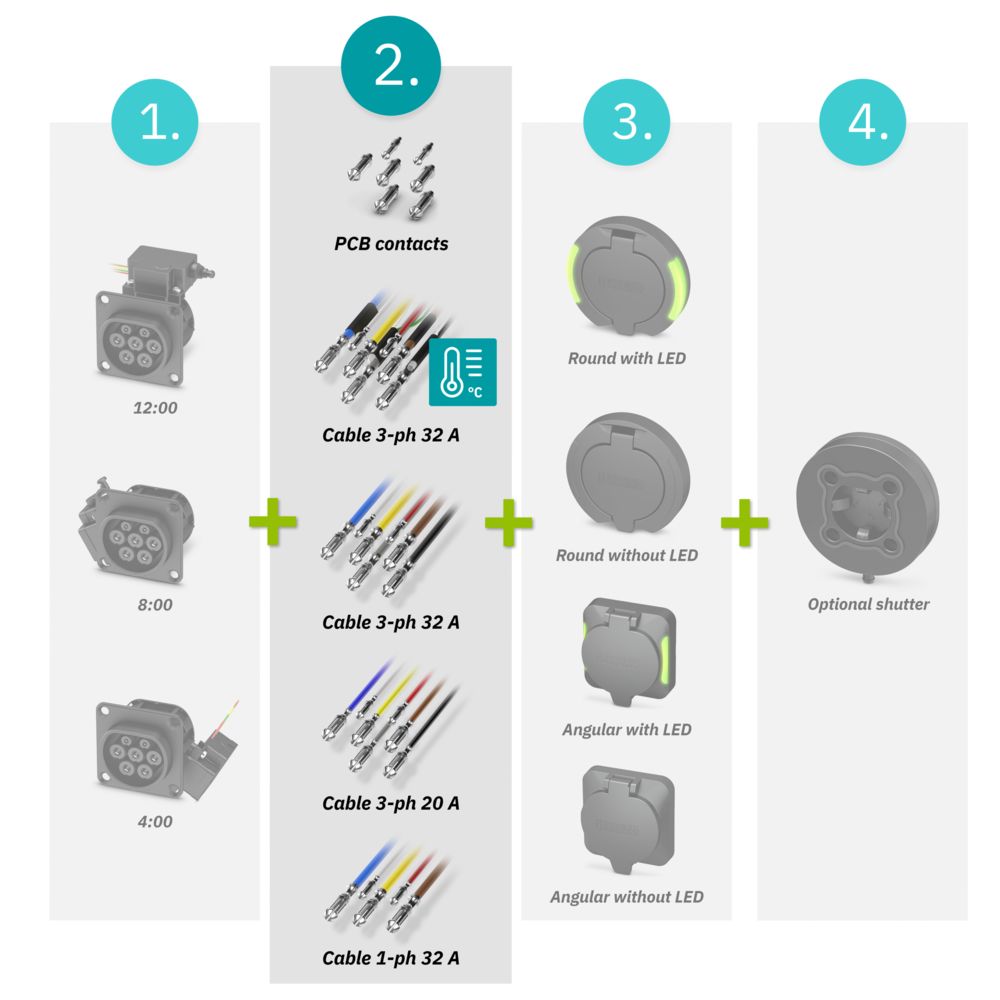

Step 4: Select connecting cable

By choosing the separately available cable set, you can determine the charging power of your charging socket:

Single- or three-phase cable
20 A or 32 A charging current
0.3 to 2.0 m cable length (additional lengths on request)

The plug-in connecting cables simplify installation and subsequent replacement of the charging socket in the event of maintenance.

3D view

Experience now in 3D

Take a look at the type 2 charging socket including shutter and protective cover with LED display in precise detail. The product can be viewed from any angle using free zoom and rotate functions.

Convenient, safe, and double-award winner Discover other advantages of our AC charging sockets

Person plugging an AC charging connector into a charging station

PTC temperature sensors at the power contacts of the CHARX connect modular AC charging sockets

Award ceremony for the German Design Award 2023 and iF Design Award 2023 for the CHARX connect modular AC charging sockets

Intuitive operation with just one hand

Whether it is making a phone call or carrying their shopping – in everyday charging situations, electric car drivers often only have one hand free to connect the charging cable to the charging station.

That is why we have consistently designed our AC charging sockets for one-handed operation: Both the protective cover and the shutter can be opened effortlessly with the charging connector, without needing to use your other hand. A small feature that makes a big difference and is appreciated by many of our customers.

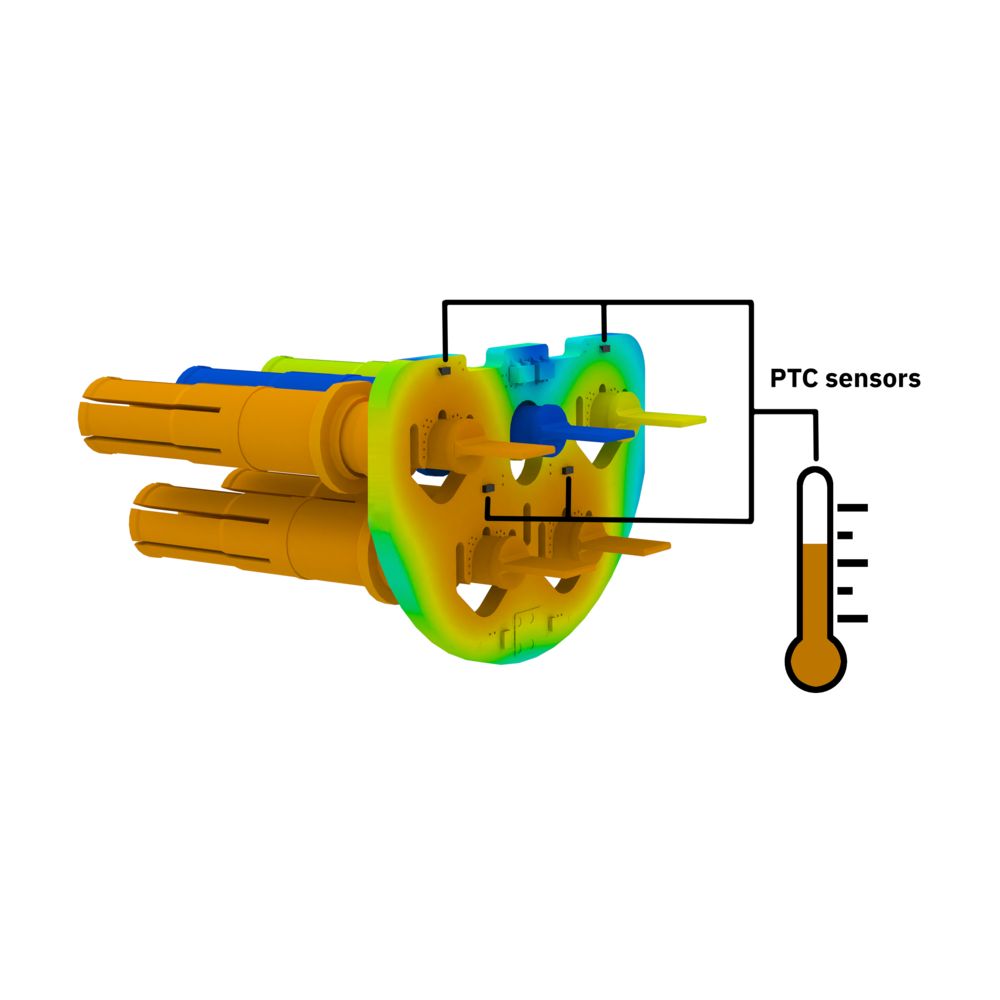

Temperature sensor technology protects against overheating

The optional temperature sensors reliably protect the charging socket from overheating, which can occur due to foreign objects or contamination, for example. This protects users from danger and prevents expensive damage to the charging station.

The sensors consist of a chain of PTC resistors, located at each power contact. By detecting the resistance values, the charging controller can initiate an immediate shutdown when a limit temperature is exceeded.

A winner in design and modularity

CHARX connect modular won two prestigious design awards for its modular and attractive design:

iF Design Award 2023
German Design Award 2023

Our clever modular principle was a key factor in this win by enabling all components to be freely combined and tailored to the individual requirements of the customer’s application.
