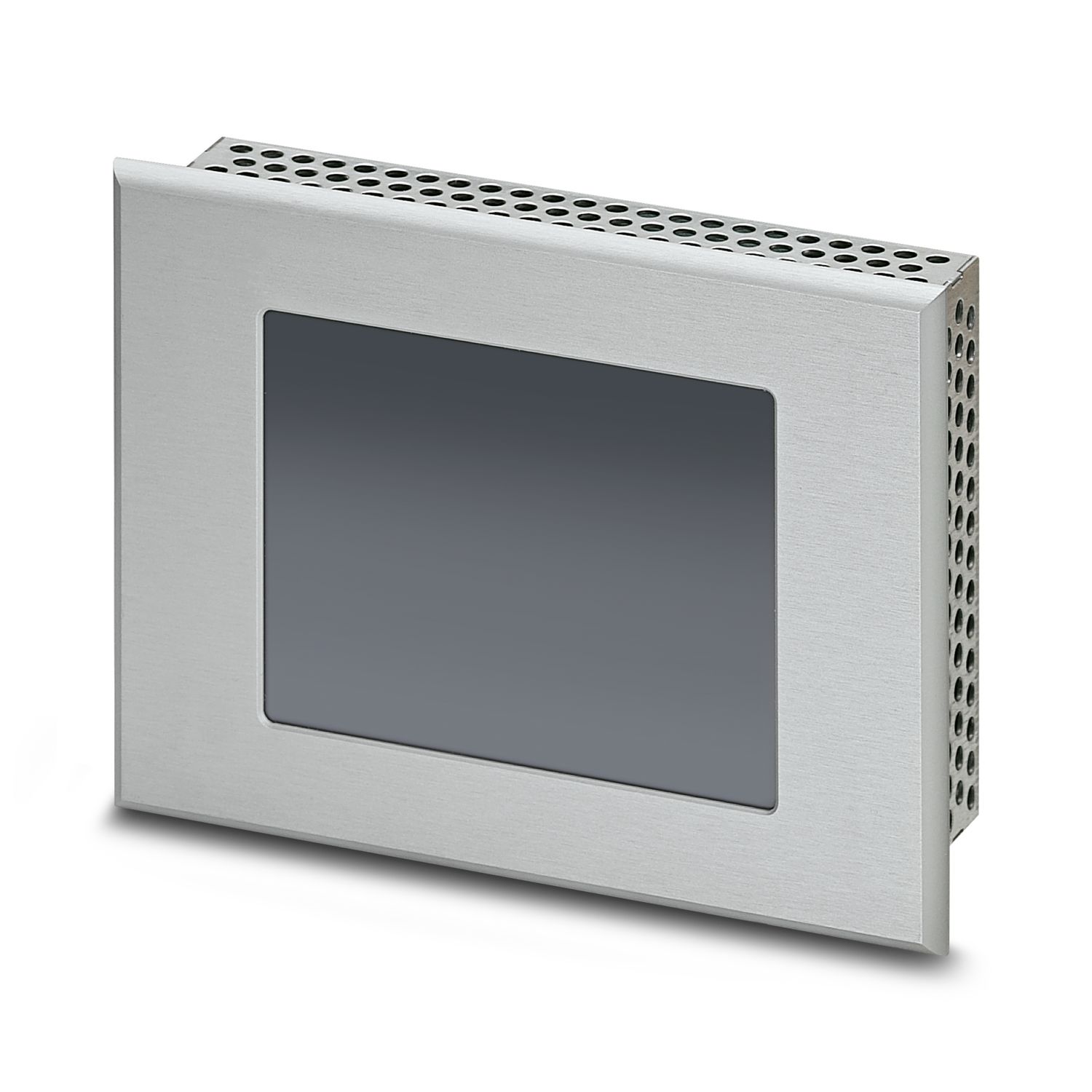

Touch panel, 8.9 cm / 3,5"-FSTN display (analog resistive (polyester)), 320 x 240 pixel(s) (QVGA), 256 grayscales, Arm9™, 200 MHz, 2x USB Host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows® CE 5.0, TSvisRT, CAN.
Product details
Utilization restriction
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Operator panel
Computer data
Processor
Arm9™, 200 MHz
Operating system
Windows® CE 5.0
RAM
64 MB SDRAM
512 KB SRAM
Data storage system
NOR-Flash, 32 MB
Display
Display type
8.9 cm / 3,5"-FSTN
Screen resolution
320 x 240 Pixel(s) (QVGA)
Touch technology
analog resistive (polyester)
Display lighting type
LED
Brightness
350 cd/m², typical (adjustable)
MTBF
40000 h
Color spectrum
256 grayscales
Reading angle left
75.00 °
Reading angle right
75.00 °
Reading angle top
55.00 °
Reading angle bottom
75.00 °
Interfaces
2x USB Host 2.0
Optional interfaces
none
Network
1 x Ethernet (10/100 Mbps), RJ45
Bus system
CAN
User software
TSvisRT
Service life of battery
5 years (typical)
Supply
Power supply unit
24 V DC +/- 20 %
Typical current consumption
0.25 A
Real-time clock
Realtime clock
Yes
Ambient conditions
Degree of protection
IP65 (front), IP20 (back)
NEMA 4X
Ambient temperature (operation)
0 °C ... 50 °C
Ambient temperature (storage/transport)
-25 °C ... 70 °C
Altitude
3000 m
Permissible humidity (operation)
20 % ... 85 %
Shock
15g, according to IEC 60068-2-27
Vibration (operation)
1g, according to EN 60068-2-6
External dimensions
Width / Height / Depth
120 mm / 90 mm / 5 mm (Dimensions of the front plate)
Installation dimensions
Width / Height / Installation depth
112 mm / 82 mm / 47 mm (Mounting cutout, depth with bus if bus system present in the device)
Item number
2401039
Packing unit
1 pc
Minimum order quantity
1 pc
Product key
DRCABB
GTIN
4055626096865
Weight per piece (including packing)
1.700 g
Weight per piece (excluding packing)
1.700 g
Country of origin
DE
China RoHS
Environment friendly use period (EFUP)
EFUP-15
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
