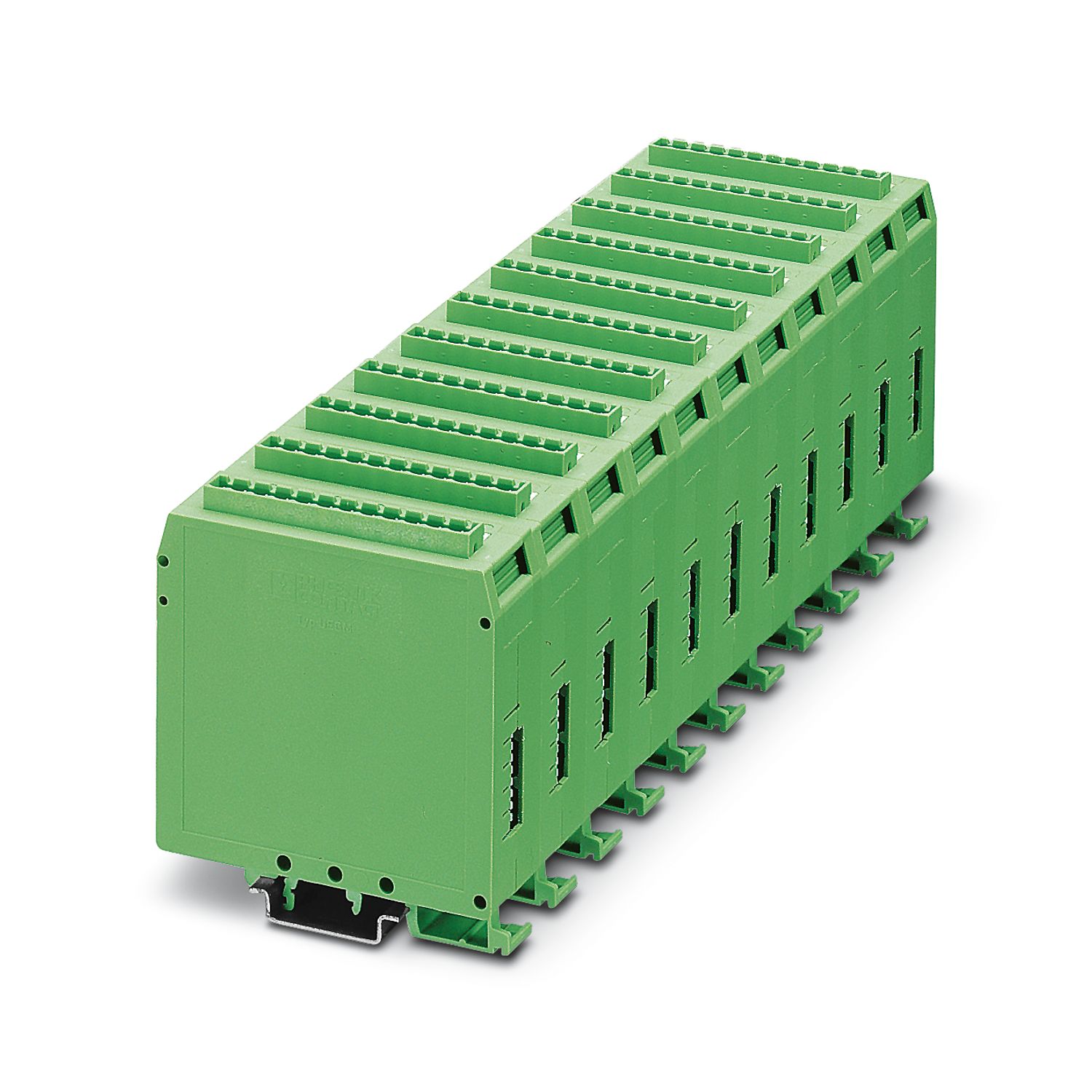

UEGM-OE/AV-24DC/24DC/100
-
Timer module
2766850
Pulse expansion module, input: 24 V DC, output: 3 - 48 V DC/100 mA, supply: 20 - 30 V DC
Product details
| Notes on operation | COMBICON connection plugs can be ordered separately. |
| Product type | Solid-state relay module |
| Insulation characteristics | |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Data management status | |
| Date of last data management | 19.03.2025 |
| Test voltage (Input/output) | 1 kV AC (Input/output) |

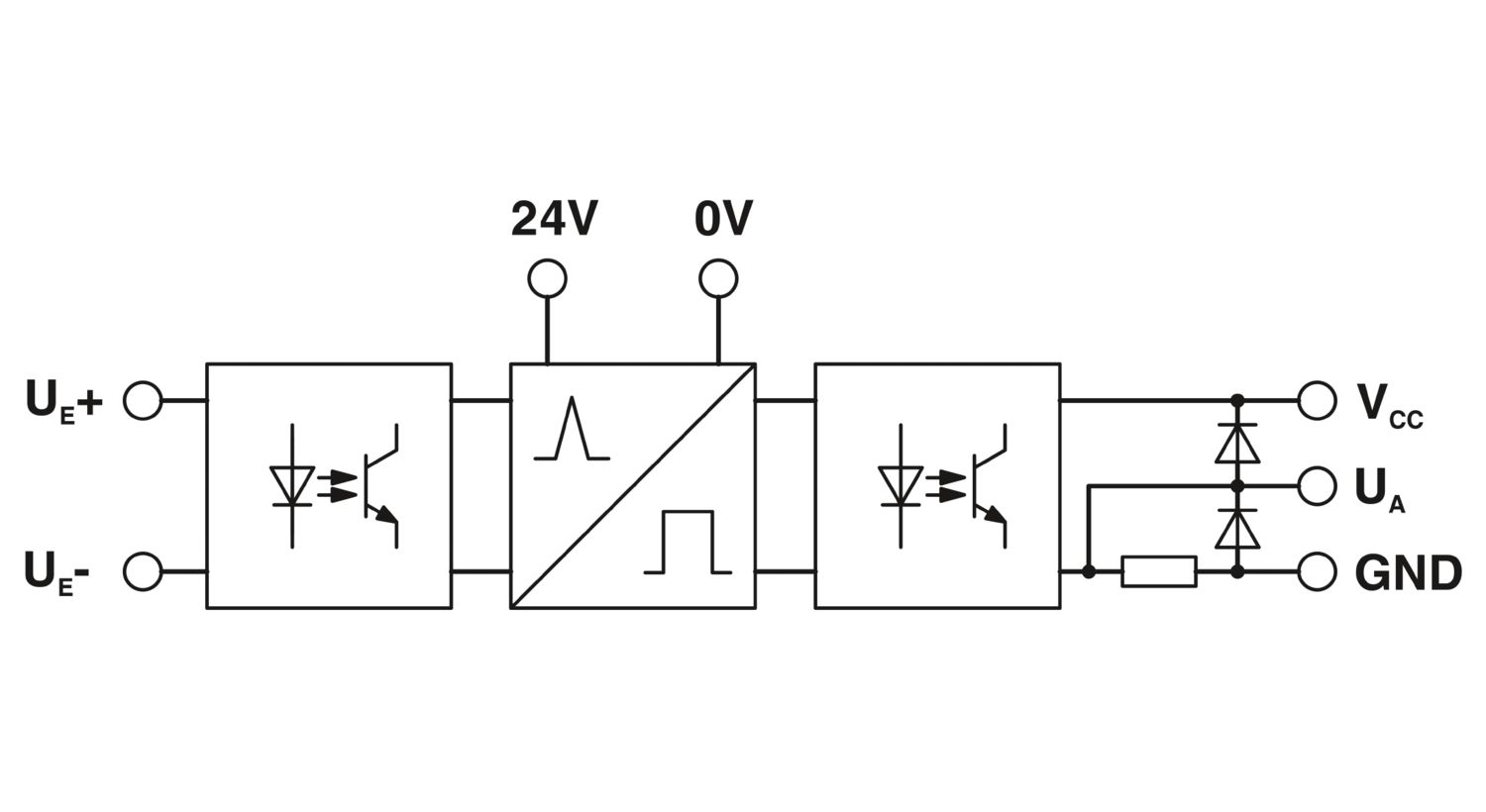

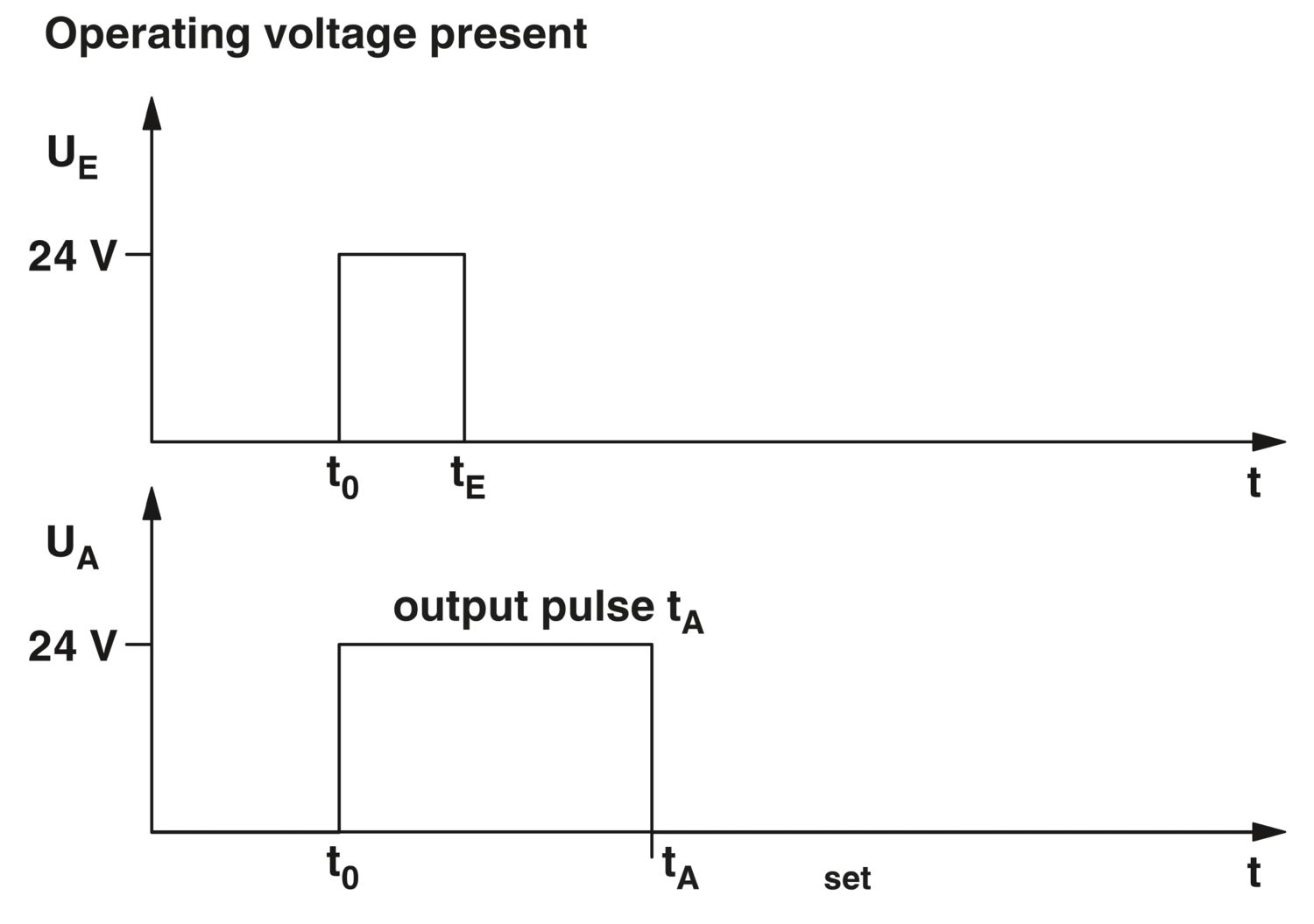

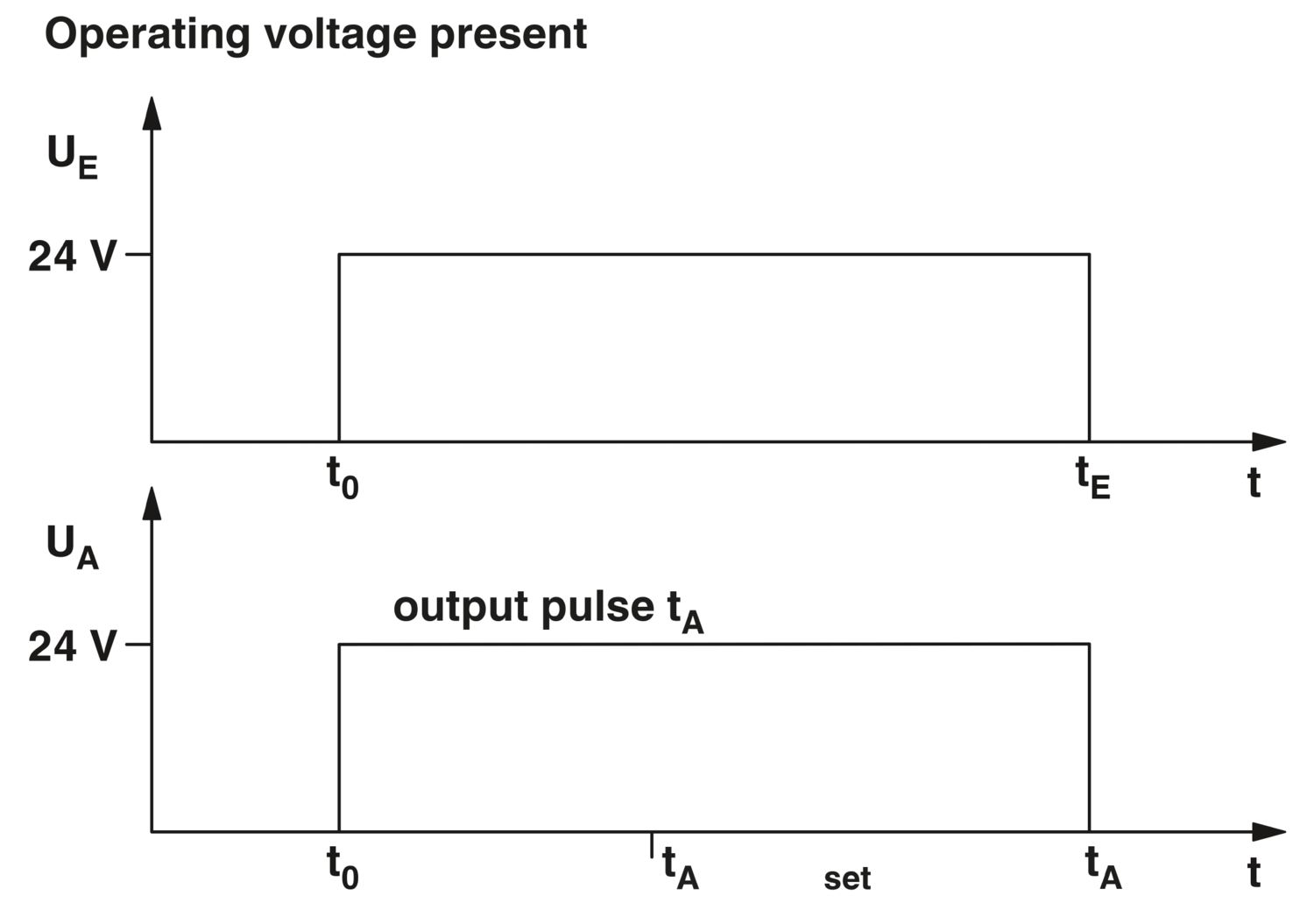

| Pulse input | |
| Impulse voltage | 24 V DC (±20 %) |
| Pulse time | 0.1 ms |
| Max. current consumption | 6 mA |
| Protective circuit | RC element; RC element |
| Design of digital output | electronic |
| Output voltage range | 3 V DC ... 48 V DC (VCC, GND) |
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | 1.4 V |
| Output circuit | 3-conductor, ground-referenced |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Surge protection; Freewheeling diode |
| Input side | |
| Connection method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Output side | |
| Connection method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |

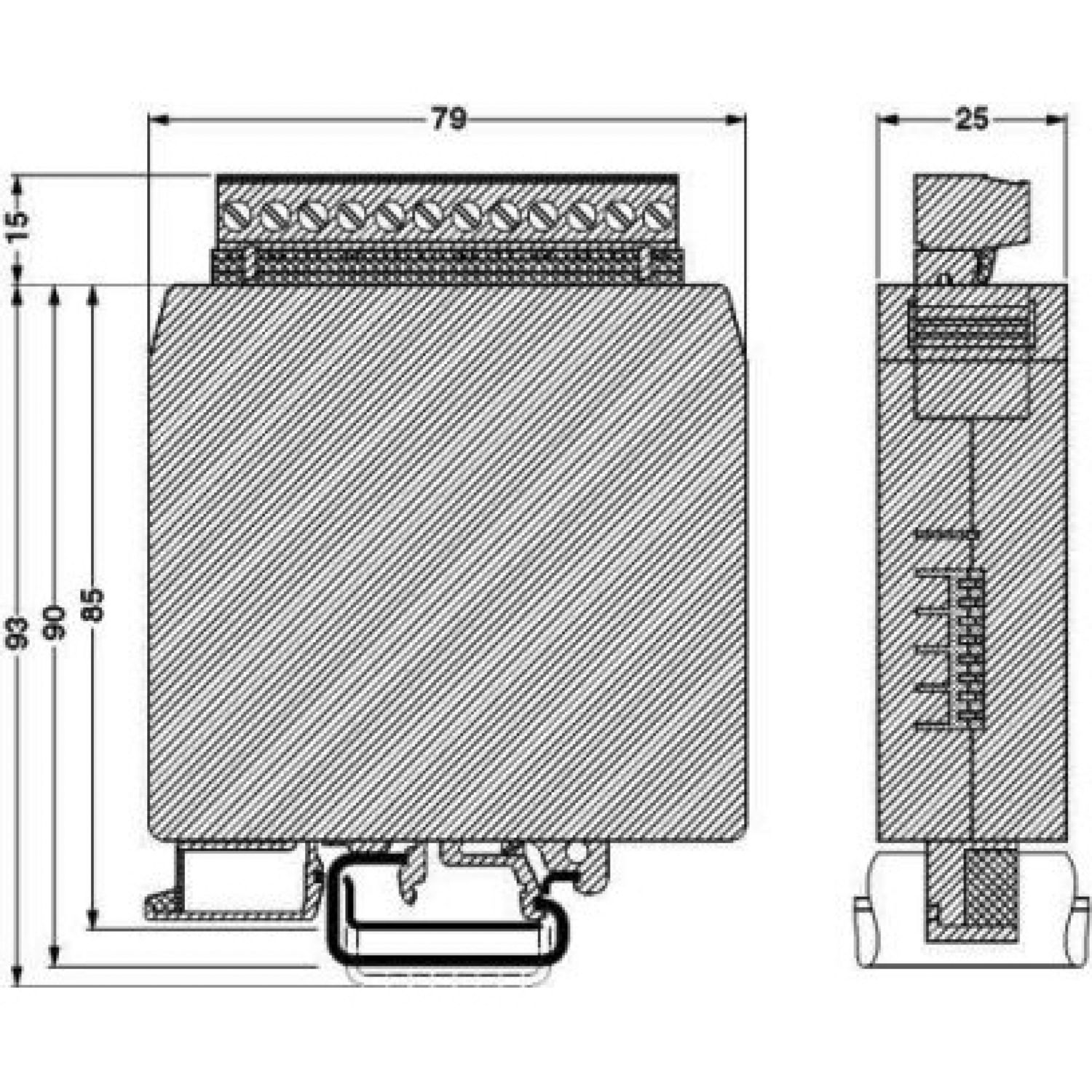

| Dimensional drawing |
|
| Width | 25 mm |
| Height | 79 mm |
| Depth | 85 mm |
| Ambient conditions | |
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Standards/regulations | IEC 60664 |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
Your advantages
Electrical isolation of signals using solid-state relays
Delay times of 10 to 1500 ms
