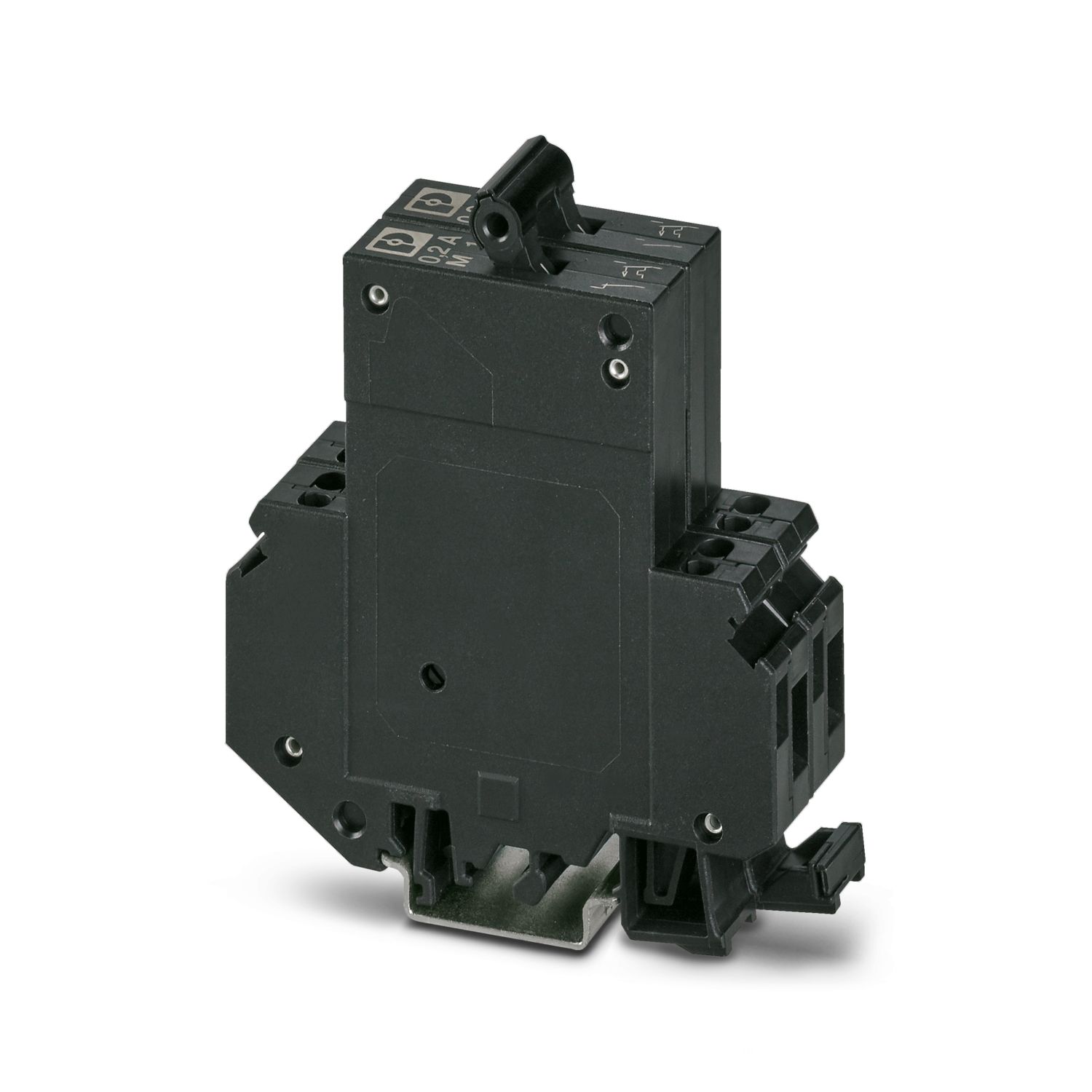

Thermal-magnetic circuit breaker, 2-pos., normal blow, 1 N/O contact and 1 N/C contact, with universal foot for mounting on NS 32 or NS 35
Product details
Product type
Thermomagnetic device circuit breakers
Product family
TMC
Type
DIN rail module, one-piece
Number of positions
2
Number of connections
4
Number of rows
2
No. of channels
1
Insulation characteristics
Overvoltage category
II
Degree of pollution
2
Fuse type
Automatic device
General
Rated voltage
250 V AC (3 AC 433 V)
65 V DC
Rated current IN
0.2 A
Rated surge voltage
2.5 kV
Insulation resistance Riso
> 100 MΩ (500 V DC)
Auxiliary circuit
240 V AC / 1 A (Low-induction)
65 V AC / 1 A (Low-induction)
Tripping method
TM (thermal-magnetic)
Device resistance
26.1 Ω
Rated short-circuit switching capacity Icn
400 A
2500 A (32 V DC)
Short-circuit switching capacity
5000 A ()
2000 A (UL 1077: 65 V DC)
Dielectric strength
3000 V AC (Actuation area)
3000 V AC (Main to auxiliary circuit)
1500 V AC (Position to position)
Switching cycles, max.
10000 (At 1 x In, inductive)
Fuse
M1 (normal blow)
Contact switching type
1 N/O contact
1 N/C contact
Indicator/remote signaling
Connection name
Auxiliary contact
Operating voltage
240 V AC
65 V DC
Operating current
0.2 A AC (Low-induction)
Main contact
Screw thread
M3
Tightening torque
0.6 ... 0.8 Nm
Stripping length
12 mm
Internal cylindrical gage
A3
Conductor cross section rigid
0.2 mm² ... 6 mm²
Cross section AWG
24 ... 10 (converted acc. to IEC)
Conductor cross section flexible
0.2 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)
0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid
0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible
0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 2.5 mm²
Nominal current
0.2 A
Nominal voltage
250 V AC
65 V DC
Auxiliary contact
Screw thread
M3
Tightening torque
0.6 ... 0.8 Nm
Stripping length
12 mm
Internal cylindrical gage
A1
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Cross section AWG
24 ... 14 (converted acc. to IEC)
Conductor cross section flexible
0.2 mm² ... 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid
0.2 m² ... 0.75 m²
2 conductors with same cross section, flexible
0.2 m² ... 0.75 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.25 mm² ... 0.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 0.75 mm²
Nominal current
0.2 A
Nominal voltage
250 V AC
65 V DC
Main contact
Connection method
Screw connection
Screw thread
M3
Tightening torque
0.6 Nm ... 0.8 Nm
Stripping length
12 mm
Conductor cross section flexible
0.2 mm² ... 4 mm²
Conductor cross section rigid
0.2 mm² ... 6 mm²
Conductor cross section AWG
24 ... 10
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve
0.2 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve
0.25 mm² ... 4 mm²
Auxiliary contact
Connection method
Screw connection
Screw thread
M3
Tightening torque
0.6 Nm ... 0.8 Nm
Stripping length
12 mm
Conductor cross section flexible
0.2 mm² ... 1.5 mm²
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 14
Conductor cross section, flexible, with ferrule, with plastic sleeve
0.25 mm² ... 1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve
0.25 mm² ... 2.5 mm²
Width
25 mm
Height
82.5 mm
Depth
96 mm
Color
black (RAL 9005)
Flammability rating according to UL 94
V-2
Insulating material group
II
Insulating material
PA66
Mechanical data
Open side panel
No
Ambient conditions
Degree of protection
IP30 (Actuation area)
IP20 (Connection area)
Ambient temperature (operation)
-30 °C ... 60 °C
Humidity test
240 h, 95 % RH, 40 °C
Standards/specifications
EN 60934
Standards/specifications
UL 1077
Mounting type
DIN rail: 35 mm
Item number
0914918
Packing unit
3 pc
Minimum order quantity
1 pc
Sales key
CLA121
Product key
CLA121
Catalog page
Page 282 (CL-2002)
GTIN
4017918009595
Weight per piece (including packing)
133,863 g
Weight per piece (excluding packing)
133 g
Customs tariff number
85362010
Country of origin
DE
ECLASS
ECLASS-13.0
27140401
ETIM
ETIM 9.0
EC003538
UNSPSC
UNSPSC 21.0
39121400
CSA
Approval ID: 074317
UL Recognized
Approval ID: FILE E 140459
EAC
Approval ID: RU C-DE.A*30.B01546
VDE approval of drawings
Approval ID: 40029348
UAE-RoHS
Approval ID: 23-10-88787
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-25
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)
Lead(CAS: 7439-92-1)
SCIP
7acb4692-50d7-4c75-8631-1a9108754c67
