PLC-V8L/D15S/OUT - System connection

1104789

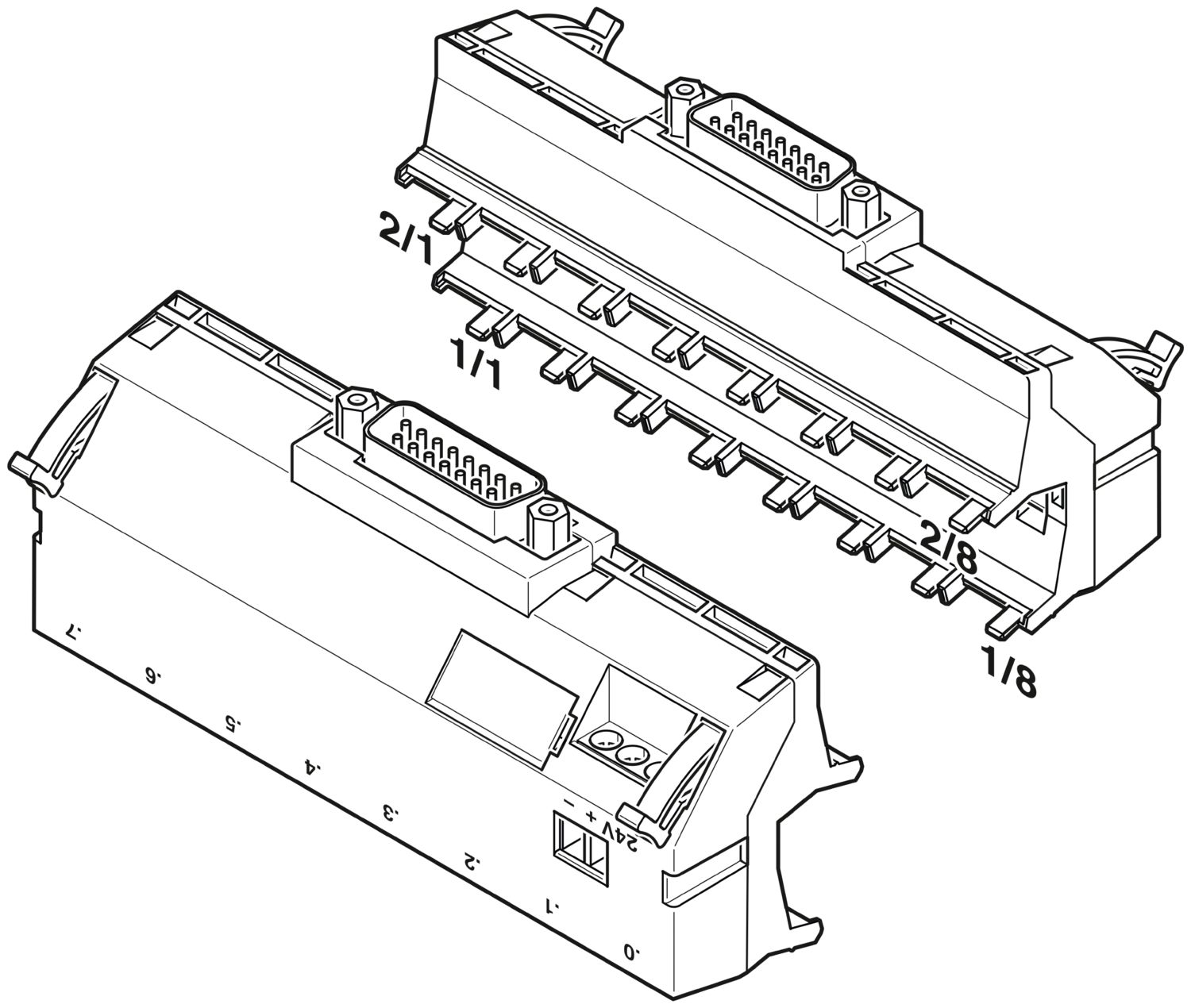

V8 adapter for 8 x PLC-INTERFACE (14 mm), connection 1: D-SUB pin strip 1x 15-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: positive switching

This product needs further products for operation. Mandatory accessories

Product details

Product type	Interface module
Product family	PLC-INTERFACE
Number of positions	15
No. of channels	8
Operating mode	100% operating factor
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Operating voltage range	18 V DC ... 30 V DC
Current (per branch)	≤ 1 A
Current (Power supply)	≤ 3 A
Air clearances and creepage distances
Rated insulation voltage	50 V
Rated surge voltage	0.5 kV (1.2/50 μs)
Supported controller universal
Suitable I/O card	universal

Connection 1 (control level)
Connection in acc. with standard	IEC 60807-2
Connection method	D-SUB pin strip
Screw thread	UNC 4-40
Number of connections	1
Number of positions	15
Insertion/withdrawal cycles	> 500
Pitch	2.74 mm
Connection 2 (field level)
Connection method	Plug-in connection
Note	Can be snapped onto 8x PLC-INTERFACE terminals
Connection 3 (supply)
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Number of connections	1
Number of positions	2
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
	0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
	0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)	0.2 mm² ... 1.5 mm²
	0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
	0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG	24 ... 12
Tightening torque	0.5 Nm ... 0.6 Nm
Pitch	5 mm

Status display present	yes
Operating voltage display	Green LED

Item dimensions
Width	112.3 mm
Height	41.02 mm
Depth	49.89 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0

Ambient conditions
Degree of protection (Module)	IP20
Degree of protection (Installation location)	≥ IP54
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Altitude	≤ 2000 m

UKCA
Certificate	UKCA-compliant
UL, USA/Canada
Identification	Class I, Div. 2, Groups A, B, C, D T4
UL, Canada
Identification	Class I, Zone 2, Ex ec IIC Gc T4 X
UL, USA
Identification	Class I, Zone 2, AEx ec IIC T4
Shipbuilding approval
Certificate	TAE0000196
Shipbuilding data
Temperature	D
Humidity	A
Vibration	C
EMC	B
Enclosure	Required protection according to the Rules shall be provided upon installation on board

Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive

Air clearances and creepage distances
Standards/regulations	EN IEC 60664-1

Mounting type	Plug-on assembly
Assembly note	in rows with zero spacing
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	1104789
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK21D2
Product key	DK21D2
GTIN	4055626971049
Weight per piece (including packing)	129,8 g
Weight per piece (excluding packing)	82,5 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Mandatory accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Hexahydromethylphthalic anhydride (CAS: n/a)
REACH candidate substance (CAS No.)		Lead (CAS: 7439-92-1)
SCIP	c65d6ba2-2bbd-4191-88fa-1a13f3dbf57a
