CSMA-LAMBDA/4-2.0-BS-SET
-
Surge protection device
2800491
Attachment plug with Lambda/4 technology as surge protection for coaxial signal interfaces. Connection: Male/female SMA connectors.
Product details
| Product type | Surge protection for transceiver systems |
| IEC test classification | C2 |
| C3 | |
| D1 | |
| Type | Intermediate plug |
| Number of positions | 2 |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| Connection method | SMA connector |
| Tightening torque | 1 Nm |
| Protective ground connection | |
| Connection method | Screw connection |
| Tightening torque | 1.5 Nm |

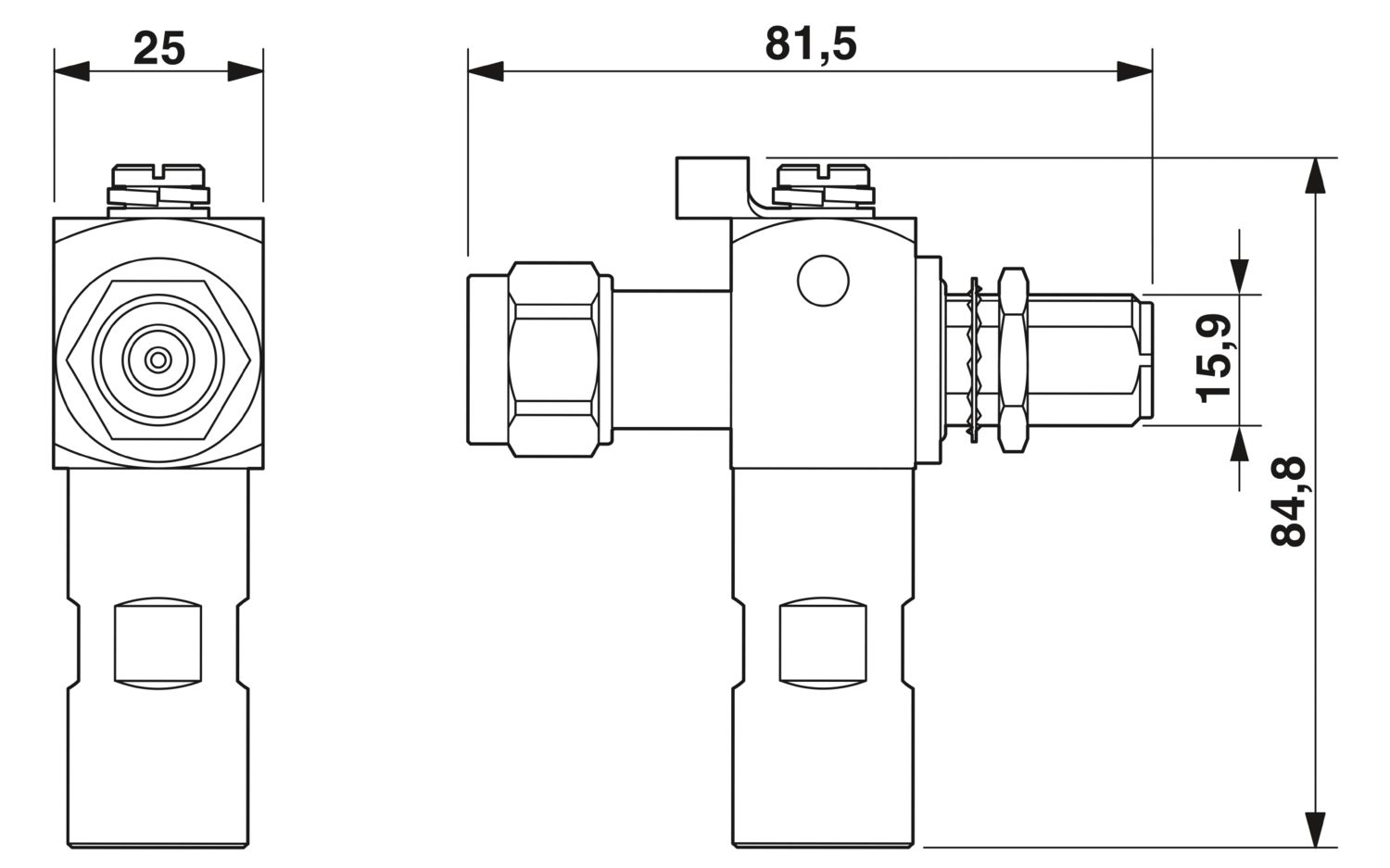

| Dimensional drawing |
|
| Width | 84.8 mm |
| Height | 25 mm |
| Depth | 81.5 mm |
| Color | nickel color |
| Housing material | HPb59-1 |
| Housing surface material | Cu-Sn-Zn |
| Contact surface material | Au |
| Insulation body material | PTFE |
| Spring contact material | QSn6.5-0.1 |
| Mechanical data | |
| Open side panel | No |
| Direction of action | Line-Shield/Earth Ground |
| Rated current | 2 A (25 °C) |
| Nominal discharge current In (8/20) µs (line-ground) | 6 kA |
| Nominal discharge current In (8/20) µs (line-shield) | 6 kA |
| Pulse discharge current Iimp (10/350) µs (line-shield) | 1 kA |
| Total discharge current ITotal (8/20) µs | 6 kA |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 1 V |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 1 V |
| Voltage protection level Up (line-earth) | ≤ 5 V (C1 - 1 kV / 500 A) |
| ≤ 25 V (C2 - 10 kV / 5 kA) | |
| ≤ 15 V (6 kV / 3 kA) | |

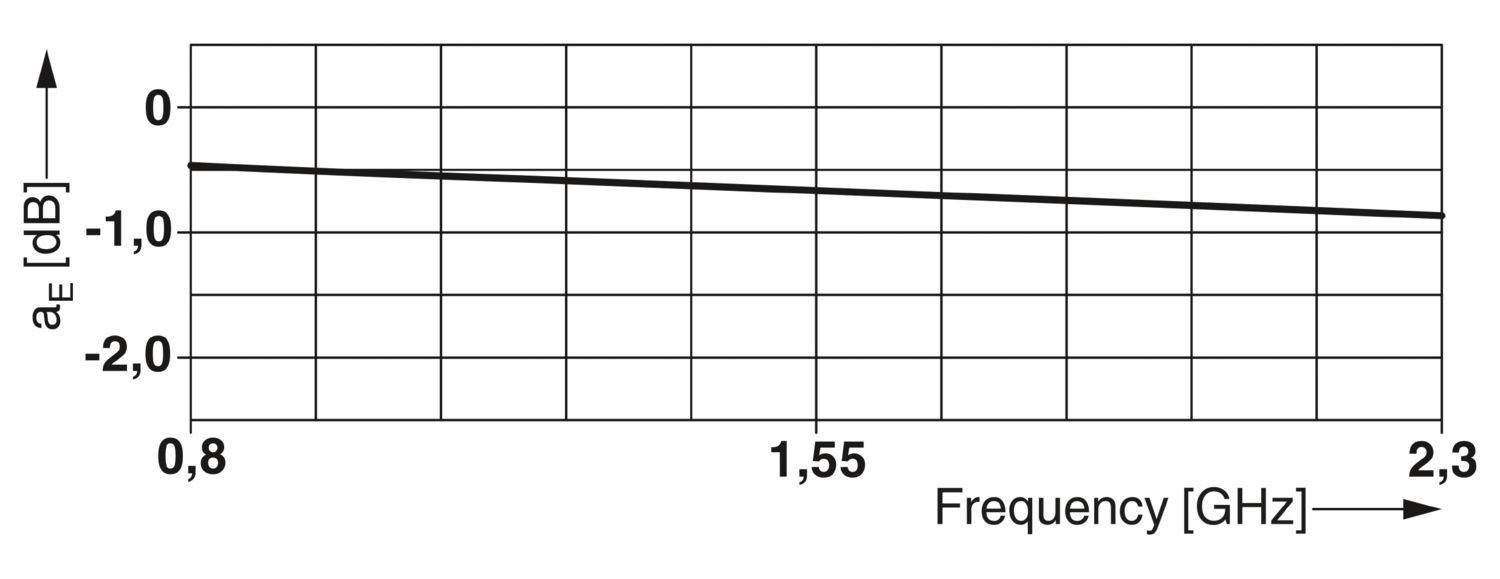

| Input attenuation aE, asym. | ≤ 1 dB (0.8 GHz ... 2.25 GHz) |
| Frequency range | 0.8 GHz ... 2.25 GHz |
| Voltage standing wave ratio VSWR in a 50 Ω system | ≤ 1.20 (0.8 GHz ... 2.25 GHz) |
| ≤ 1.10 (1.7 GHz ... 2.1 GHz) | |
| Permissible HF power Pmax at VSWR = xx (50 ohm system) | ≤ 110 W (VSWR = 1,0 / 40 °C) |
| ≤ 60 W (VSWR = 1,0 / 70 °C) | |
| Surge protection fault message | none |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| D1 - 1 kA | |
| Impulse durability (line-shield) | C2 - 10 kV/5 kA |
| D1 - 1 kA |
| Ambient conditions | |
| Degree of protection | IP55 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Altitude | ≤ 2000 m (amsl) |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + A1:2008, modified |
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 |
| Mounting type | Connection-specific intermediate plugging |
