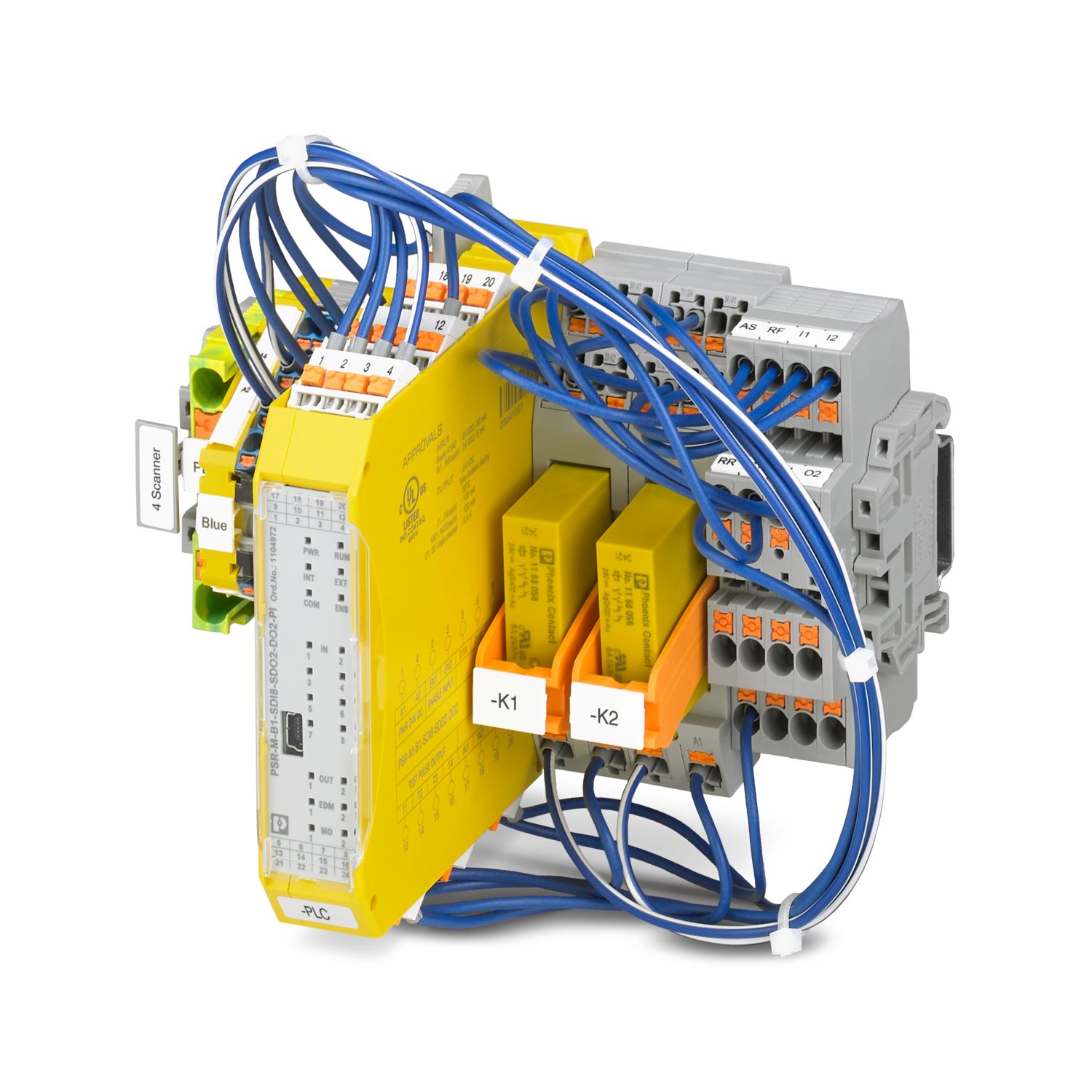

PSS-PSR-M-B1-PI-CL3-DR-4SC-MR - Safety module

1501666

Safety solution for vehicle lifting applications, PL d, wired, configured, connection of up to 4 suitable sensors, manually monitored start, 4 safe inputs, 2 safe outputs, 1 signal output, 2 reset inputs, push-in terminal blocks

Free download available. Downloads

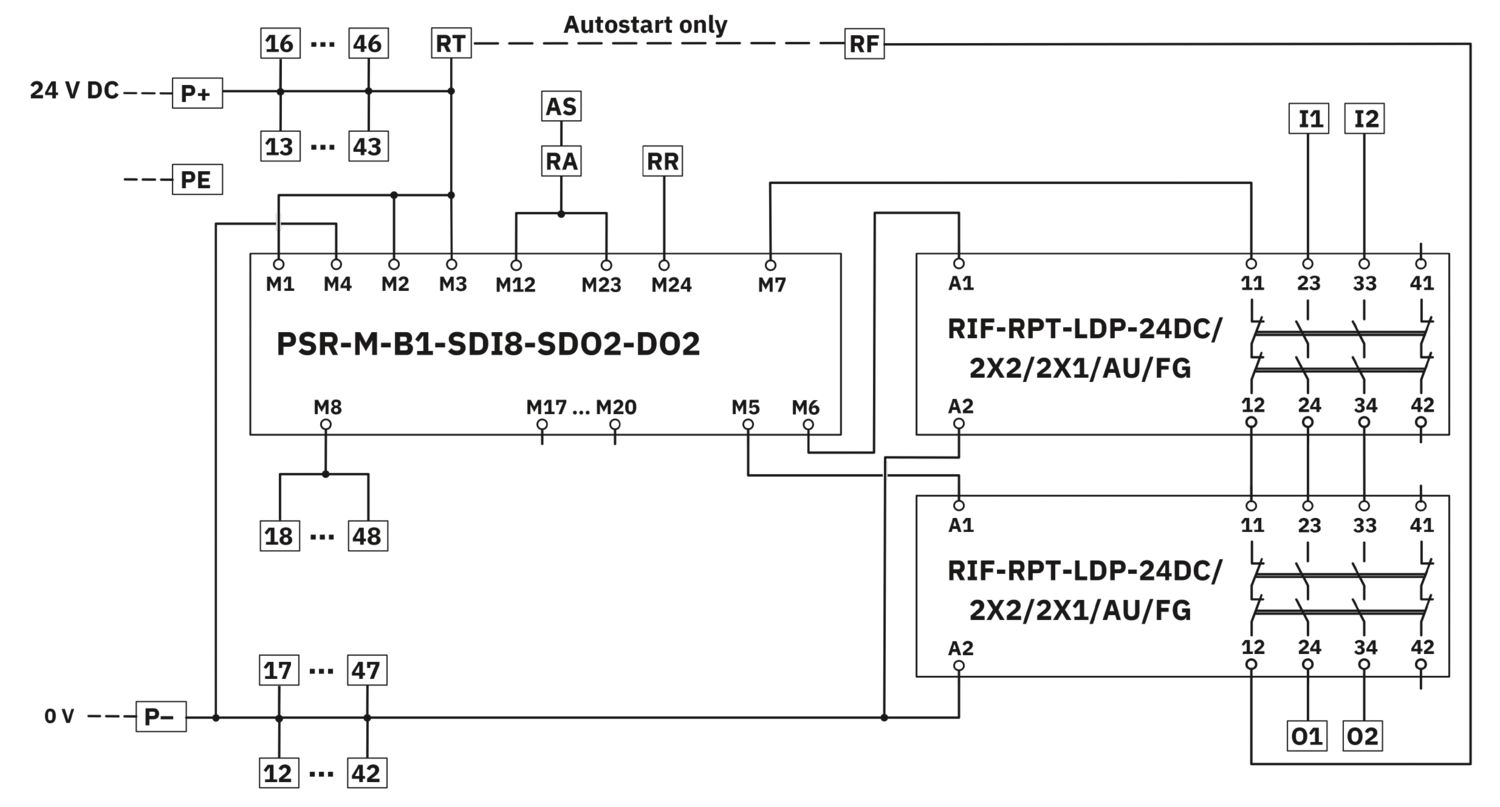

Product details

Set consists of

Product type	Safety device
Insulation characteristics
Overvoltage category	II
Degree of pollution	2
Times
Response time	typ. 60 ms

Nominal operating mode	100% operating factor
Rated insulation voltage	250 V AC
Rated surge voltage/insulation	Basic insulation 4 kV
Supply
Designation	P+ / P-
Rated control circuit supply voltage U_S	19.2 V DC ... 28.8 V DC
Rated control circuit supply voltage U_S	24 V DC -20 % / +20 % (external fuse, typically 4 A)
Rated control supply current I_S	typ. 75 mA (Outputs inactive; the current consumption of the laser scanners is not taken into consideration)
	typ. 125 mA (Outputs active, without load; the current consumption of the laser scanners is not taken into consideration)
Power consumption at U_S	typ. 1.68 W (Outputs inactive)
Inrush current	60 A (Δt = 1 ms at U_s)
Filter time	typ. 5 ms (at A1 in the event of voltage dips at U_s)
Protective circuit	Inverse-parallel protection against polarity reversal

Digital: M17, M18, M19, M20, M23, M24
Description of the input	Safety-related digital inputs
	EN 61131-2 type 1
Number of inputs	8
Input voltage range "0" signal	0 V DC ... 5 V DC
Input voltage range "1" signal	15 V DC ... 28.8 V DC
Input current range "0" signal	< 1 mA
Filter time	min. 3 ms ±2 ms (adjustable)
	max. 250 ms ±2 ms (adjustable)
	Test pulse rate ≥ 2x set filter time, min. Test pulse rate = 10 ms
Cable length	max. 100 m (per input)
Max. permissible overall conductor resistance	max. 1.2 kΩ (Input and reset circuit at U_S)
Protective circuit	Suppressor diode
Current consumption	typ. 8 mA (typ. with U_S)
	max. 10 mA (at a control voltage of 28.8 V DC)

Relay: Enabling current paths (I1/O1, I2/O2)
Output description	N/O contact
Number of outputs	2
Contact switching type	Single contact, 2 N/O contact
Contact material	AgSnO₂, hard gold-plated
Switching voltage	max. 250 V AC
	max. 300 V DC
	min. 10 V (5 mA)
Switching current	min. 5 mA (10 V)
Inrush current	max. 35 A (20 ms)
Limiting continuous current	6 A
Interrupting rating (ohmic load) max.	144 W (24 V DC)
	100 W (48 V DC)
	75 W (60 V DC)
	55 W (110 V DC)
	50 W (220 V DC)
	1500 VA (250 V AC)

Status display	1 x LED (green), 1 x LED (orange), 1 x LED (blue)
	2 x LED (green, red)
	14 x LED (yellow)
Operating voltage display	1 x LED (green)
Error indication	2 x LED (red)

Safety data
Stop category	0
Performance level (PL)	d (2 A AC15, 2 A DC13; 14600 switching cycles/year)

Ambient conditions
Min. degree of protection of inst. location	IP54
Ambient temperature (operation)	-10 °C ... 55 °C (observe derating)
Ambient temperature (storage/transport)	-20 °C ... 60 °C
Max. permissible relative humidity (operation)	75 % (on average, 85% infrequently, non-condensing)
Shock	10g for Δt = 16 ms (continuous shock, 1000 shocks in each space direction)
Vibration (operation)	10 Hz ... 150 Hz, 2g

CE
Identification	CE-compliant

Mounting type	Control cabinet mounting
Assembly note	Observe derating
Mounting position	vertical or horizontal

Commercial data

Item number	1501666
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DNA366
Product key	DNA366
GTIN	4063151958053
Weight per piece (including packing)	1,1 kg
Weight per piece (excluding packing)	0,61 kg
Country of origin	PL

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

Your advantages

Cost-effective safety solution designed for vehicle lifting equipment

Fast startup, thanks to wired hardware and configured software

Machine downtimes minimized with comprehensive, easy-to-understand diagnostics

Tool-free and time-saving installation thanks to Push-in Technology

Connection of up to 4 suitable safety BEA laser scanners

Up to PL d in accordance with EN ISO 13849-1

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PSS-PSR-M-B1-PI-CL3-DR-4SC-MR - Safety module

1501666

Product details

ECLASS

ETIM

Functional Safety

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PSS-PSR-M-B1-PI-CL3-DR-4SC-MR - Safety module 1501666

Product details

CLIPFIX 35-5 - End bracket 3022276

PT 6-PE - Protective conductor terminal block 3211822

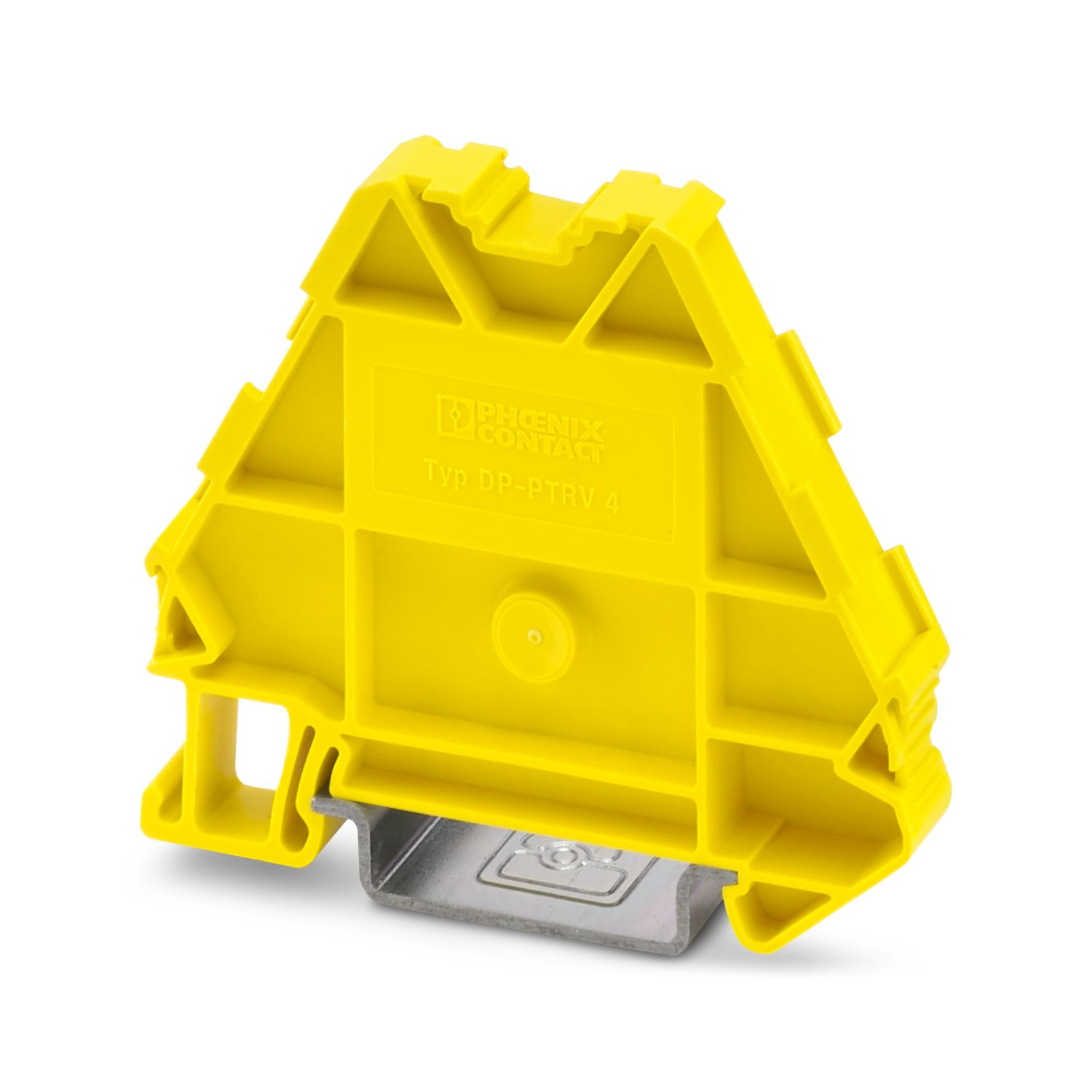

DP-PTRV 4/LB YE - Spacer plate 1091504
