WP-PA HF 34,5 BK - Protective hose

3241088

Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V0, inside diameter: 29 mm, Total length: 25 m

Product details

Technical data

Product properties

Product type	Protective hose
Tensile strength GRP	100 N

Dimensions

External dimensions
Outside diameter	34.5 mm
Internal dimensions
Internal diameter	29 mm

Material specifications

Material	PA 6
Flammability rating according to UL 94	V0
Components	free from silicone, halogen, and cadmium

Cable/line

Bending radius, dynamic	120 mm
Bending radius, static	65 mm
Tensile strength	100 N
Halogen-free	yes

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP68
	IP69K
Ambient temperature (operation)	-40 °C ... 120 °C
Resistance to UV radiation	yes
Short-term temperature	150 °C

Commercial data

Item number	3241088
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	AF7DSA
Product key	AF7DSA
Catalog page	Page 585 (C-3-2019)
GTIN	4046356736527
Weight per piece (including packing)	3.260 g
Weight per piece (excluding packing)	75.975 g
Customs tariff number	39173200
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

WP-PA HF 34,5 BK - Protective hose

3241088

Product details

ECLASS

ETIM

UNSPSC

UL Recognized

LR

VDE approval of drawings

DNV

Compatible products

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

WP-PA HF 34,5 BK - Protective hose 3241088

Product details

ECLASS

ETIM

UNSPSC

Compatible products

WP-EC TPE HF 34,5 BK - Transition sleeve from hose to cable 3240979

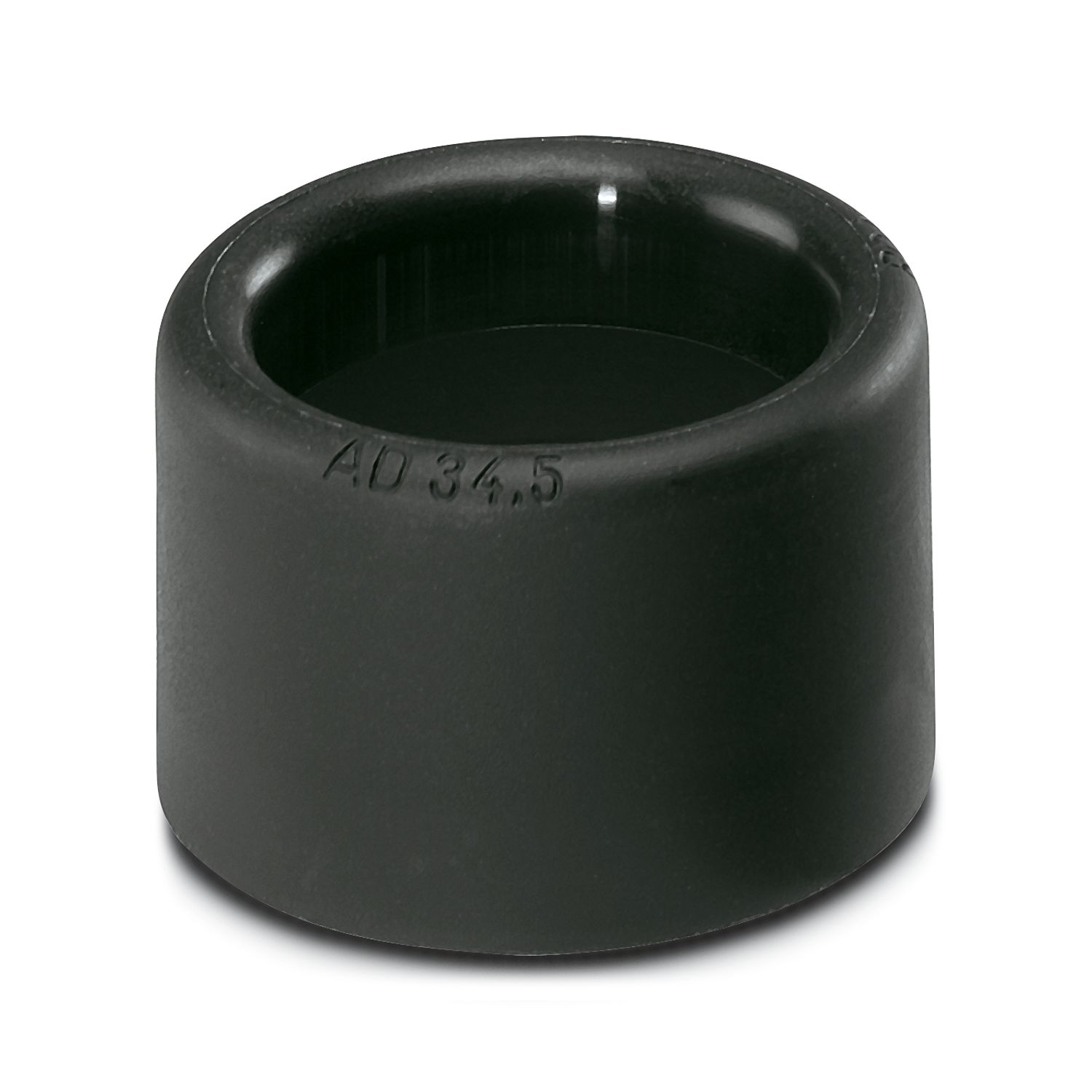

WP-SC PA HF 34,5 BK - Cable protection end sleeve 3240986

WP-G HF IP66 PG29 BK - Protective hose screw connection 3240893

WP-G HF IP66 M32 BK - Protective hose screw connection 3240900

WP-G HF IP69K PG29 BK - Protective hose screw connection 3240879

WP-G HF IP69K M32 BK - Protective hose screw connection 3240886

WP-GA HF IP66 PG29 BK - Protective hose screw connection 3240921

WP-GA HF IP66 M40 BK - Protective hose screw connection 3240929

WP-GA HF IP69K M32 BK - Protective hose screw connection 3240914

WP-GR HF IP66 PG29 BK - Protective hose screw connection 3240949

WP-GR HF IP69K PG29 BK - Protective hose screw connection 3240935

WP-GR HF IP66 M40 BK - Protective hose screw connection 3240957

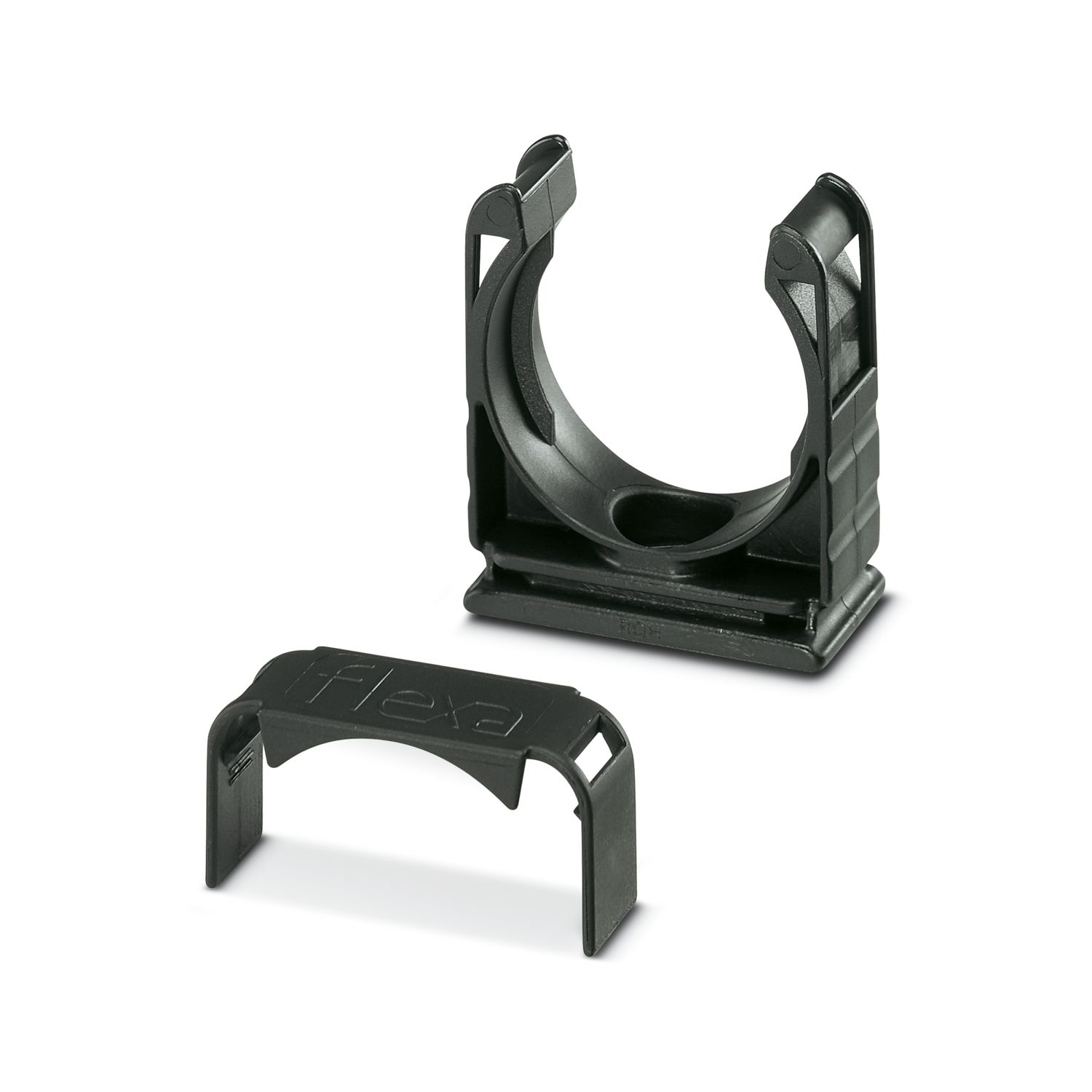

WP-BASE C PA HF 34,5 BK - Hose holder with cover 3240963

WP-BASE HF 37 - Hose clamp 3240972

WP-BASE A PG29 - Protective hose fixing bracket 3241081

WP-GR HF IP69K M40 BK - Protective hose screw connection 3240943
