HC-D25-HCWS-PL-BK
-
Protective cover
1346523
Protective cover D25, with single locking latch, protective cover material: PC, height: 15.5 mm, seal: no
Product details
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | D25 |
| Retaining cord present | yes |
| Seal present | no |

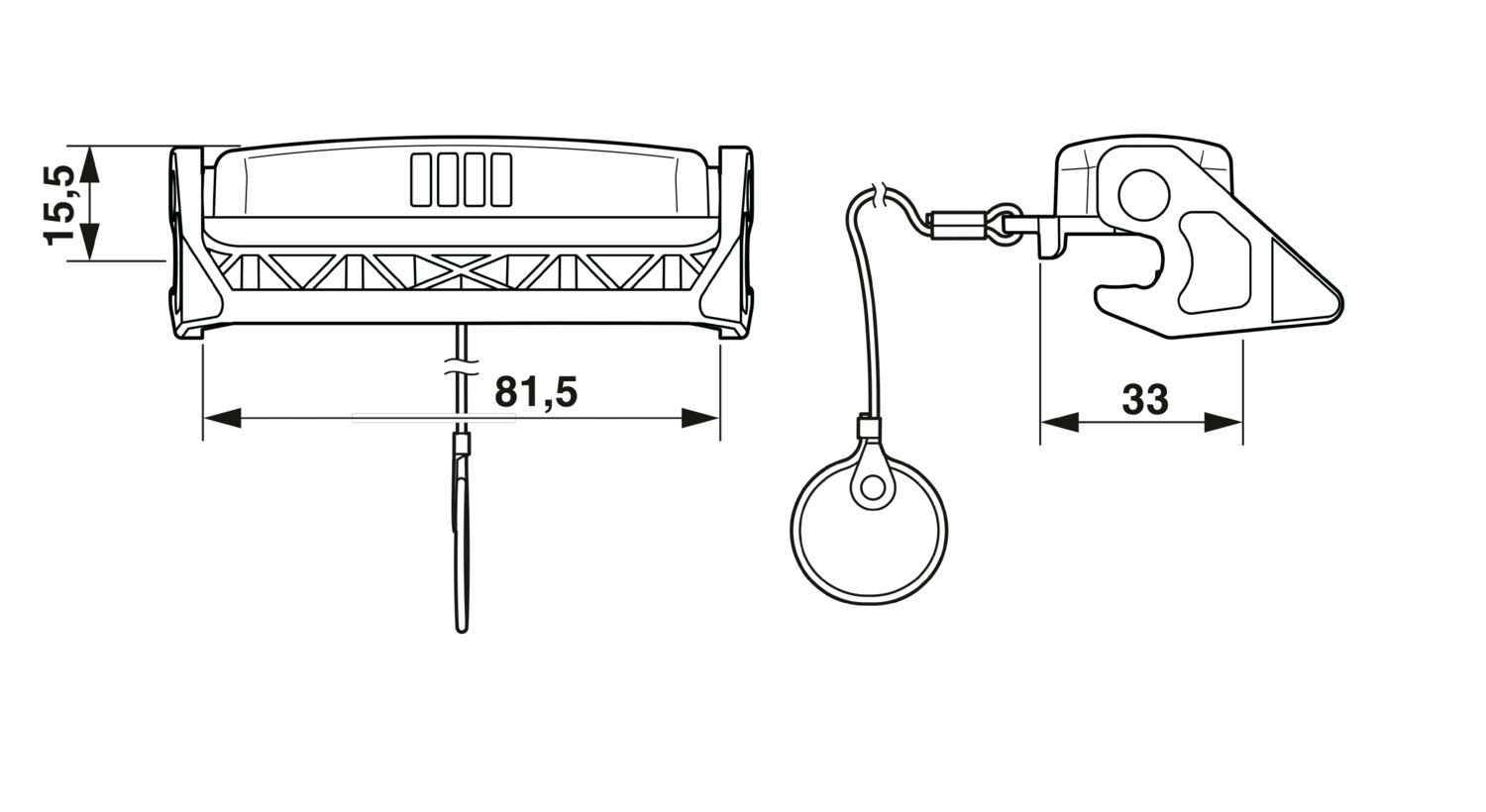

| Dimensional drawing |
|
| Width | 33 mm |
| Height | 15.5 mm |
| Length | 81.5 mm |
| Diameter | 40 mm |
| Material Protective cover | PC |
| Flammability rating according to UL 94 | V0 |
| Material, protective cover | PC |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Resistance to UV radiation | yes |
| Assembly note | Double eyelet for mounting on a cable / below screw head |
| Plastic protective cover for short-term protection |
