HC-B 24-TMS-SD-IP66
-
Protective cover
1411520
HEAVYCON ADVANCE, IP66, B24 protective cover for panel mounting side, with screw locking, with retaining cord, diameter of retaining cord eyelet: 3 mm
Product details
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | B24 |
| Type | HC-ADVANCE protective cover |
| Retaining cord present | yes |
| Seal present | yes |

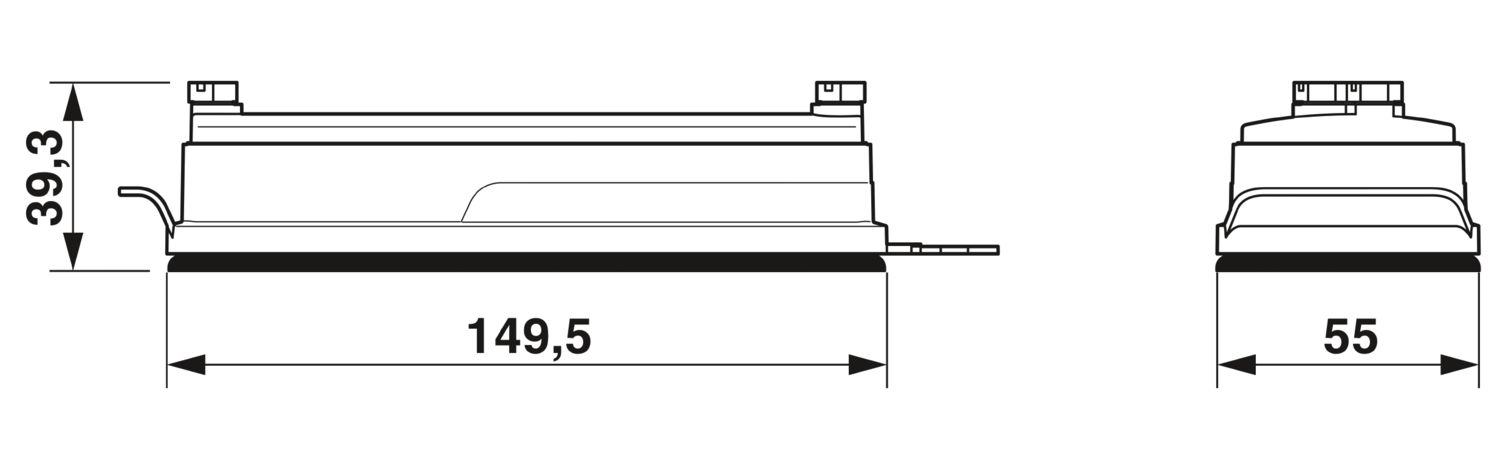

| Dimensional drawing |
|
| Width | 55 mm |
| Height | 39.3 mm |
| Length | 149.5 mm |
| Diameter | 3.5 mm |
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material, protective cover | PA |
| Locking latch material | Stainless steel |
| Material for screw connection | Stainless steel |
| Mechanical data | |
| Locking type | Screw |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
| Assembly note | Tightening torque of locking screw: 3 Nm |
