FBSK 3-7,5 - Plug-in bridge
FBSK 3-7,5
-
Plug-in bridge
1928356
Bridge, fully insulated, pitch 7.5 mm, 3-pos.
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Bridge
Product family
FBSK
Product line
COMBICON Terminals Special
Number of positions
3
Pitch
7.5 mm
Number of connections
3
Number of rows
1
Number of potentials
3
Dimensions
Pitch
7.5 mm
Material specifications
Material data - contact
Note
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material
Cu alloy
Material data - housing
Color (Housing)
red (3001)
Insulating material
PA
Insulating material group
I
CTI according to IEC 60112
600
Flammability rating according to UL 94
V0
Glow wire flammability index GWFI according to EN 60695-2-12
850
Glow wire ignition temperature GWIT according to EN 60695-2-13
775
Temperature for the ball pressure test according to EN 60695-10-2
125 °C
Connector
Connection 1
Insulating material
PA
CTI according to IEC 60112
600
Commercial data
Item number
1928356
Packing unit
50 pc
Minimum order quantity
50 pc
Sales key
AARZFD
Product key
AARZFD
Catalog page
Page 830 (C-1-2013)
GTIN
4017918606589
Weight per piece (including packing)
2,899 g
Weight per piece (excluding packing)
2,885 g
Customs tariff number
85389099
Country of origin
PL
Classifications
ECLASS
ECLASS-13.0
27460406
ETIM
ETIM 9.0
EC002943
UNSPSC
UNSPSC 21.0
39121400
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
EF3.0 Climate Change
CO2e kg
0,034 kg CO2e
Compatible products
Expand all
Collapse all
Accessories

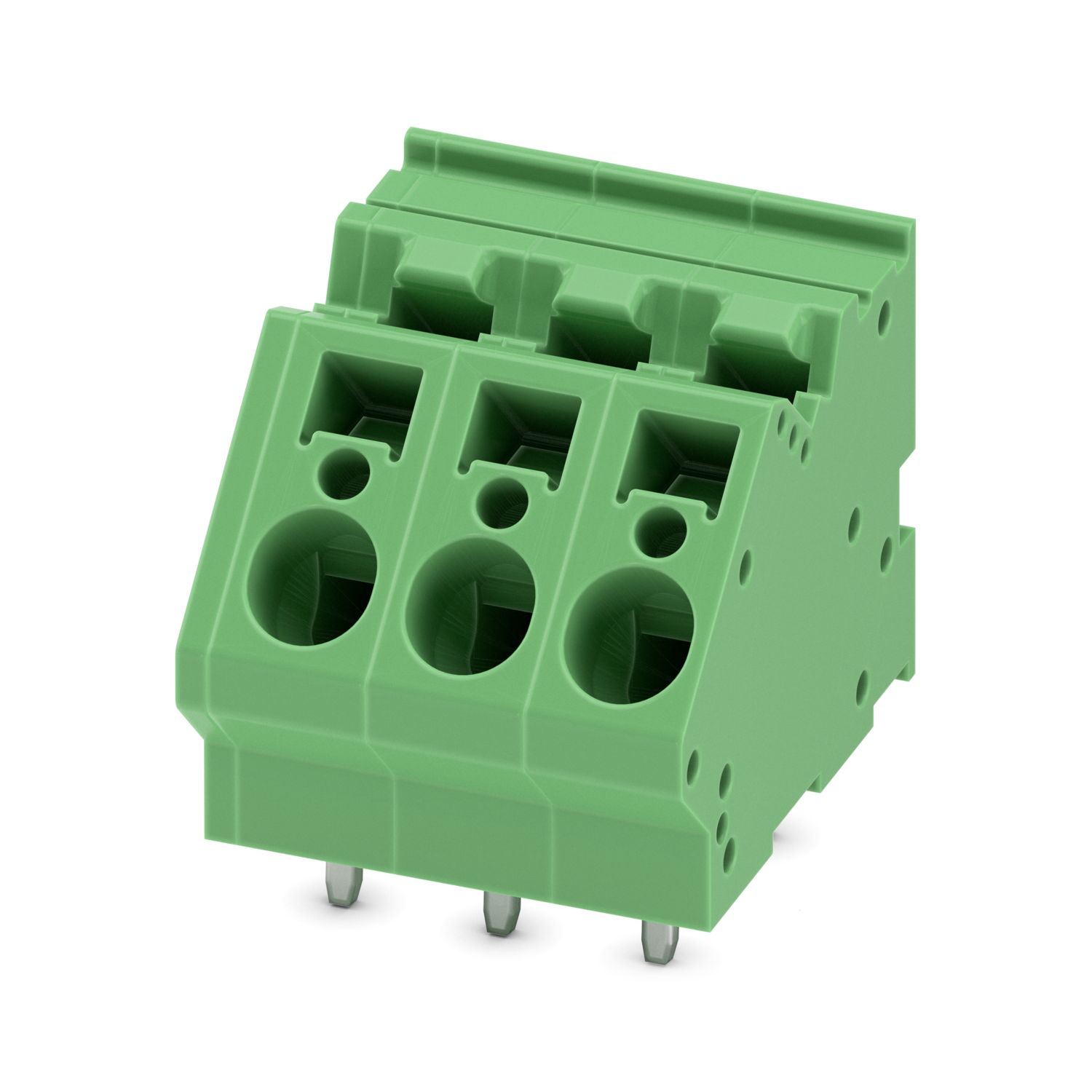

ZFKDSA 4-7,5- 3
-
PCB terminal block
1991891

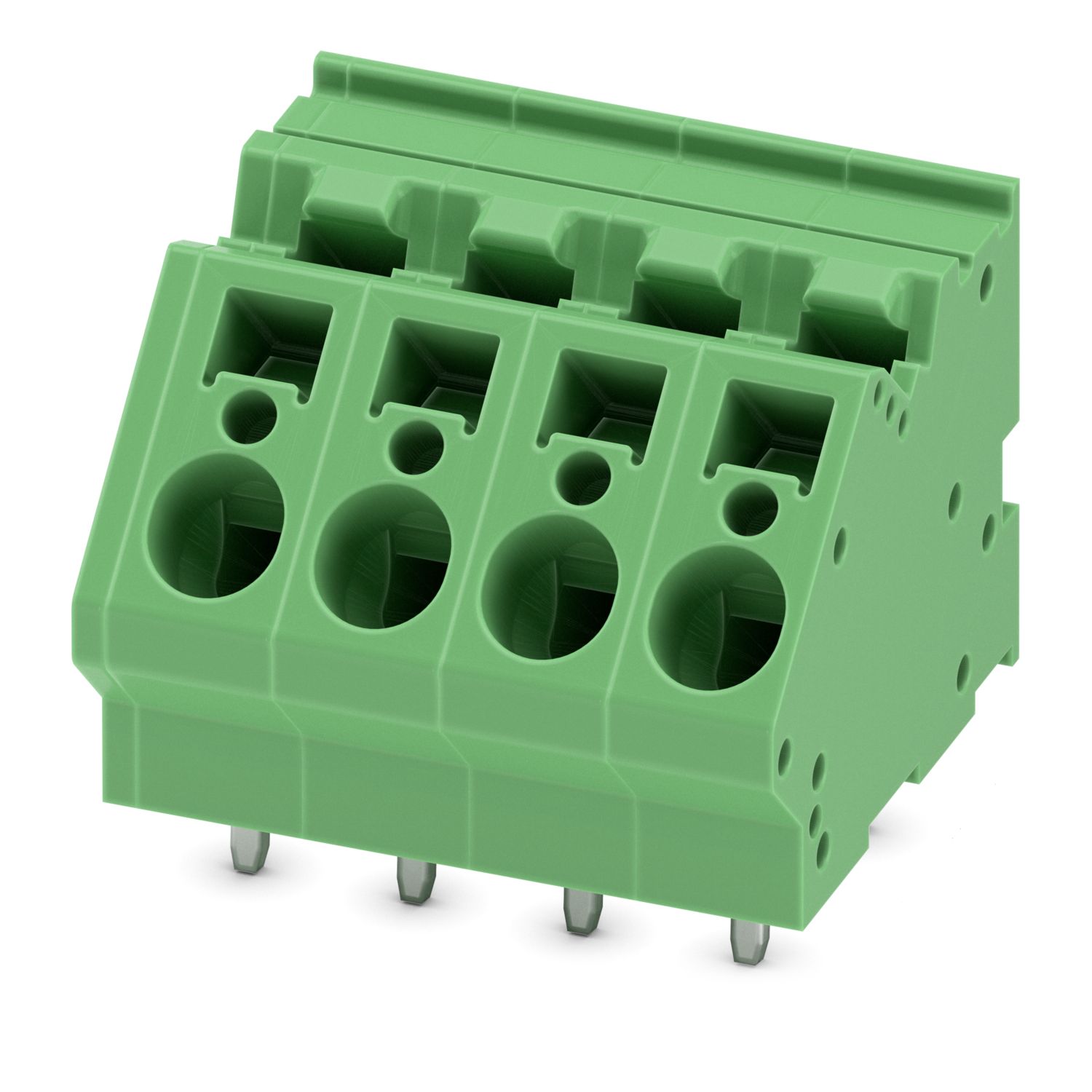

ZFKDSA 4-7,5- 4
-
PCB terminal block
1736793

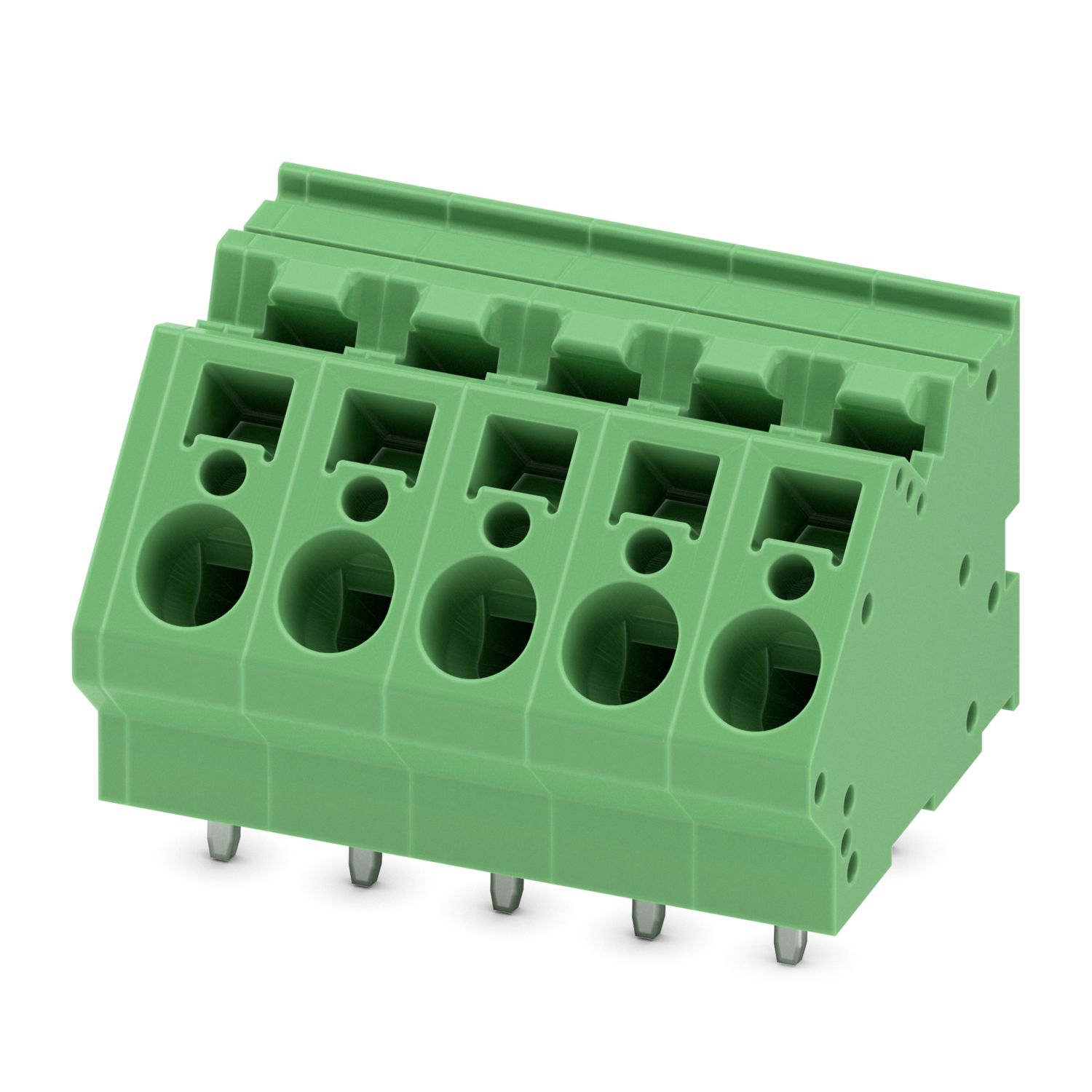

ZFKDSA 4-7,5- 5
-
PCB terminal block
1989191

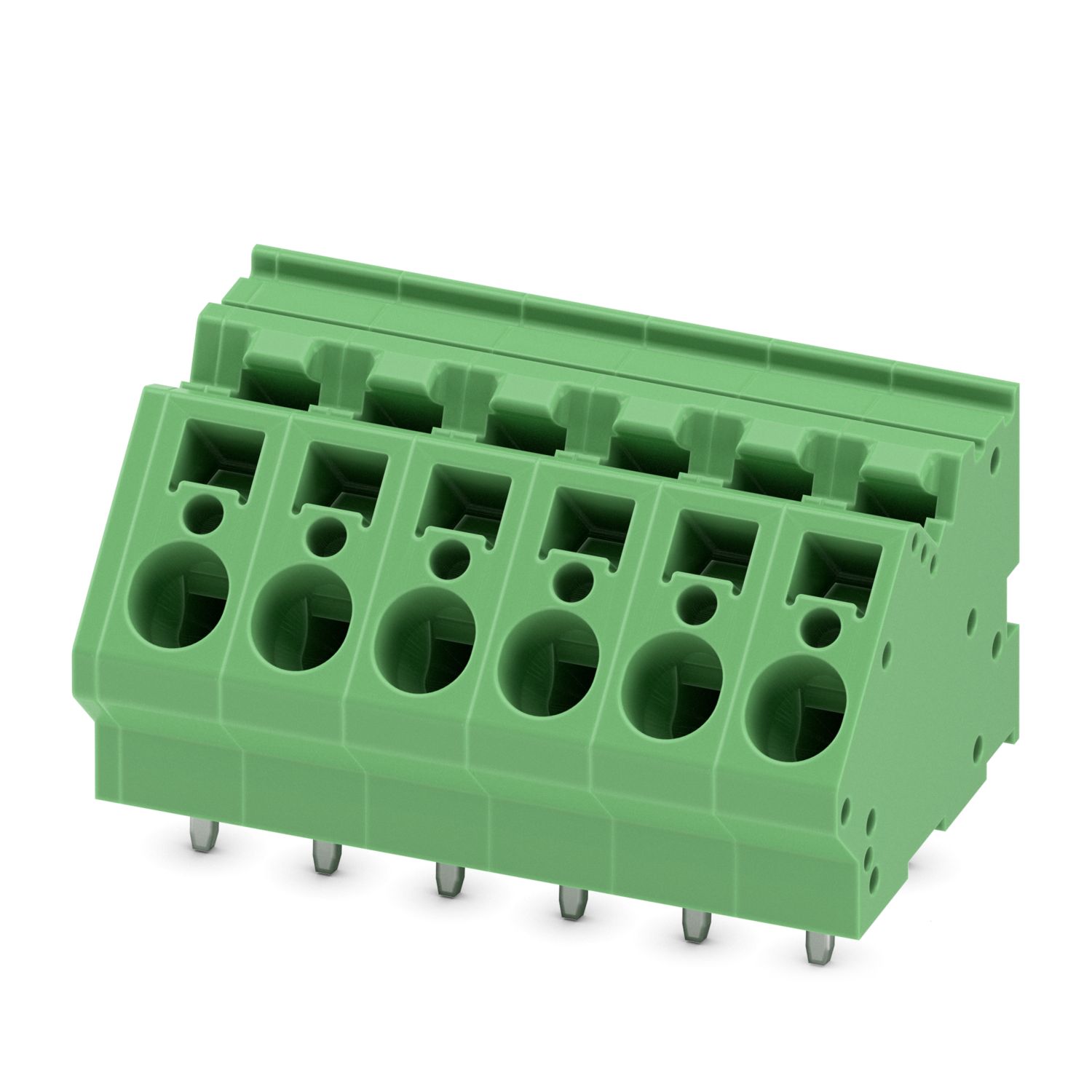

ZFKDSA 4-7,5- 6
-
PCB terminal block
1934625

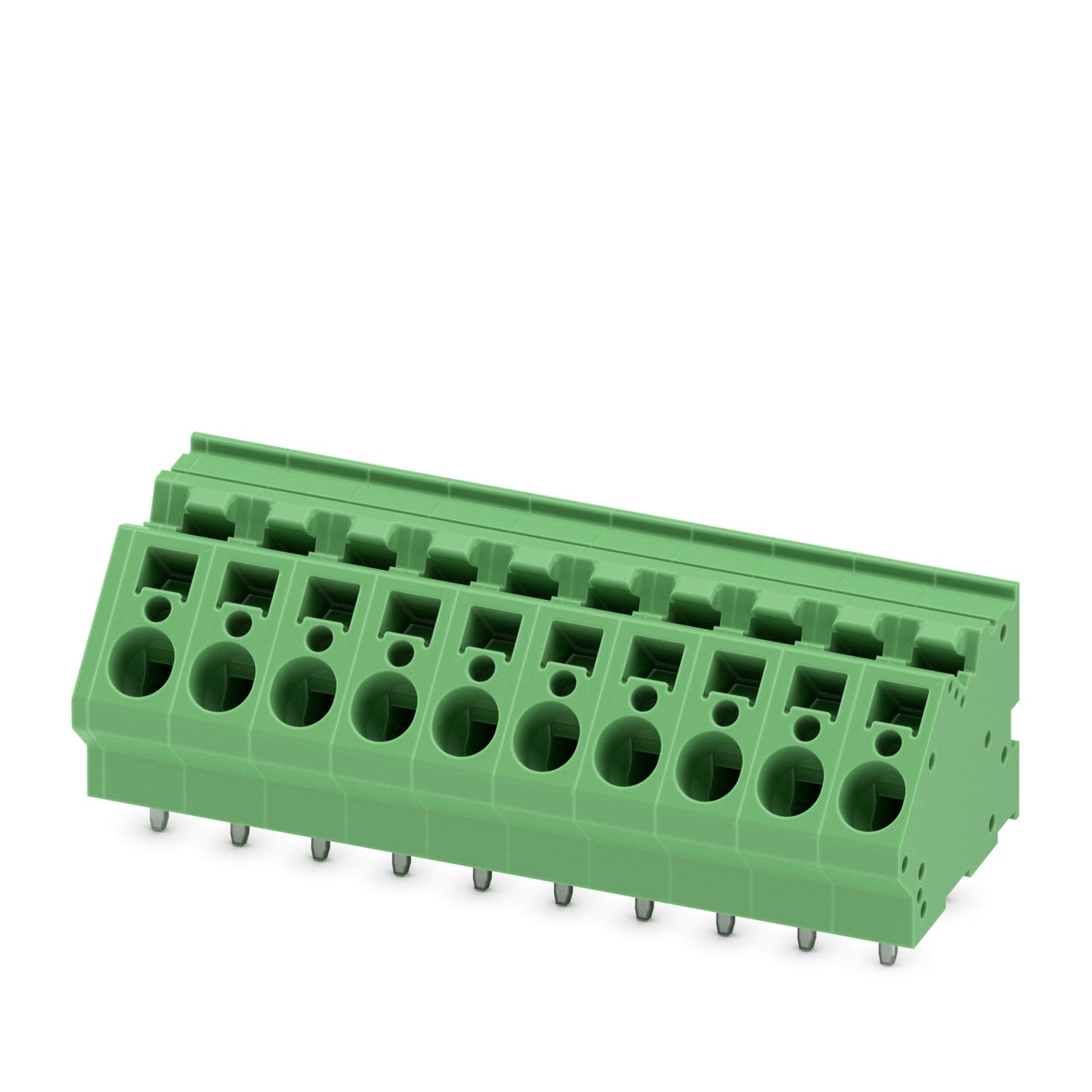

ZFKDSA 4-7,5-10
-
PCB terminal block
1805504
ZFKDSA 4-7,5-12
-
PCB terminal block
1714740

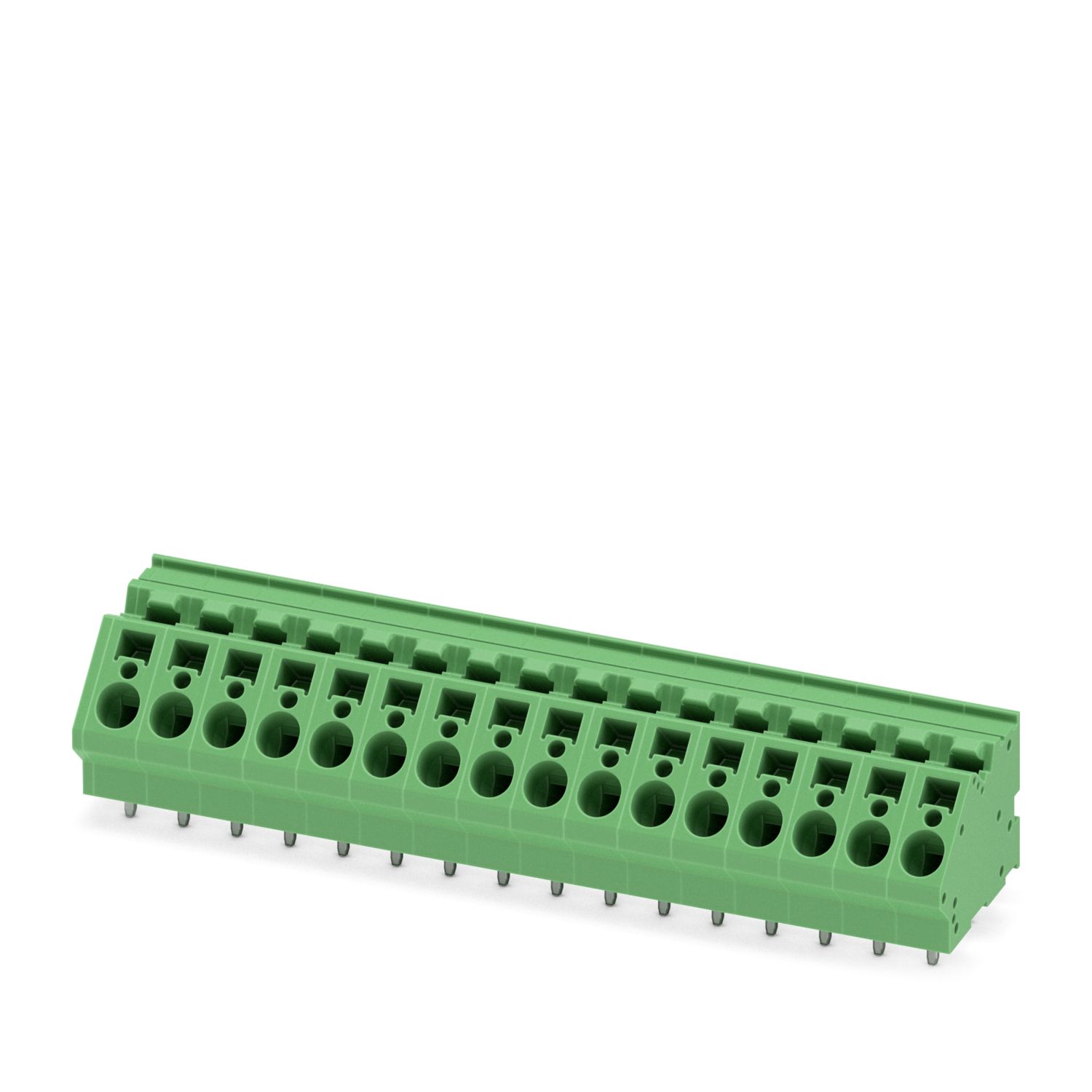

ZFKDSA 4-7,5-16
-
PCB terminal block
1760646

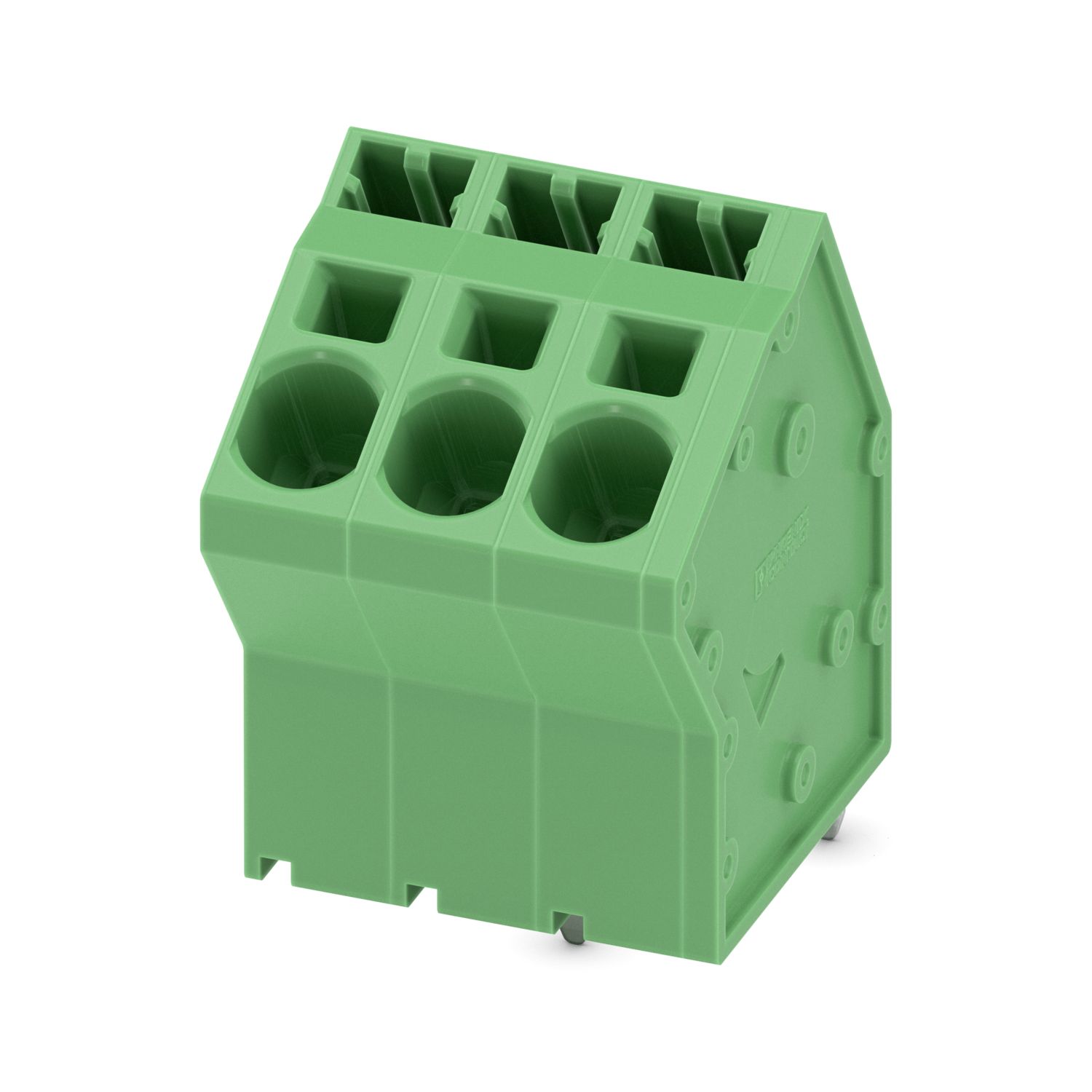

SPTA 5/ 3-7,5-ZB
-
PCB terminal block
1819095

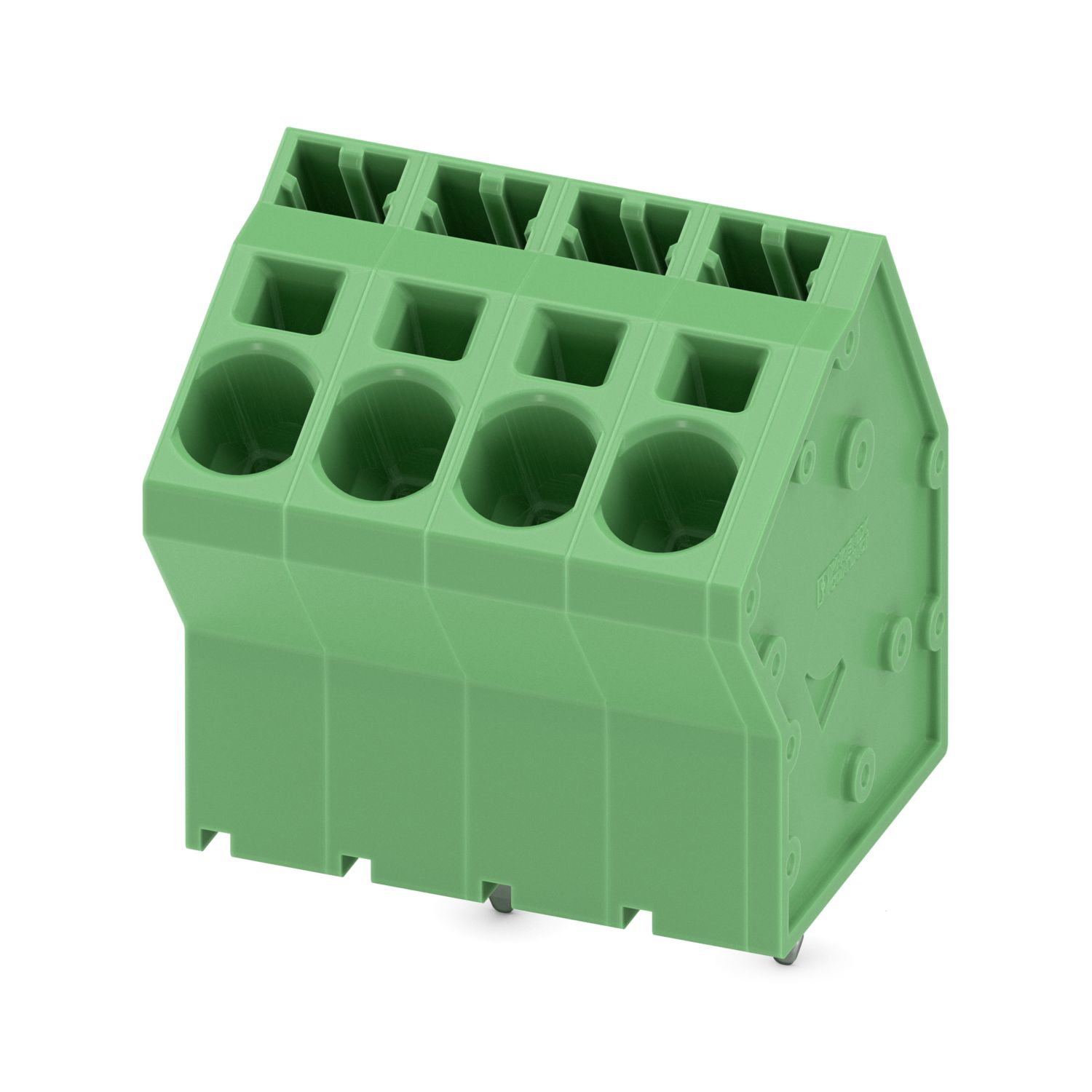

SPTA 5/ 4-7,5-ZB
-
PCB terminal block
1819105

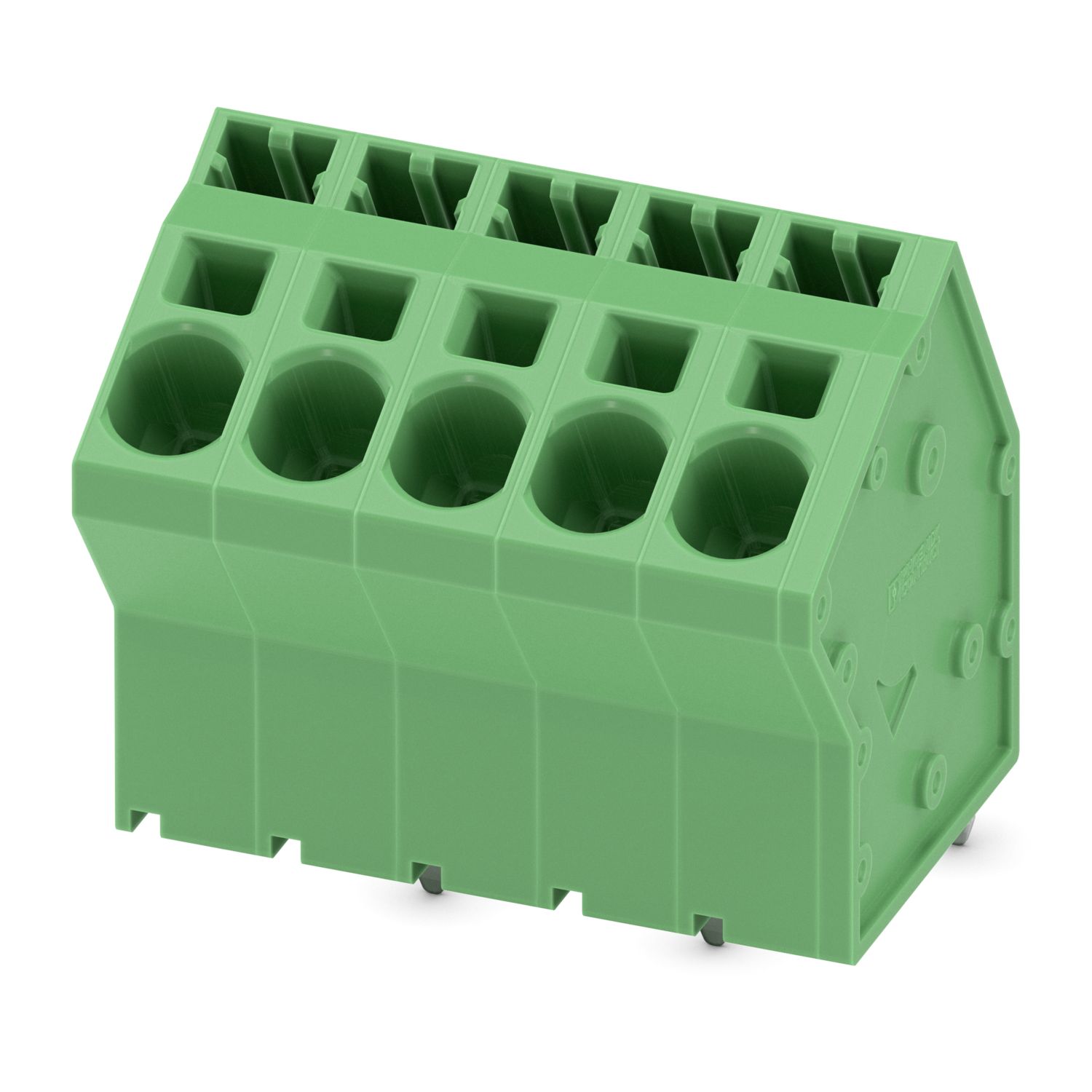

SPTA 5/ 5-7,5-ZB
-
PCB terminal block
1819118

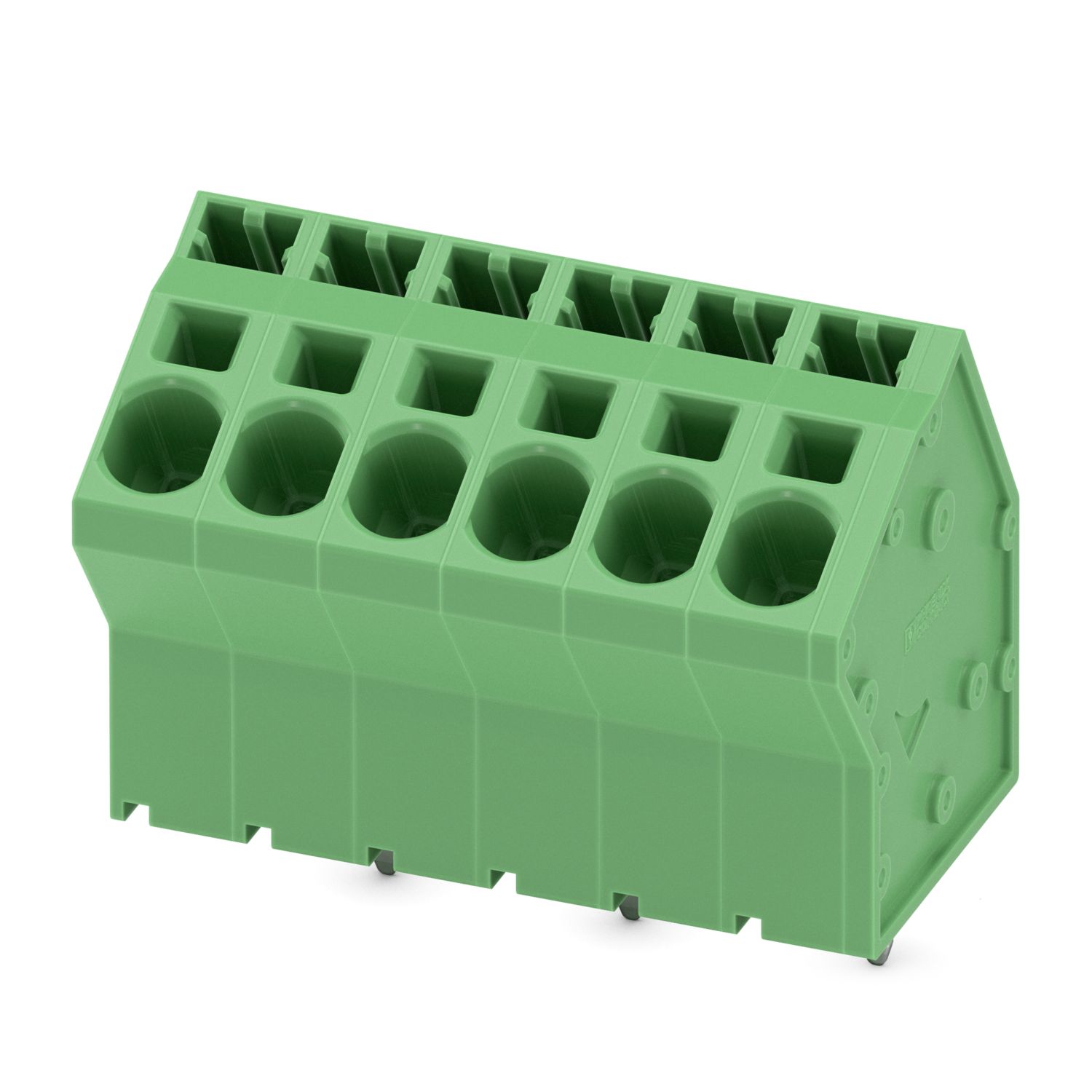

SPTA 5/ 6-7,5-ZB
-
PCB terminal block
1819121

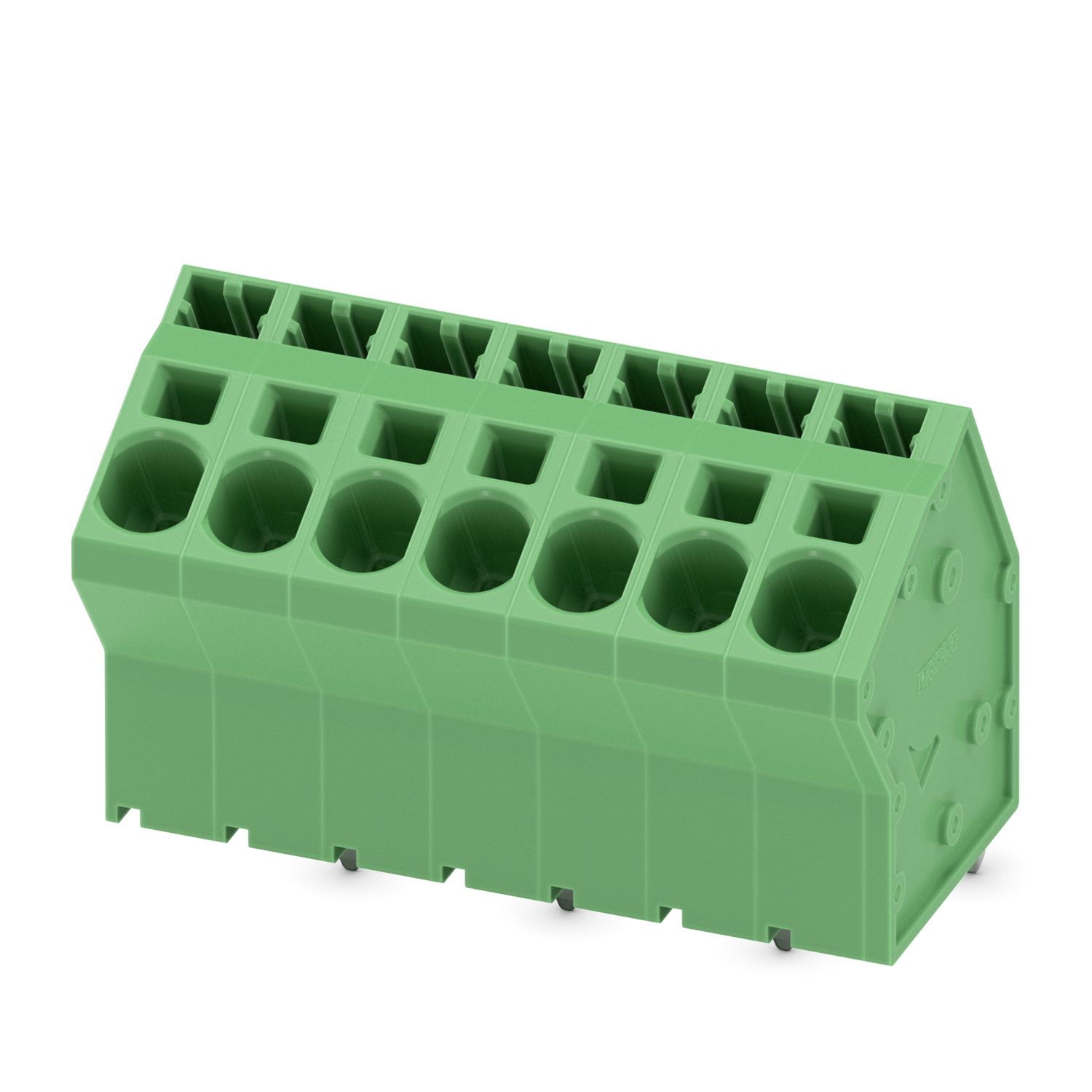

SPTA 5/ 7-7,5-ZB
-
PCB terminal block
1819134

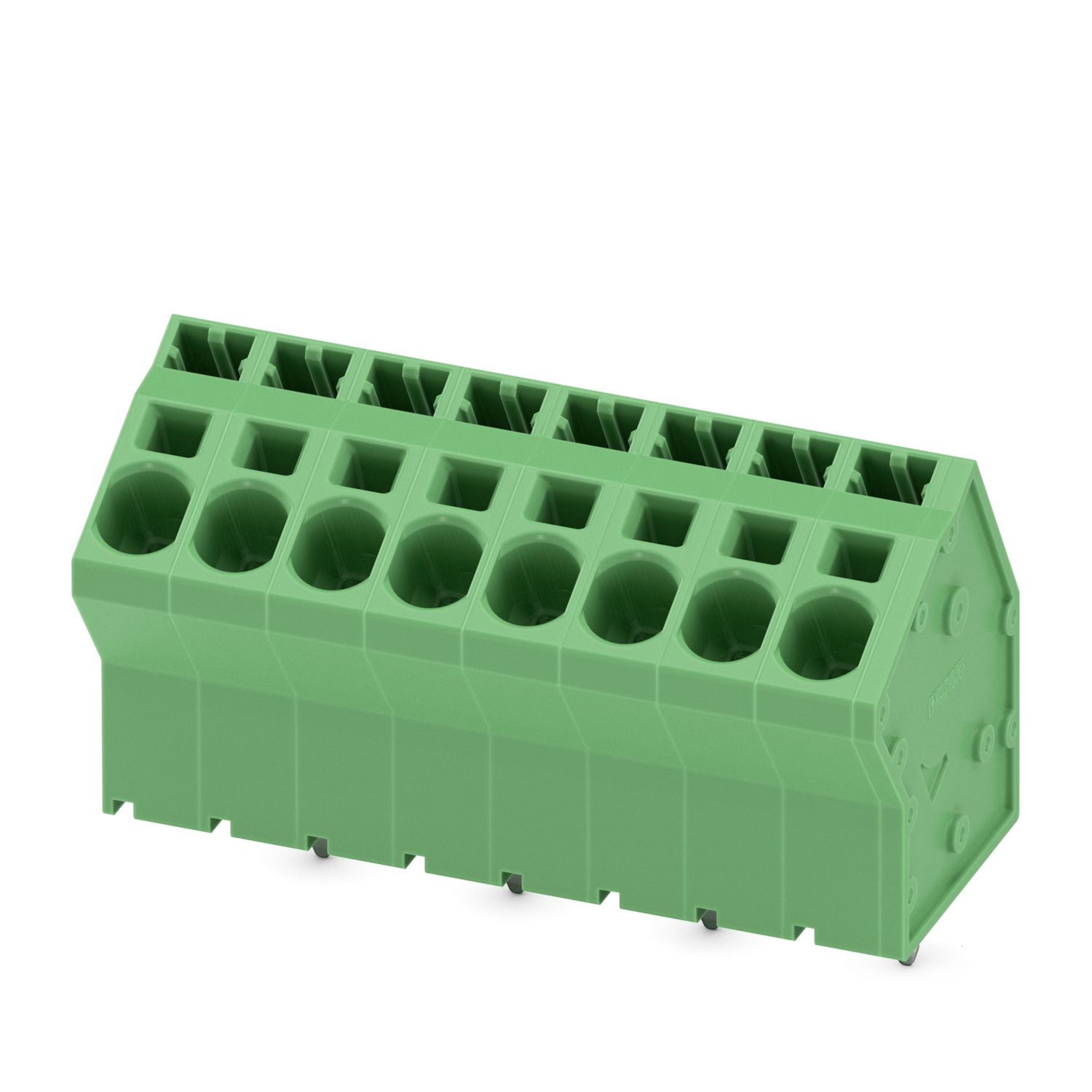

SPTA 5/ 8-7,5-ZB
-
PCB terminal block
1819147
SPTA 5/ 9-7,5-ZB
-
PCB terminal block
1819150

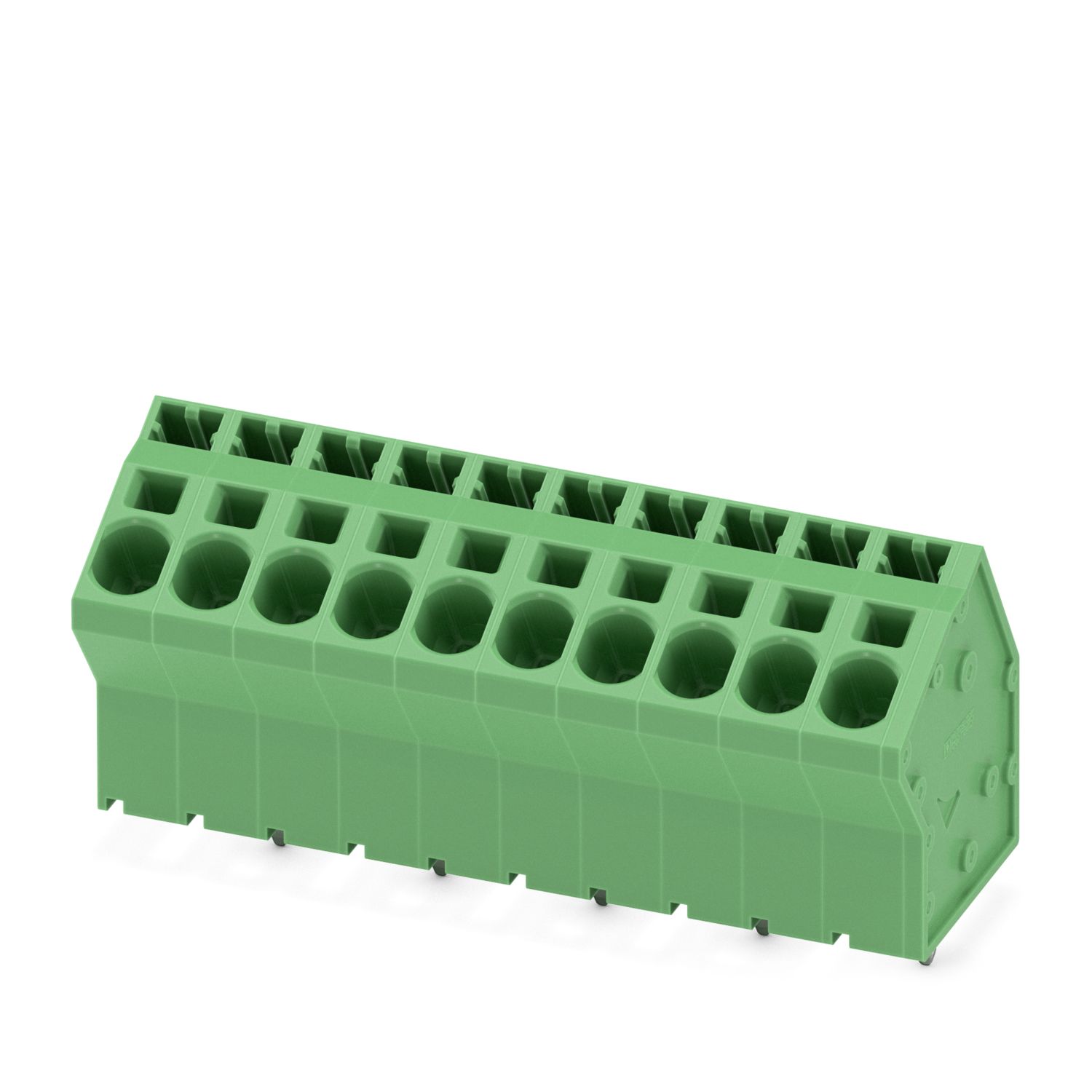

SPTA 5/10-7,5-ZB
-
PCB terminal block
1819163
SPTA 5/11-7,5-ZB
-
PCB terminal block
1819176

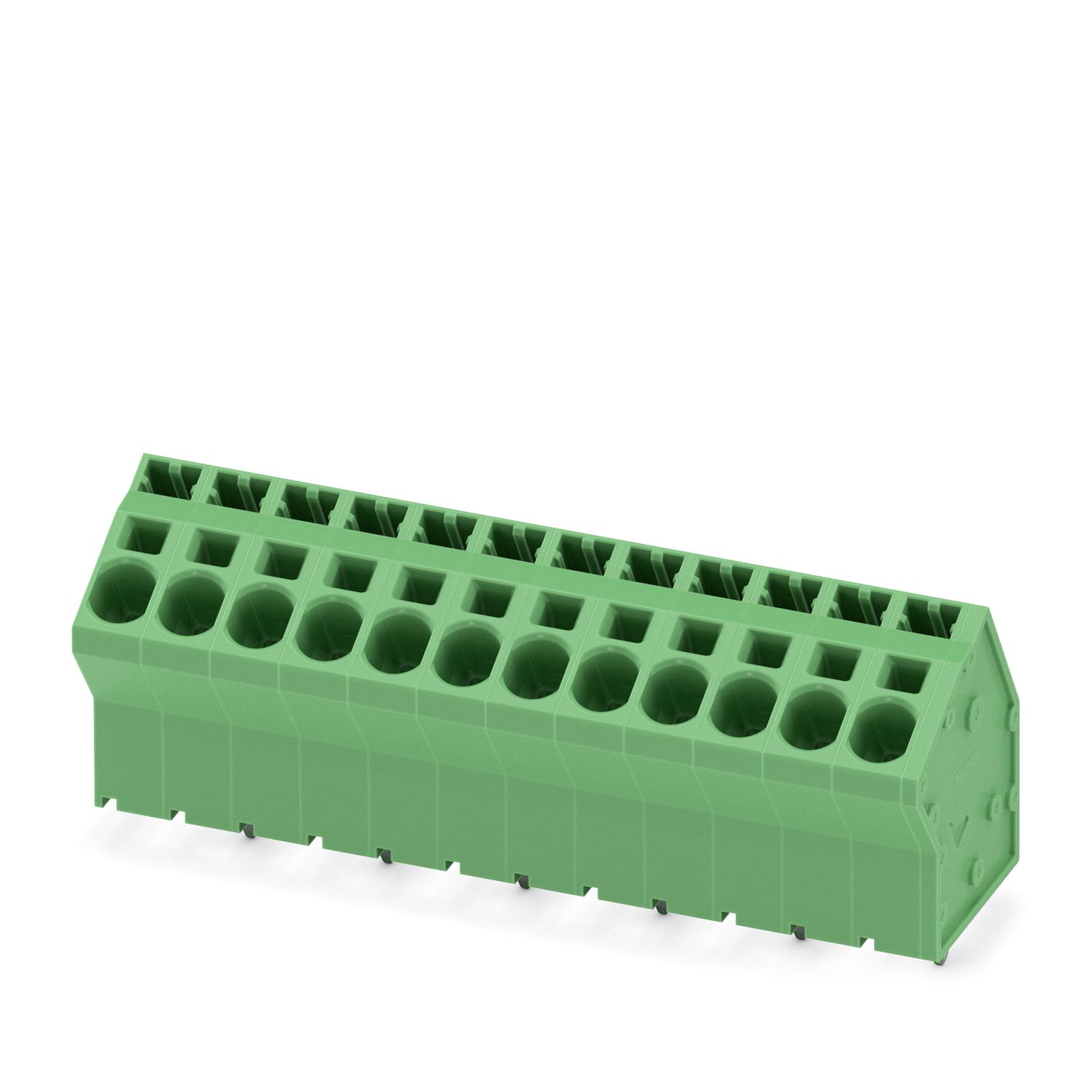

SPTA 5/12-7,5-ZB
-
PCB terminal block
1819189

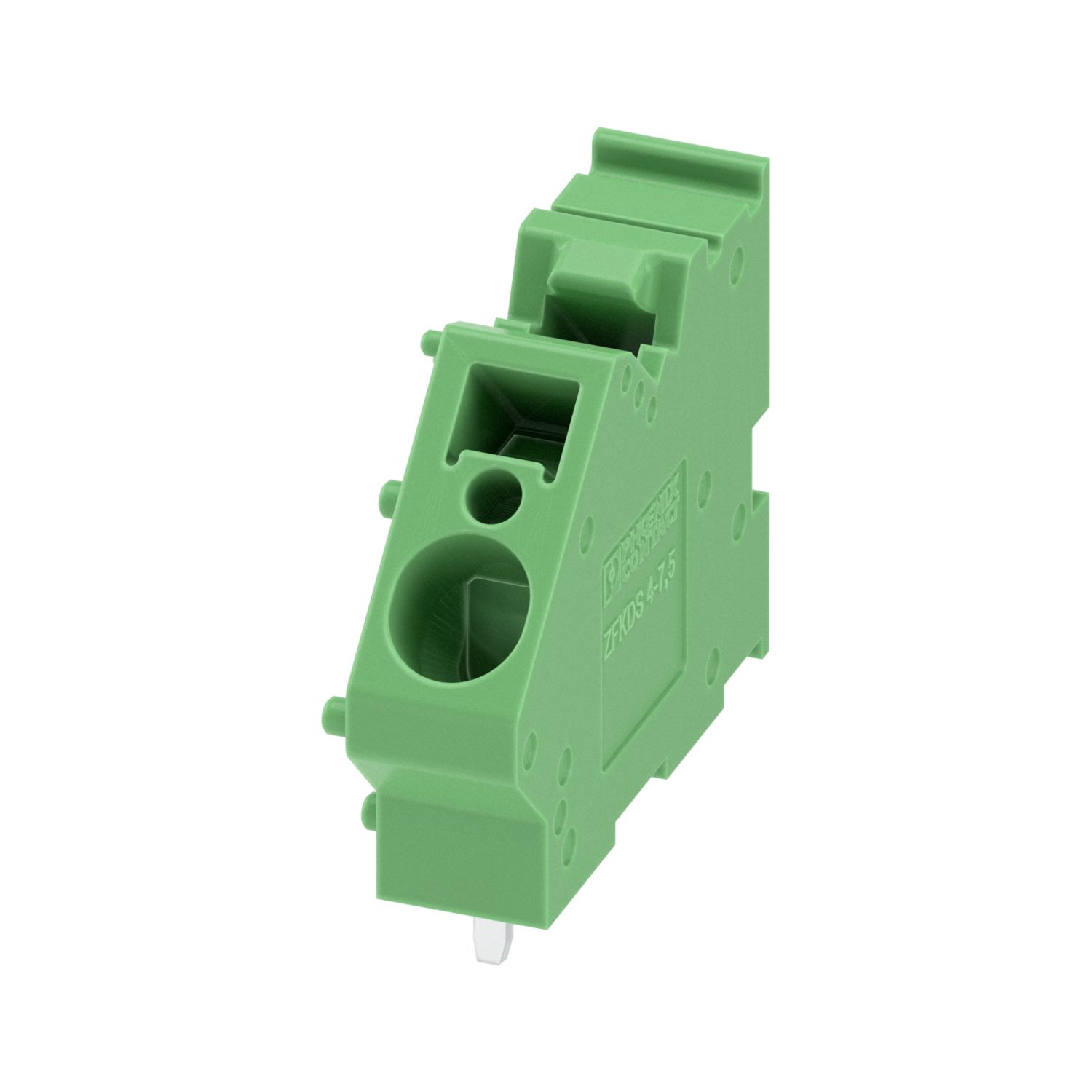

ZFKDS 4- 7,5
-
PCB terminal block
1907526
ZFKDSA 4- 9
-
PCB terminal block
1907542
