FBSK 2-7,5 - Plug-in bridge
FBSK 2-7,5
-
Plug-in bridge
1928343
Bridge, fully insulated, pitch 7.5 mm, 2-pos.
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Bridge
Product family
FBSK
Product line
COMBICON Terminals Special
Number of positions
2
Pitch
7.5 mm
Number of connections
2
Number of rows
1
Number of potentials
2
Dimensions
Pitch
7.5 mm
Material specifications
Material data - contact
Note
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material
Cu alloy
Material data - housing
Color (Housing)
red (3001)
Insulating material
PA
Insulating material group
I
CTI according to IEC 60112
600
Flammability rating according to UL 94
V0
Glow wire flammability index GWFI according to EN 60695-2-12
850
Glow wire ignition temperature GWIT according to EN 60695-2-13
775
Temperature for the ball pressure test according to EN 60695-10-2
125 °C
Connector
Connection 1
Insulating material
PA
CTI according to IEC 60112
600
Commercial data
Item number
1928343
Packing unit
50 pc
Minimum order quantity
50 pc
Sales key
AARZFD
Product key
AARZFD
Catalog page
Page 830 (C-1-2013)
GTIN
4017918606374
Weight per piece (including packing)
1,906 g
Weight per piece (excluding packing)
1,9 g
Customs tariff number
85366990
Country of origin
PL
Classifications
ECLASS
ECLASS-13.0
27460406
ETIM
ETIM 9.0
EC002943
UNSPSC
UNSPSC 21.0
39121400
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
EF3.0 Climate Change
CO2e kg
0,029 kg CO2e
Compatible products
Expand all
Collapse all
Accessories
ZFKDSA 4-7,5- 2
-
PCB terminal block
1709874
ZFKDSA 4-7,5- 3
-
PCB terminal block
1991891
ZFKDSA 4-7,5- 4
-
PCB terminal block
1736793
ZFKDSA 4-7,5- 5
-
PCB terminal block
1989191
ZFKDSA 4-7,5- 6
-
PCB terminal block
1934625
ZFKDSA 4-7,5-10
-
PCB terminal block
1805504
ZFKDSA 4-7,5-12
-
PCB terminal block
1714740
ZFKDSA 4-7,5-16
-
PCB terminal block
1760646

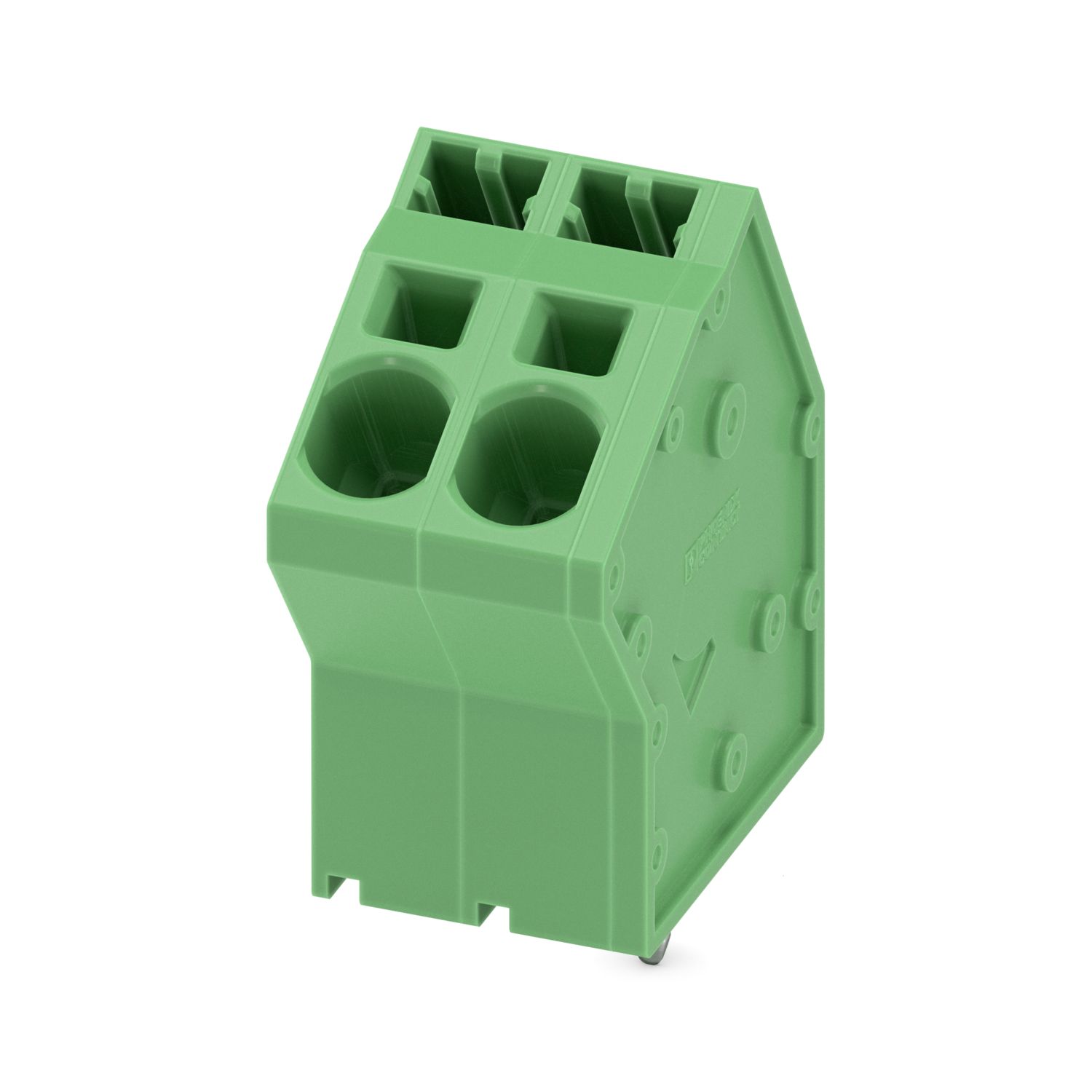

SPTA 5/ 2-7,5-ZB
-
PCB terminal block
1819082
SPTA 5/ 3-7,5-ZB
-
PCB terminal block
1819095
SPTA 5/ 4-7,5-ZB
-
PCB terminal block
1819105
SPTA 5/ 5-7,5-ZB
-
PCB terminal block
1819118
SPTA 5/ 6-7,5-ZB
-
PCB terminal block
1819121
SPTA 5/ 7-7,5-ZB
-
PCB terminal block
1819134
SPTA 5/ 8-7,5-ZB
-
PCB terminal block
1819147
SPTA 5/ 9-7,5-ZB
-
PCB terminal block
1819150
SPTA 5/10-7,5-ZB
-
PCB terminal block
1819163
SPTA 5/11-7,5-ZB
-
PCB terminal block
1819176
SPTA 5/12-7,5-ZB
-
PCB terminal block
1819189
ZFKDS 4- 7,5
-
PCB terminal block
1907526
ZFKDSA 4- 9
-
PCB terminal block
1907542
