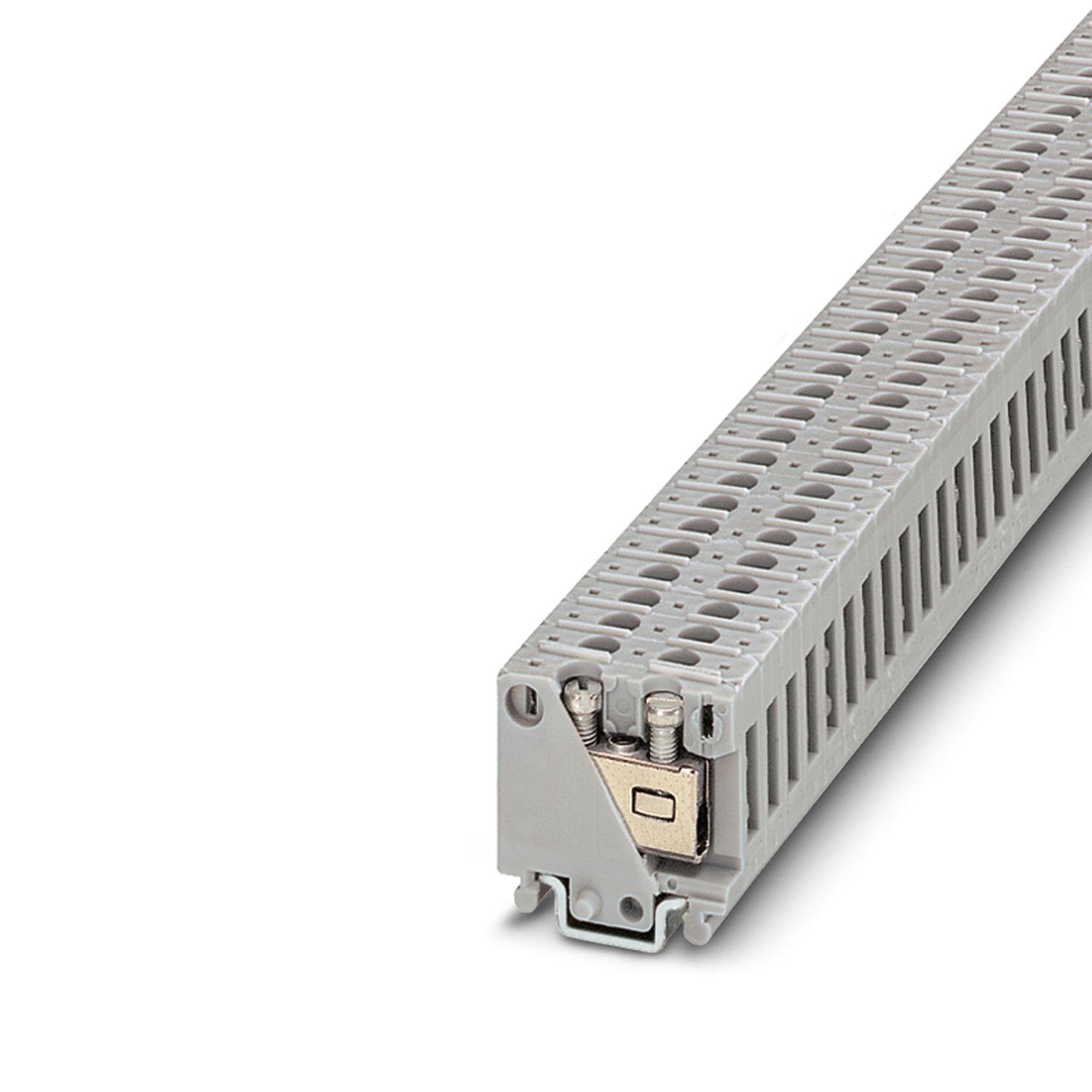

MBK - Mini feed-through terminal block - 1401019

Product properties

Product type	Miniature terminal block
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.56 W

Connection data

Number of connections per level	2
Nominal cross section	1.5 mm²
Screw thread	M2,6
Tightening torque	0.5 ... 0.6 Nm
Stripping length	8 mm
Internal cylindrical gage	A1
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Cross section AWG	24 ... 14 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]	24 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 1 mm²
Cross-section with insertion bridge, rigid	1.5 mm²
Cross-section with insertion bridge, flexible	1.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 0.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 0.75 mm²
Nominal current	17.5 A
Maximum load current	24 A (with a 2.5 mm² conductor cross section)
Nominal voltage	500 V
Nominal cross section	1.5 mm²

Dimensions

Width	5 mm
Height	22 mm
Depth	21.8 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V2
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-40 °C
Relative insulation material temperature index (Elec., UL 746 B)	125 °C

Electrical tests

Surge voltage test
Test voltage setpoint	7.3 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
	Test passed
Short-time withstand current 1.5 mm²	0.18 kA
Short-time withstand current 2.5 mm²	0.3 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical properties

Mechanical data
Open side panel	No

Mechanical tests

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 15
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 (+/- 2) rpm
Revolutions	135
Conductor cross section/weight	0.2 mm² / 0.2 kg
	1.5 mm² / 0.4 kg
	2.5 mm² / 0.7 kg
Result	Test passed

Environmental and real-life conditions

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-40 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and regulations

Connection in acc. with standard	IEC 60947-7-1

Mounting

Item number	1401019
Packing unit	200 pc
Minimum order quantity	1 pc
Sales key	BE1261
Product key	BE1261
Catalog page	Page 520 (CL1-2011)
GTIN	4017918020194
Weight per piece (including packing)	4,162 g
Weight per piece (excluding packing)	4,31 g
Customs tariff number	85369010
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

MBK - Mini feed-through terminal block

1401019

Product details

ECLASS

ETIM

UNSPSC

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

MBK - Mini feed-through terminal block 1401019

Product details

ECLASS

ETIM

UNSPSC

Compatible products

EB 2- 5 - Insertion bridge 1401158

EB 3- 5 - Insertion bridge 1401145

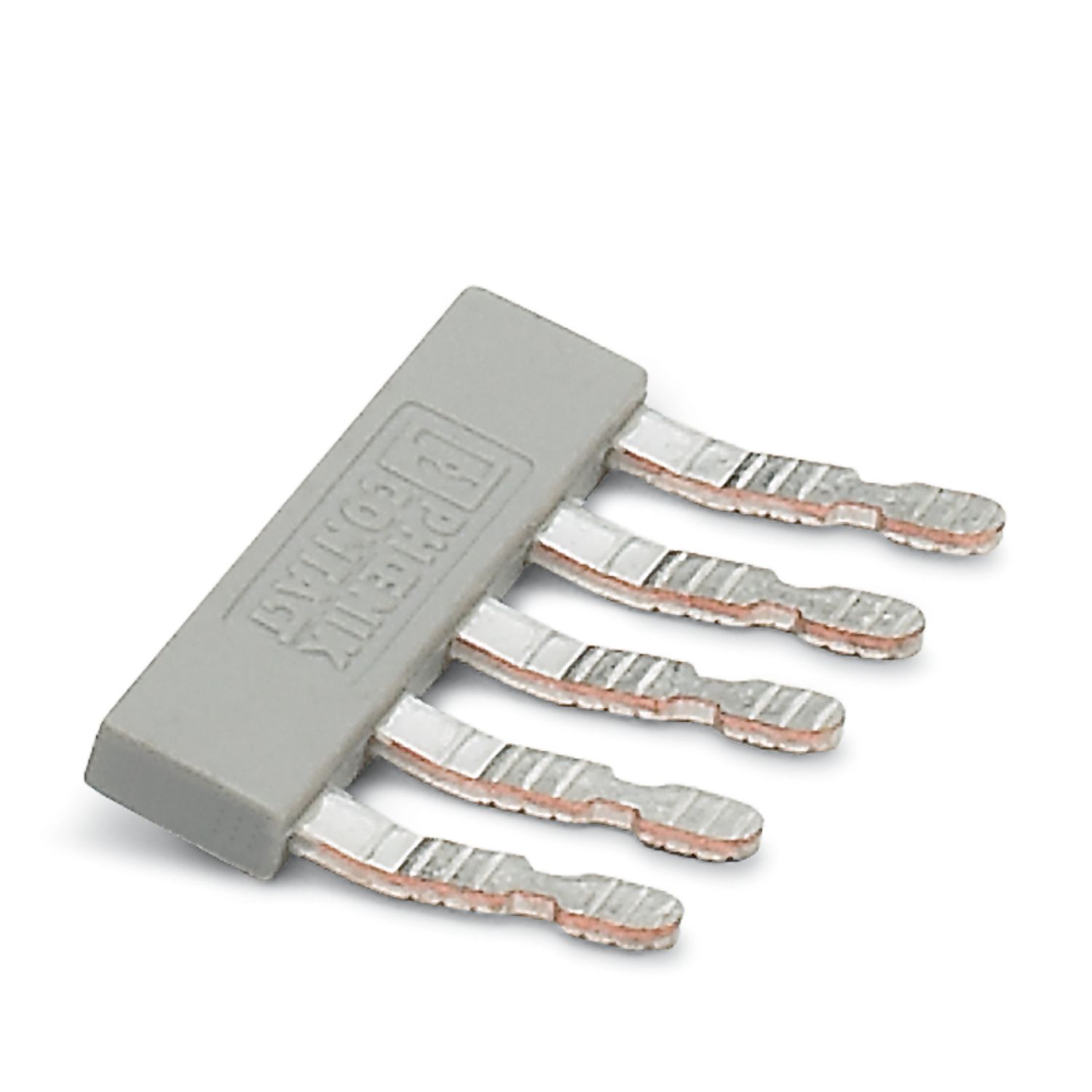

EB 5- 5 - Insertion bridge 1401174

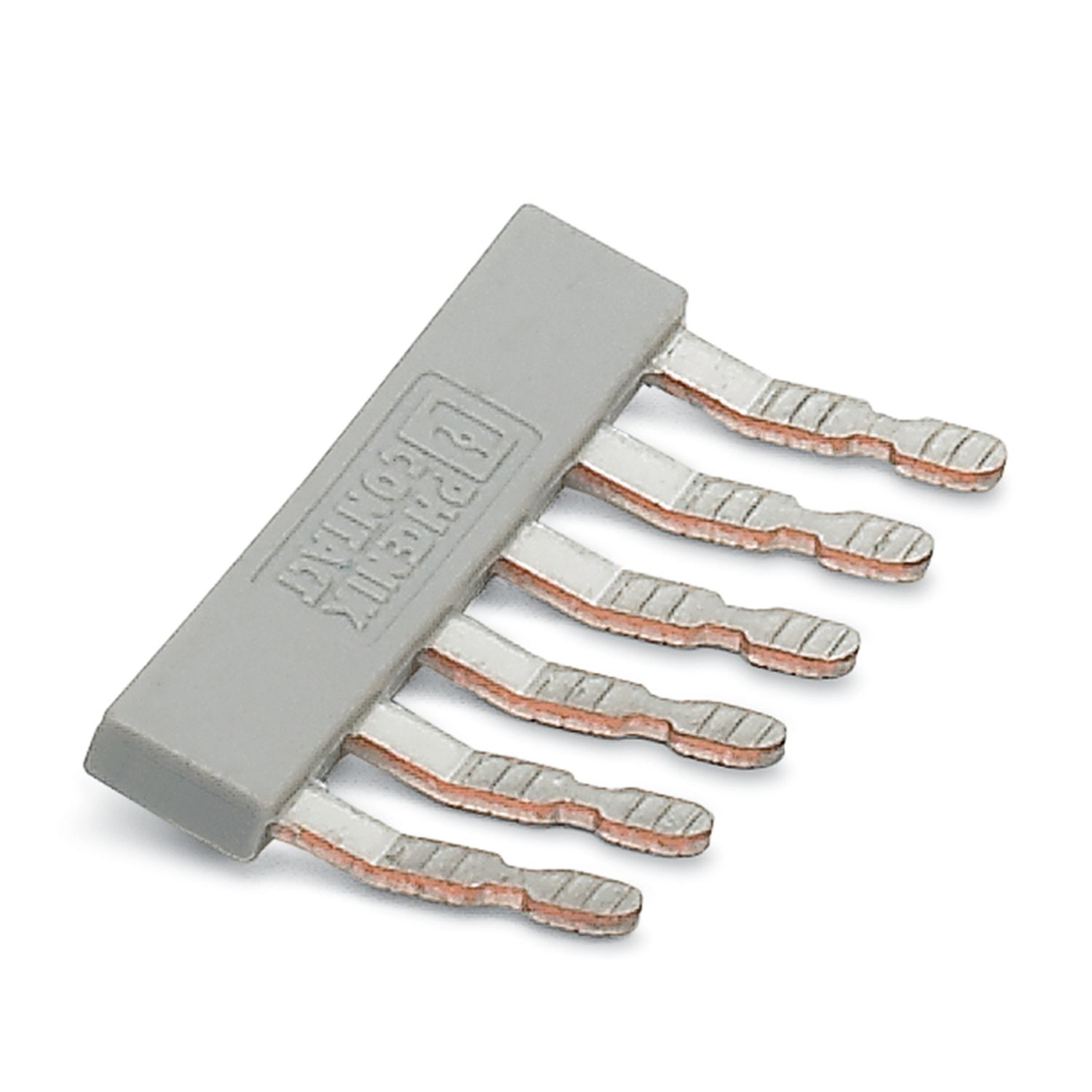

EB 6- 5 - Insertion bridge 1401187
