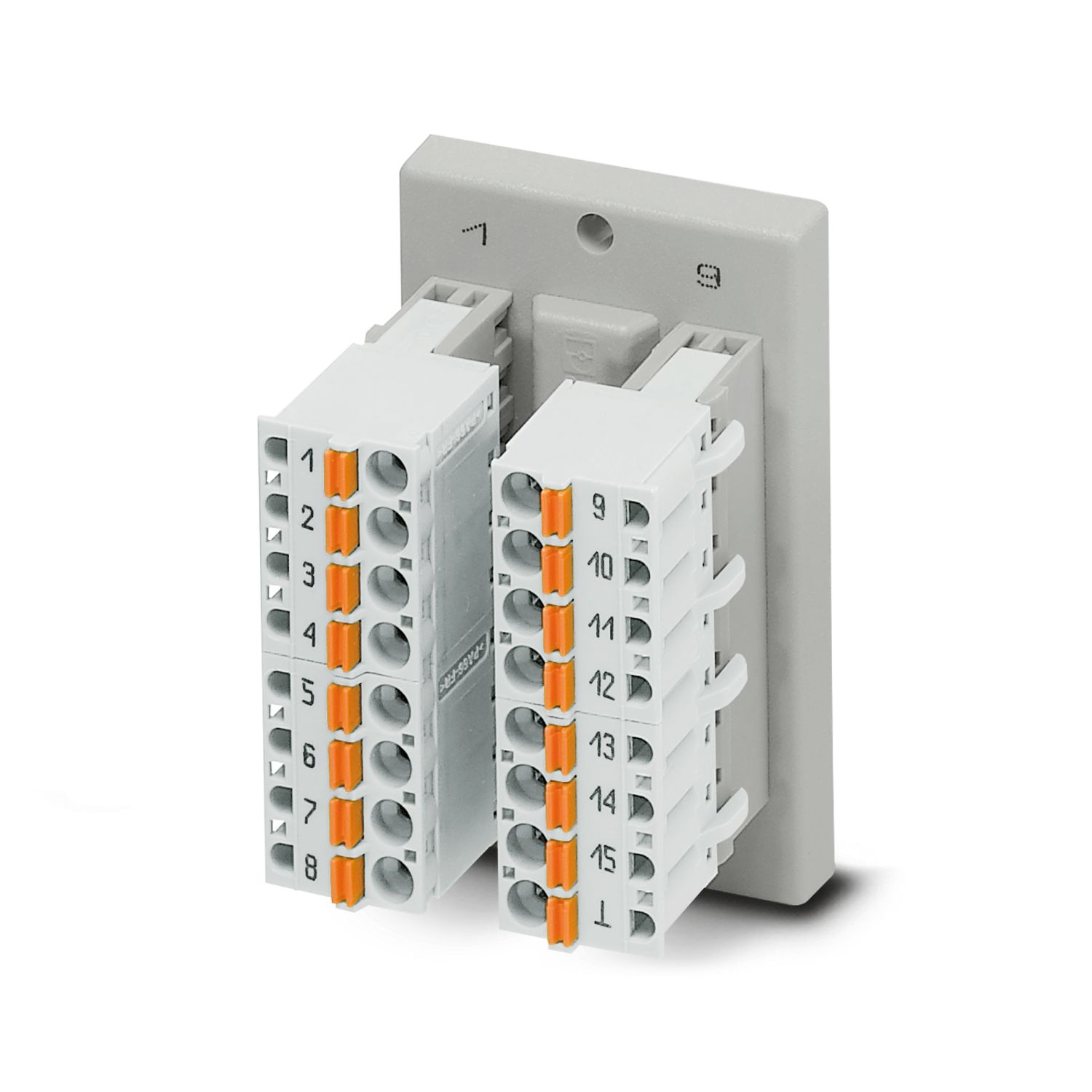

DFLK-D15 SUB/M/FKCT - Termination board

2903054

The VARIOFACE feed-through module implements a 1:1 connection between plug-in push-in spring-cage connection terminal blocks and a D-SUB miniature pin strip (number of positions: 15). A separate ground pick-off is available.

Product details

Product type	Interface module
Product family	VARIOFACE
Number of positions	15
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Operating voltage (AC)	≤ 30 V AC
Operating voltage (DC)	≤ 60 V DC
Current (per branch)	≤ 2.5 A
Current (Total current)	≤ 37.5 A (50 °C)
Air clearances and creepage distances
Rated insulation voltage	125 V
Rated surge voltage	1.2 kV (1.2/50 μs)

Connection 1 (control level)
Connection in acc. with standard	IEC 60807-2
Connection method	D-SUB pin strip
Screw thread	UNC 4-40
Number of connections	1
Number of positions	15
Insertion/withdrawal cycles	> 500
Pitch	2.74 mm
Connection 2 (field level)
Connection method	Push-in spring connection
Stripping length	10 mm
Number of positions	16
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
	0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
	0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)	0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG	24 ... 12
Pitch	5 mm

Status display present	no

Item dimensions
Width	38 mm
Height	58.4 mm
Depth	46 mm

Color	gray (RAL 7042)
Housing insulation material	Polyamide PA non-reinforced

Ambient conditions
Degree of protection (Module)	IP20
Degree of protection (Installation location)	≥ IP54
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Altitude	≤ 2000 m

UKCA
Certificate	UKCA-compliant

Air clearances and creepage distances
Standards/regulations	EN IEC 60664-1

Mounting type	Rear mounting
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2903054
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK21C2
Product key	DK21C2
GTIN	4046356709637
Weight per piece (including packing)	77,5 g
Weight per piece (excluding packing)	77,5 g
Customs tariff number	85369010
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
keine
	125 V	1 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
keine
	125 V	1 A	30 - 12

Environmental product compliance

Compatible products

Accessories

ECLASS-13.0	27141152
ECLASS-15.0	27141152

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
