The intelligent Lumgate luminaire control unit is used to couple a light management system to tunnel luminaires. Suitable for installation in driver boxes or directly in the luminaire.

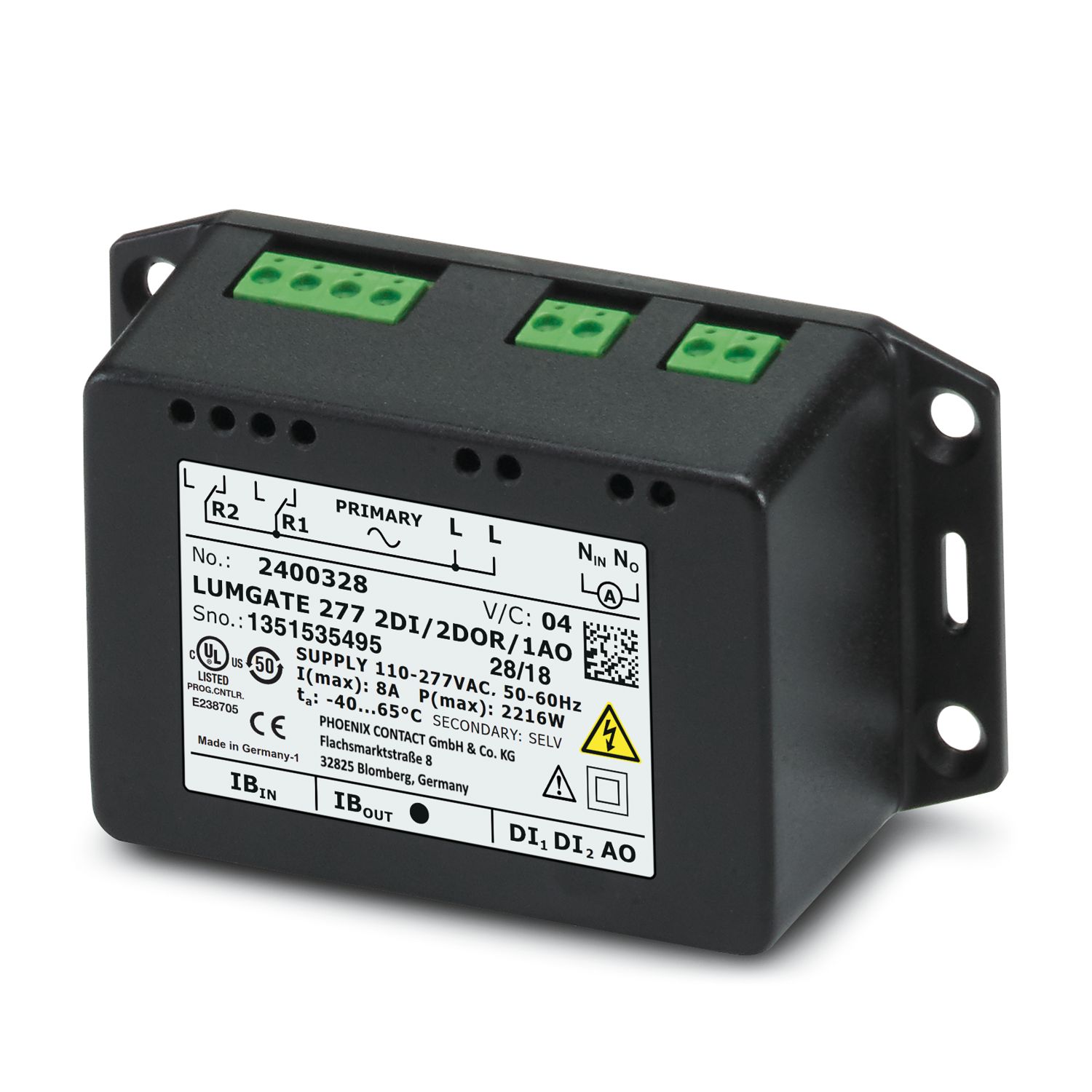

LUMGATE 277 2DI/2DOR/1AO
-
Luminaire control unit
2400328
Luminaire control unit for controlling LED drivers, 110 V ... 277 V input voltage, 2 relay outputs, 8 A load current, up to 8 LED drivers can be controlled, 10 V analog interface, measurement of load currents
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Gateways/Proxies |
| Product family | Stand-alone |
| Type | Stand-alone |
| Diagnostics messages | Bus error in INTERBUS |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Module | |
| ID code (dec.) | 51 |
| ID code (hex) | 33 |
| Input address area | 16 bit |
| Output address area | 16 bit |
| Maximum power dissipation for nominal condition | max. 2216 W |
| Supply: Module electronics | |
| Connection technology | Spring-cage connection |
| Supply voltage | max. 250 V AC (Class II / EN 61347) |
| Supply voltage range | 110 V AC ... 277 V AC -13 % ... +6 % (Following consultation with the manufacturer, Class I/UL 508) |
| Current consumption | max. 8 A (with active consumers) |
| Power consumption | 2 W (No-load) |
| Digital: | |
| Input name | Digital inputs |
| Number of inputs | 2 (Open Collector) |
| Connection method | Header for PTSM connectors |
| Analog: | |
| Output name | Analog output |
| Connection method | Header for PTSM connectors |
| Number of outputs | 1 |
| D/A converter resolution | 8 bit |
| Current output signal | -20 mA (Current sink) |
| Permissible cable length | max. 0.5 m |
| Digital: | |
| Output name | Relay output |
| Connection method | Spring-cage connection |
| Number of outputs | 2 (AC General Use) |
| Protective circuit | Surge protection |
| Output voltage | 250 V AC (TRIAC protection of the N/C contact, load-free switching) |
| Output current | max. 8 A (max. 5 A per relay) |
| Nominal output voltage | max. 277 V AC (50 Hz ... 60 Hz) |
| Supply | |
| Connection method | Spring-cage connection |
| Note on the connection method | Use copper wire, that is approved up to 80 °C. |
| Conductor cross-section, rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross-section, flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 26 ... 14 |
| Stripping length | 8 mm |
| Input/output | |
| Connection method | PTSM connector |
| Note on the connection method | Use copper wire, that is approved up to 80 °C. |
| Conductor cross-section, rigid | 0.14 mm² ... 0.5 mm² |
| Conductor cross-section, flexible | 0.14 mm² ... 0.5 mm² |
| Conductor cross-section AWG | 24 ... 20 |
| Stripping length | 6 mm |
| Remote bus | |
| Transmission speed | 500 kBaud |
| Diagnostic messages | |
| Diagnostics | Bus error in INTERBUS |
| Dimensional drawing |
|
| Width | 110.9 mm |
| Height | 57.9 mm |
| Depth | 39 mm |
| Color | black (RAL 9005) |
| Material | ABS |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 65 °C |
| Degree of protection | IP20 (touch-proof (per manufacturer's declaration)) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 90 % (according to DIN EN 61131-2) |
| 5 % ... 95 % (up to 45°C in accordance with EN 60068-2-78:2013) | |
| Permissible humidity (storage/transport) | 5 % ... 90 % (according to DIN EN 61131-2) |
| Mounting type | Mounting on a surface (Mounting in the control box) |
cULus Listed
Approval ID: E238705
Your advantages
Compact housing
AC power supply
