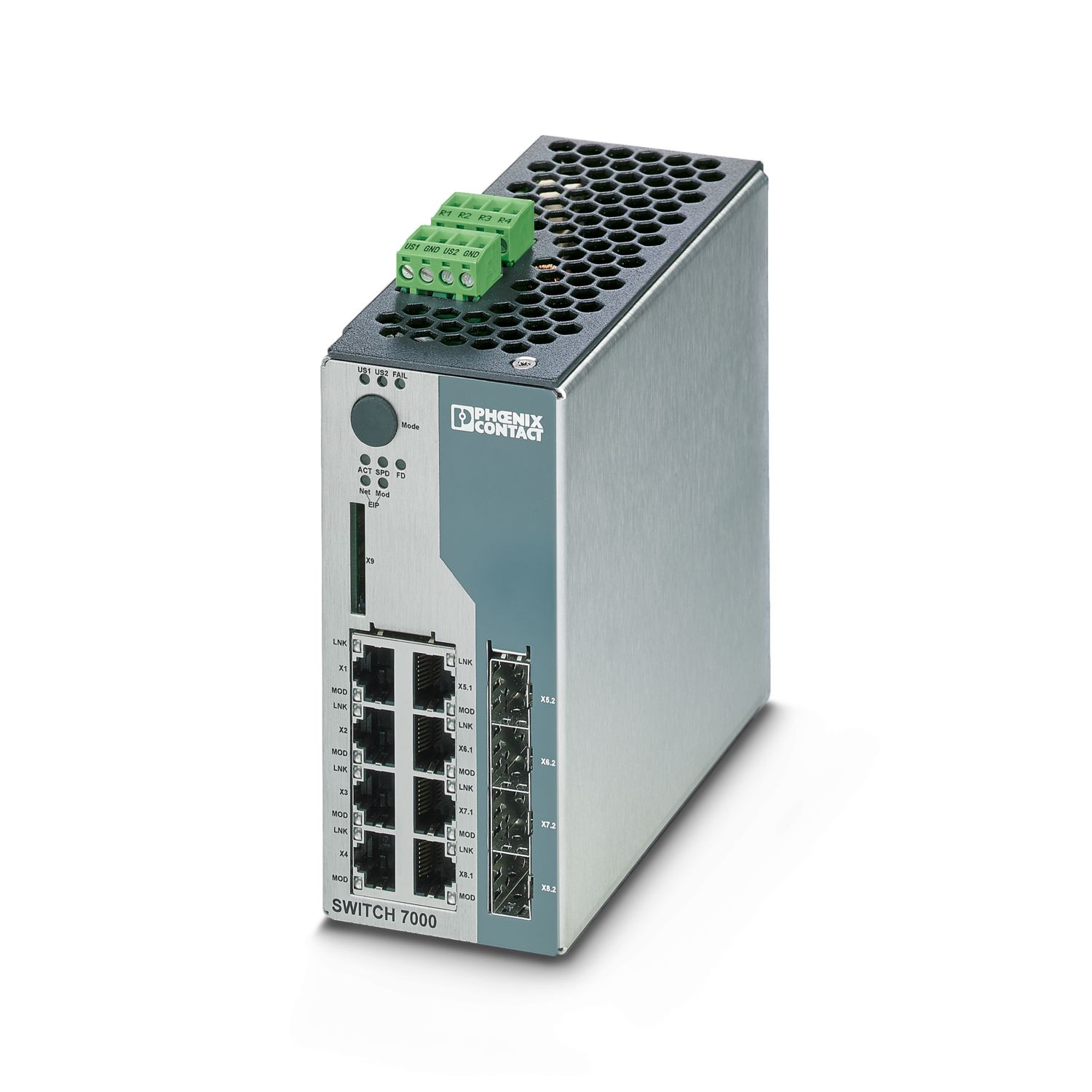

FL SWITCH 7004-4GC-EIP - Industrial Ethernet Switch - 2701553

Width	60 mm
Height	130 mm
Depth	135.5 mm

Mounting type	DIN rail mounting

Ethernet (RJ45)
Connection method	RJ45
Note on the connection method	Auto negotiation and autocrossing
Transmission speed	10/100 Mbps
Transmission physics	Copper
Transmission length	100 m (per segment)
Signal LEDs	Data receive, link status
No. of channels	4 (RJ45 ports)
Ethernet (combo)
Connection method	SFP/RJ45
Note on the connection method	Auto negotiation and autocrossing
Transmission speed	10/100/1000 Mbps (full duplex)
Transmission physics	Depending on the SFP module
Transmission length	up to 80 km (Depending on the fiber/SFP module used)
Signal LEDs	Data receive, link status
No. of channels	4 (Combo ports)

Product type	Switch
Product family	Managed Switch 7000
Type	Book type
MTTF	140.7 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
		85.21 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
		14.84 Years (SN 29500 standard, temperature 70°C, operating cycle 100%)
Special properties	EtherNet/IP™
Basic functions	Store-and-forward switch, complies with IEEE 802.3
Insulation characteristics
Protection class	III (VDE 0106, IEC 60536)
Switch functions
Diagnostic functions	Remanente Event-Table
		RMON History
		N:1-Portmirroring
		LLDP (Link Layer Discovery Protocol)
		SNMP-Traps
		ACD (Address Conflict Detection)
EtherNet/IP™ supported protocols	Common Industrial Protocol (CIP)
Basic functions	Store-and-forward switch, complies with IEEE 802.3
Signal contact control voltage	24 V DC (typical)
Signal contact control current	1 A (maximum)
PROFINET conformance class	Conformance-Class A
PROFINET device function	Fast Startup
Filter functions	Quality of Service (8 priority classes)
		Port-Priorisierung
		VLAN (up to 32 VLANs)
		IGMP Snooping/Querier (v1/v2)
		Auto-Query-Port
		Extended Multicast Filtering
		Static Multicast Filtering (32 groups)
		Link Aggregation (up to 4 trunks)
IP parameterization	DHCP client
		DHCP Option 82 (Relay Agent)
		DHCP server (pool-based, port-based)
		BootP
MAC address table	16k
Management	Web-based management (HTTP/HTTPS)
Management		SNMPv1/v2/v3
Redundancy	DLR (Device Level Ring)
		RSTP (Rapid Spanning Tree Protocol)
		FRD (Fast Ring Detection)
		Large Tree Support
Status and diagnostic indicators	LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod
Additional functions	MAC-based Port-Security
Time synchronization	PTP 1588 (Transparent clock on the DLR ports)
Security functions
Basic functions	Store-and-forward switch, complies with IEEE 802.3

Current consumption	535 mA
Power consumption	12.84 W
Local diagnostics	US1/2 Supply voltage US1, US2 Green LED
		FAIL Div. LED red
		LINK Link status LED
Maximum power dissipation for nominal condition	12.84 W
Test section	500 V DC 1 min
Transmission medium	Copper
Transmission medium		FO
Supply
Supply voltage (DC)	24 V DC (redundant)
Supply voltage range	12 V DC ... 58 V DC
Power supply connection	Via COMBICON, max. conductor cross-section 2.5 mm²
Residual ripple	3.6 V_PP (within the permitted voltage range)
Typical current consumption	535 mA (at U_S = 24 V DC)
Current consumption	535 mA
Function
Signal contact control voltage	24 V DC (typical)
Signal contact control current	1 A (maximum)

Connection method	Screw connection
Conductor cross-section, rigid	0.2 mm² ... 2.5 mm²
Conductor cross-section, flexible	0.2 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 12
Stripping length	7 mm

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 95 % (non-condensing)
Vibration (operation)	in acc. with IEC 60068-2-6: 5g, 150 Hz
Air pressure (operation)	86 kPa ... 108 kPa (1500 m above sea level)
Air pressure (storage/transport)	66 kPa ... 108 kPa (3500 m above sea level)

Electromagnetic compatibility	Conformance with EMC Directive 2004/108/EC
Conformance with EMC directives	IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion A
		IEC 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
		IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion A
		IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion A
		IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
Noise immunity	EN 61000-6-2:2005
Noise emission
Standards/regulations	EN 61000-6-4

Item number	2701553
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DNN122
Product key	DNN122
GTIN	4046356766784
Weight per piece (including packing)	1.139,6 g
Weight per piece (excluding packing)	1.010 g
Customs tariff number	85176200
Country of origin	DE

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FL SWITCH 7004-4GC-EIP - Industrial Ethernet Switch

2701553

Product details

ETIM

UNSPSC

Compatible products

Your advantages

Conformity/Approvals
Noxious gas test	ISA S71.04.2013 G3 Harsh Group A

Functionality
Basic functions	Store-and-forward switch, complies with IEEE 802.3

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	15(a), 6(a)-I, 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: n/a)
