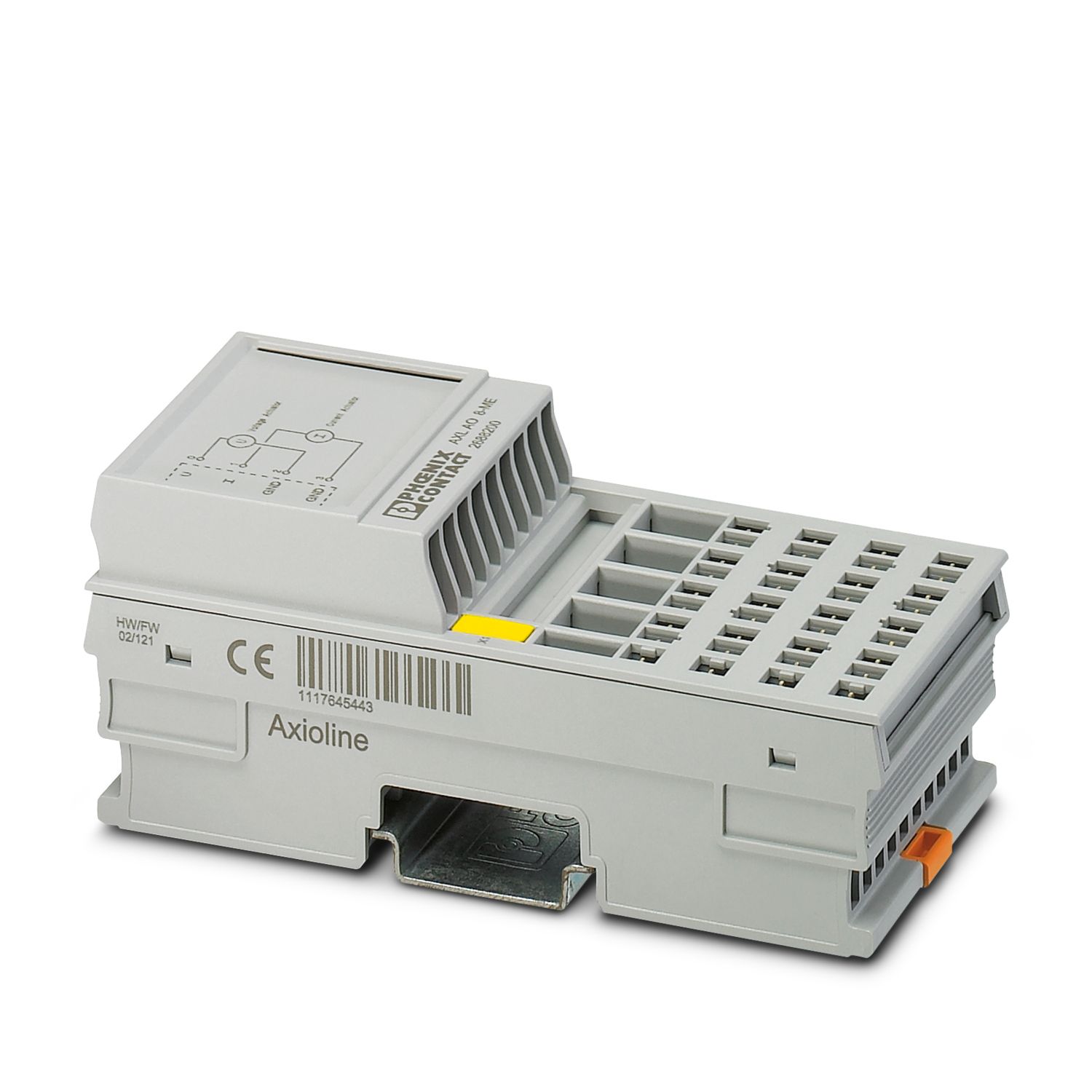

AXL AO 8-ME - I/O module - 2688200

Material specifications

Color	gray

Interfaces

Output data

Analog:
Output name	Analog outputs
Connection method	Spring-cage connection with direct connector-in method
Connection technology	2-conductor (shielded, twisted pair)
Number of outputs	8
D/A conversion time	5 µs
D/A converter resolution	16 bit
Protective circuit	Short-circuit and overload protection; Electronic
Protective circuit		Transient protection; Suppressor diode
Data formats	IB IL, S7-compatible
Representation of output values	16 bits (15 bits + sign)
Process data update	300 µs
Current output signal	0 mA ... 20 mA
		4 mA ... 20 mA
		-20 mA ... 20 mA
Load/output load current output	to 500 Ω
Voltage output signal	0 V ... 5 V
		-5 V ... 5 V
		0 V ... 10 V
		-10 V ... 10 V
Load/output load voltage output	> 2 kΩ
Precision	typ. 0.1 % (of output range final value)
Permissible cable length	max. 250 m

Product properties

Electrical properties

Potentials
Power consumption	typ. 1.725 W (to U_Busand U_A;power input; no load, output 0 V)
Power consumption		max. 6.29 W (to U_Bus and U_A; 8 current channels, output 20 mA)
Protective circuit	Surge protection of the supply voltage; electronic (35 V, 0.5 s)
		Polarity reversal protection of the supply voltage; Polarity protection diode
		Transient protection; Suppressor diode
Potentials
Supply voltage	5 V DC (via bus base module)
Current draw	max. 130 mA
Current draw		typ. 105 mA
Power consumption	max. 0.65 W
Power consumption		typ. 0.525 W
Potentials: Supply for analog modules (U_A)
Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw	max. 235 mA (8 current channels, 20 mA output)
Current draw		typ. 110 mA (8 voltage channels, 10 V output)
Electrical isolation/isolation of the voltage ranges
Test voltage: 5 V supply of the local bus (U_Bus) / 24 V supply (I/Os)	500 V AC, 50 Hz, 1 min
Test voltage: 5 V supply of the local bus (U_Bus) / functional ground	500 V AC, 50 Hz, 1 min
Test voltage: 24 V supply (I/O) / functional ground	500 V AC, 50 Hz, 1 min

Connection data

Connection technology
Connection name	Axioline F connector
Conductor connection
Connection method	Push-in connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16
Stripping length	8 mm
Axioline F connector
Connection method	Push-in connection
Conductor cross section, rigid	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 16
Stripping length	8 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-25 °C ... 60 °C
Degree of protection	IP20
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)	5 % ... 95 % (according to DIN EN 61131-2)

Standards and regulations

Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Item number	2688200
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DRI242
GTIN	4046356570671
Weight per piece (including packing)	184,5 g
Weight per piece (excluding packing)	184,5 g
Country of origin	DE

AXL AO 8-ME - I/O module

2688200

Mounting type	DIN rail mounting
Mounting position	any (no temperature derating)

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
