HC-ADV-B16-HHWH-1SGM40-PL
-
Housing
1404234

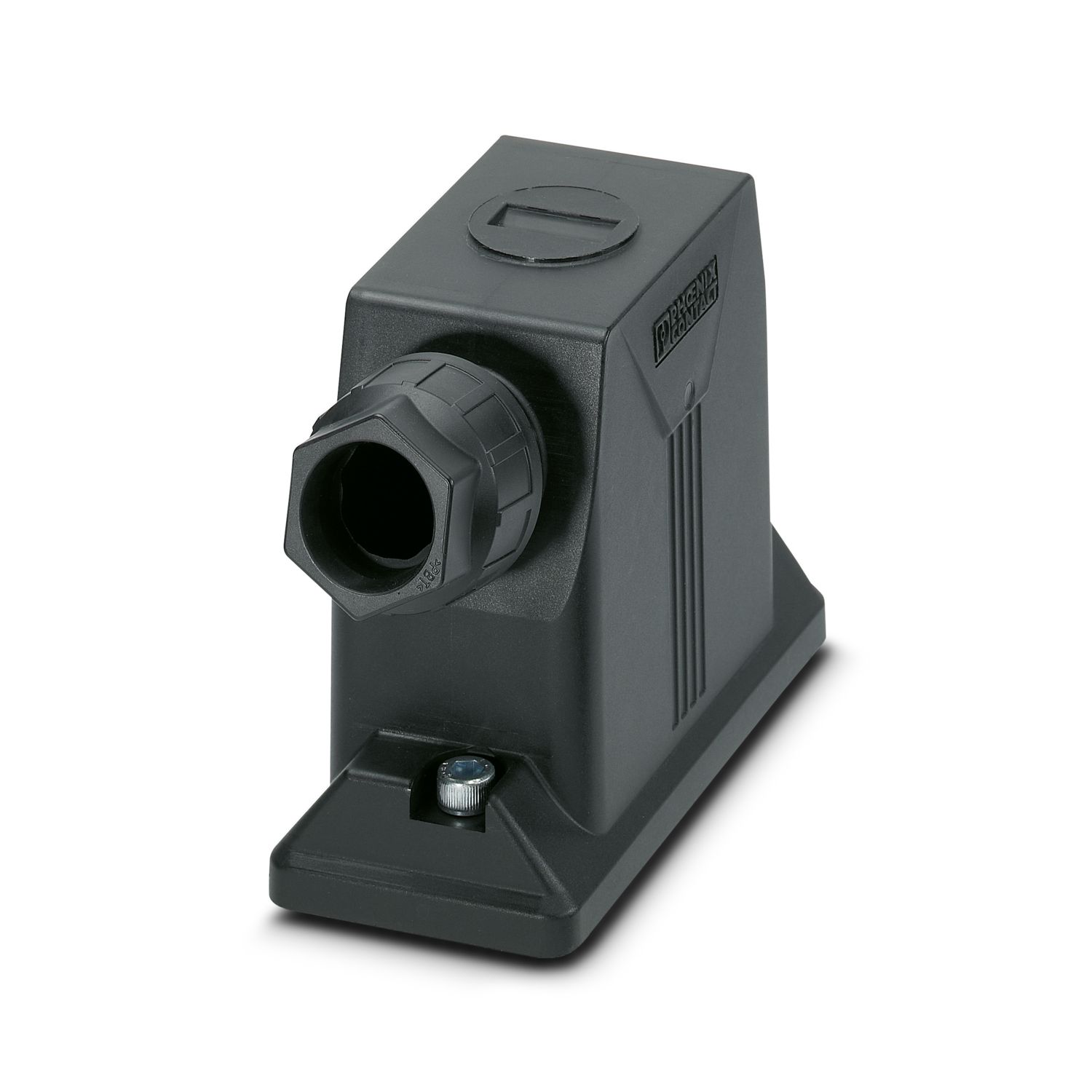

Sleeve housing B16, with screw locking, material: PA, cable outlets: 1, lateral, M40, height: 95 mm, cable gland: with, Standard
Product details
| General | For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K, HV06-I-PR, HV 6-E...C |
| Product type | Housing with screw locking |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B16 |
| No. of cable outlets | 1 |
| Type of the screw connection | M40 |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | with |
| External cable diameter | 19 mm ... 28 mm |
| Tightening torque | 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing) |
| Tightening torque, union nut | 7.50 Nm |
| Dimensional drawing |
|
| Width | 57 mm |
| Height | 95 mm |
| Length | 126 mm |
| Wrench size, union nut | 36 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 86 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| Seal material Profile gasket | NBR |
| Seal material Cable seal | NBR |
| Housing material | PA |
| Locking latch material | Stainless steel |
| Material of locking screw | Stainless steel |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Mechanical data | |
| Type of the screw connection | M40 |
| Locking type | Screw |
| External cable diameter Cable 1 | 19 mm ... 28 mm |
| Assembly note | M6 locking screw, with 5 mm Allen screw head |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
Your advantages
Integrated screw connection
Lower costs than metal version
Low weight
Lower risk of condensation
