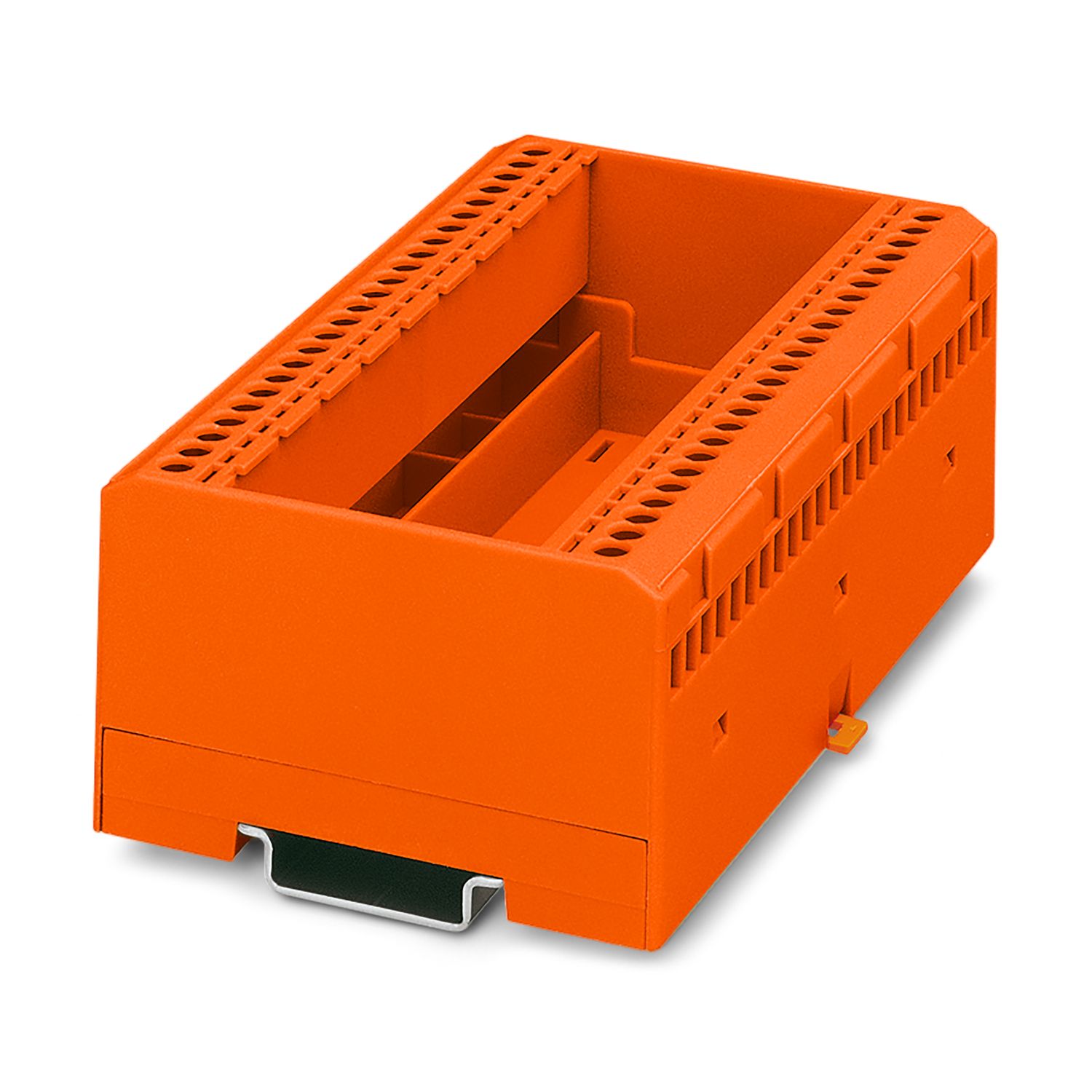

EMG125-LG OG
-
Electronics housing
2907020
Electronic housing, for PCB insertion, without screw connection terminal blocks and cover
This product needs further products for operation.
Mandatory accessories
Product details
| Product type | Complete housing |
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG |
| Type | Lower part of housing, removable cover optional |
| Number of positions | 48 |
| Pitch | 5 mm |

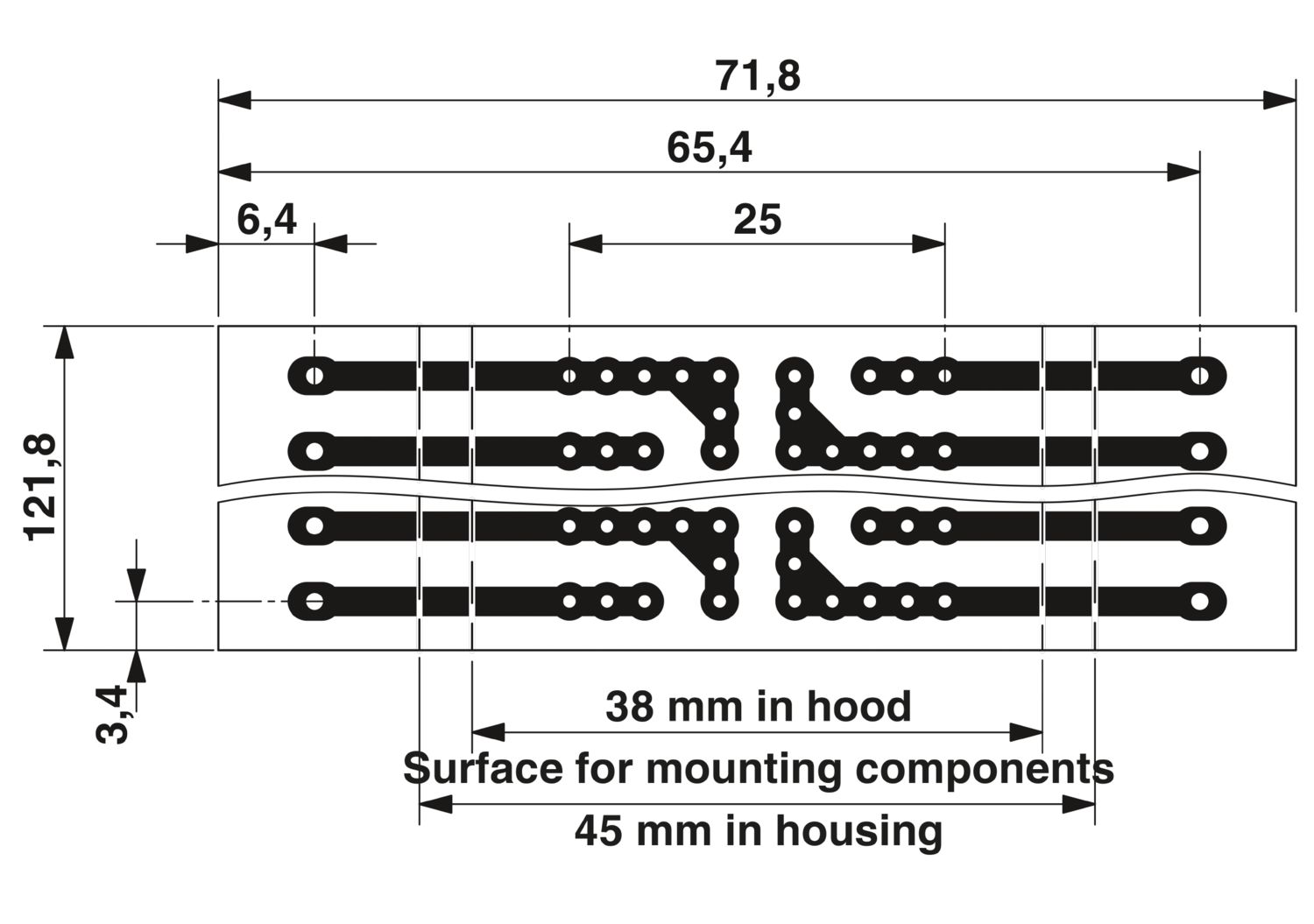

| Dimensional drawing |
|
| Width | 125 mm |
| Height NS 35/7,5 | 55 mm |
| 83 mm | |
| Depth | 75 mm |
| Length | 75 mm |
| Pitch | 5 mm |
| Color (Housing) | traffic orange (RAL 2009) |
| Material Housing | PC (glass-fiber reinforced) |
| Flammability rating according to UL 94 | V0 |
| Surface characteristics | untreated |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail mounting |
