VS-25-BU-DSUB-HD-CD-B
-
D-SUB contact support
1655247
D-SUB contact carrier, shell size 3, for 44 signal contacts, type of contact socket, for crimp contacts, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25-...
Product details
| Product type | Female insert |
| Application | high-position |
| Type | D-SUB |
| Number of positions | 44 |
| Connection profile | D-SUB |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 60 V |
| Rated surge voltage | 1 kV |
| Rated current | 3 A (at 20 °C) |
| Test voltage | 1000 V |
| Transmission medium | Copper |
| Connection technology | |
| Connection method | Crimp connection |

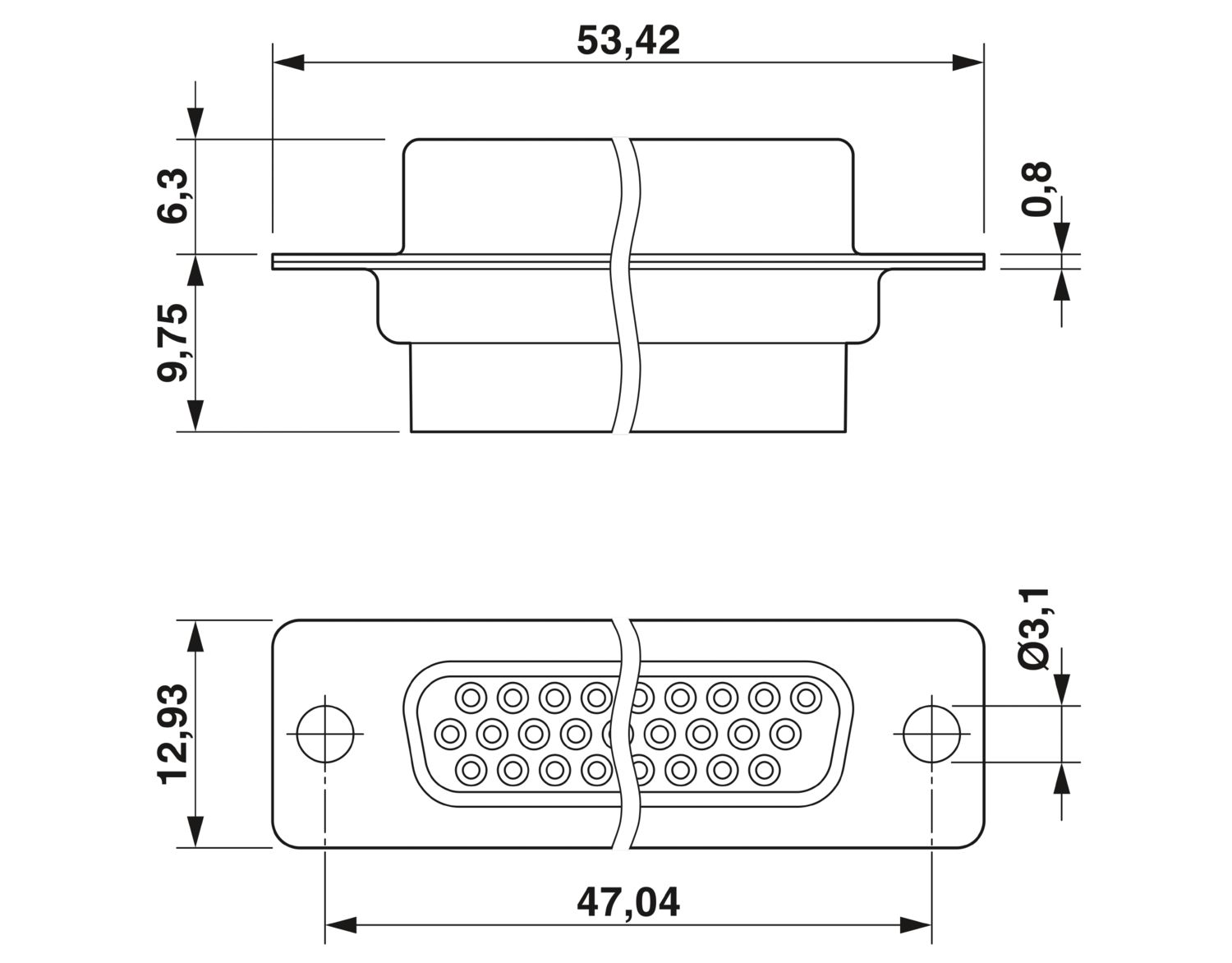

| Dimensional drawing |
|
| Width | 16 mm |
| Height | 12.93 mm |
| Length | 53.42 mm |
| Flammability rating according to UL 94 | V0 |
| Housing material | Metal |
| Housing surface material | metal-plated |
| Contact surface material | Gold |
| Contact carrier material | Glass-fiber reinforced thermoplastics, UL 94 V0 |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -55 °C ... 115 °C |
| Mounting type | Screw mounting |
Your advantages
Compatible with IP67 sleeve housing and panel-mount frame
Easy assembly
