AP 3-TU KS
-
Cover profile carrier
3034373
Sealable cover profile, for mounting on NS 35/7,5 DIN rail and for fixing the cover profile AP 3, with plastic knurled nut M5, space requirement: 2 mm
Product details
| Product type | Cover profile carrier |

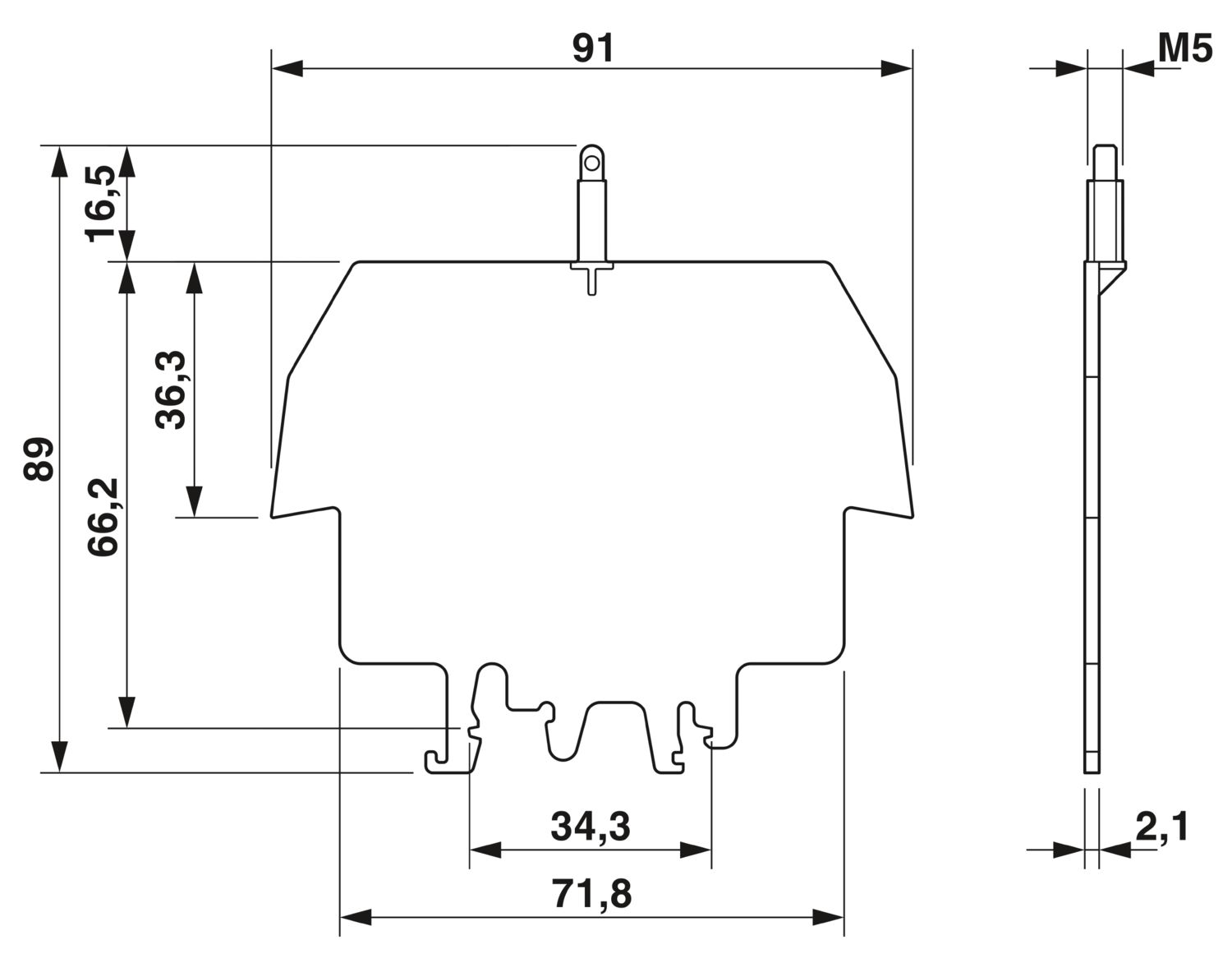

| Dimensional drawing |
|
| Width | 2 mm |
| Height | 91 mm |
| Depth | 89 mm |
| Depth on NS 35/7,5 | 90.2 mm |
| Depth on NS 35/15 | 97.7 mm |
| Length | 91 mm |
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | NS 32 |
| NS 35/7,5 | |
| NS 35/15 | |
| NS 35/15-2,3 | |
| NS 35/15 CU |
Your advantages
Cover profiles provide protection against unauthorized actuation of terminal strips
