HC-A 3-ESTS
-
Contact insert
1773080

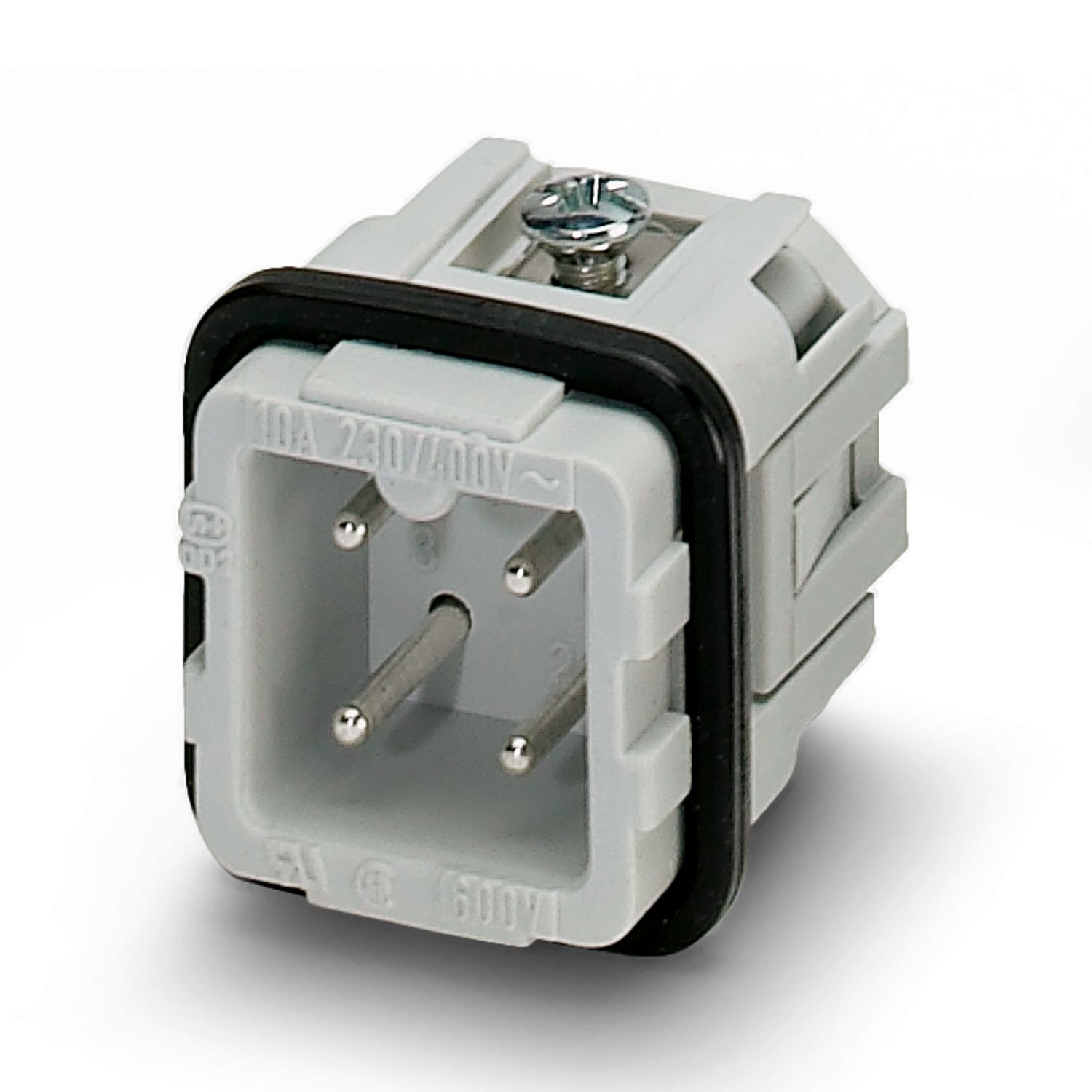

HEAVYCON male insert, A3 series, 3-pos., screw connection without wire protection
Product details
| General | for housing HC-D7 |
| Assembly note | Connectors may be operated only when there is no load/voltage. |
| Product type | Contact insert with a fixed no. of positions |
| Series | HC-A |
| Type | D7 |
| Number of positions | 3 |
| Connection profile | 3+PE |
| Contact numbering | 1 - 3 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

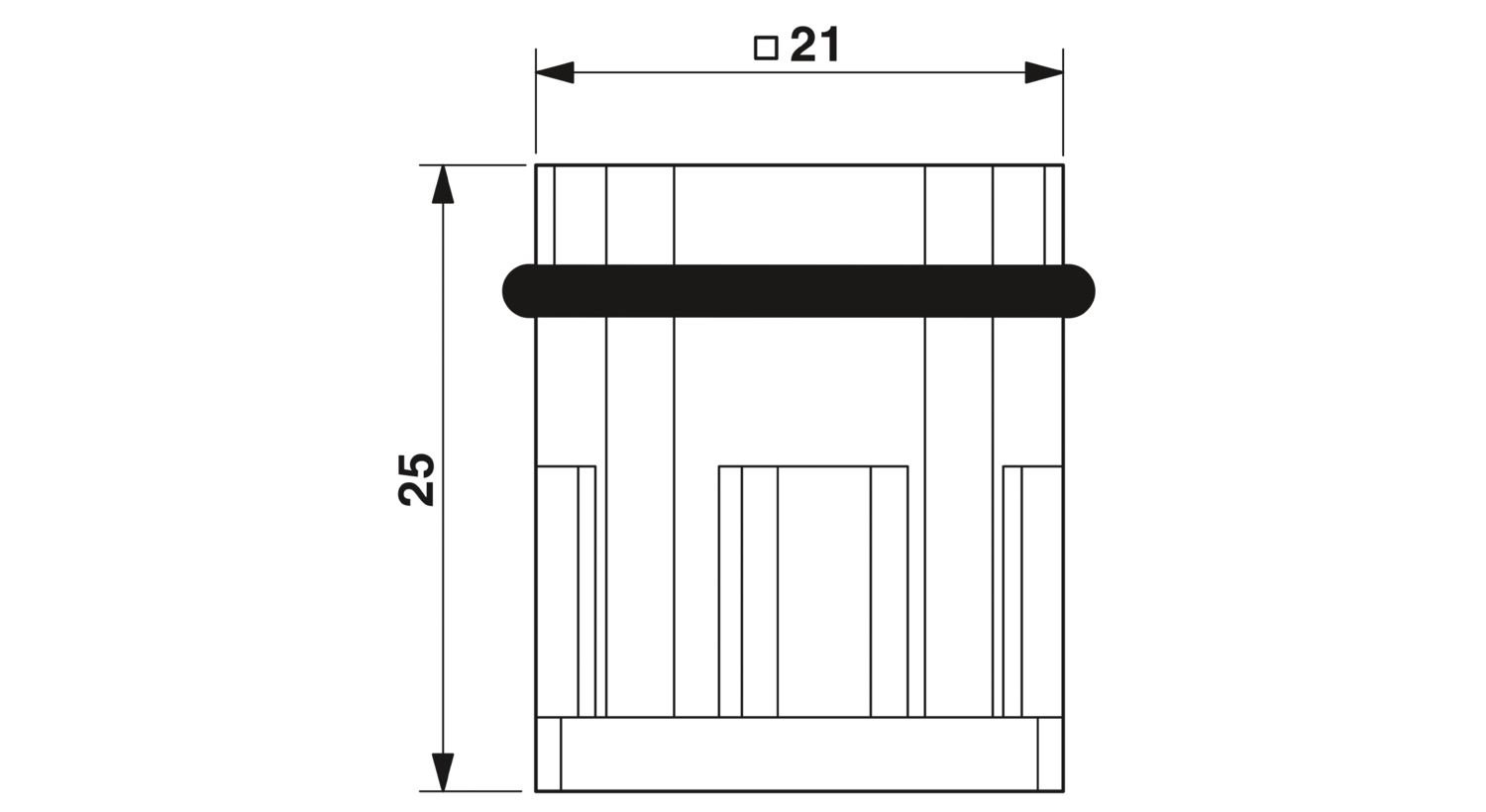

| Dimensional drawing |
|
| Height | 25 mm |
| Connection technology | |
| Connection technology | Screw connection |
| Connection in acc. with standard | IEC / EN |
| Conductor connection | |
| Conductor cross section | 0.5 mm² ... 1.5 mm² (applies to stranded conductors with ferrules) |
| Connection cross section AWG | 20 ... 16 |
| Tightening torque | 0.25 Nm |
| Stripping length of the individual wire | 5 mm |
| Rated voltage (III/3) | 230 V (Conductor-PE) |
| 400 V (Conductor-Conductor) | |
| Rated voltage for power contacts | 230/400 V |
| Rated surge voltage | 4 kV |
| Rated current | 16 A |
| Test voltage | 4 kV AC |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Constructional and testing regulations | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Tests | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 |
