SEALING PLUG 7X16 RD
-
Sealing plug
1400255
Sealing plug, color: red
Product details
| Product type | Sealing plugs |

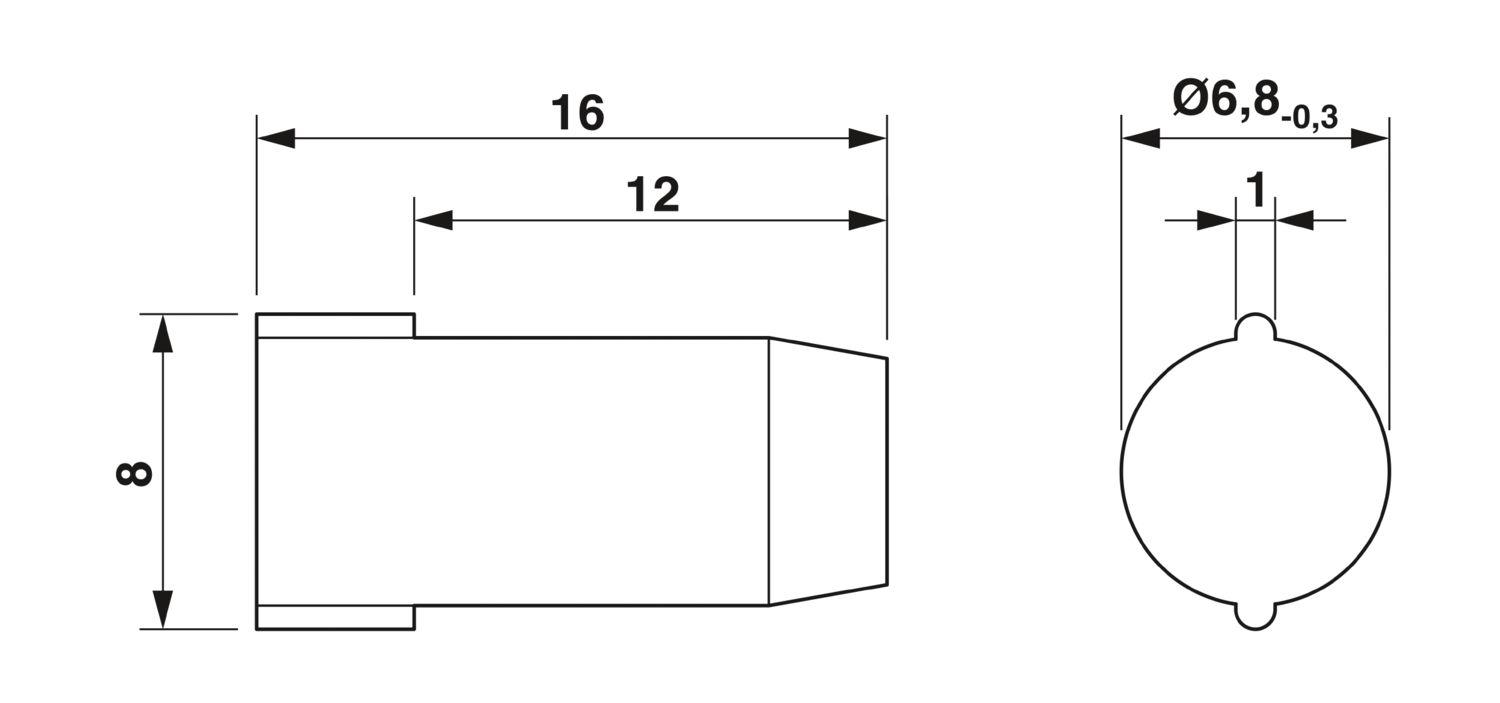

| Dimensional drawing |
|
| Width | 6.80 mm |
| Length | 16 mm |
| Diameter | 6.8 mm |
| 6.8 mm |
| Material | PA |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 100 °C |
| Assembly note | The head of the sealing plug must still be visible after mounting in the screw connection (see “after mounting” photo). |
