DC-B 6-H-80/O1STM25S-M
-
Housing
1581138

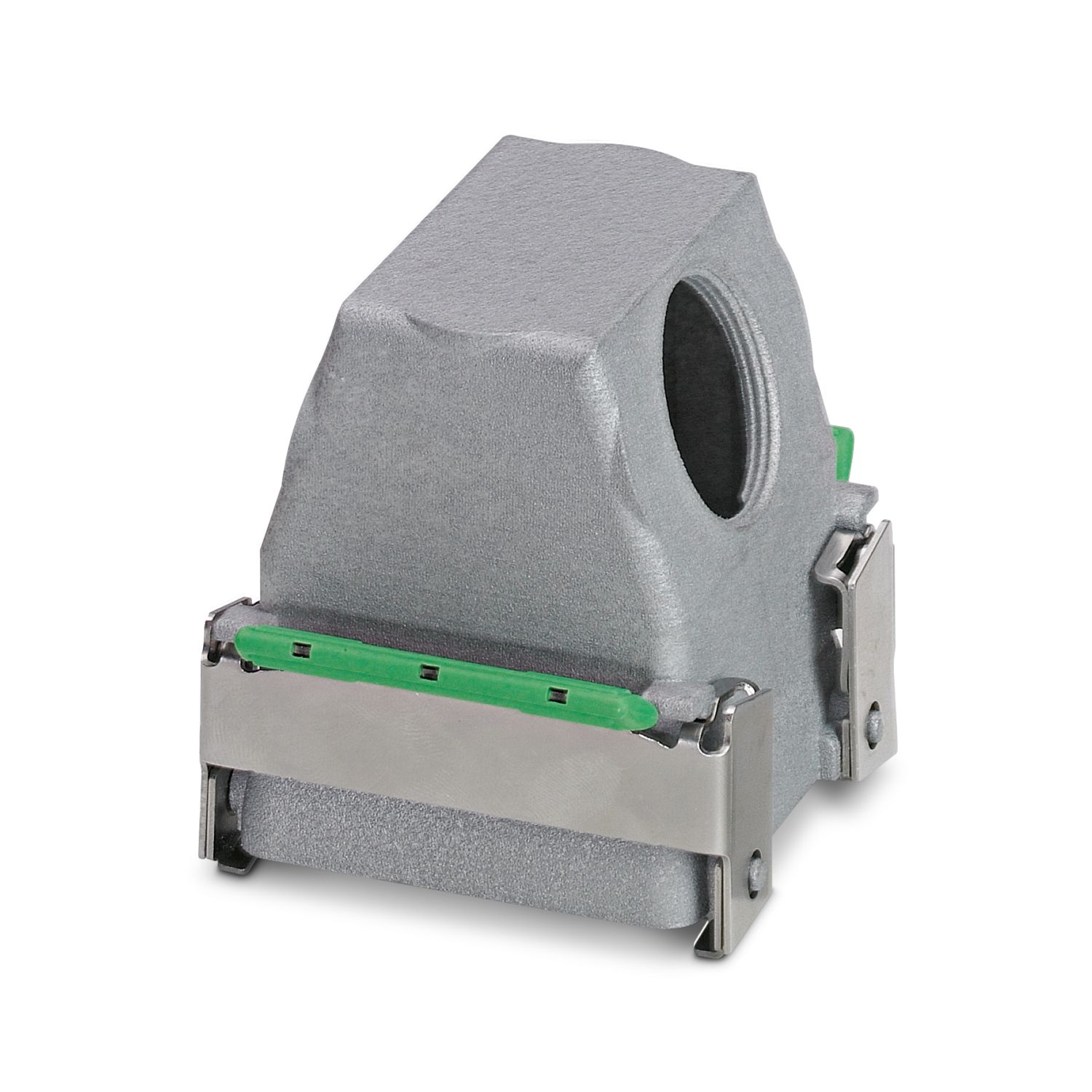

DUPLICON, aluminum stackable housing for DUPLICON contact inserts, type B6, IP67 degree of protection, with two locking latches, seal and M25 cable screw connection threads (without cable gland), angled outlet
Product details
| Housing type | Sleeve housing |
| Type | DC-B6 |
| Type of the screw connection | With 2x M20 thread |
| Cable outlet | lateral |
| Pg screw connection | none |
| Dimensional drawing |
|
| Height | 37 mm |
| Color | pearl gray |
| Material Housing | Die-cast aluminum |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Locking latch material | Stainless steel |
| Mechanical data | |
| Type of the screw connection | With 2x M20 thread |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP66 | |
| IP67 | |
| IP65/IP66/IP67 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 125 °C |
