UL Listed
Approval ID: E238705| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 125 V | 15 A | 30 - 10 |
cUL Listed
Approval ID: E238705| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 125 V | 15 A | 30 - 10 |
EM-DUO 120/15
-
Socket
5600461
Socket, color: ivory, standards/specifications: UL 508, CSA 22.2
Product details
| Product type | Socket |
| For country-specific use in | USA |
| Canada | |
| Mexico | |
| Bahamas | |
| Bermuda | |
| Columbia | |
| Costa Rica | |
| Ecuador | |
| El Salvador | |
| Panama | |
| Puerto Rico | |
| Taiwan | |
| Venezuela | |
| Virgin Islands |

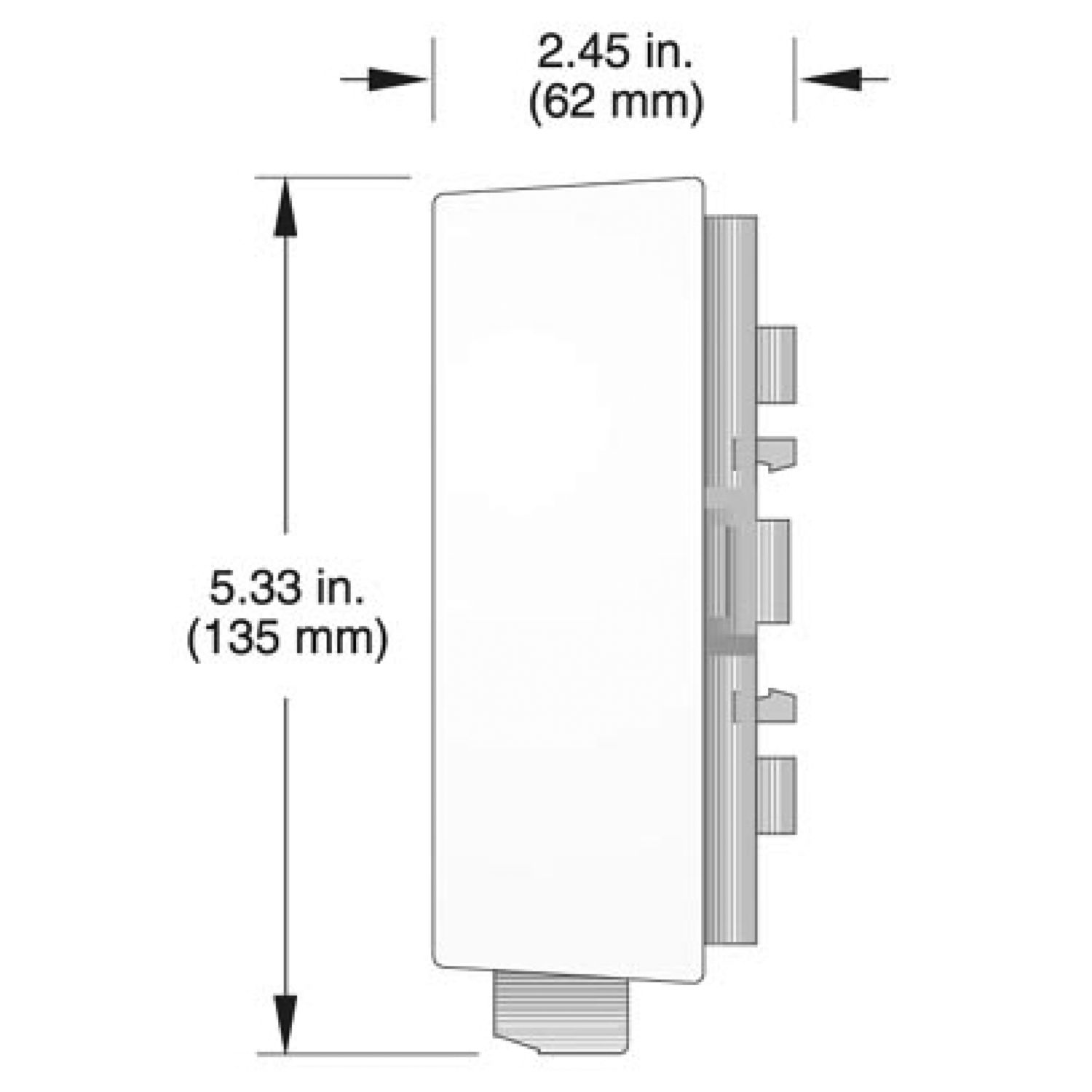

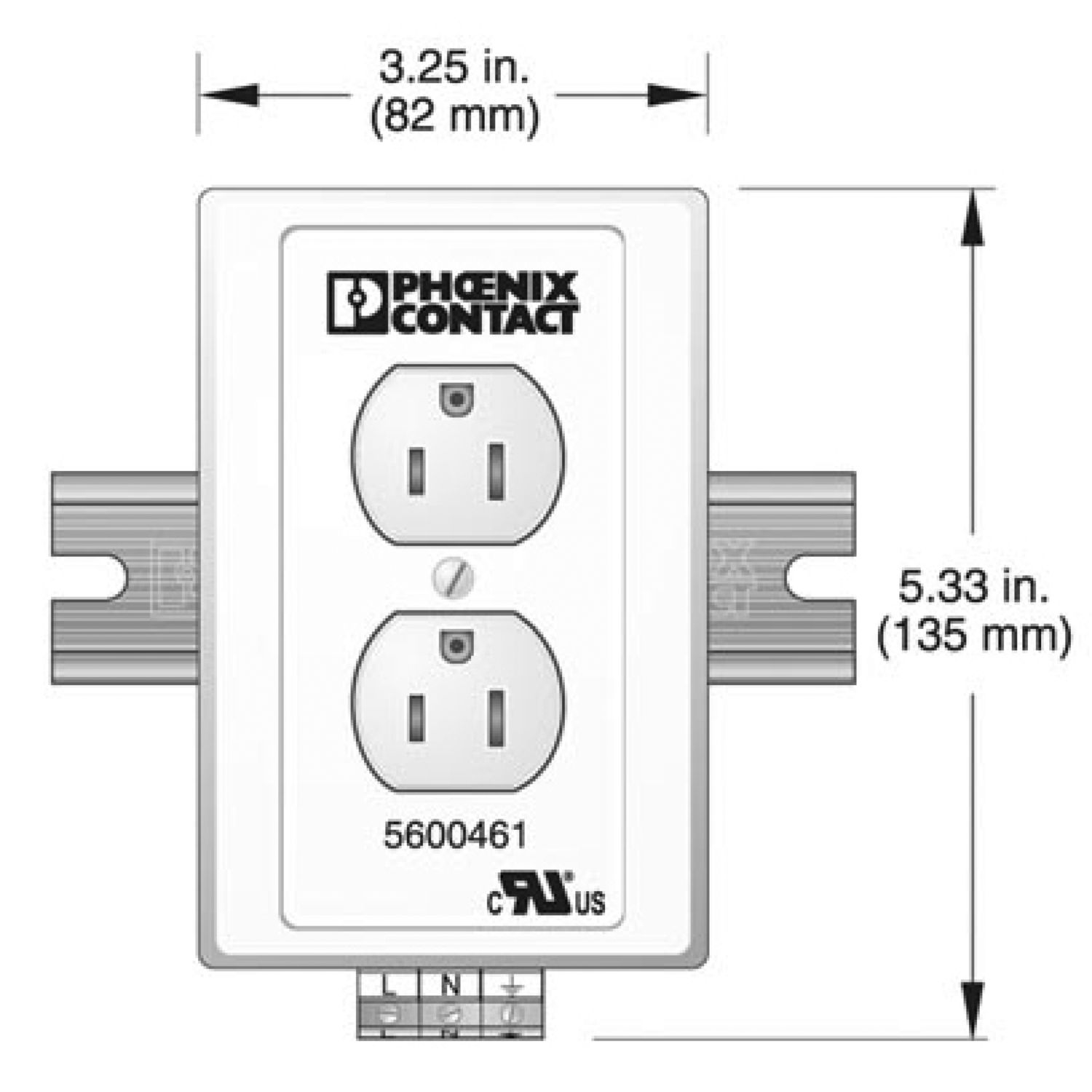

| Dimensional drawing |
|
| Width | 82 mm |
| Height | 135 mm |
| Depth | 135 mm |
| Color | ivory (RAL 1014) |
| Insulating material | Polycarbonate & ABS blend |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 60 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Standards | |
| Standards/regulations | UL 508 |
| CSA 22.2 | |
