SPP-R-3
-
Remote signaling module
1466700
Optional remote signaling module for 3-pos. surge arresters and base elements from the VALVETRAB SPP product family.
Product details
| Product type | Remote signaling set |
| Product family | VAL-SPP |
| Type | Installation module |
| Number of positions | 3 |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 3 |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Indicator/remote signaling | |
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Max. required back-up fuse | 1 A (gG) |
| AC operating voltage | 5 V AC ... 250 V AC (≤ 2000 m (amsl) at pollution degree 2) |
| 5 V AC ... 150 V AC ( 5000 m (amsl)) | |
| AC operating current | 5 mA AC ... 1 A AC |
| DC operating voltage | 30 V DC ( 5000 m (amsl)) |
| DC operating current | 1 A DC |
| DC operating voltage | 125 V DC ( 5000 m (amsl)) |
| DC operating current | 200 mA DC |
| Insulation type | The product has double/reinforced insulation between the main and auxiliary circuit. |
| Remote fault indicator contact | |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.25 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.25 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 1.5 mm² (Stripping length 8 mm) |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.75 mm² (Stripping length 8 mm) |

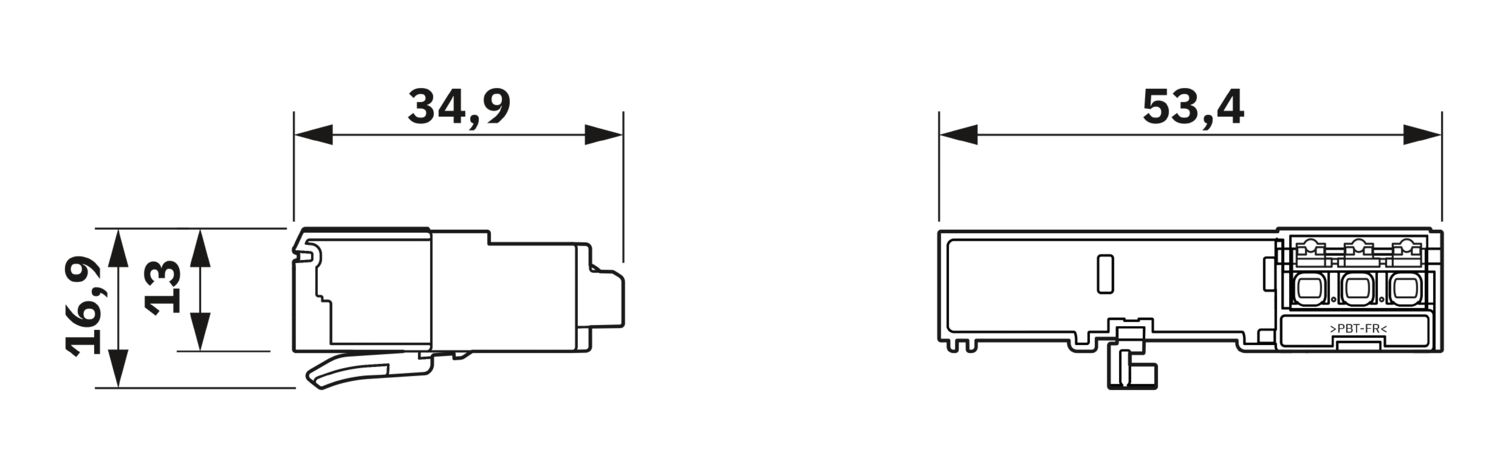

| Dimensional drawing |
|
| Width | 53.4 mm |
| Height | 16.9 mm |
| Depth | 34.9 mm |
| Horizontal pitch | 3 Div. |
| Color | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PBT |
| Material group | I |
| Housing material | PBT |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 250 V AC |
| Short-circuit current rating ISCCR | 100 A |
| Ambient conditions | |
| Degree of protection | IP20C |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Altitude | ≤ 5000 m (operating voltage remote contact ≤ 150 V) |
| ≤ 2000 m (operating voltage remote contact ≤ 250 V) | |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 + A11:2018 |
| Standards/specifications | EN 60947-5-1 |
| Note | 2018 |
| Mounting type | on base element |
