PROT-M12 FS-PA-CHAIN
-
Sealing cap
1430873
M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs
Product details
| Product type | Protective cap |
| Thread type | M12 |

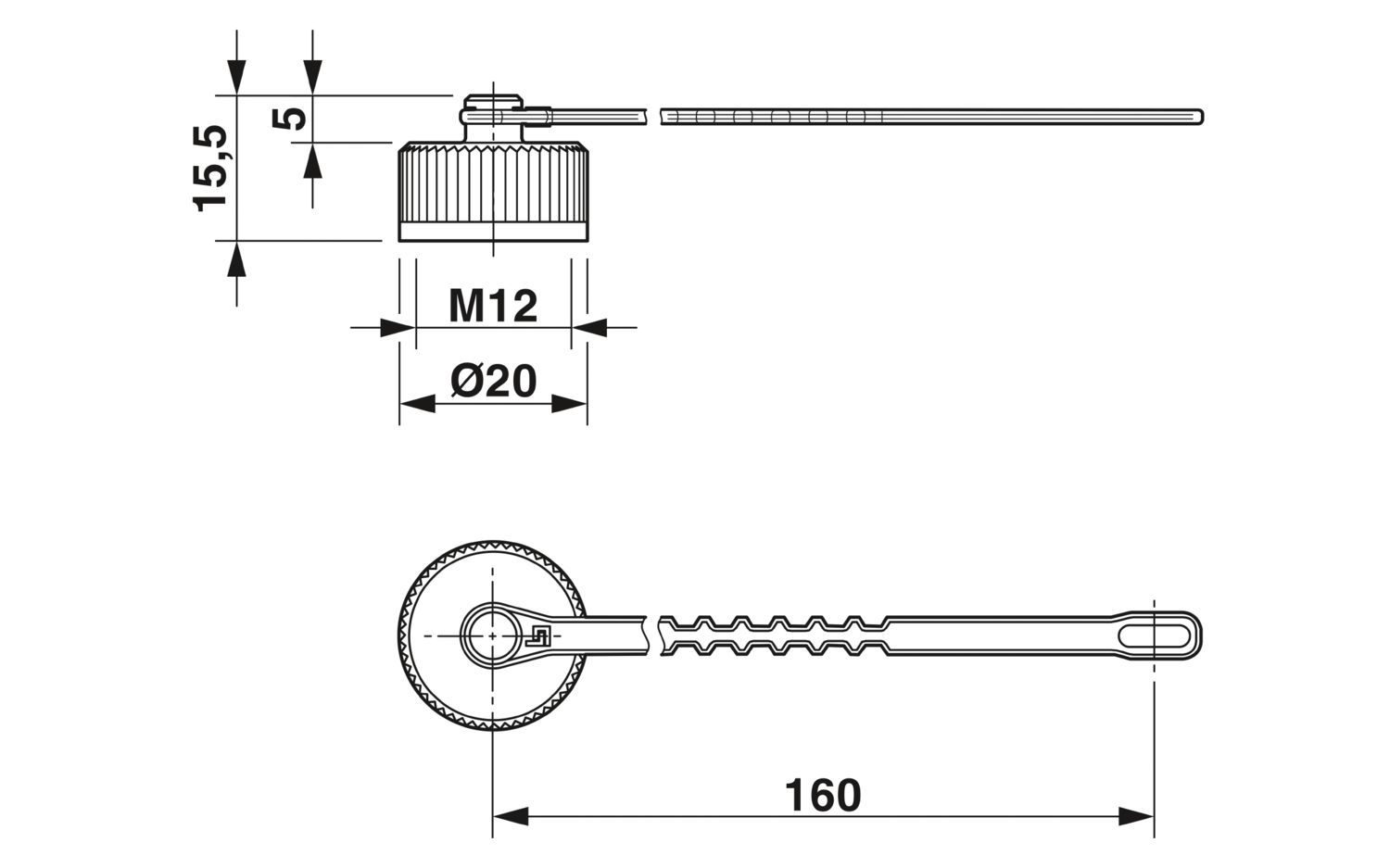

| Dimensional drawing |
|
| Diameter | 20 mm |
| Material | PA 6.6 GF |
| (Holding band) | |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) (male connector/female connector) | -25 °C ... 85 °C |
