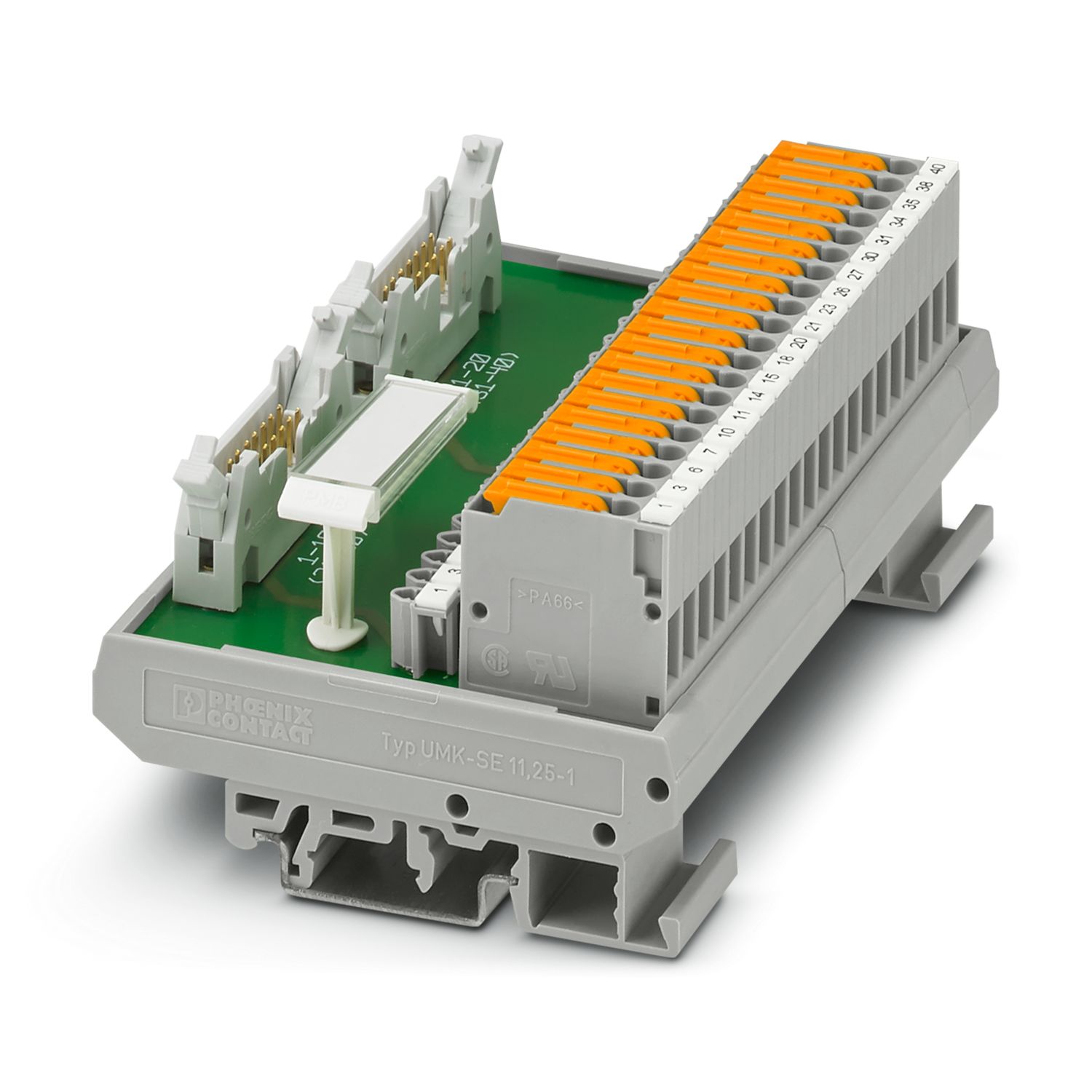

FLKM-2FLK14/KDS3-MT/PPA/SC034 - Termination board

FLKM-2FLK14/KDS3-MT/PPA/SC034 - Termination board

2902957

VARIOFACE termination board, for Siemens SIMATIC® S7-300, max. 16 channels with SIMATIC®-specific marking

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Interface module
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Electrical properties

Nominal voltage U_N	60 V DC
Max. current carrying capacity per branch	1 A
Max. total current of all branches	3 A
Air clearances and creepage distances
Rated insulation voltage	63 V
Rated surge voltage	0.6 kV

Connection data

Field level
Connection method	Screw connection with disconnect knife
Number of positions	20
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	IDC/FLK socket strip
Number of connections	2
Number of positions	14

Signaling

Status display present	no

Dimensions

Item dimensions
Width	113 mm
Height	77 mm
Depth	52.46 mm

Material specifications

Color	gray (RAL 7042)

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-20 °C ... 50 °C

Standards and regulations

Air clearances and creepage distances
Standards/regulations	DIN EN 50178: 1998-04

Mounting

Mounting type	DIN rail mounting
Mounting position	any

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2902957
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK2A81
Product key	DK2A81
GTIN	4046356701266
Weight per piece (including packing)	275 g
Weight per piece (excluding packing)	120 g
Customs tariff number	85369010
Country of origin	DE

Classifications

ETIM

ETIM 8.0

EC002780

UNSPSC

UNSPSC 21.0

39121400

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
