OTTA 6 PH2 - Bolt connection terminal block - 0713119

Product type	Bolt connection terminal block
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV

Number of connections per level	2
Nominal cross section	6 mm²
1 level
Connection method	Bolt connection
Stripping length	The stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standard	IEC 60947-7-1
Nominal current	41 A
Maximum load current	41 A (with 6 mm² conductor cross-section)
Nominal voltage	800 V (the nominal voltage applies to insulated cable lugs)
Nominal cross section	6 mm²
Cable lug connection DIN 46234:1980-03
Connection in acc. with standard	DIN 46234:1980-03
Cross section	0.1 mm² ... 6 mm²
Cross section range AWG	24 ... 10 (converted acc. to IEC)
Hole diameter	4.3 mm
Width	9.6 mm
Bolt diameter	4 mm
Screw thread	M4
Tightening torque	1.5 ... 1.8 Nm
Identification color of ring cable lugs : red	1.5 mm²
Identification color of ring cable lugs : blue	2.5 mm²
Identification color of ring cable lugs : yellow	6 mm²
Connection in acc. with standard	DIN 46237:1970-07
Cross section	0.5 mm² ... 2.5 mm²
Cross section range AWG	20 ... 14 (converted acc. to IEC)
Hole diameter	4.3 mm
Width	9.6 mm
Bolt diameter	4 mm
Screw thread	M4
Tightening torque	1.5 ... 1.8 Nm

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 6 mm²	0.72 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2 kV
Result	Test passed

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Test force setpoint	5 N
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed

Mounting type	NS 32
		NS 35/7,5
		NS 35/15

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

OTTA 6 PH2 - Bolt connection terminal block

0713119

Product details

Compatible products

Item number	0713119
Packing unit	50 pc
Minimum order quantity	1 pc
Sales key	BE4513
Product key	BE4513
GTIN	4046356013321
Weight per piece (including packing)	22.773 g
Weight per piece (excluding packing)	22.773 g
Customs tariff number	85369010
Country of origin	IN

Width	11 mm
End cover width	1.5 mm

Mechanical data
Open side panel	Yes

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

OTTA 6 PH2 - Bolt connection terminal block 0713119

Product details

Compatible products

EB 2-OTTA 6 - Insertion bridge 0790608

EB 3-OTTA 6 - Insertion bridge 3026036

EB 4-OTTA 6 - Insertion bridge 3026049

EB 5-OTTA 6 - Insertion bridge 3026050

EB 7-OTTA 6 - Insertion bridge 3026052

EB 10- OTTA 6 - Insertion bridge 0790420

D-OTTA 6 - End cover 0790417

ATP-OTTA 6 - Partition plate 0790475

SZK PH2 VDE - Screwdriver 1205163

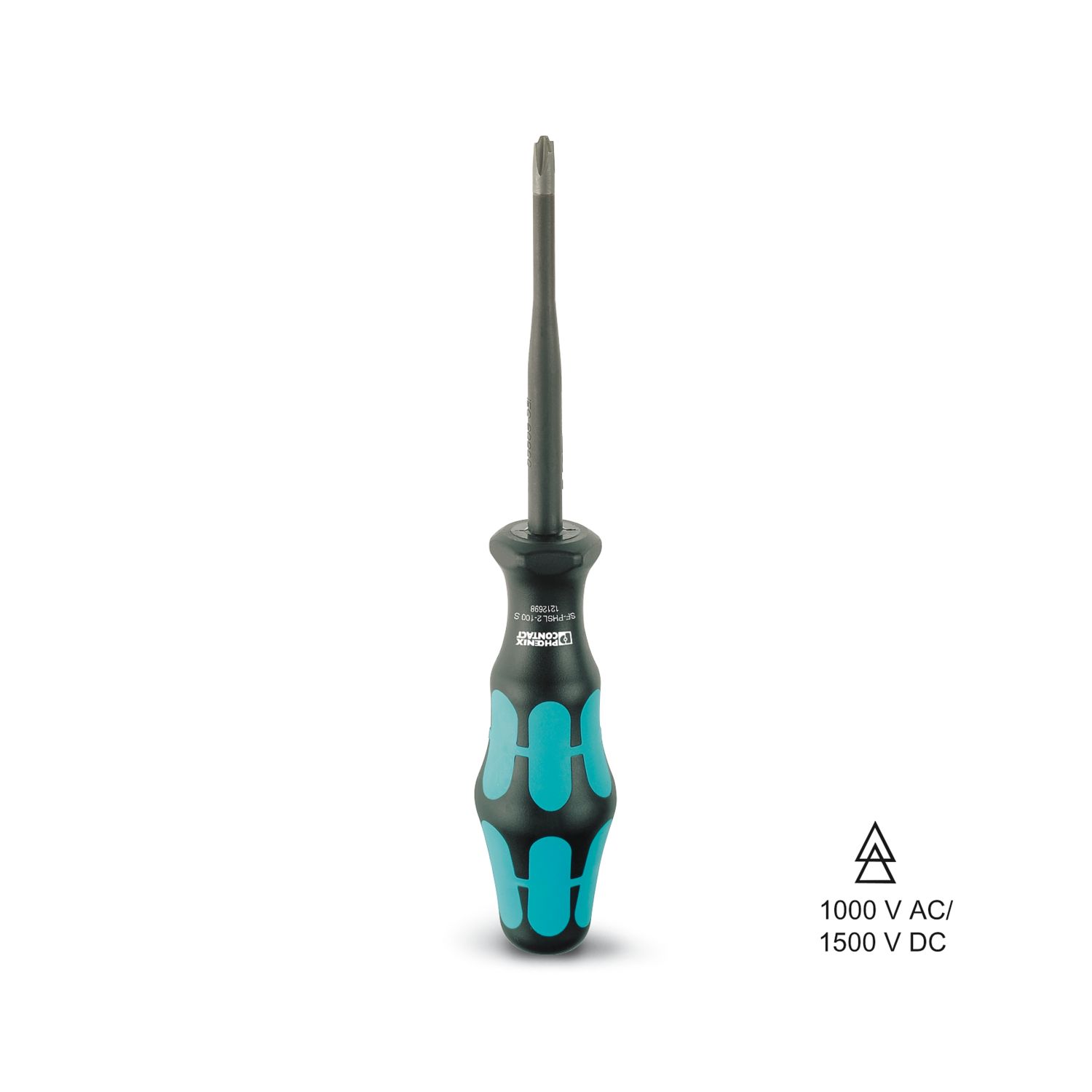

SF-PHSL 2-100 VDE - Screwdriver 1212288
