Assigning a Device Name

What you will find in this section:

  1. Assigning a device name
  2. Related topics



Assigning a device name

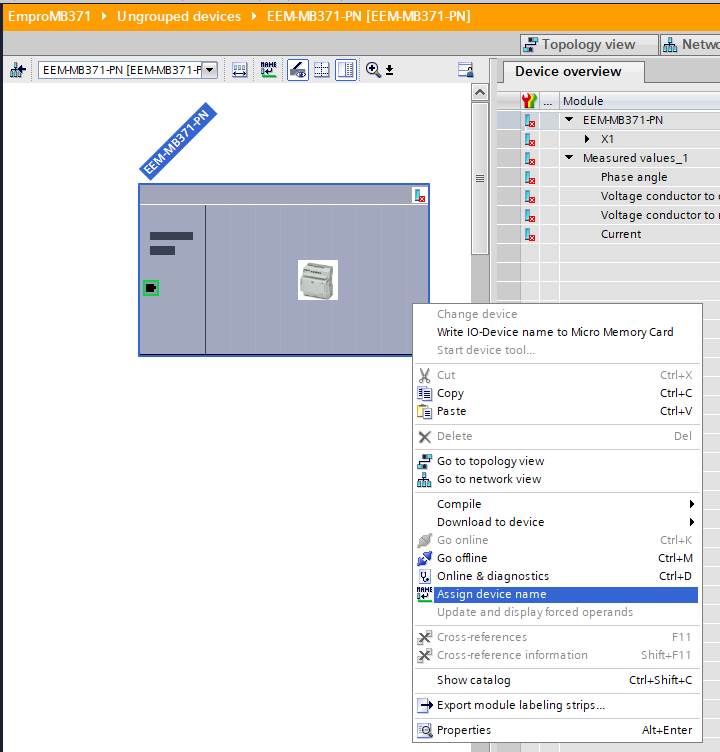

  1. Right-click on the device to which you want to assign a name.
  2. Select “Assign device name”.



“Assign device name”
“Assign device name”

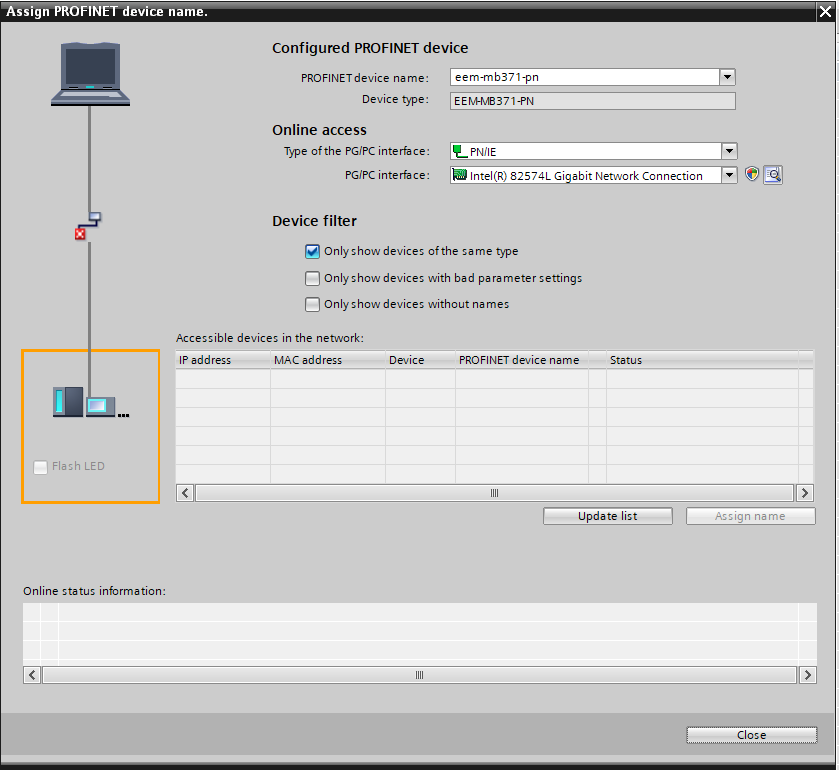

  1. Click “Update list”.



“Update list”
“Update list”

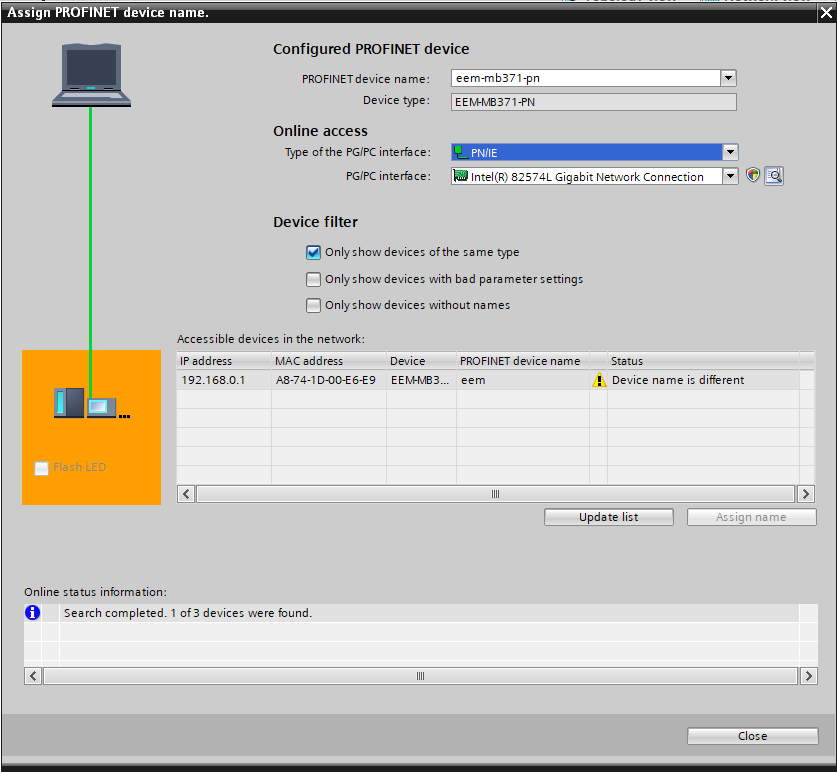

  1. Select the device from the table.
  2. Click “Assign name”.



“Assign name”
“Assign name”

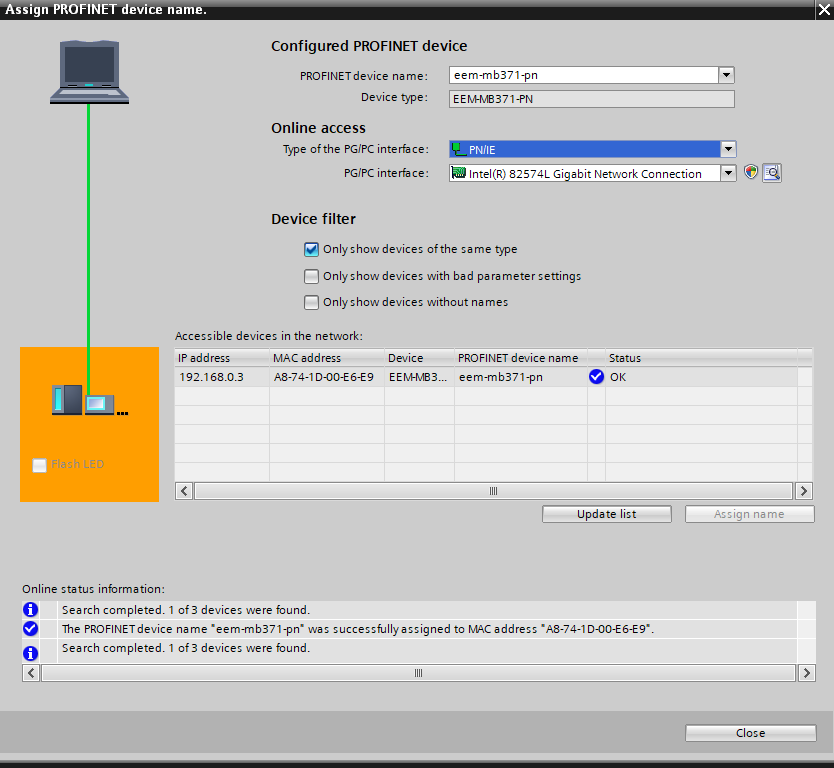

The device name has been assigned successfully.



Assigning a PROFINET device name
Assigning a PROFINET device name

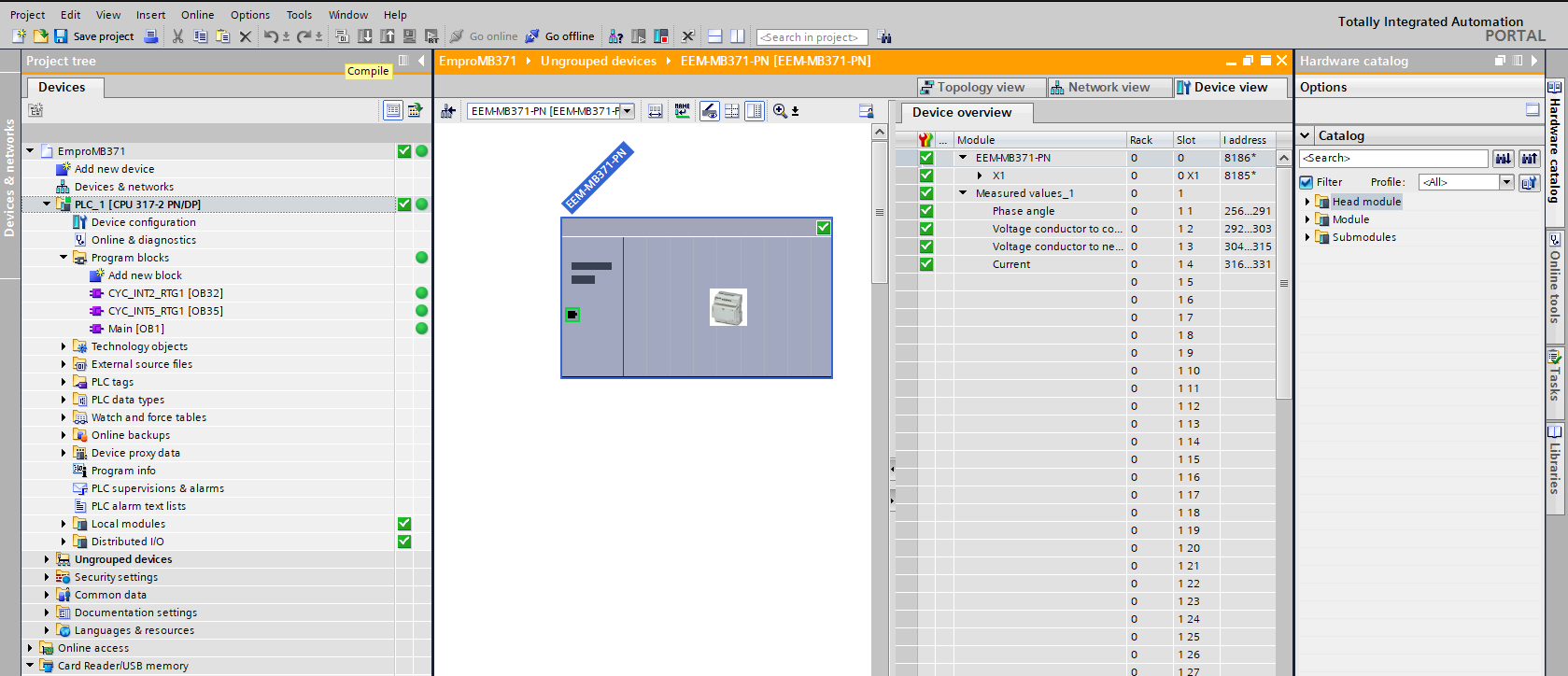

Assigning a PROFINET device name_2
Assigning a PROFINET device name



  1. Software
  2. Preparing the GSDML file
  3. Integrating the GSDML file
  4. Integrating hardware
  5. Integrating modules and submodules
  6. Linking process data
  7. Function check
