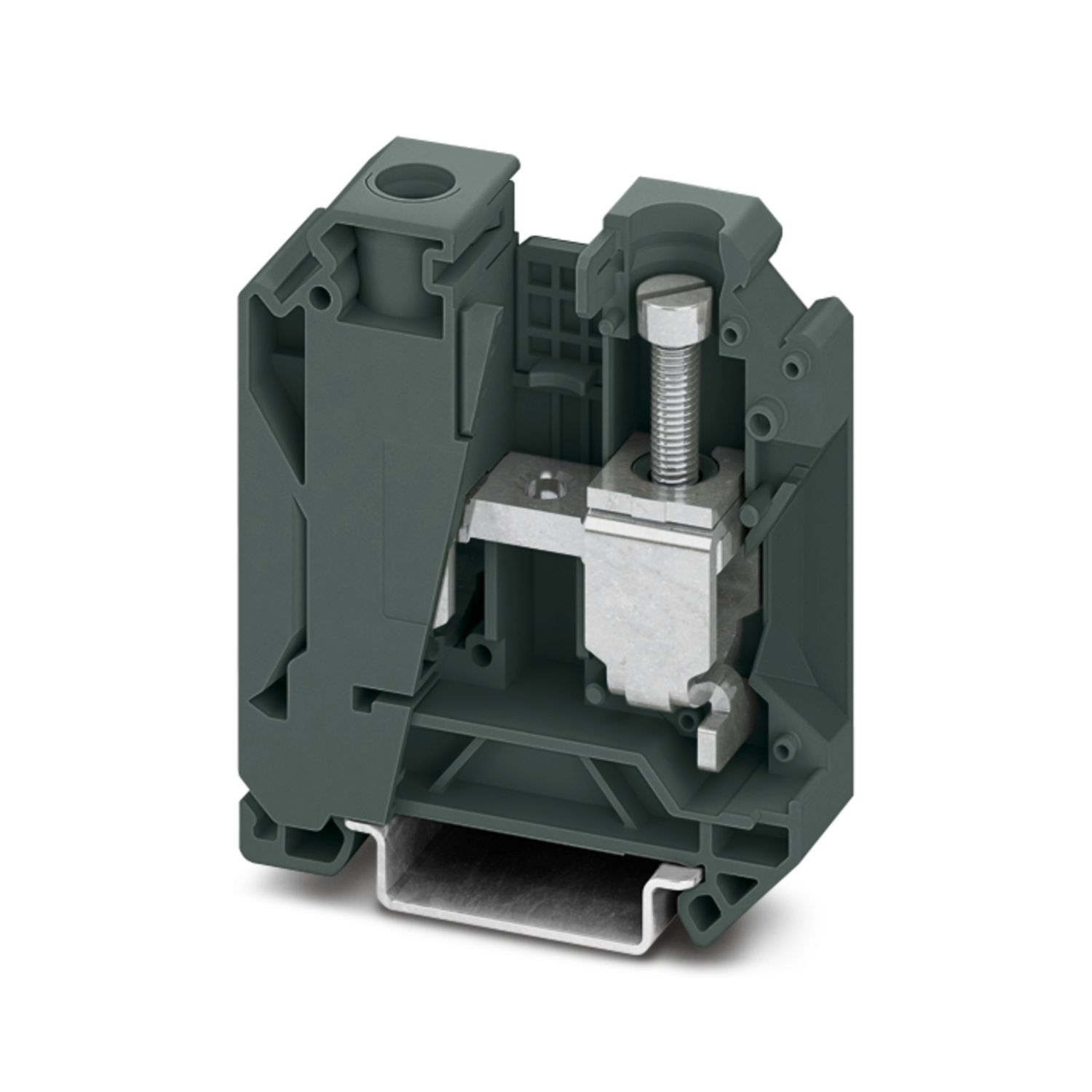

TB 35 ECH - Feed-through terminal block

3233036

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 35 mm², cross section: 10 mm² - 50 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: dark gray

Product details

Product type	Feed-through terminal block
Product family	TB
Number of positions	1
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	4.06 W

Number of connections per level	2
Nominal cross section	35 mm²
Screw thread	M6
Tightening torque	3.2 ... 3.7 Nm
Stripping length	16 mm
Internal cylindrical gage	A8
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	10 mm² ... 50 mm²
Cross section AWG	6 ... 2 (converted acc. to IEC)
Conductor cross section flexible	10 mm² ... 35 mm²
Conductor cross section, flexible [AWG]	6 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	10 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	10 mm² ... 35 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)	6 mm² ... 10 mm²
2 conductors with same cross section, solid	6 mm² ... 16 mm²
2 conductors with same cross section, flexible	6 mm² ... 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	6 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	6 mm² ... 6 mm²
Nominal current	125 A
Maximum load current	125 A (with 35 mm² conductor cross section)
Nominal voltage	1000 V
Nominal cross section	35 mm²

Width	15.2 mm
Height	54.4 mm
Depth on NS 32	67.1 mm
Depth on NS 35/7,5	62.1 mm
Depth on NS 35/15	69.6 mm

Color	traffic grey B (RAL 7043)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 35 mm²	4.2 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2.2 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Test force setpoint	10 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 (+/- 2) rpm
Revolutions	135
Conductor cross section/weight	10 mm² / 2 kg
	35 mm² / 6.8 kg
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15
	NS 32

Commercial data

Item number	3233036
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BEK211
Product key	BEK211
GTIN	4046356328647
Weight per piece (including packing)	53.444 g
Weight per piece (excluding packing)	53.444 g
Customs tariff number	85369010
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	115 A	8 - 2
Use group C
	600 V	115 A	8 - 2

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TB 35 ECH - Feed-through terminal block

3233036

Product details

ECLASS

ETIM

UNSPSC

cULus Recognized

Compatible products

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TB 35 ECH - Feed-through terminal block 3233036

Product details

ECLASS

ETIM

UNSPSC

Compatible products

D-TB 16 E - End cover 5793004

TPS 6/5/6 - Test plug strip 3246256

NS 32 PERF 2000MM-VPE 10 - DIN rail perforated 1201002

NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1201015

NS 35/ 7,5 PERF 2000MM - DIN rail perforated 0801733

NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated 0801681

NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated 1204119

NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1204122

NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated 0801704

NS 35/ 7,5 ZN PERF 2000MM - DIN rail perforated 1206421

NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated 1206434

NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated 0801762

NS 35/ 7,5 CAP - End cap 1206560

NS 35/15 PERF 2000MM - DIN rail perforated 1201730

NS 35/15 UNPERF 2000MM - DIN rail, unperforated 1201714

NS 35/15 WH PERF 2000MM - DIN rail perforated 0806602

NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1204135

NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated 1201756

NS 35/15 ZN PERF 2000MM - DIN rail perforated 1206599

NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated 1206586

NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1201895

NS 35/15 CAP - End cap 1206573

NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1201798

ZB 15:UNBEDRUCKT - Zack marker strip 0811972

ZB 15 CUS - Zack marker strip 0824945

ZB 15,LGS:L1-N,PE - Zack marker strip 0811998

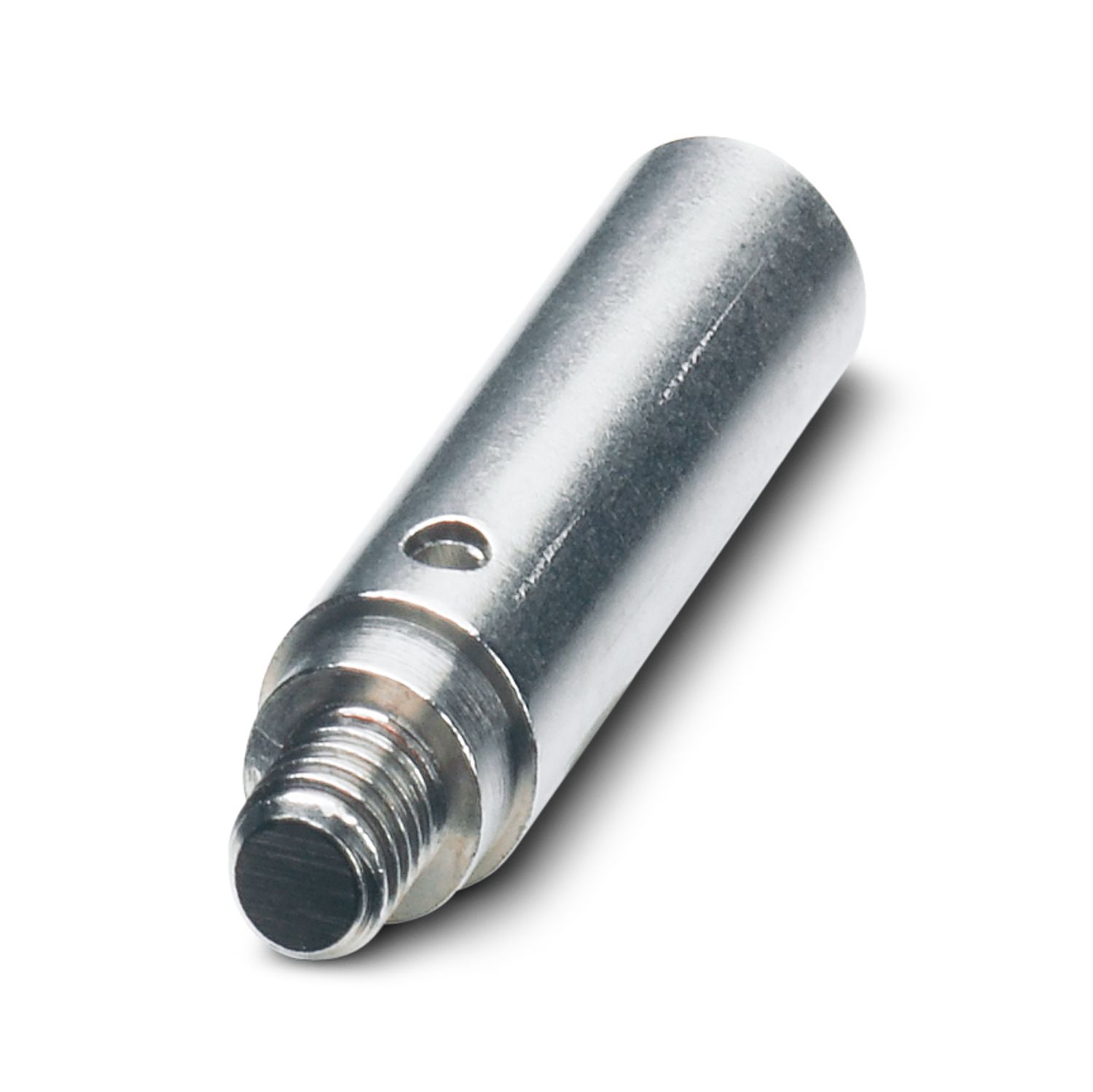

PS-MT - Test plug 0311647
