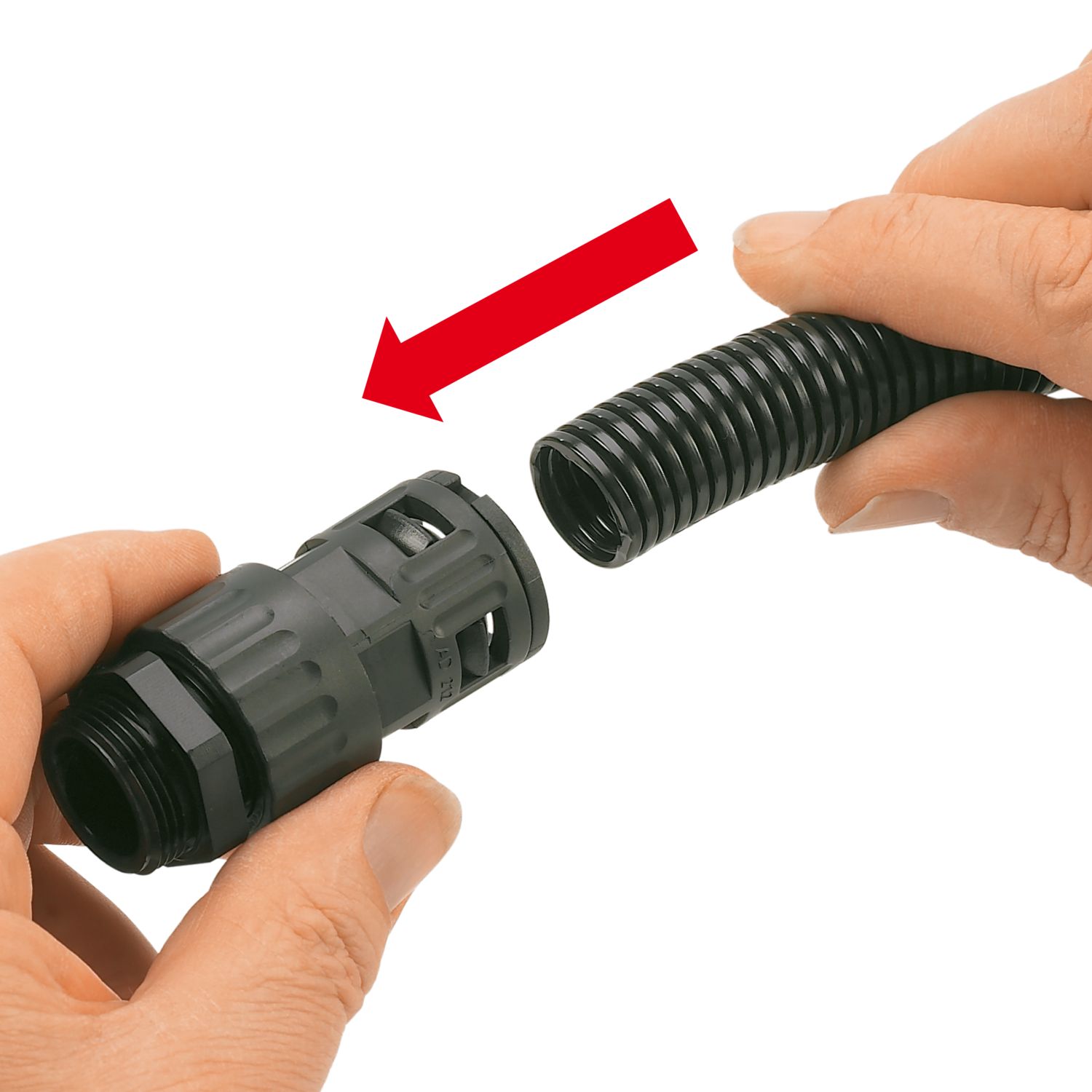

WP-GR HF IP69K PG11 BK - Protective hose screw connection
WP-GR HF IP69K PG11 BK
-
Protective hose screw connection
3240932
Cable gland, Pg thread, IP68/69k protection, with strain relief
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Protective hose screw connection
Application
Cable gland
Type of the screw connection
Conduit adapter
Type
Outer thread
Cable outlet
straight
Thread type
Pg
Dimensions
Width
23 mm
Height
59 mm
Wrench size
21 mm
Wrench size for mounting
21 mm
22 mm
Material specifications
Material
PA 6
Flammability rating according to UL 94
V2
Material for screw connection
PA
Components
free from silicone, halogen, and cadmium
Cable/line
Halogen-free
yes
Mechanical properties
Mechanical data
Type of the screw connection
Conduit adapter
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP68
IP69K
Ambient temperature (operation)
-40 °C ... 120 °C
Commercial data
Item number
3240932
Packing unit
20 pc
Minimum order quantity
20 pc
Sales key
B1 - Marking Assembly
Product key
AF7DSA
Catalog page
Page 591 (C-3-2019)
GTIN
4046356710398
Weight per piece (including packing)
13,88 g
Weight per piece (excluding packing)
13,88 g
Customs tariff number
39174000
Country of origin
DE
Classifications
ECLASS
ECLASS-13.0
27430311
ETIM
ETIM 9.0
EC001178
UNSPSC
UNSPSC 21.0
39121300
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
WP-PA HF 15,8 BK
-
Protective hose
3240682
WP-PA HF-HB 15,8 BK
-
Protective hose
3240840
A-INL-PG11-P-BK
-
Counter nut
1424560
