HSCH-S 1,5-6 POWER-9005 - PCB header

1633999

PCB headers, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 300 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 2, number of positions: 6, number of connections: 6, pitch: 5.08 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, number of solder pins per potential: 1, plug-in system: HSCH-S 1,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: packed in cardboard

This product needs further products for operation. Mandatory accessories

Product type	PCB headers
Product family	HSCH-S 1,5/..-G
Number of positions	6
Pitch	5.08 mm
Number of connections	6
Number of rows	2
Number of potentials	6
Pin layout	Linear pinning
Solder pins per potential	1

Properties
Nominal current I_N	8 A
Nominal voltage U_N	200 V
Contact resistance	2.39 mΩ
Rated surge voltage (III/3)	2 kV
Rated voltage (III/2)	300 V
Rated surge voltage (III/2)	2 kV

Mounting type	THR soldering / wave soldering
Pin layout	Linear pinning
Processing notes
Moisture Sensitive Level	MSL 1
Classification temperature T_c	260 °C
Solder cycles in the reflow	3

Material data - contact
Note	WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material	Cu alloy
Surface characteristics	Tin-plated
Metal surface soldering area (top layer)	Tin (4 - 8 µm Sn)
Metal surface soldering area (middle layer)	Nickel (1.5 - 4 µm Ni)
Material data - housing
Color (Housing)	black (9005)
Insulating material	PA
Flammability rating according to UL 94	V0

Assembly note	Please observe the application note in the download area.
Safety note
Safety note	WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
	• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
	• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
	• The item is intended to be an unencapsulated plug for installation in a housing.
	• Operate the connector only when it is fully plugged in.

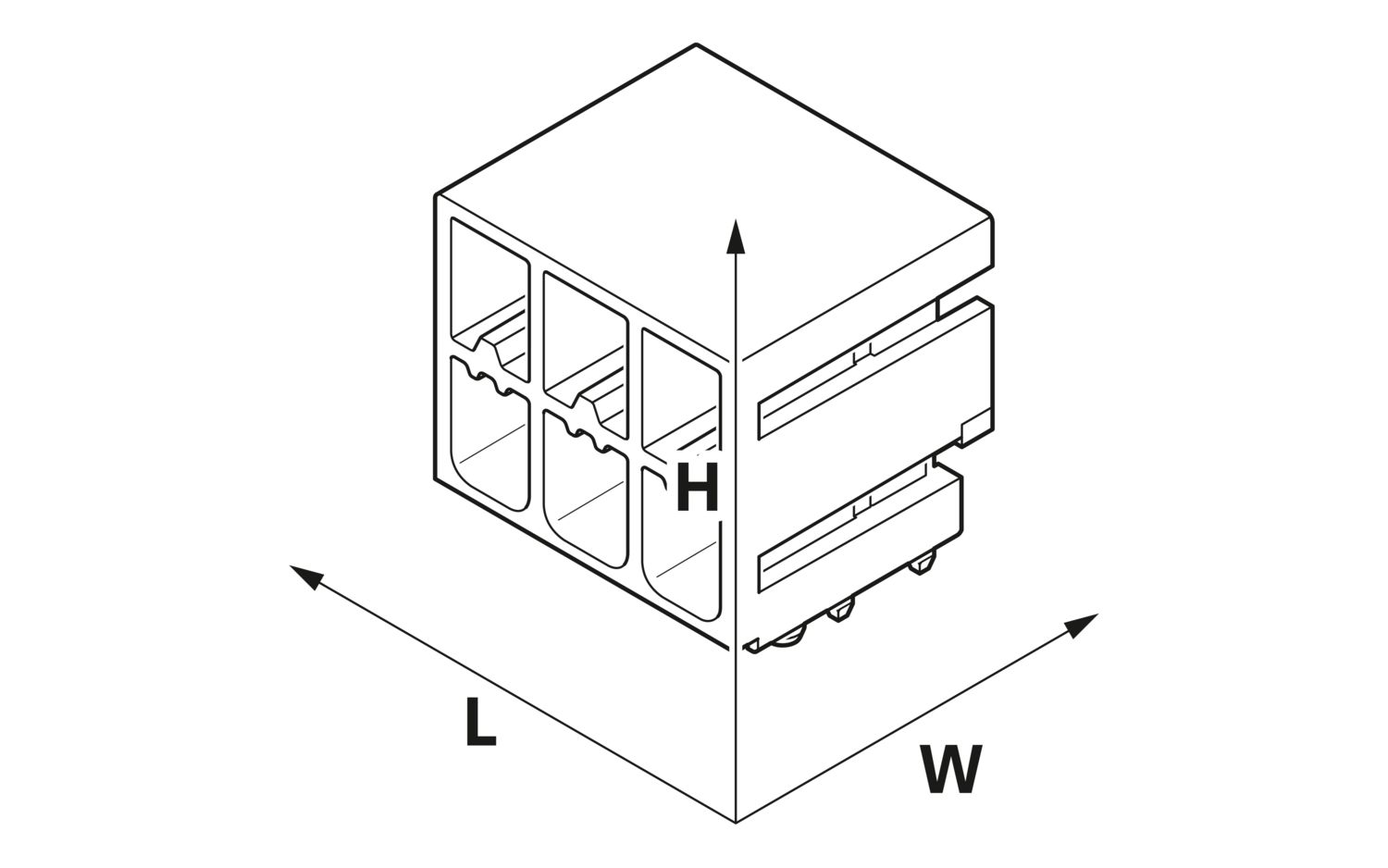

Pitch	5.08 mm
Width [w]	15.46 mm
Height [h]	13.55 mm
Length [l]	13.3 mm

Visual inspection
Specification	IEC 60512-1-1:2002-02
Result	Test passed
Dimension check
Specification	IEC 60512-1-2:2002-02
Result	Test passed
Polarization and coding
Specification	IEC 60512-13-5:2006-02
Result	Test passed
Contact holder in insert
Specification	IEC 60512-15-1:2008-05
Contact holder in insert Requirements >20 N	Test passed
Insertion and withdrawal forces
Result	Test passed
No. of cycles	25
Insertion strength per pos. approx.	6 N
Withdraw strength per pos. approx.	3 N

Thermal test \| Test group C
Specification	IEC 60512-5-1:2002-02
Tested number of positions	6
Insulation resistance
Specification	IEC 61984:2008-10
Insulation resistance, neighboring positions	>1 GΩ
Air clearances and creepage distances \|
Rated surge voltage (III/3)	2 kV
Rated insulation voltage (III/2)	300 V
Rated surge voltage (III/2)	2 kV

Vibration test
Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.35 mm (10 Hz ... 60.1 Hz)
Acceleration	5g (60.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Durability test
Specification	IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level	4.8 kV
Contact resistance R₁	2.39 mΩ
Contact resistance R₂	2.43 mΩ
Insertion/withdrawal cycles	25
Climatic test
Specification	EN ISO 22479:2022-06
Corrosive stress	0.2 dm³SO₂on 300 dm³/40 °C/1 cycle
Thermal stress	105 °C/168 h
Power-frequency withstand voltage	2.21 kV
Glow-wire test
Specification	IEC 60695-2-11:2021-10
Temperature	650 °C
Time of exposure	30 s
Ambient conditions
Ambient temperature (operation)	-40 °C ... 70 °C (dependent on the derating curve)
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Ambient temperature (assembly)	-5 °C ... 100 °C

Type of packaging	packed in cardboard
Outer packaging type	Carton

Item number	1633999
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	F1 - Electronic Housing
Product key	ACHEBF
GTIN	4067923155664
Weight per piece (including packing)	2,75 g
Weight per piece (excluding packing)	2 g
Customs tariff number	85366930
Country of origin	CN

Compatible products

Mandatory accessories

Accessories

Your advantages

For front connection plugs with tool-free, time saving Push-in connection

Suitable for mounting using wave soldering processes and through-hole reflow soldering technology (THR)

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
